Ink Attritor

Introduction

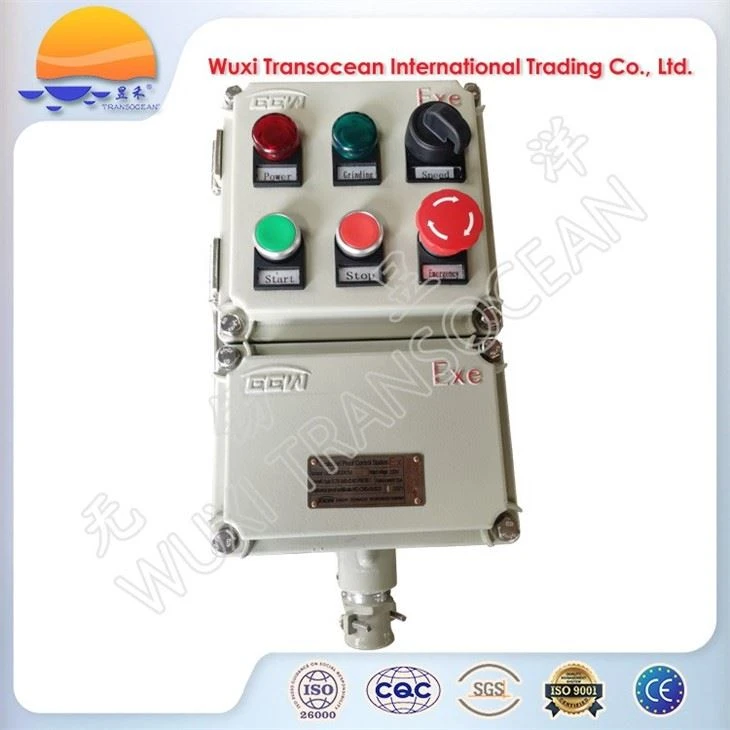

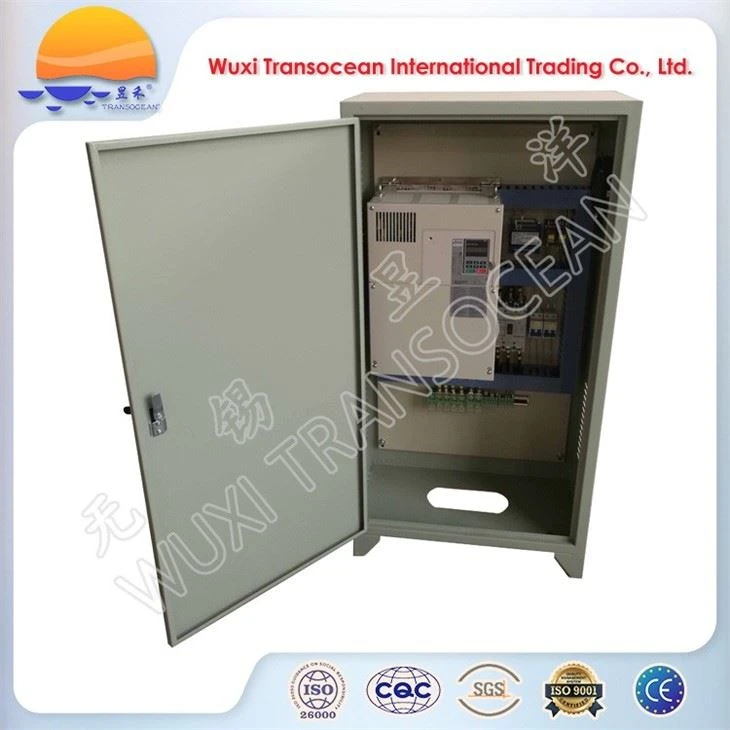

An ink attritor is a vertical agitator mill, which is suitable for wet mixing and grinding in the production of photosensitive ink, UV ink, color paste, coating, ceramic, etc. It is composed of the geared motor, framework, grinding chamber, agitator shaft with stirring rods, electric cabinet, and explosion-proof control panel. The agitator shaft is connected to the geared motor via a coupling. The rotating speed of the agitator shaft is regulated by the Yaskawa vector inverter. A pair of movable semi-circular lids is supplied on top of the grinding chamber.

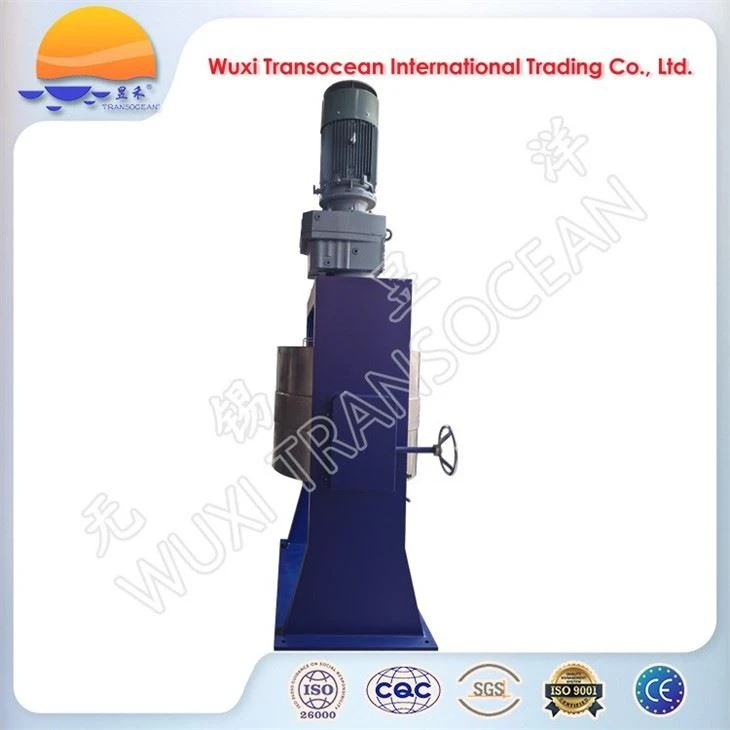

Raw materials are loaded from the top of the grinding chamber and are sheared and ground by the grinding balls, stirred by the stirring rods. After the product fineness reaches the required value, the grinding chamber can be tilted at a certain angle with a screw rotating mechanism driven by the handle, so that the insulation ball valve, eccentrically installed at the bottom of the grinding chamber, can be located at the lowest point of the chamber for easy draining.

Features

●Framework is coated with heavy-duty anti-corrosion paint.

●Stirring rods made of quenched and tempered high-hardness alloy.

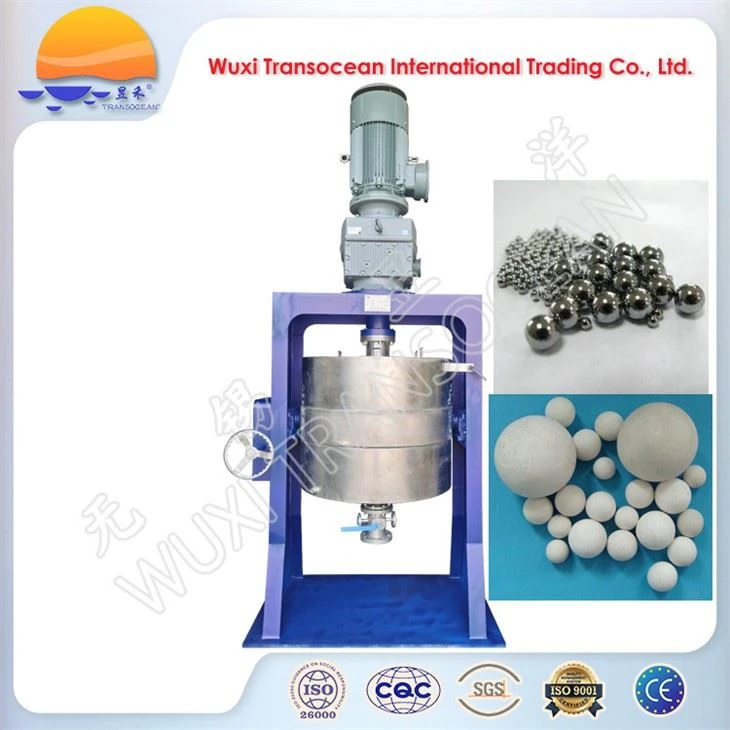

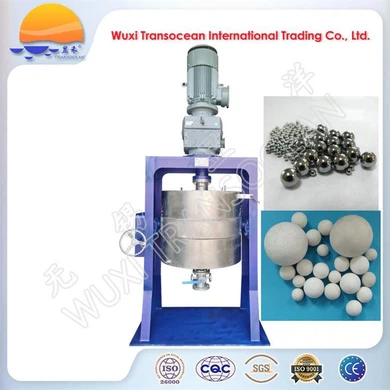

●Steel balls, alumina balls, zirconia balls and zirconium silicate at different diameters are available as an option for different applications.

●The gearbox is adopted for the drive of the stirring rods. which performs much more reliably than a worm gear reducer and a cycloid reducer, and there will not be oil leaking to pollute the products.

●The insulation jacket is supplied outside the grinding chamber and the discharge valve.

● The interior of the SS304 jacketed grinding chamber is mirror-polished.

Advantages

●The vector frequency converter provides constant torque for the stirring shaft and outputs more abundant power.

●The framework can withstand the common solvents.

●The stirring rods can withstand the fierce click from the grinding balls.

●The gearbox performs much more reliably than a worm gear reducer and a cycloid reducer, and protects the products from pollution of gear oil.

●The heating media in the insulation jacket prevent the materials from solidifying.

●Less residual products in the grinding chamber.

FAQ

1. Q: What is your minimum order quantity? Can you send me samples?

A: Our Min. OQ is 1 set. As our products are machines, it's hard to provide samples. Instead, we would provide our catalog, and you are also to visit our factories.

2. Q: What certificates are available for your products?

A: CE and SGS certificates.

3. Q: What is the delivery time of your machine?

A: Mostly, our machines can be delivered within 30 days after receipt of the down payment for the order, conditioned that all the technical specifications and requirements have been confirmed by the customers on time. The delivery time of some customized machines may be extended according to our negotiation with the customer.
