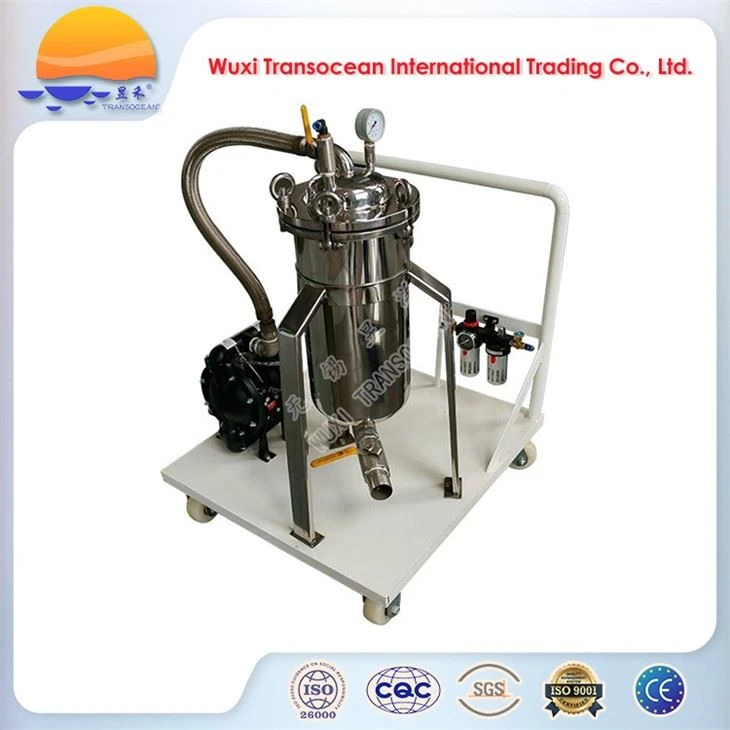

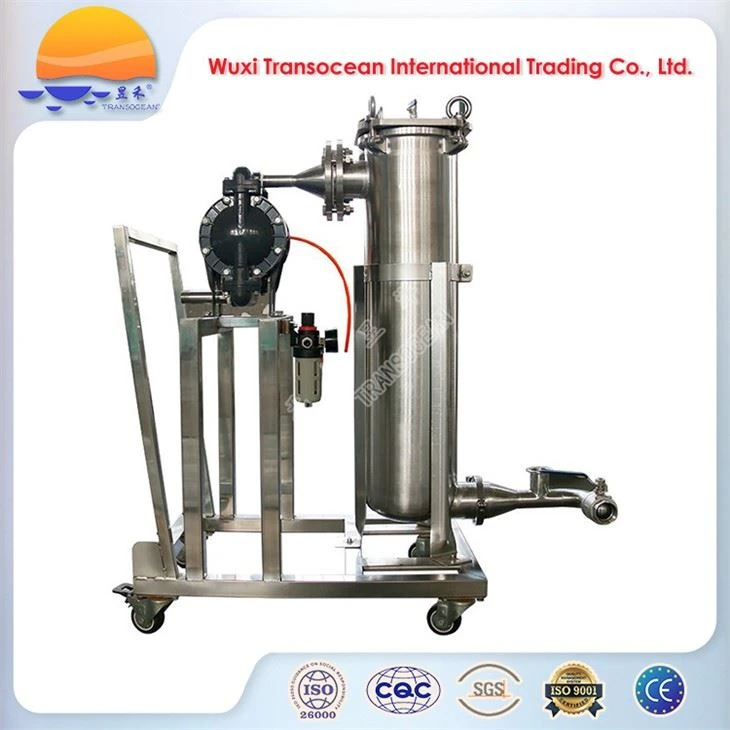

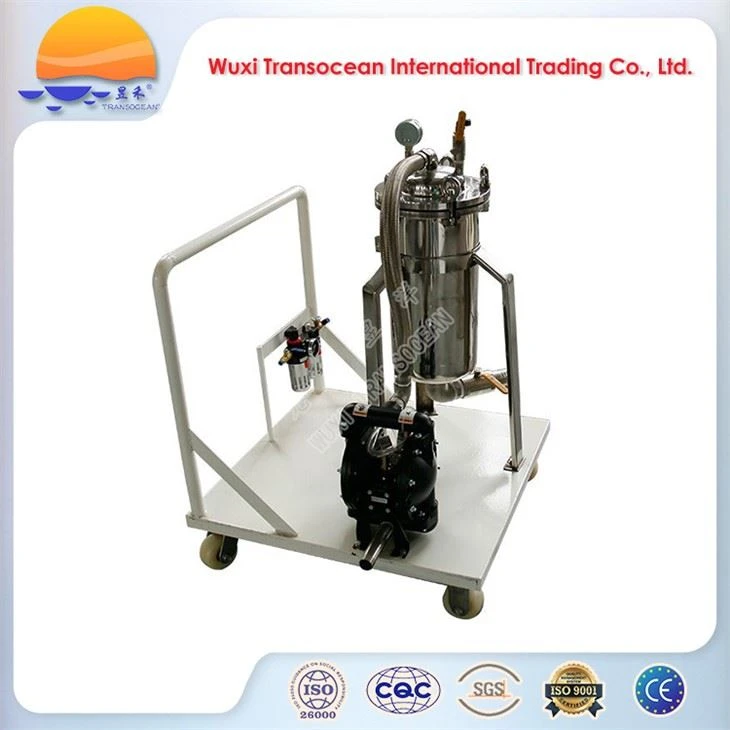

DL Series Bag Filter
Product Details
Introduction:
The DL series bag filter is a pressure filtering device which is suitable for separation of solids from liquids. The filter is mainly composed of a feed pump with tube, a filter cartridge, a filter bag and the support skeleton for the filter bag. The filtrate is pumped into the filter bag from the feeding port on the top cover by a feeding pump. The filter bag is backed with a stainless steel support skeleton, which is inserted in the filter cartridge. The top cover is locked at the upper flange of the filter cartridge by four sets of rocker ring bolts. The joint surface between the top cover and the filter cartridge flange is sealed with a O-ring, so that the filter can withstand extremely high filtering pressure and water hammer pressure impact. The qualified products are discharged from the discharge port, while the particle impurities in the filtrate are retrained when the filtrate flows through the filter bag with the required fineness. Almost no products are lost in the filtration process. The filter bag and support skeleton are easy to remove for cleaning. A manometer is supplied on the top cover to monitor the working pressure in the filter cartridge. 1 ~ 3 bar is recommended as the ideal working pressure. 4+ bar means the filter bag is severely blocked, and therefore the filter should be stopped for inspection. On the top of the cover there is a pressure relief valve which should be opened for maintenance. Do not open the cover to clean up the impurities on the filter bag, support skeleton and filter cartridge until the manometer reading reaches zero. After the cleaning is completed, the filter must be reassembled and then resume work. In the case of sudden pressure drop the filter have to be stopped immediately to check leaks on the filter.
Applications:
Bag filters are widely used to filter impurities in the following materials: paint, ink, beer, vegetable oil, milk, fruit juice, sugar water, mineral water, medicine, chemicals, cosmetics, petroleum products, photosensitive chemicals, plating solutions, Chemical solvents, latex, industrial water, industrial wastewater, resin, etc.
Features:
● Compact structure
● Closed filtration chamber
● Large capacity of waste
● Versatile
● Flexible Installation
● No leakage
● Filter bag can be repeatedly cleaned and reused
Advantages:
● Environmentally friendly
● High processing capacity
● Low filtration resistance
● Great filtering effect
● Easy and quick to replace the filter bag
● High energy efficiency.
● Perfect filtering accuracy, up to 0.5um
Benefits for you:
● Excellent products
● Low operating costs
● Reduce investment in equipment and plant
Technical specifications:
Model | DL-0.25 | DL-0.5 | DL-1 | DL-2 |
Effective filtering area (m2) | 0.25 | 0.5 | 1 | 2 |
Dia. of inlet (mm) | 40 | 40 | 80 | 80 |
Max. flow rate (m3/h) | 18 | 36 | 70 | 140 |
Max. working pressure (bar) | 5 | |||
Max. working temperature (℃) | 150 | |||
Nominal filtering accuracy (μm) | 1, 3, 5, 10, 15, 25, 40, 50, 65, 75, 80, 100 ~ 1200 | |||
Our services
Free original/ electronic documents for consignee’s custom clearance and picking up cargo
Free professional operation instruction and guidance for the ordered equipment online
Free after-sales service online within 24 working hours after receipt of customer’s request
Spare parts at favorable price all through the service life of our products
Special service upon customers’ request
FAQ
1.Q:Can the machine be customized as our need, such as put on our logo?
A: Yes. Customized products and services, as well as OEM are available.
2.Q:In view of that it takes a long time to transport the goods by sea, how to prevent all the goods from damage during transportation?
A: Our machines are wrapper with flexible film and packed with sea-worth wooden cases treated and marked in compliance with ISPM15, and shipped in containers.
3.Q:How can you solve the problems about the use of your productsencountered with by your overseas customers in time?
A:We will response within 24h after receiving the request from our customers. At first, we will discuss with our customers on line to diagnose the problem. If it is caused by improper operation we will guide our customers to operate the machine properly; if it is resulted from the quality defect on the working part or wearing of our machine we will deliver the spare parts by air/express ASAP for replacement and instruct our customers how to replace the defective part on line. If necessary, we will share a short video to demonstrate the replacement.One year warranty from the shipment date is provided for our machines.
