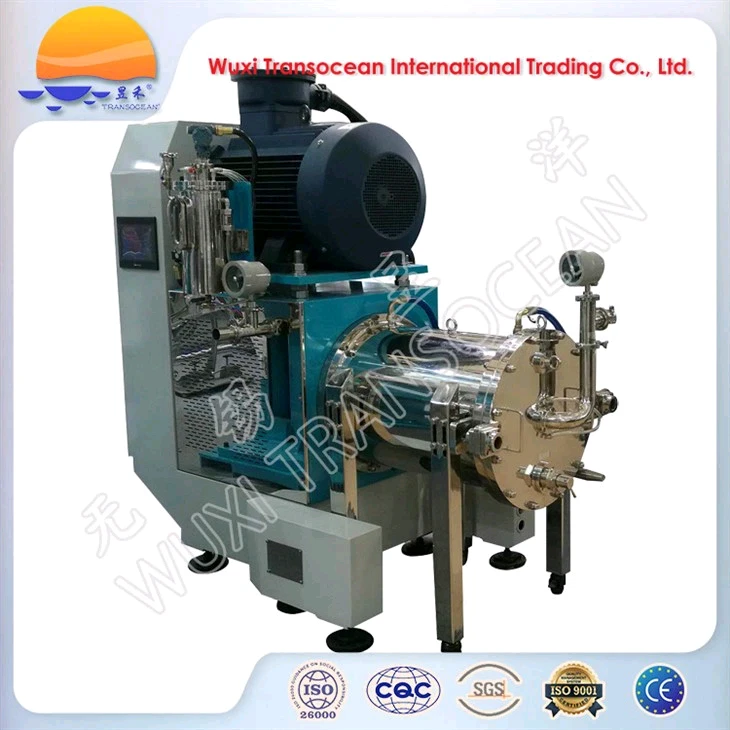

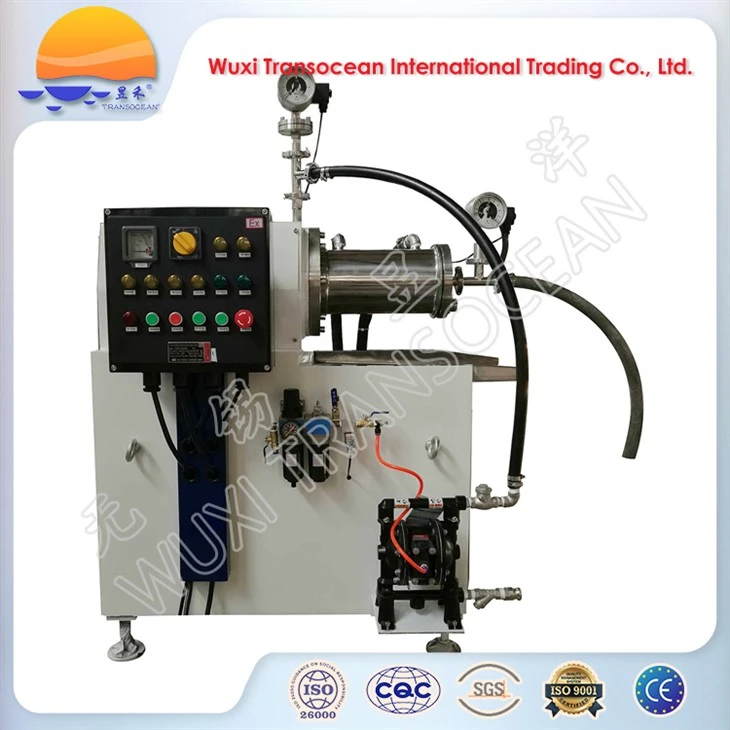

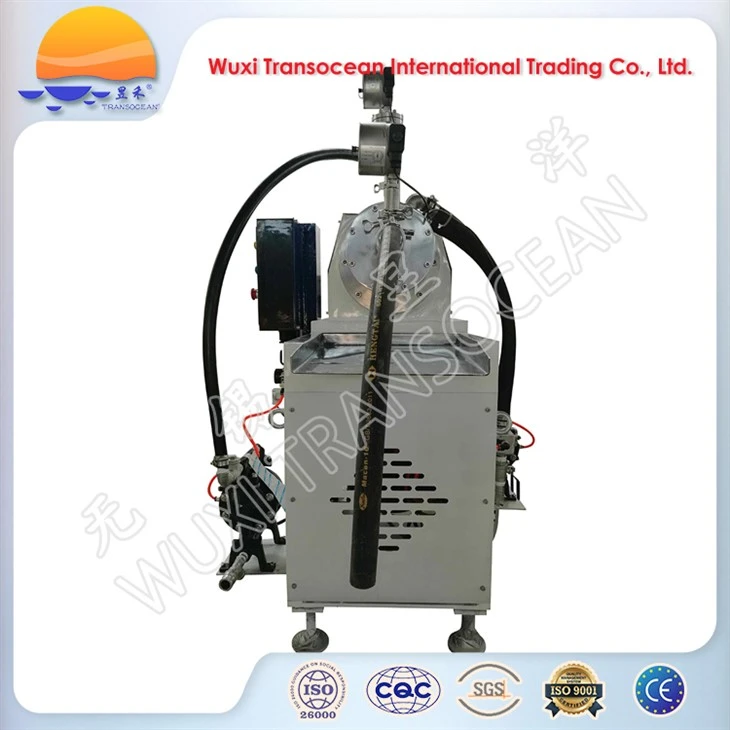

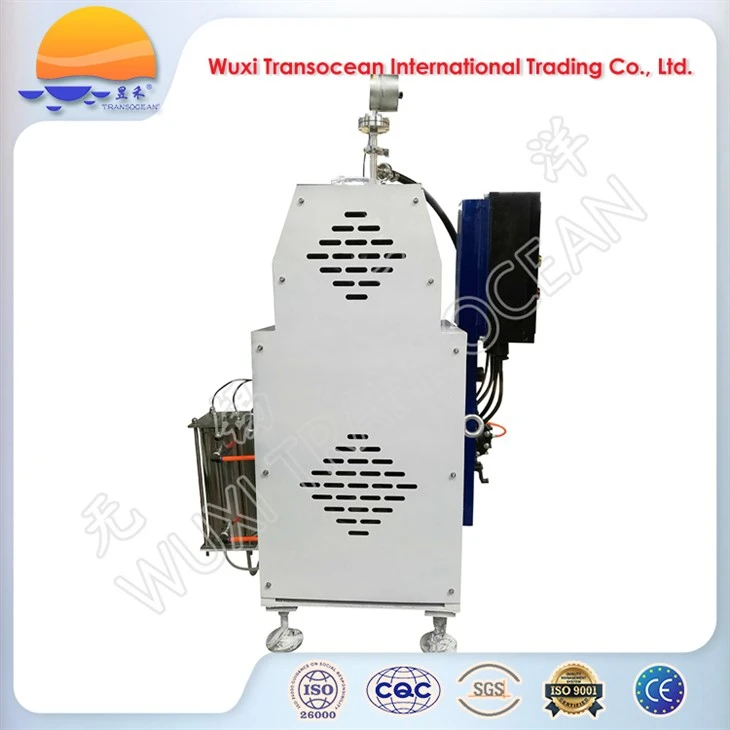

Horizontal Turbine Type Bead Mill
Product Details
Introduction
TWS series horizontal turbine type bead mills are agitator grinding equipment for ultra-fine processing of solids in liquids. The mills are suitable for grinding of the particle size range from 100 microns down to submicron (nanometer). Materials to process and grinding beads are subject to strong vortexes formed by the unique rotors in the grinding chamber without dead corner. High grinding efficiency is easy to achieve.
Applications
TRANSOCEAN® TWS series horizontal turbine type bead mills are agitator grinding equipment for ultra-fine processing of solids in liquids. The mills are suitable for grinding of the particle size range from 100 microns down to nanometer. Materials to process and grinding beads are subject to strong vortexes formed by the unique rotors in the grinding chamber without dead corner. High grinding efficiency is easy to achieve.
Features
● Turbine rotors create strong vortexes and provide high impact and shear to grinding media.
● Discharge mode of products: by dynamic separator cartridge
● A touch screen or a button type control panel is supplied for operation.
● Sealing mode of main shaft: double face mechanical seal
● Safety interlock is available.
● Comply with the European Machinery Directive of CE
Advantages
● Ultra-fine products up to nanometers
● Narrow particle size distribution
Technical specifications
| Model | TWS-5 | TWS-15 |
| Main Motor Power(KW) | 11 | 22 |
| Effective Grinding Chamber Volume(L) | 5 | 15 |
| Output Capacity(L/h) | 80~200 | 200~500 |
| Grinding media | φ0.4-1.2mm zirconia beads | |
| Material feeding pump | Diaphragm pump/ rotary pump | |
