Industrial Drying Equipment
Your Professional Industrial Drying Equipment Supplier!
Wuxi Transocean International Trading Co., Ltd. have been devoted to the R&D, manufacturing and sales of dosing systems, industrial mixing equipment, grinding equipment, filtration equipment and packaging equipment for more than ten years. We have two professional factories in Wuxi city and Jiangyin city, specializing in the R&D and manufacturing of related products, and have established friendly and cooperative relations with many domestic supporting product manufacturers. We mainly provide production equipment, packaging equipment such as dosing systems, grinding mills, high speed dispersers, mixers, homogenizers, filters, filling machines, and upstream and downstream supporting equipment, accessories and raw materials.
Why Choose Us
Professional Certification
We have passed the SGS China Supplier Audit, and our products have obtained CE certification, ensuring compliance with international quality and safety standards.
Wide Range of Applications
Our equipment is widely used in coatings, inks, dyes, adhesives, new energy batteries, agrochemicals, household chemicals, petrochemicals, and food industries—meeting diverse industrial production needs.
Professional Team
We have an experienced and technically sound R&D team, staffed by skilled industrial workers, equipped with comprehensive processing equipment, and supported by a professional international sales and service team that provides extensive technical support and operational assistance.
High-Quality Service
We provide professional pre-sales consulting to tailor optimal solutions for our customers. We track order fulfillment progress throughout the entire process to ensure timely and efficient delivery. We offer lifetime after-sales service and guarantee a 24-hour response to customer inquiries, ensuring prompt processing of customer needs.
Specification
|
S/N |
Model |
Parameter |
|||||||||
|
Evaporation area (M2) |
Working volume (M3) |
Drying capacity (KG/batch) |
Radiator area (M2) |
Steam consumption (KG/H) |
Electric heater power(KW) |
Air volume (M3/H) |
Fan power (KW) |
T difference in oven(℃) |
Outline dimension (L*W*H) |
||
|
1 |
RXH-7-B |
7.1 |
1.3 |
60 |
15 |
15 |
6-9 |
1417 |
1.1 |
±1 |
1050*1600*2100 |
|
2 |
RXH-14-A |
14.1 |
2.5 |
120 |
20 |
20 |
15 |
1417 |
1.1 |
±3 |
1050*2700*2430 |
|
3 |
RXH-14-B |
14.1 |
2.6 |
120 |
23 |
20 |
15 |
1417 |
1.1 |
±2 |
2430*1200*2430 |
|
4 |
RXH-27-B |
28.3 |
4.9 |
240 |
48 |
40 |
30 |
5230 |
1.1 |
±2 |
2430*2200*2625 |
|
5 |
RXH-41-B |
42.4 |
7.4 |
360 |
72 |
60 |
45 |
9800 |
2.2 |
±2 |
3420*2200*2670 |
|
6 |
RXH-54-B |
56.5 |
10.3 |
480 |
96 |
80 |
60 |
9800 |
2.2 |
±2 |
4360*2200*2670 |
|
7 |
RXH-7-C |
7.1 |
1.3 |
60 |
15 |
15 |
6-9 |
4510 |
0.45 |
±1 |
1350*1200*2160 |
|
8 |
RXH-14-C |
14.1 |
2.6 |
120 |
23 |
20 |
15 |
4510 |
0.45 |
±2 |
2240*1200*2160 |
|
9 |
RXH-27-C |
28.3 |
4.9 |
240 |
48 |
40 |
30 |
9020 |
0.45*2 |
±2 |
2240*2160*2160 |
|
10 |
RXH-41-C |
42.4 |
7.4 |
360 |
72 |
60 |
45 |
13530 |
0.4583 |
±2 |
3330*2160*2160 |
|
11 |
RXH-54-C |
56.5 |
10.3 |
480 |
96 |
80 |
60 |
18040 |
0.45*4 |
±2 |
4330*2160*2270 |
Benefits of Industrial Drying Equipment
Temperature sensitivity: Industrial drying equipment allow for the drying of temperature-sensitive materials without causing thermal degradation.
Enhanced efficiency: The reduced boiling point and immediate removal of vapor lead to faster drying times and improved efficiency.
Product quality: By minimizing exposure to air and controlling the drying environment, industrial drying equipment help preserve the quality and purity of the final product.
Solvent recovery: In processes involving solvents, industrial drying equipment enables the recovery and reuse of solvents, reducing costs. Flexibility: Industrial drying equipment can handle a wide range of materials, from powders and granules to pastes and slurries, making them versatile tools in manufacturing.
Our Best-Selling Industrial Drying Equipment
Our Company Has More Products to Offer, Please Browse the Product Categories on the Website, If You Have Any Needs, Please Contact Us.

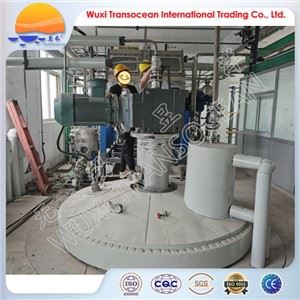

Conical Screw Vacuum Dryer
TRANSOCEAN® conical screw vacuum dryer is a drying equipment that integrates mixing and vacuum drying. It characterizes high drying efficiency, large drying contact surface, fast and thorough material discharge, and no dead ends. Therefore, it is convenient to clean. It can simultaneously take place of mixing equipment and drying equipment (such as double cone dryers, rake dryers, double cone mixers and twin screw mixers, etc.) to implement mixing, drying and unloading with only one equipment.

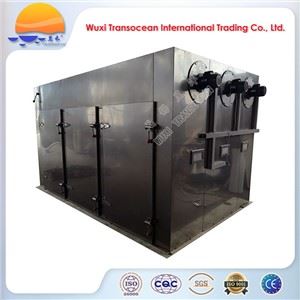

Hot Air Circulating Drying Oven
A hot air circulating drying oven, also known as an electric blast air drying oven, uniformly heats the objects by the hot air circulated by a fan. The air source is transferred by the circulating fan to the heater for heating and then sent to the inner chamber of the oven through the air duct.
Double Cone Rotary Vacuum Dryer
A double cone rotary vacuum dryer is a drying equipment that integrates the functions of material mixing and vacuum drying. The inner drum works in a vacuum state. Steam or hot water is transferred into the heating jacket to heat the inner drum. The heat is transferred to the wet materials through the inner drum to vaporize the solvents in the wet materials and diffuse the vapor to the low-pressure space above the materials in the drum.
The principles of industrial drying equipment is to remove moisture or solvents from materials using a combination of heat and vacuum. The reduced pressure environment lowers the boiling point of liquids, allowing them to evaporate at lower temperatures compared to atmospheric conditions. This feature is especially useful for drying heat-sensitive materials that could degrade or change properties at higher temperatures. The vacuum helps to speed up the drying process by removing the vapor phase immediately, preventing condensation and promoting efficient evaporation.
Industrial Drying Equipment Applications
Food Industry: Drying fruits, vegetables, grains, and spices to preserve them.
Pharmaceuticals: Removing moisture from active ingredients and excipients to ensure stability and efficacy.
Chemical Processing: Drying resins, pigments, and other chemical intermediates.
Minerals and Metals: Drying ores, concentrates, and metal powders.
Textile Industry: Drying fabrics after dyeing or finishing processes.
Paper Industry: Drying paper pulp to make sheets.
Industrial Drying Equipment Precautions
Proper maintenance of industrial drying equipment is essential to ensure optimal performance, efficiency, and longevity of the equipment. Regular inspection and cleaning of the dryer chamber, vacuum pumps, heating elements, and control systems help prevent buildup of debris, dust, or contaminants that can affect the drying process. Routine maintenance tasks such as changing filters, lubricating moving parts, and checking for leaks in the vacuum system are necessary to keep the industrial drying equipment in optimal condition.
It is also crucial to calibrate the temperature and vacuum controls periodically to maintain accurate drying conditions and prevent overheating or under-drying of materials. Monitoring the vacuum level, temperature, and drying time during operation helps identify any deviations from the set parameters and allows for timely adjustments to ensure consistent and uniform drying results. Training operators on proper industrial drying equipment operation and maintenance practices can help prevent errors, reduce downtime, and prolong the equipment's service life.
1.Free original/ electronic documents for consignee's custom clearance and picking up cargo.
2.Free professional operation instruction and guidance for the ordered equipment online.
3.Free after-sales service online within 24 working hours after receipt of customer's request.
4.Spare parts at favorable price all through the service life of our products.
5.Special service upon customers' request.
Packaging and Shipping
|
Packaging |
Wooden boxes or wooden pallets |
|
Transportation methods |
Road transport, rail transport, sea transport, air transport |
Our Certificate
FAQ
We're well-known as one of the leading industrial drying equipment manufacturers and suppliers in China. Please feel free to buy high quality industrial drying equipment at competitive price from our factory. Contact us for customized service.Industrial Drying Equipment, Hot Air Circulating Drying Oven, Double Cone Rotary Vacuum Dryer
