Powder Granule Mixer

Your Professional Powder Granule Mixer Supplier!

Wuxi Transocean International Trading Co., Ltd. have been devoted to the R&D, manufacturing and sales of dosing systems, industrial mixing equipment, grinding equipment, filtration equipment and packaging equipment for more than ten years. We have two professional factories in Wuxi city and Jiangyin city, specializing in the R&D and manufacturing of related products, and have established friendly and cooperative relations with many domestic supporting product manufacturers. We mainly provide production equipment, packaging equipment such as dosing systems, grinding mills, high speed dispersers, mixers, homogenizers, filters, filling machines, and upstream and downstream supporting equipment, accessories and raw materials.

Why Choose Us

Professional Certification

We have passed the SGS China Supplier Audit, and our products have obtained CE certification, ensuring compliance with international quality and safety standards.

Wide Range of Applications

Our equipment is widely used in coatings, inks, dyes, adhesives, new energy batteries, agrochemicals, household chemicals, petrochemicals, and food industries—meeting diverse industrial production needs.

Professional Team

We have an experienced and technically sound R&D team, staffed by skilled industrial workers, equipped with comprehensive processing equipment, and supported by a professional international sales and service team that provides extensive technical support and operational assistance.

High-Quality Service

We provide professional pre-sales consulting to tailor optimal solutions for our customers. We track order fulfillment progress throughout the entire process to ensure timely and efficient delivery. We offer lifetime after-sales service and guarantee a 24-hour response to customer inquiries, ensuring prompt processing of customer needs.

Specification

Model		HRM-0.5	HRM-1	HRM-3	HRM-5	HRM-10	HRM-15
Full capacity of U chamber (L)		500	1000	3000	5000	10000	15000
Load factor		0.4～0.6
Main motor power (KW)		5.5	11	18.5	30	55	75
Mixing shaft speed (r.p.m.)		0-66	0-41	0-33	0-26	0-20	0-17
Outline dimension (mm)	L	1670	1980	2880	3520	4500	5360
	W	1140	1440	1900	1950	2070	2250
	H	1300	1500	2083	2230	2670	3070

Advantage of Powder Granule Mixer

01/

Efficient mixing: Powder granule mixers are designed to mix dry powders quickly and efficiently. The mixer machine ensures that all the ingredients are thoroughly mixed, resulting in a homogeneous mixture.

02/

Consistent quality: Powder granule mixers are equipped with advanced features that ensure consistent mixing, which leads to consistent product quality. This is especially important in industries such as food, pharmaceutical, and cosmetic, where product quality and consistency are critical.

03/

Increased productivity: Powder granule mixers can mix large volumes of powder in a short amount of time, increasing productivity and reducing production time.

04/

Cost-effective: Powder granule mixers help reduce production costs by minimizing material waste and labor costs.

05/

Versatility: Powder granule mixers can handle a wide range of powders, including different densities, particle sizes, and flow rates.

06/

Easy to clean: Powder granule mixers are designed for easy cleaning and maintenance, reducing downtime and improving hygiene.

Our Best-Selling Powder Granule Mixer

Our Company Has More Products to Offer, Please Browse the Product Categories on the Website, If You Have Any Needs, Please Contact Us.

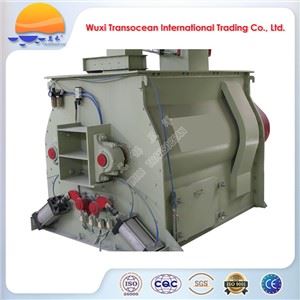

Gravity Free Mixer

TRANSOCEAN® gravity free mixer is applicable for mixing of powders and/ or granules in the industries such as anti-crack mortar, thermal insulation mortar, bonding mortar, plastering mortar, floor mortar, putty powder, concrete admixture, plaster putty, ceramic, plastic, rubber additive, pigment, chemical, fertilizer, pesticide, detergent, food, seasoning, milk powder, salt, feed and alike.

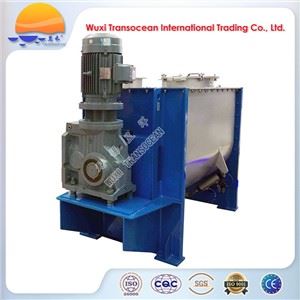

Horizontal Ribbon Mixer Agitator

TRANSOCEAN® horizontal ribbon mixer agitators are widely used in processing of solid-solid (i.e. powder and powder) or solid-paste (i.e. powder and glue liquid) to produce putty powders, powder coating, dry powder, agrochemical, medicine, food, feed, ceramics, refractory, etc. It is especially suitable for mixing viscous materials.

Three Dimensional Motion Mixer

TRANSOCEAN® three-dimensional motion mixer is an efficient mixing machine for various powders and granules of many different components. The machine consists of a frame, a reducer, a motor, a transmission system, a multi-directional motion actuator, a material vessel and an electrical control system.

Powder Granule Mixer Structure Composition

Mixing reducer
This reducer is the main transmission structure of the powder granule mixer. It can output strong torque during operation to make the materials mixed evenly.

Mixing hopper
The mixing hopper is a tank-shaped body made of qualitied stainless steel, with a stirring paddle inside.

Pour-out reducer
The pouring reducer is to control the positioning angle of the mixing hopper. When working, the motor installed in the machine base drives the worm and worm gear through the V-belt to drive the mixing tank to rotate within a certain angle range, so that the mixed material can be poured out at one time.

Machine base and motor device
The machine base is an integral structure. The motor is installed on the movable plates on both sides of the machine base. The upper and lower parts of the motor can be adjusted with screws .This can make the V-belt have a certain tightness to maintain the transmission force.

Electrical control box
The control box is located on the right side of the machine. The transmission of the mixing hopper can be controlled by pressing the mixing tank "up" and "down" buttons. Note that the two buttons cannot be pressed at the same time.

Workflow of Powder Granule Mixer

Loading the Ingredients
The process begins by loading the powder ingredients into the mixing chamber. Some machines allow for manual loading, while others use automated systems to handle the powders safely and efficiently.

Setting Mixing Parameters
Before starting the machine, the operator sets the mixing parameters, such as speed and time. These parameters ensure the powders are blended correctly, depending on their density, texture, and required mixing duration.

Mixing Process
Once the machine is started, the mixing blades, paddles, or tumbler begin to rotate. The powders are moved and turned over continuously to achieve an even mix. Some mixers move the powder both horizontally and vertically to ensure all particles are evenly distributed.

Discharging the Mixture
After the mixing process is complete, the powder is discharged from the machine. Depending on the machine's design, this can be done either manually or through an automated system.

Cleaning the Machine
Once the powders are mixed and the product is discharged, the machine must be cleaned to avoid contamination of future batches. Some machines are designed for easy cleaning, which is especially important in industries like pharmaceuticals and food processing, where hygiene is crucial.

Applications of Powder Granule Mixer

Drug powder: In the pharmaceutical industry, various drug powders need to be mixed to ensure the uniform distribution of drugs and improve the stability of drug efficacy.

Chemical raw material powder: In the chemical industry, such as powdered additives, dyes, coatings, etc., need to be mixed to ensure product quality and consistency.

Food raw material powder:

In the food industry, various food raw materials such as flour, milk powder, seasonings, etc., need to be mixed to improve product quality and taste.

Pesticide powder:

In the pesticide industry, pesticide raw materials need to be mixed to ensure the consistency and uniformity of the formula and improve the effect of pesticides.

Metallurgical raw material powder:

In the metallurgical industry, ore powder and metallurgical raw materials need to be mixed to improve smelting efficiency and reaction uniformity.

Our Services

1.Free original/ electronic documents for consignee's custom clearance and picking up cargo.
2.Free professional operation instruction and guidance for the ordered equipment online.
3.Free after-sales service online within 24 working hours after receipt of customer's request.
4.Spare parts at favorable price all through the service life of our products.
5.Service upon customers' request.

Packaging and Shipping

Packaging	Wooden boxes or wooden pallets
Transportation methods	Road transport, rail transport, sea transport, air transport

Video

Our Certificate

FAQ

Q: What is the principle of powder granule mixer?

A: The core principle of a powder granule mixer is to create uniform movement to blend powders evenly. Different mixers achieve this using mechanical actions like stirring, rotating, or tumbling. The goal is to ensure every particle of the mixture is uniformly distributed for consistent quality.

Q: What is powder granule mixer?

A: Powder granule mixer combines powdered materials into a consistent, uniform blend. In industries like pharmaceuticals, food processing, and chemicals, where precision is critical, manual mixing can result in inconsistencies. Powder granule mixers solve this issue by evenly distributing all particles, ensuring quality in the final product. These machines also handle large-scale production, which manual processes often can't manage.

Q: What are the advantages of powder granule mixer?

A: Efficient mixing: Powder granule mixers are designed to mix dry powders quickly and efficiently. The mixer machine ensures that all the ingredients are thoroughly mixed, resulting in a homogeneous mixture.

We're well-known as one of the leading powder granule mixer manufacturers and suppliers in China. Please feel free to buy high quality powder granule mixer at competitive price from our factory. Contact us for customized service.Two Dimensional Motion Mixer,
