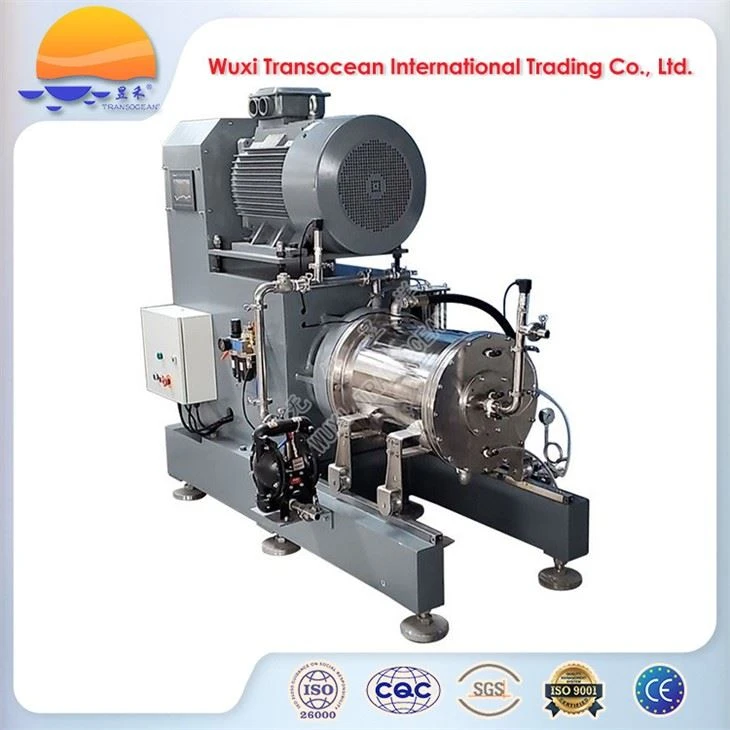

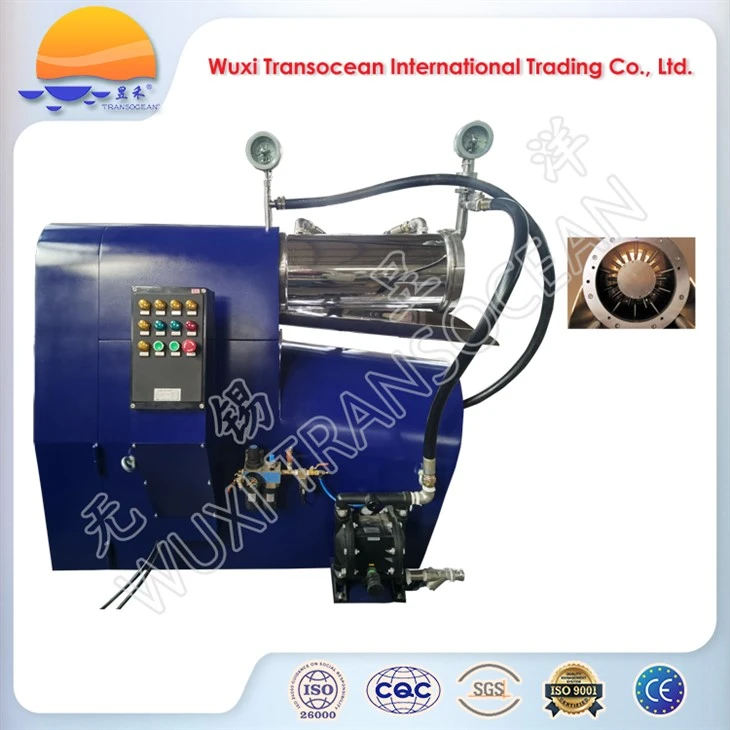

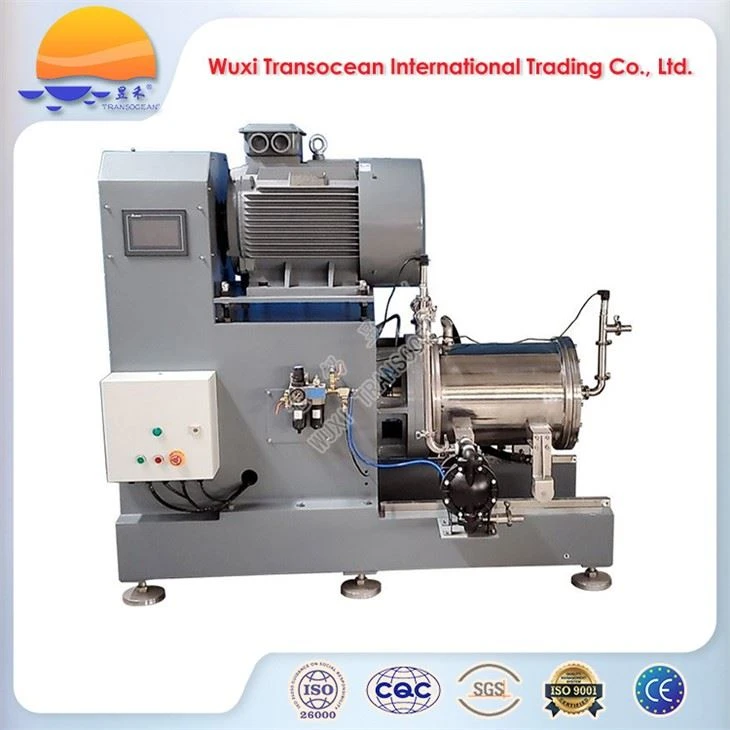

Horizontal Pin Type Bead Mill

TRANSOCEAN^® KWS series horizontal pin type bead grinding mills are wet agitator grinding equipment for super fine processing of powders or granules in liquids. The mills are applicable for grinding of the particle size range from 200 microns down to less than 1 micron with a wide variety of grinding media from 0.2 mm to 1.6 mm in diameter. Horizontal orientation ensures a homogeneous fill of the grinding media in the grinding chamber. Products fed by a feed pump are forced to flow horizontally through the grinding tank from the material inlet at the end far from the mechanical seal towards the mechanical seal and come out from the outlet near the mechanical seal while grinding media are retained in the mill by the dynamic ring & static ring type separator. Centrifugal separating wheel & static separating cartridge are available as an alternative option for the discharge of products. The unique design of the product discharge ensures smooth running against blogging in the grinding chamber.

Applications

● TRANSOCEAN^® horizontal pin-type bead mills are suitable for wet grinding of particles or powders in the production of automotive paint, printing and dyeing paste, epoxy resin paint, lithium battery paste, ink, coating, color paste, and the like.

Features

●Grinding pins made of high hardness alloy, silicon carbide, zirconia, and PU are available as an option.

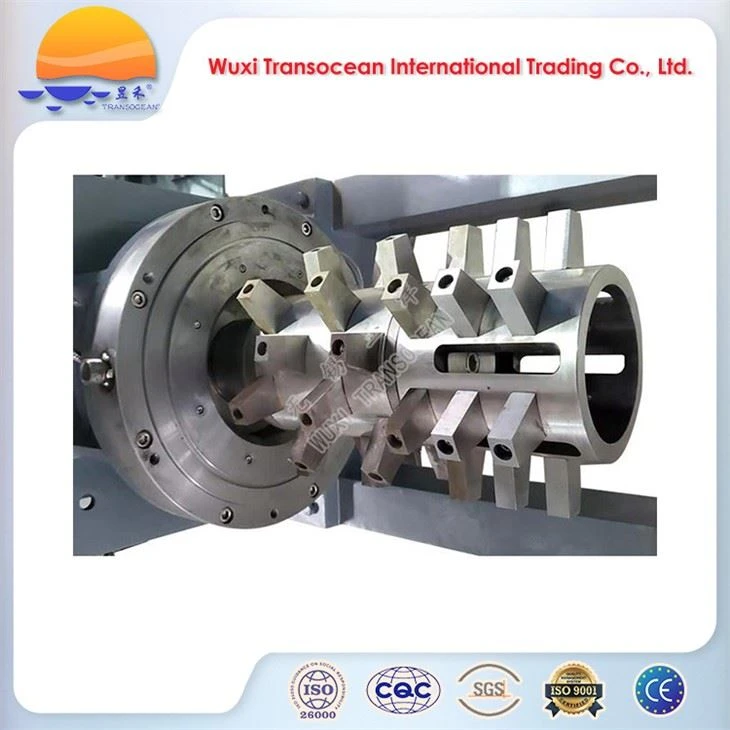

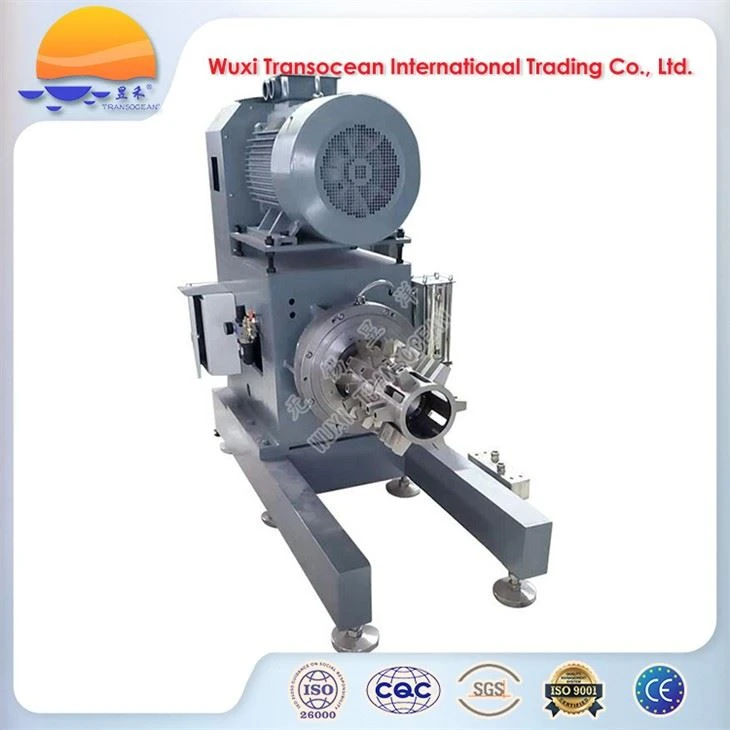

●Grinding pins on the external surface of the rotator provide strong impact and shear to grinding beads and products.

●Pins on the internal surface of the grinding chamber are optional to disturb the flow of grinding beads and products.

● The working volume of the grinding chamber can be adjusted with the handle

●Comply with the European Machinery Directive of CE

Advantages

●High processing capacity

●Environmentally friendly

Technical specifications

Remark

●Technical specifications listed above are for reference only and will be customized according to actual applications.

Why choose us?

●We are one of the leading manufacturers and suppliers of mixers, grinding equipment, filters and filling machines in Wuxi city, Jiangsu province, China.

●Our quality control is implemented through the production process.

●We always keep customers informed of the updates on the preparation of the cargo at key points in time.

●Our products passed CE certification.

FAQ

●Q: What certificates are available for your products?

A: CE and SGS certificates.

●Q: If we need your help on the installation and commissioning of the machines ordered from you, how can you offer the assistance?

A: All our machines have been tested and have passed the quality inspection before delivery. Most of our products are delivered in modules or as an entirety. It is easy to reassemble the machines according to our instruction and fix them with expansion bolts onto the foundation in the user's workshop. In some case, if the user needs our supervision on site we will dispatch our technicians to help our customer at the customer's expense.

●Q: Is your price competitive?

A: We have been devoted to supplying highly cost-effective products and services for more and more customers. We always seek win-win and development together with our customers. We would not take part in any price war at the cost of the quality of our products or services. Wise customers will not neglect product quality and service when thinking of the price. If the products and services you buy can't meet your expectations, what is the point of the low price? We wouldn't like to brag that we could provide the best products and services at the lowest prices.
