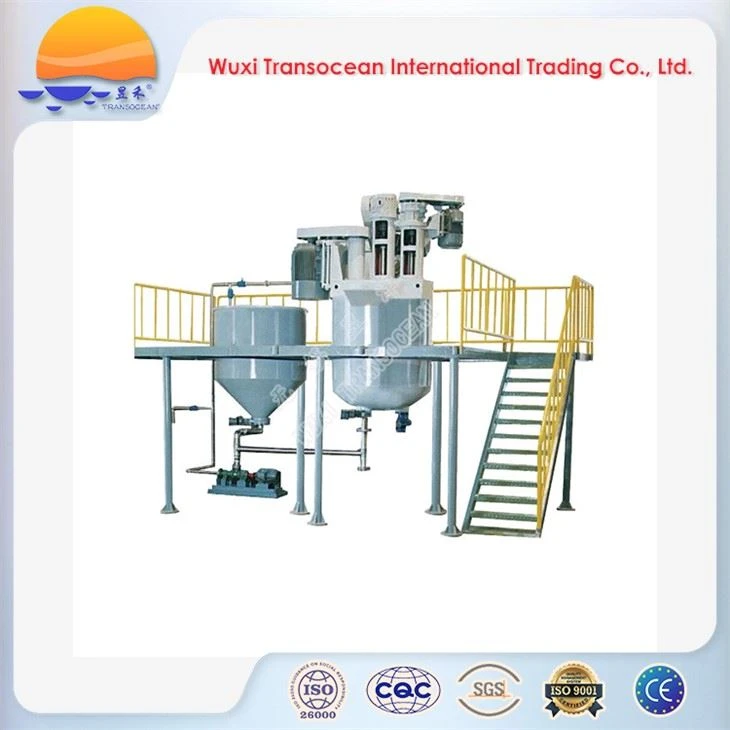

Three Shaft Dispersing Mixer
Product Details
Introduction
Wuxi Transocean International Trade Co., Ltd. is one of the leading manufacturers and suppliers of industrial mixers. TRANSOCEAN® Three Shaft Dispersing Mixer (triple shaft mixer) is widely used in the processing of highly viscous materials with a viscosity up to 100,000 cps, such as construction putty, automobile putty, atomic ashes, adhesives, sealants, etc., and alike. It consists of one set of helix propellers, one set of saw-tooth dispersing discs, and one set of anchor agitators with scrapers. The helix propeller forces the solid materials floating on the liquid material to enter the liquid material. The saw-tooth dispersing discs evenly disperse and dissolve solid materials into liquid materials. In addition, the all-round PTFE scrapers on the anchor stirrer sweep off the materials adhering to the inner wall of the mixing tank, and at the same time, stir the materials together with the anchor stirrer to create radial flow in the mixing vessel to eliminate dead areas from the vessel. This ensures that all the materials at different positions in the mixing tank have the same opportunity to move at any position in the tank, get fully and evenly mixed, and finally produce a uniform and high-quality putty product. According to the needs of the production process, the dosing system for solid materials and liquid materials, a circulation system for materials in mixing vessel, a cooling jacket outside the mixing tank, vacuum equipment for simultaneous defoaming, a screw pump or a hydraulic discharge press for discharge of mixed putties, and the filling machine for packing of final products are available as an option.
Applications
● TRANSOCEAN® Three Shaft Dispersing Mixer (triple shaft mixer) is applicable for wet dispersing and mixing as a putty mixer, adhesive mixer, printing ink mixer, color paste mixer in the industries such as putty, atomic ash, building mortar, adhesive, printing, coating, artificial leather, plastic flooring, fertilizer, and alike.
Features
● Integration of saw-tooth shaped dispersing disc, screw agitator, anchor mixer with scraper
● Scrapers can clean the materials adhering to the inner of the mixing tank.
● The mixing process is carried out in a closed container
● Material of wetted parts: S.S.304/S.S.420/Chrome plated #45 steel
Advantages
● A Three Shaft Dispersing Mixer (triple shaft mixer) can accomplish multiple functions such as wetting, stirring, and dispersing at the same time
● Suitable for processing of highly viscous material with a viscosity up to 100,000 cps
● Environmentally friendly
Technical specifications (can be customized)
|
Model |
CJ-1 |
CJ-1.5 |
CJ-2 |
CJ-2.5 |
CJ-3 |
CJ-4 |
CJ-5 |
|
Tank volume(m3) |
1 |
1.5 |
2 |
2.5 |
3 |
4 |
5 |
|
Dispersing motor power(KW) |
15 |
22 |
37 |
45 |
55 |
75 |
90 |
|
Dispersing shaft speed(r.p.m) |
0-1500 |
0-1500 |
0-1500 |
0-1200 |
0-1200 |
0-1000 |
0-1000 |
|
Speed control mode |
By inverter |
||||||
|
Anchor type agitating motor power(KW) |
5.5 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
|
Anchor type agitating shaft speed(r.p.m.) |
20 |
20 |
20 |
15 |
15 |
15 |
15 |
|
Helix type agitating motor power(KW) |
7.5 |
7.5 |
11 |
15 |
18.5 |
22 |
22 |
|
Helix type agitating shaft speed(r.p.m.) |
130 |
130 |
130 |
130 |
130 |
130 |
130 |
Our service
●Free original/ electronic documents for the consignee's customs clearance and picking up cargo
●Free professional operation instruction and guidance for the ordered equipment online
●Free after-sales service online within 24 working hours after receipt of the customer's request
●Spare parts at a favorable price throughout the service life of our products
●Special service upon customers' request
