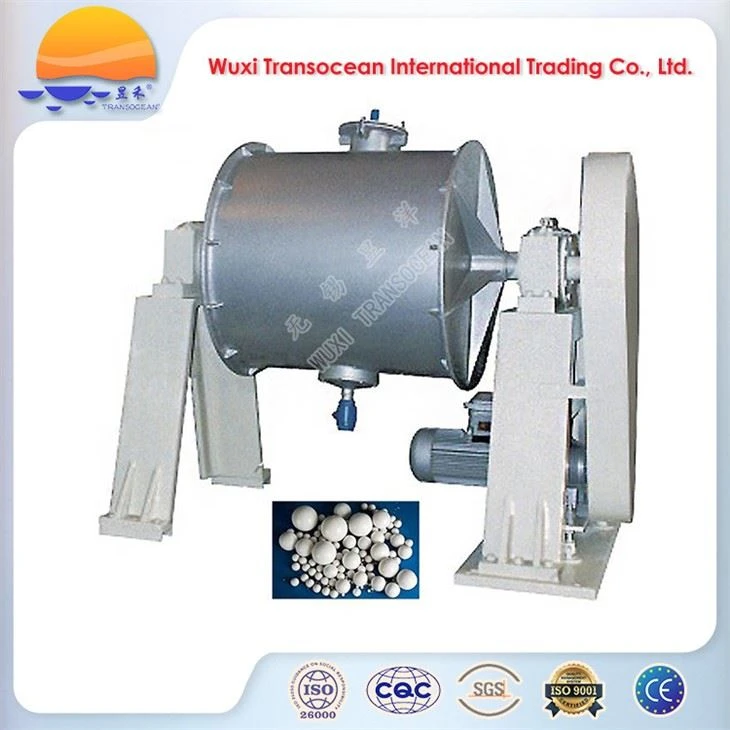

Horizontal Attritor Ball Mill
Product Details
Introduction:
TRANSOCEAN® WQM series horizontal attritor ball mills are agitator grinding machine. The mills are suitable for processing of the particle size range from 500 microns down to microns with a wide range of grinding balls from 12 mm to 30 mm in diameter. Uniform processing of the products can be achieved under the comprehensive function of wetting, shear, compressing and milling of grinding balls.
Applications:
● TRANSOCEAN® WQM series horizontal attritor ball mills are especially suitable for wet grinding of highly viscous thixotropic materials in the industries such as offset printing ink, color paste, dye and alike.
Features:
● Grinding balls impact and grind products by gravity in the rotary chamber
● Suitable for processing of large wearable particles and high viscous materials
● Material of wetted parts: manganese steel
● Closed grinding chamber to reduce volatilization of solvents in the products
● Cooling system through the hollow main shaft is available for cooling.
● Cooling jacket outside the grinding chamber is adopted to prevent the products from overheating.
Advantages:
● Environmentally friendly
● Easy to maintain
Technical specifications:
Model | WQM-500 | WQM-1000 | WQM-2000 | WQM-3000 |
Motor power(KW) | 5.5 | 7.5 | 18.5 | 30 |
Main shaft speed(r.p.m) | 35 | 30 | 20 | 20 |
Chamber volume(L) | 500 | 1000 | 2000 | 3000 |
Grinding media | Φ12-30mm ceramic balls/ zirconia balls/ alloy balls | |||
●Remark: Large capacity horizontal ball mills not listed can be customized.
Why choose us ?
●Comprehensive inspectionprior to packing.
●We passed ISO 9001 and SGS certification.
●Our products passed CE certification.
●Our service team is ready to provide after service for our products all through the service life.
●We would like to provide personalized design for each specific request for our customers.
