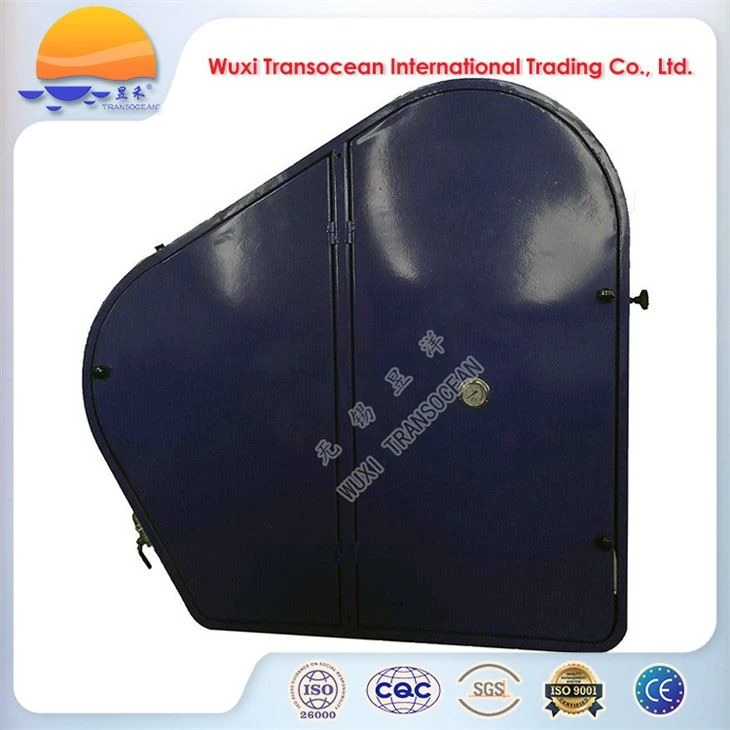

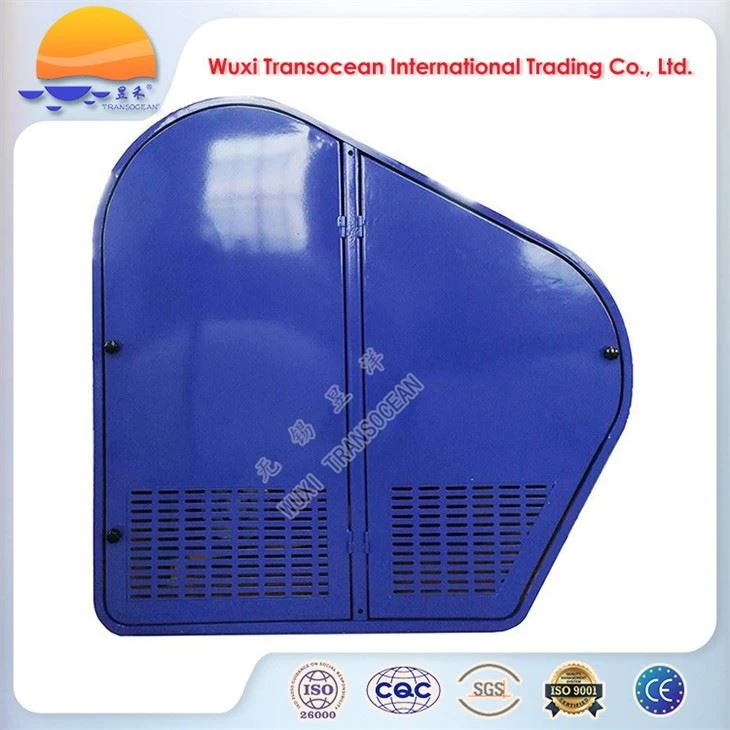

Hydraulic Three Roll Grinding Mill

Introduction

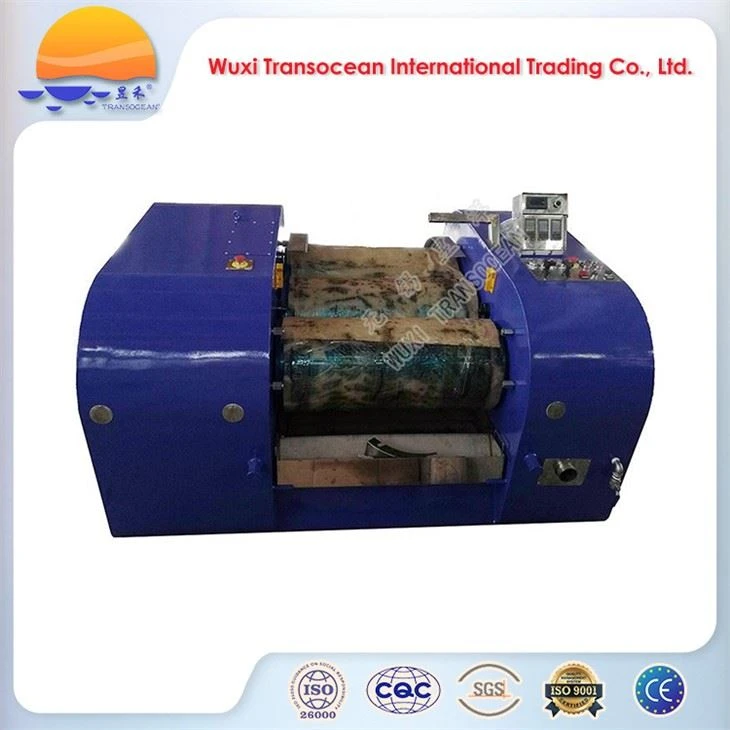

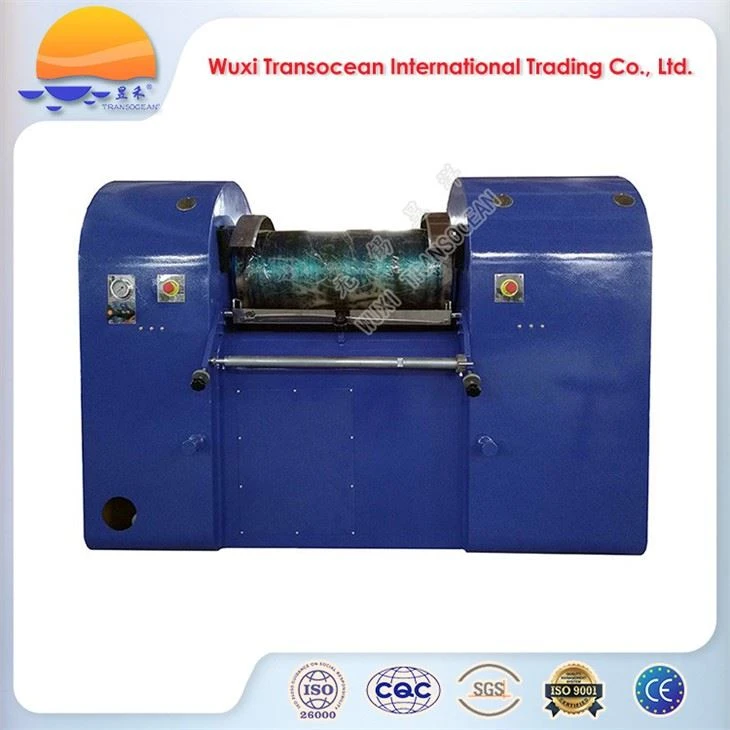

TRANSOCEAN^® hydraulic three roll grinding mill has three horizontal rollers i.e. feed roll, center roll and apron roll. Each roller rotates in an opposite direction from the adjacent roller with a tiny gap between them adjustable by the hydraulic system, which generates tremendous shear force to the materials to process. Viscous materials can be uniformly mixed, dispersed, squeezed, ground and homogenized by the mill. Materials are fed to the area between the feed roll and the center roll. Due to the limited space between the rollers, most of the materials are rejected to the loading area. A bit pastes running together with the center roll are subject to powerful shear and grinding force and thereafter pass through the gap and move towards the apron roll. After experiencing even higher shear force created by higher velocity of apron roll some of the pastes are passed on to the apron roll and the others are returned to the feed area. A discharge scraper automatically discharges the products from the apron roll and transfers them to the apron. The process will be repeated for several times until the solids in the products are evenly dispersed and the particle sizes are acceptable.

Applications

●GH series hydraulic three roll grinding mills are suitable for wet grinding in the industries such as electronic thick film inks, high performance ceramics, cosmetics, plastisols, carbon/graphite, printing inks, pharmaceuticals, dental composites, sealants, foods and alike.

Features

● A touch screen or a button control panel is supplied for the operation.

● Three rolls appear ladder-like arrangement.

● A separate cooling system is adopted inside each roll so that working temperature can be precisely set according to process requirements.

● Automatic shutdown protection will be activated if cooling water is interrupted, roll is overheated, motor is overloaded or impurities fall betweenrolls.

●Ultrasonic sensor is adopted to monitor material level. Automatic shutdown protection will be activatedif the level is lower than set value.

Technical specifications

Our Advantages

●Extensive production experience:

Wuxi Transocean International Trading Co., Ltd. have been specialized in the manufacture and supply of dosing systems, industrial mixing equipment, grinding equipment, filtration equipment and packaging equipment for more than ten years.

●Rigorous design, manufacturing, and inspection procedures:

Our products are designed according to our factory standard or customer's requirement and produced according to the design strictly. All our products are tested before delivery. Comprehensive inspections of our products are conducted to ensure all are qualified before shipment.

●Punctual &thoughtful after-sales services: More than 80%of our products are delivered to Middle East, Southeast Asia and Europe and are well received by our clients. Our timely, professional and thoughtful after-sales service will be easily availableduring the use of our products.
