High Speed Dispersion Mixer

Name: China Customized High Speed Dispersion Mixer Manufacturers Suppliers Factory - Transocean
Brand: Transocean
SKU: 107850106

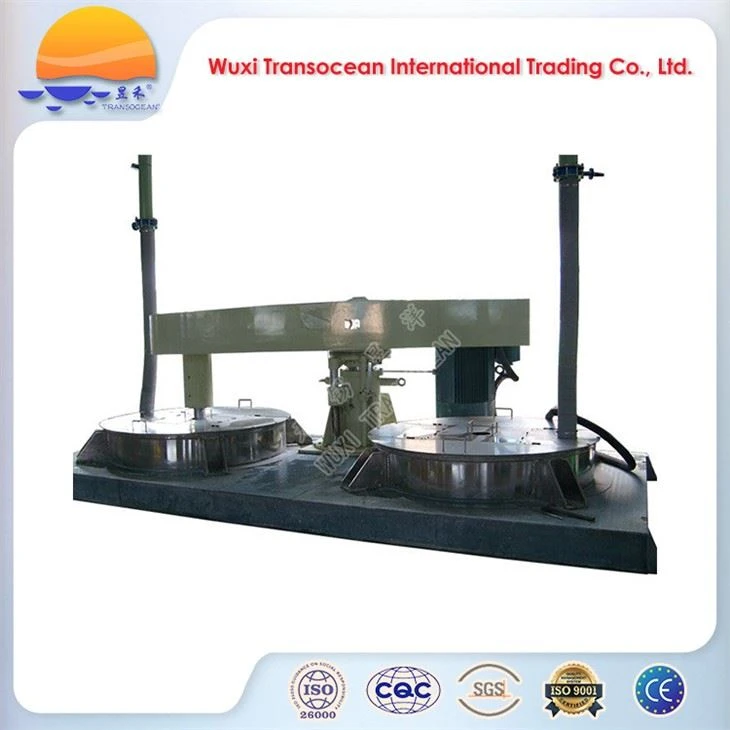

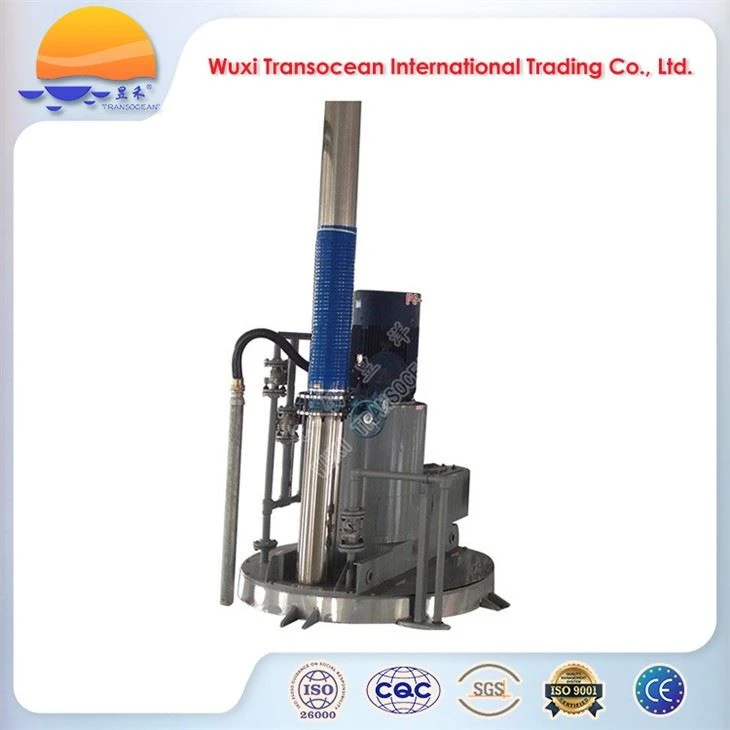

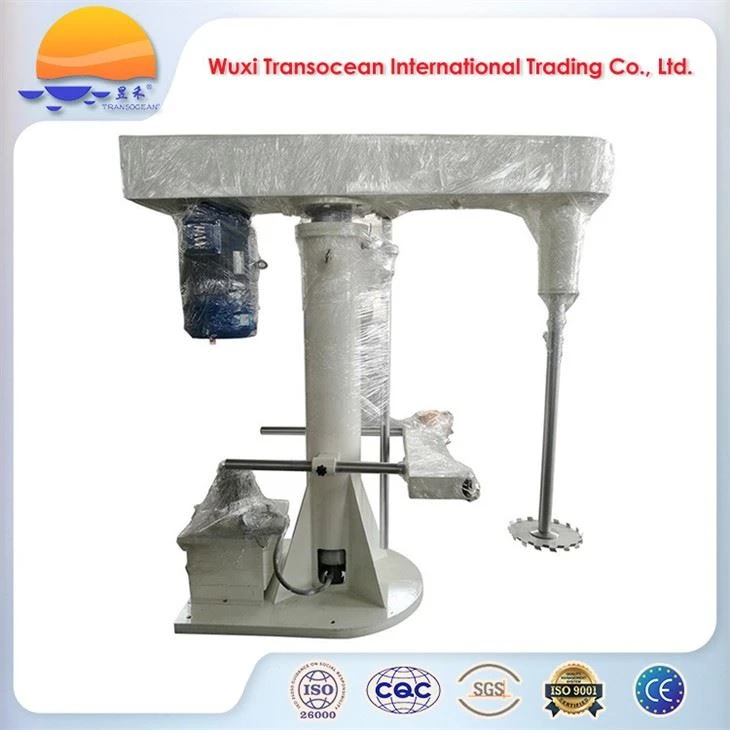

TRANSOCEAN® high speed dispersion mixer is widely used for dispersing of solids into fluids in the production of paints, coatings, color pastes, dyes, adhesives, inks, etc.. The tank lid can be lifted or lowered separately by a couple of cylinders to fit various material vessels.

Product Details

Introduction:

TRANSOCEAN^® high speed dispersion mixer is widely used for dispersing of solids into fluids in the production of paints, coatings, color pastes, dyes, adhesives, inks, etc.. The tank lid can be lifted or lowered separately by a couple of cylinders to fit various material vessels. Fumes are available on the lid to collect dusts and protect the environment. The disperser head containing a saw-tooth type dispersing disc can be raised or lowered hydraulically for loading/unloading of a material tank. It is convenient to clean the disperser and change products. Various mixing tanks can share one mixer. For more about the disperser welcome to contact us!

Features:

● Mixer head is hydraulically lifetable.

● More than one platform type mixing vessels are supplied for one mixer.

-1 (3)

Advantages:

● High processing capacity

● Uniform products in a large batch

● Preparation job of one vessel can be done when one vessel is working to save preparation time.

Applications:

● TRANSOCEAN^® high speed dispersion mixers are applicable for industries such as paint, dye, ink, printing ink, papermaking, adhesive alike.

Technical specifications:

Model	FL22/FX22	FL37/FX37	FL45/FX45	FL90/FX90
Main motor power(KW)	22	37	45	90
Dispersing shaft speed(r.p.m.)	0-1450	0-1200	0-1200	0-1000
Speed control mode	By inverter
Dispersing disc dia. (mm)	350	400	450	600
Lifting/lowering stroke(mm)	1200	1200	1600	1600
Hydraulic motor power(KW)	0.75	0.75	1.1	2.2
Tank volume(L)	600-1000	1000-2000	1000-2500	5000

● Remark: High power HSD (up to 315KW) not listed can be customized.

Our Advantages

a.Quality sources:

Mostly steel materialsmade bytop steel factories in China, such as BAO STEEL, SHA STEEL, TAI STEEL, NORTHEAST SPECIAL STEEL are adopted for the duplication of our machines. Usually ABB/SIEMENS/WANNAN motors, ABB inverters, SCHNEIDER/CHNT/DELIX electric components, SIEMENS/DELTA touch screens, DELTA PLCs and AirTACpneumatic components are selected for the drive and control of our machines.

b.Timelydelivery:

Usually our products are delivered in 30 days after receipt of the down payment subject to the technical requirements are confirmed by the buyer on time. Delivery time of some customized machines should be negotiated.

c.Punctual &thoughtful after-sales services:

More than 80%of our products are delivered to Middle East, Southeast Asia and Europe and are well received by our clients.Our timely, professional and thoughtful after-sales service will be easily availableduring the use of our products.
