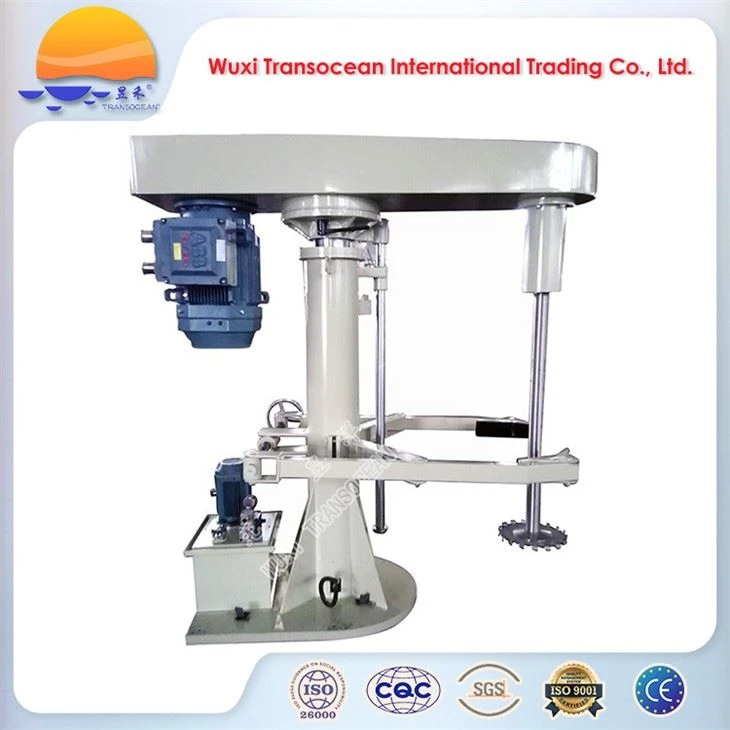

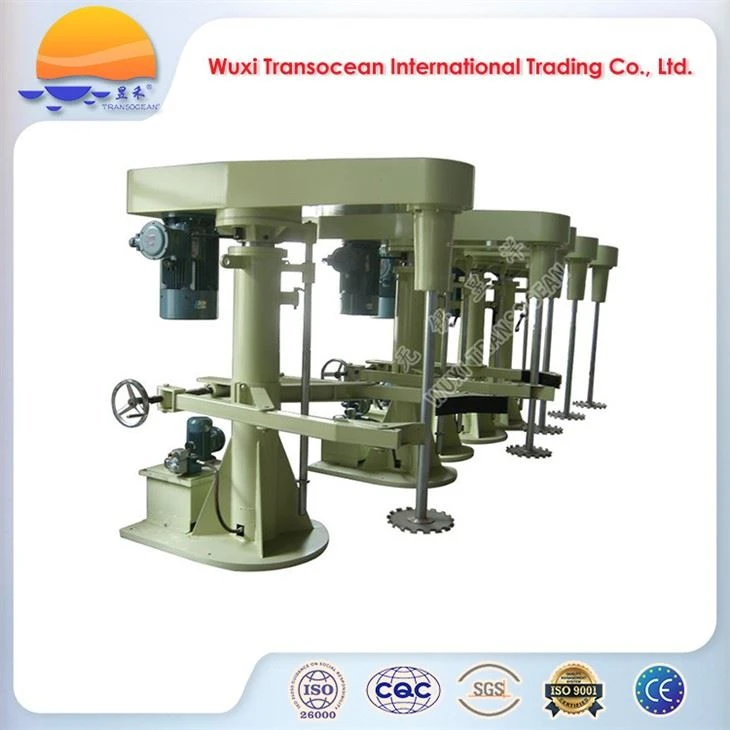

Explosion Proof High Speed Disperser

Introduction

TRANSOCEAN^® explosion proof high speed dispersers are suitable for use in hazardous areas where flammable vapors, liquids or dusts are involved, such as the processing of coatings, oil inks and adhesives. The disperser consists of a flameproof control panel, an electric cabinet, a base plate or a mounting flange, a support column, a mixing head, a support rack, a mixing motor, a transmission system, a dispersing disc and a hydraulic lifting system. Buttons are provided on the control panel to realize start, stop, acceleration or deceleration of mixing disc, lifting or lowering of the mixing head. An inverter is available in the electric cabinet for speed adjustment from 0 to the design speed. The classic saw-tooth dispersing disc runs at a tip velocity up to around 25m/s and creates a vortex around the dispersing shaft and generates tremendous shear force to the materials to processed. A Nieman dispersing disc is available as an option. Wetting and dissolving of powders will be achieved in a short time. With the hydraulic lifting system, the mixing assembly can be raised to a certain position so that the material tank can be loaded or unloaded. A mechanical clamping arm for fixing of material vessel is supplied as an option. Lifting of the mixing head will be stopped when the limit loop on the guide bar contacts the limit switch. A mobile tank with lid or a platform mounted tank with lid is provided as an option for the processing of materials.

Features

● A Saw-tooth shaped dispersing disc or a Nieman dispersing disc is supplied.

● Material of wetted parts: S.S.304/S.S.420/Chrome plated #45 steel

● Dispersing head lifting/lowering mode: by hydraulic cylinder

● Dispersing head lowering speed: adjustable with regulating valve

● Explosion proof grade: Ex d IIB T4

Advantages

● High efficiency of dispersion and dissolution of liquid-liquid / liquid-solid materials

● Easy to clean and change product

Applications

● TRANSOCEAN^® explosion proof high speed dispersers are applicable for the dispersion of powders into solvent in a hazardous area.

Technical specifications

● High-capacity high-speed dispersers can be customized.

● Dimension of mixing vessel can be customized.

● Installation mode of mixing vessel: on castors or on a platform

Our Advantages

a. Extensive production experience:

Wuxi Transocean International Trading Co., Ltd. has specialized in the manufacture and supply of dosing systems, industrial mixing equipment, grinding equipment, filtration equipment, and packaging equipment for more than ten years.

b. Comprehensive production facilities:

Our factories have lathe, digital display milling machine, planer, digital display grinder, drilling machine, machining center, roller press, laser welding machine and other advanced equipment. Our mechanical maintenance engineers carry out the maintenance of the processing equipment periodically to ensure all the equipment performs well.

Packaging suitable for export transportation:

Appropriate anti-rust and anti-collision measures are taken before packing to prevent the cargoes from corrosion caused by the salt fog in the sea air and damage resulting from collision during transportation.

FAQ

1. Q: What certificates are available for your products?

A: CE and SGS certificates.

2. Q: How about the finish of the surface of your machines?

A: Carbon steel parts of our machines are primed and coated with heavy anti-corrosion paint, the surface of stainless steel parts is polished, and electric cabinets as well as control panels are coated with powder coatings. The color or the paint can be customized.

3. Q: How is your price level?

A: At an average level in China. We don't provide cheap goods, for that is not our aim.
