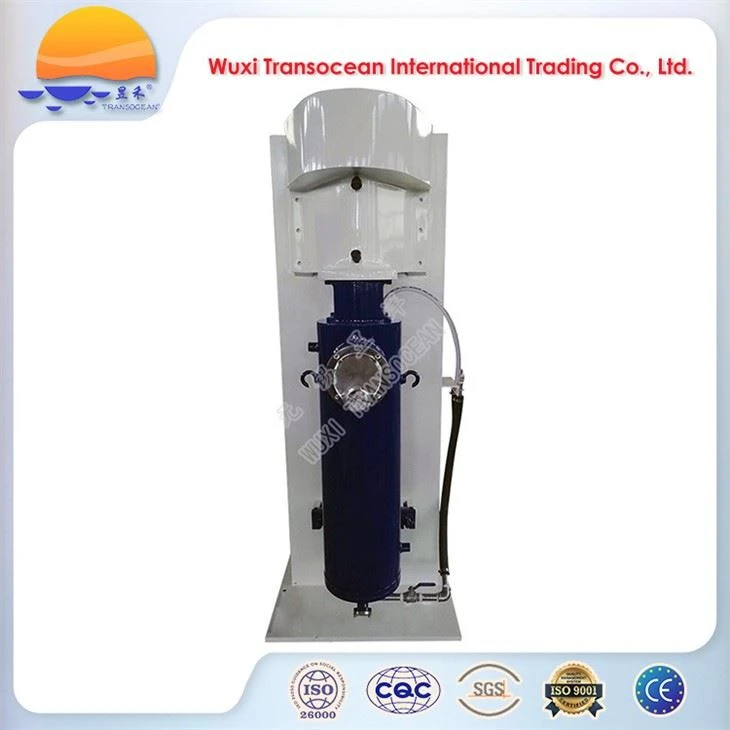

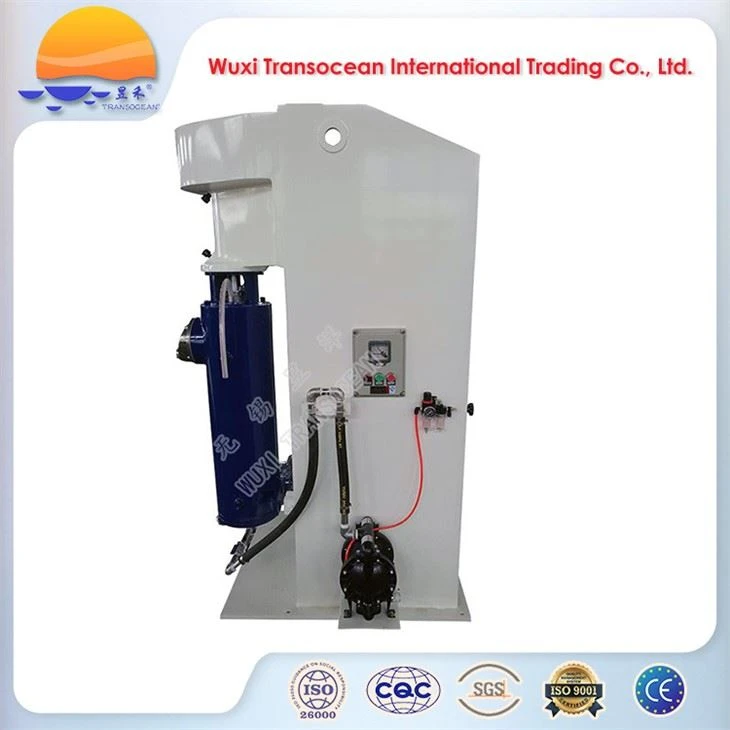

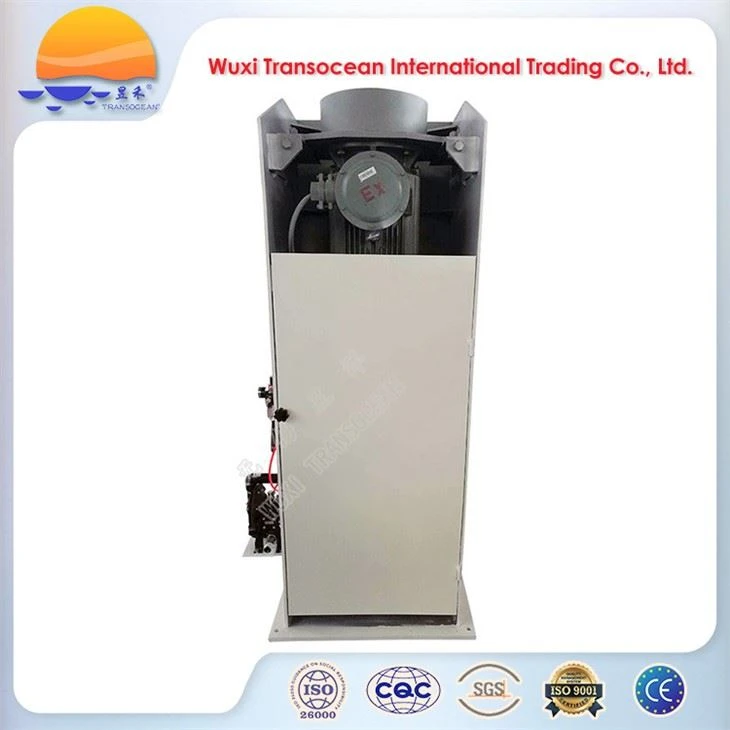

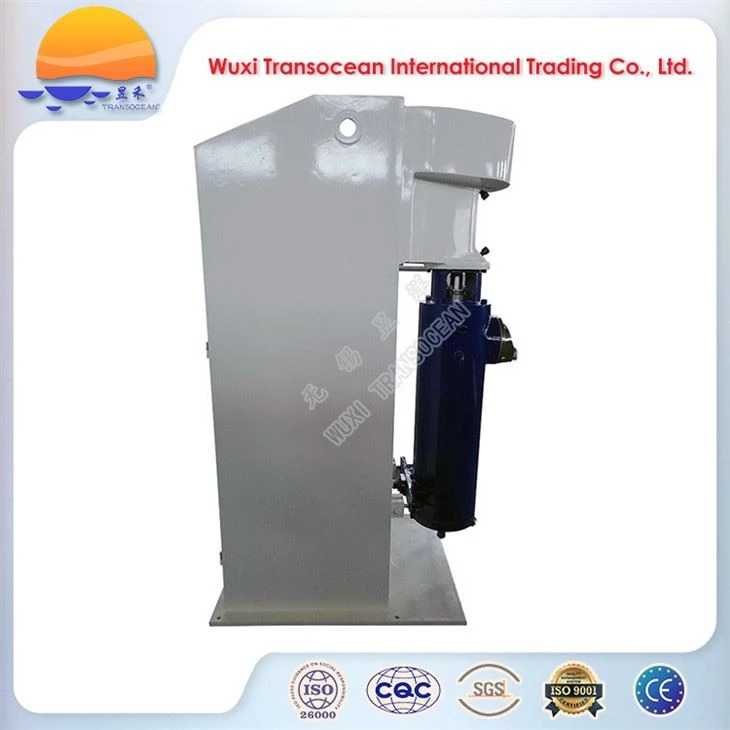

Vertical Seal Sand Mill
Product Details
Introduction:
TRANSOCEAN® SB series Vertical seal sand mills are applicable for processing of particles in liquids. The pearl mills are suitable for processing of the particle size range from 500 microns down to less than 20 microns with ϕ2.0 mm to ϕ3.5 grinding media. The main shaft is sealed with packing seal. Products conveyed by a feeding pump are forced to flow upwards through the grinding tank from the feeding port on the bottom of the tank and come out from the discharge chamber on the side of grinding tank while grinding beads are retained in the chamber by the separator.
Applications:
● TRANSOCEAN® vertical seal sand mills are suitable for wet processing of primer, varnish, insecticide, and etc.
Features:
● Sealed discharge design prevents solvents in products from volatilizing to environment.
● SS201/SS420/PU made grinding parts are available for option.
● Cooling jacket outside grinding chamber prevents products from overheating.
● Thermometer is supplied at the outlet to observe the temperature of products.
● Comply with the European Machinery Directive of CE
Advantages:
● Environmentally friendly
● Highly cost-effective
Technical specifications:
|
Model |
SB-20 |
SB-40 |
SB-80 |
|
Chamber volume(L) |
20 |
40 |
80 |
|
Main motor power(KW) |
11 |
18.5 |
30 |
|
Dispersing shaft speed(r.p.m) |
1320 |
1020 |
830 |
|
Output capacity(L/h) |
150-400 |
300-700 |
500-1200 |
|
Grinding media |
Φ2.0-3.5mm glass beads/ zirconium silicate beads/ zirconia beads |
||
|
Material feeding |
By diaphragm pump/gear pump |
||
Our Advantages
● Extensive production experience:
Wuxi Transocean International Trading Co., Ltd. have been specialized in the manufacture and supply of dosing systems, industrial mixing equipment, grinding equipment, filtration equipment and packaging equipment for more than ten years.
● Comprehensive production facilities:
Our factories have lathe, digital display milling machine, planer, digital display grinder, drilling machine, machining center, roller press, laser welding machine and other advanced equipment.Our mechanical maintenance engineers carry out the maintenance of the processing equipmentperiodically to ensure all the equipment perform well.
● Quality sources:
Mostly steel materialsmade bytop steel factories in China, such as BAO STEEL, SHA STEEL, TAI STEEL, NORTHEAST SPECIAL STEEL are adopted for the duplication of our machines. Usually ABB/SIEMENS/WANNAN motors, ABB inverters, SCHNEIDER/CHNT/DELIX electric components, SIEMENS/DELTA touch screens, DELTA PLCs and AirTACpneumatic components are selected for the drive and control of our machines.
