Vertical Bead Mill
Product Details
Introduction:

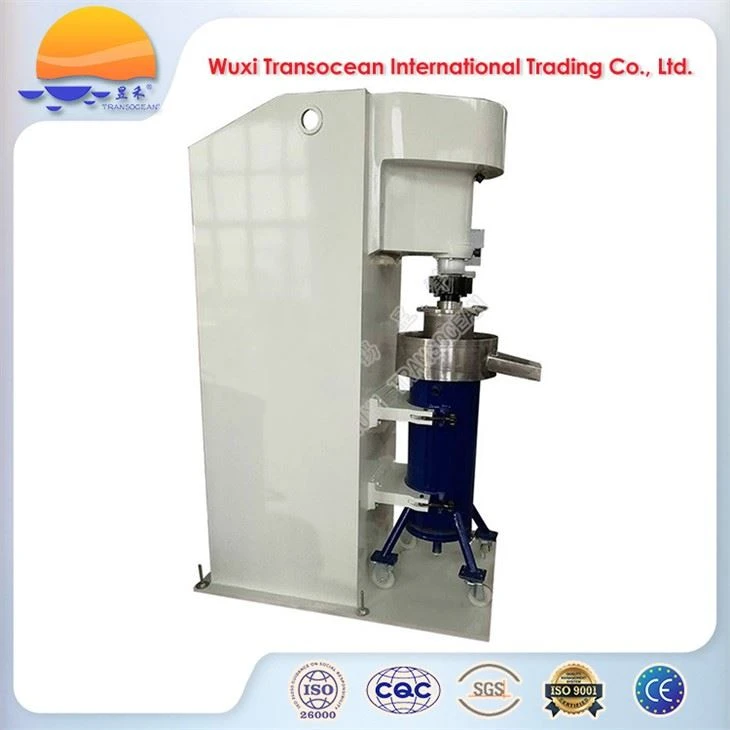

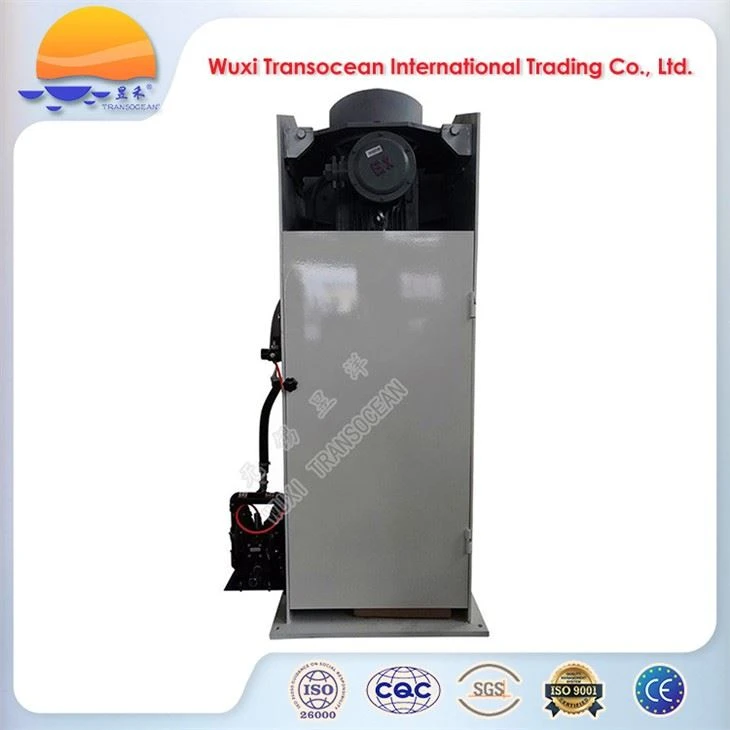

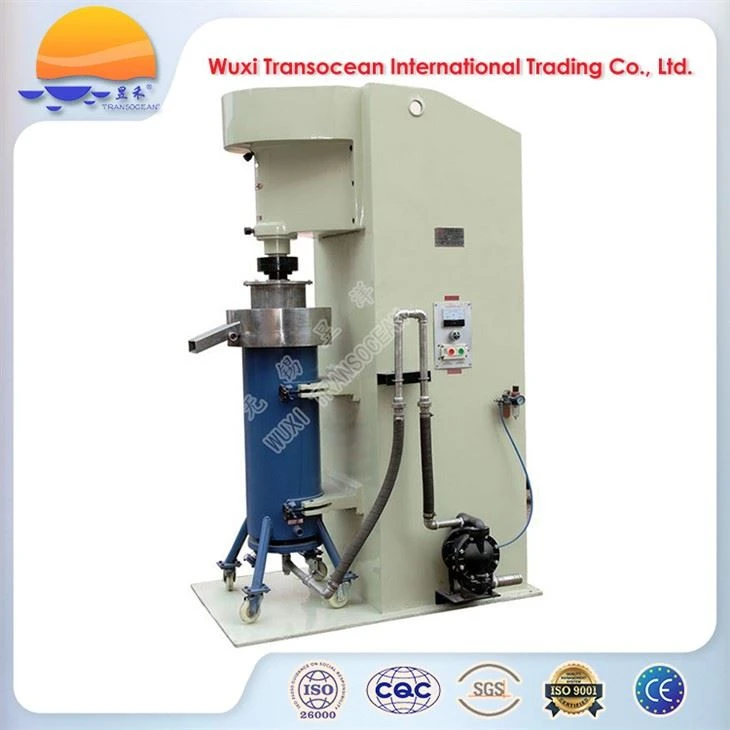

TRANSOCEAN® SK series vertical bead mills are agitator grinding machine, which are suitable for processing of solids in liquids. The mills are applicable for grinding of the particle size range from 500 microns down to less than 20 microns with ϕ2.0 mm to ϕ3.5 mm grinding beads. Products fed by a material pump are forced to flow vertically through the grinding chamber from the material inlet on bottom of the chamber towards the top and come out from the separating screen on the top of grinding chamber while grinding media are retained by the separating ring.
Applications:
● TRANSOCEAN® vertical bead mills are applicable for wet grinding in the industries such as paints, agrochemicals, pesticides, paper making and alike.
Features:
● Grinding discs stir grinding beads and generate fierce impact and shear to the materials to process
● Material of grinding parts: S.S.420/S.S.201/carbon steel/PU
● Cooling jacket outside grinding chamber is supplied to cool down products.
● Thermometer is available at product outlet to monitor the temperature of output products.
● Comply with the European Machinery Directive of CE
Advantages:
● Easy to clean and change products
● High cost performance
Technical specifications:
|
Model |
SK-10 |
SK-20 |
SK-40 |
SK-80 |
|
Chamber volume(L) |
10 |
20 |
40 |
80 |
|
Main motor power(KW) |
5.5 |
11 |
18.5 |
30 |
|
Main shaft speed(r.p.m) |
1440 |
1320 |
1020 |
830 |
|
Output capacity(L/H) |
80-200 |
150-400 |
300-700 |
500-1200 |
|
Grinding media |
Φ2.0-3.5mm glass beads/ zirconium silicate beads/ zirconia beads |
|||
|
Material feeding |
By diaphragm pump/gear pump |
|||
Our Advantages
●Rigorous design, manufacturing, and inspection procedures:
Our products are designed according to our factory standard or customer's requirement and produced according to the design strictly. All our products are tested before delivery. Comprehensive inspections of our products are conducted to ensure all are qualified before shipment.
●Timelydelivery:
Usually our products are delivered in 30 days after receipt of the down payment subject to the technical requirements are confirmed by the buyer on time. Delivery time of some customized machines should be negotiated.

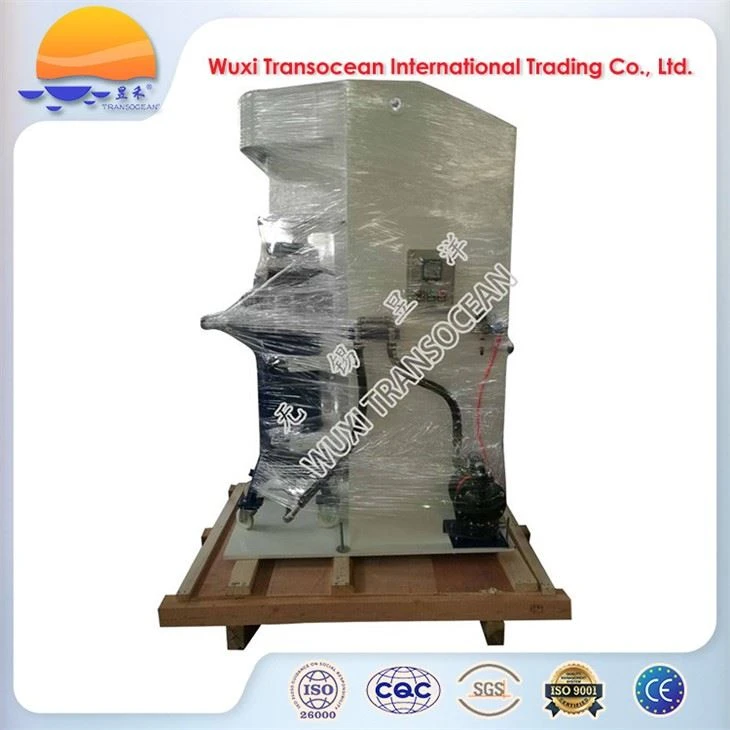

●Packaging suitable for export transportation:
Appropriate anti-rust and anti-collision measures are taken before packing to prevent the cargos from corrosion caused by the salt fog in the sea air and damage resulting from collision during transportation.
