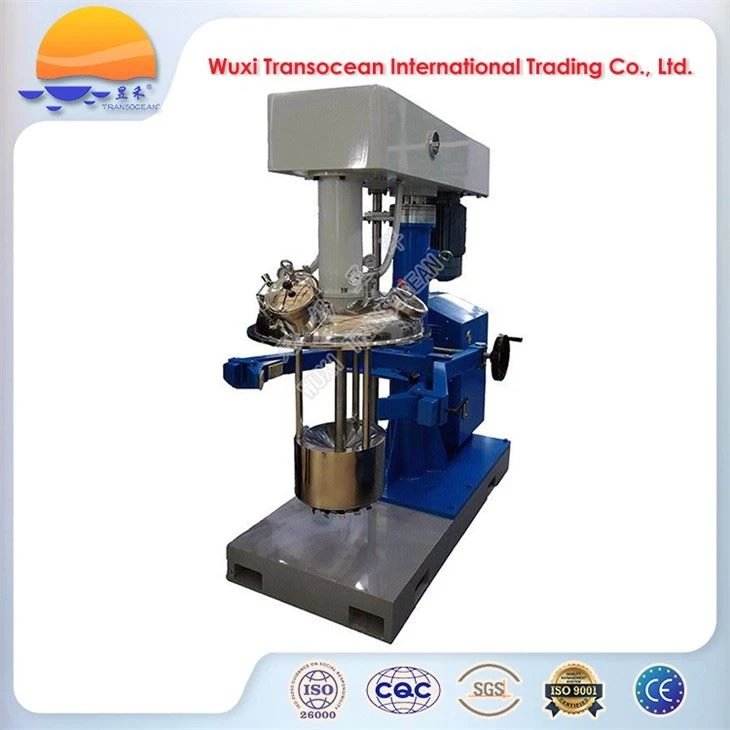

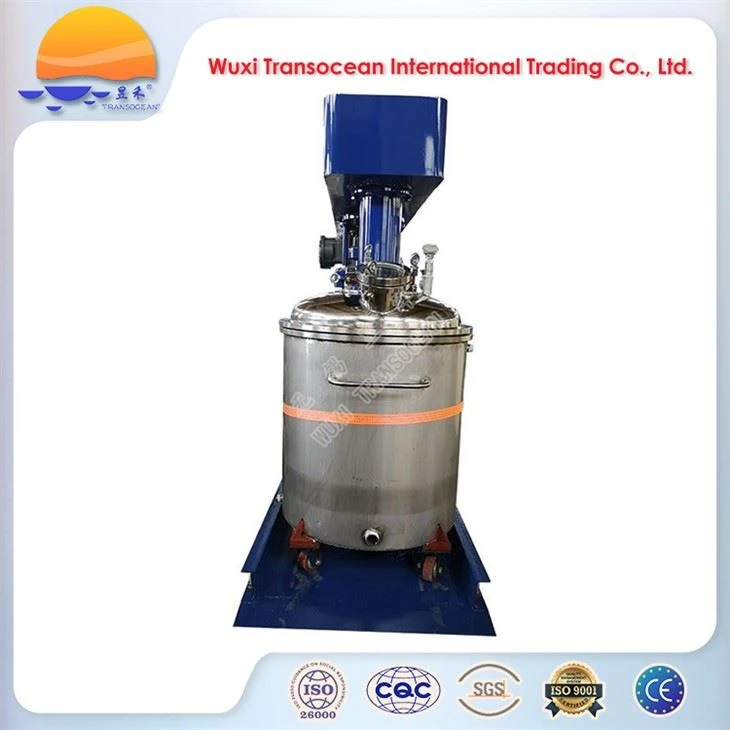

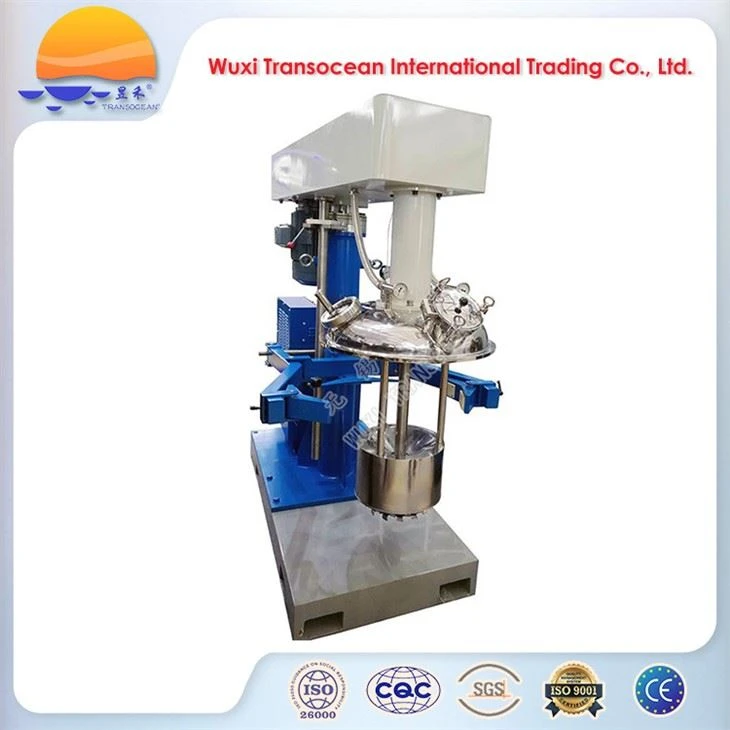

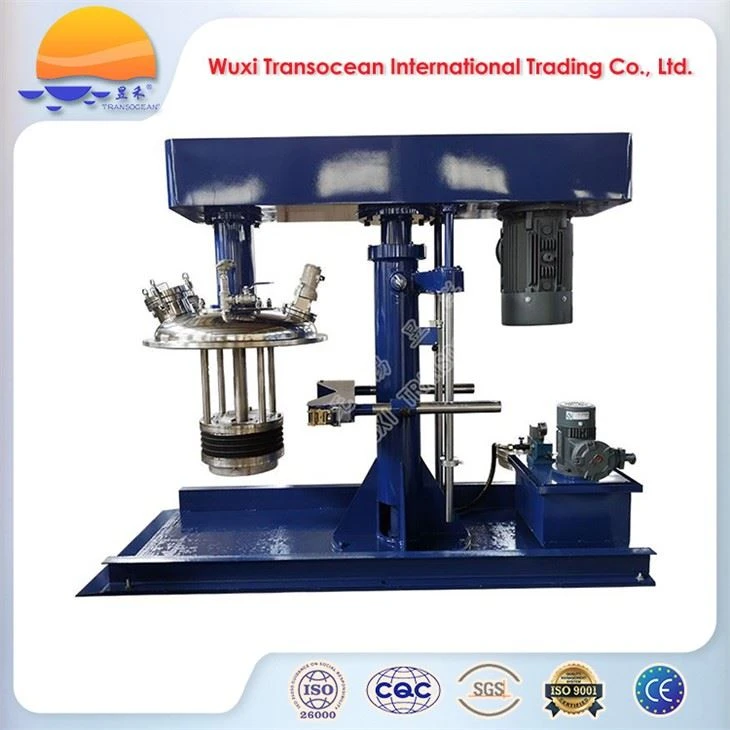

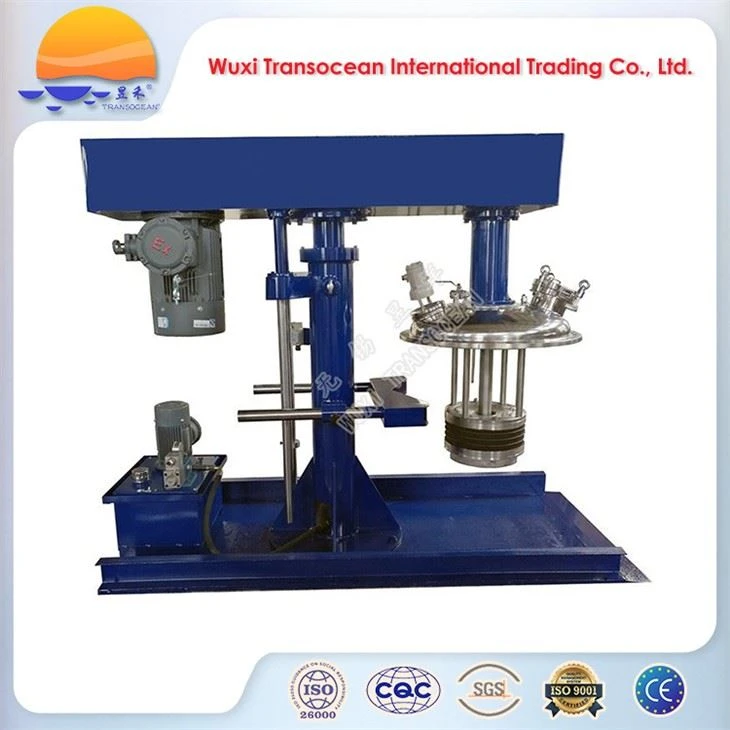

Printing Ink Basket Mill
Product Details
Introduction
TRANSOCEAN®LSZ series basket mills are applicable for vacuum grinding of solids in liquids. The mills are suitable for grinding of the particle size range from 200 microns down to microns with grinding beads from 1.8 mm to 2.2 mm in diameter. A hydraulic lifting system is available for lifting of the milling head. The material tank can be loaded beneath the grinding basket for grinding when the milling head is lifted to the highest point. After products have been processed the material tank can be removed after the milling head is lifted. Vacuum equipment is available for simultaneous de-aeration during processing to prevent the products from the adverse effect of bubbles generated during mixing and grinding and therefore upgrade the quality of final products.
Applications
● TRANSOCEAN® LSZ series basket mills are widely used in small batch wet processing of printing ink, color paste, adhesive, agrochemical and alike.
Features
● Impeller stirs grinding media and forces grinding media to circulate in mobile tank, while grinding pegs drive zirconia beads to impact and grind the products.
● A mechanical seal and O-rings are supplied for sealing of the material vessel.
● The vacuum equipment creates vacuum in the vessel simultaneously during the grinding process.
● Cooling jacket outside grinding basket is available as an option.
● Comply with the European Machinery Directive of CE
Advantages
● No air bubble in the final products
● High quality products with gloss
Technical specifications
|
Model |
LSZ-3 |
LSZ-10 |
LSZ-20 |
LSZ-40 |
|
Basket volume(L) |
3 |
10 |
20 |
40 |
|
Tank volume(L) |
100 |
230 |
450 |
500-1000 |
|
Main motor power(KW) |
7.5 |
11 |
22 |
37 |
|
Rack lifting mode |
By hydraulic cylinde |
|||
|
Hydraulic motor power(KW) |
0.55 |
0.75 |
1.1 |
2.2 |
|
Main shaft speed(r.p.m) |
0-1450 |
0-800 |
0-600 |
0-500 |
|
Grinding media |
Φ1.8-2.2mm zirconia beads |
|||
|
Vacuum(MPa) |
Max. -0.08 |
|||
Our services
●Free verify copy of shipment documents for consignee's confirmation after delivery of cargo from our factory
●Free original/ electronic documents for consignee's custom clearance and picking up cargo
●Free professional operation instruction and guidance for the ordered equipment online
●Free after-sales service online within 24 working hours after receipt of customer's request
●Spare parts at favorable price all through the service life of our products
●Special service upon customers' request
FAQ
●Q:How can you solve the problems about the use of your productsencountered with by your overseas customers in time?
A:We will response within 24h after receiving the request from our customers. At first, we will discuss with our customers on line to diagnose the problem. If it is caused by improper operation we will guide our customers to operate the machine properly; if it is resulted from the quality defect on the working part or wearing of our machine we will deliver the spare parts by air/express ASAP for replacement and instruct our customers how to replace the defective part on line. If necessary, we will share a short video to demonstrate the replacement.One year warranty from the shipment date is provided for our machines.
●Q:What kinds of physical and chemical testing you can provide?
A:The physical and chemical testing we provide include:
chemical composition testing
physical property testing: hardness testing, tensile performance testing, room temperature impact testing, low temperature impact testing
