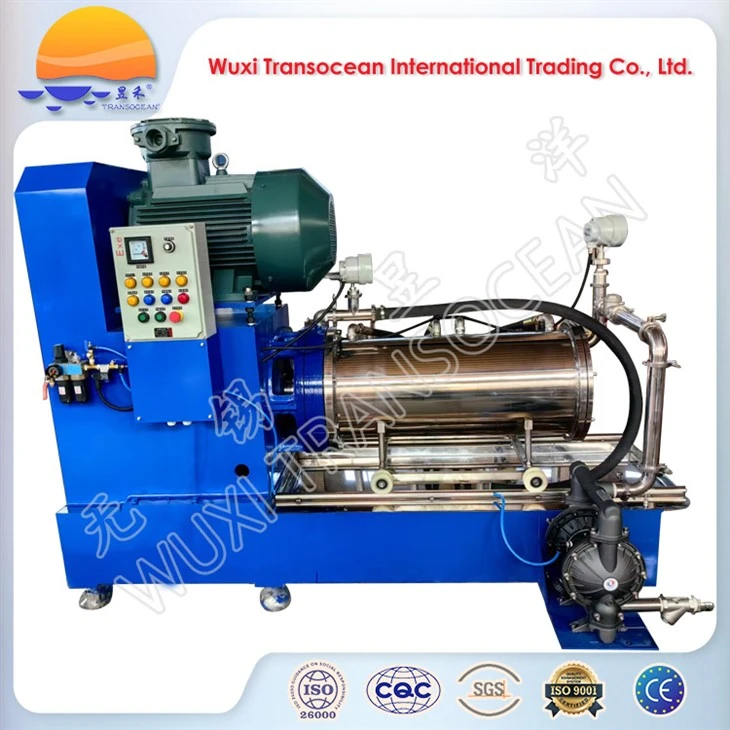

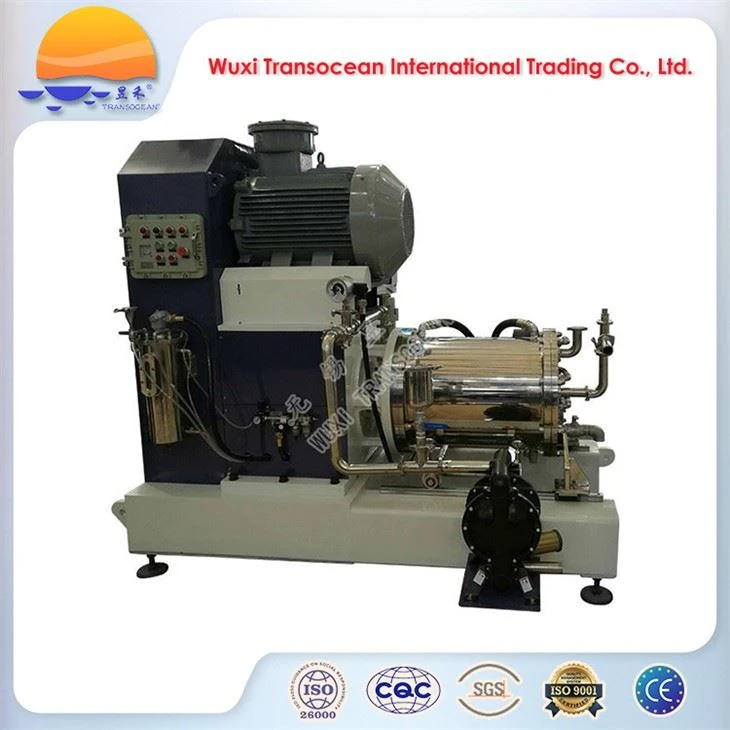

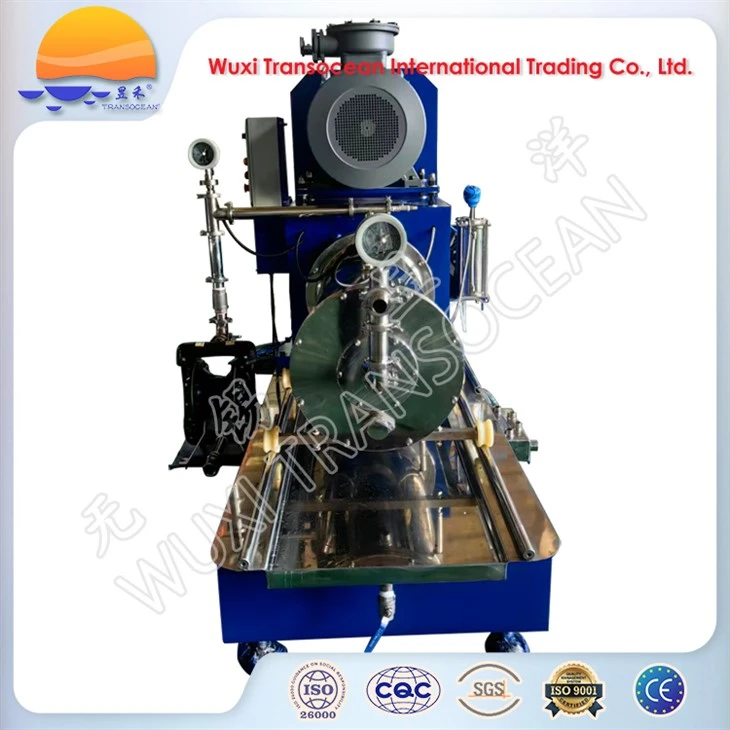

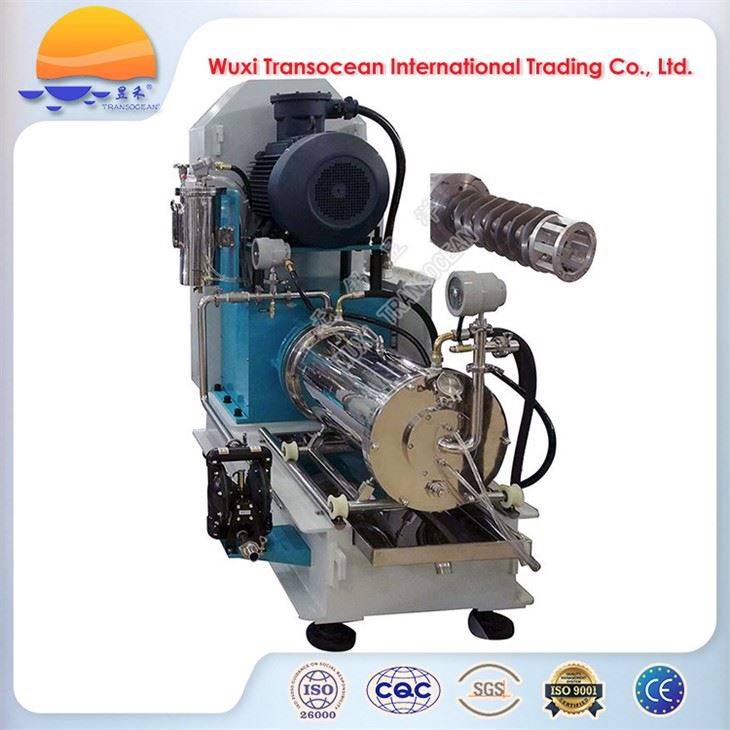

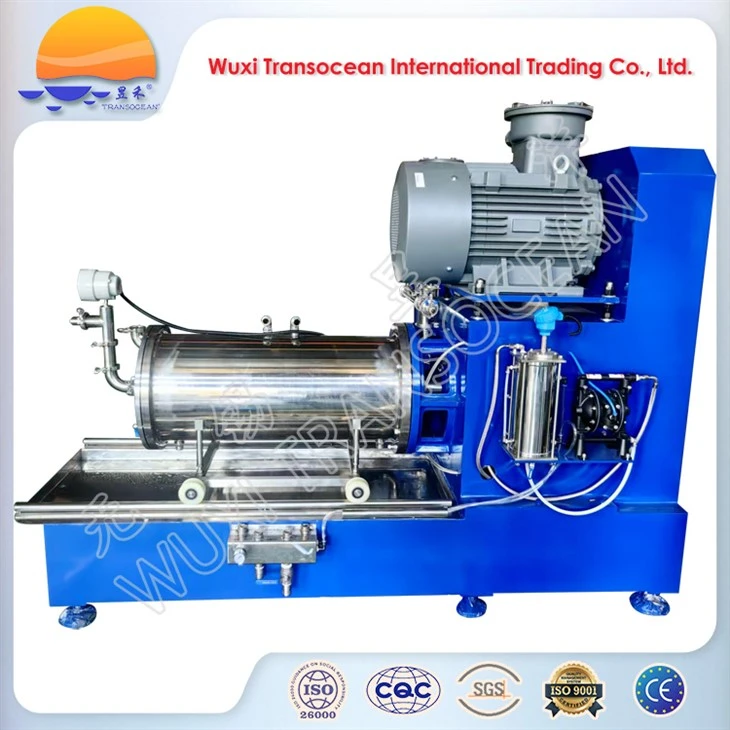

Horizontal Disc Type Sand Mill
Product Details
Introduction
TRANSOCEAN® JWS series horizontal disc-type sand mills are applicable for super-fine processing of powders or granules in liquids. The mills are suitable for processing of the particle size range from 200 microns down to 5 microns or even less, with a wide range of grinding media from 0.3 mm to 1.6 mm in diameter. Products fed by a feeding pump are forced to flow horizontally through the grinding tank from the material inlet near the mechanical seal towards the other end and exit from the discharge port at the end of the grinding chamber while grinding media are retained in the mill by the centrifugal separator.
Applications
●TRANSOCEAN® horizontal sand mills are suitable for wet grinding of Alkyd topcoat, alkyd primer, anticorrosive paint, color paste, water-soluble fertilizer, ink, pesticide, non-mineral filler, etc.
Features

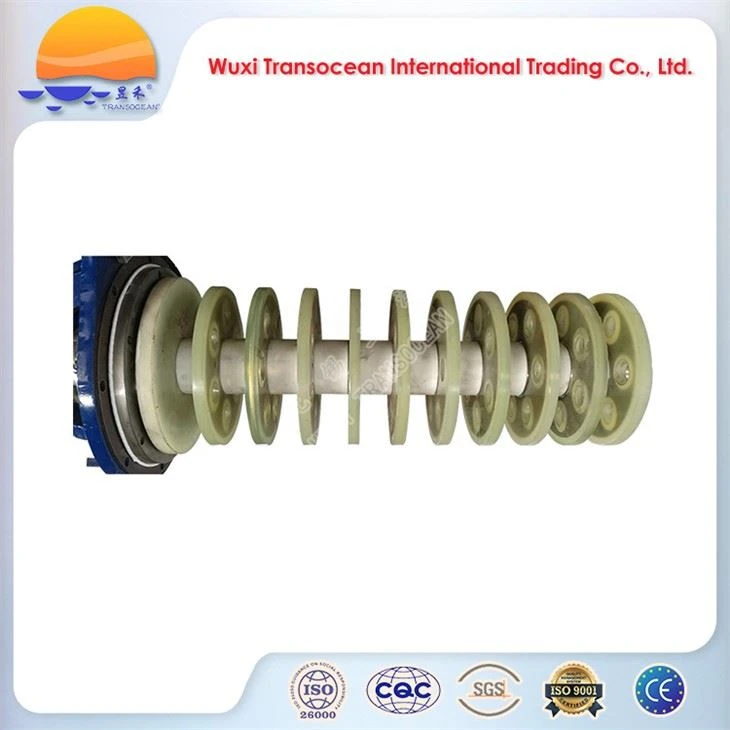

● Materials of grinding discs and spacers can be customized according to the properties of the products.
● A cooling jacket outside the grinding chamber is provided to adjust material temperature.
● A pressure switch is available to prevent the mill from starting when the cooling water pressure in the cooking jacket is lower than the set value.
● An electric contact pressure switch at the material inlet in the grinding chamber is available to protect the grinding chamber from high pressure.
● An electric contact temperature switch at the product outlet is available to protect the products from overheating.
● Dynamic ring & static ring type separator is available as an alternative to the screen type separator for the discharge of products.
● Comply with the European Machinery Directive of CE
Advantages
● Ultra-high processing capacity
● Eco-friendly
● Easy to maintain
Technical specifications
|
Model |
JWS-5 |
JWS-15 |
JWS-30 |
JWS-50 |
JWS-100 |
JWS-300 |
|
Motor Power(KW) |
5.5 |
11 |
22 |
37 |
55 |
132 |
|
Effective Grinding Chamber Volume(L) |
5 |
15 |
30 |
50 |
100 |
300 |
|
Output Capacity(L/h) |
20-100 |
50-150 |
100-300 |
100-400 |
100-1000 |
800-2000 |
|
Grinding media |
Φ0.3-1.6mm zirconia beads |
|||||
|
Material feeding pump |
Diaphragm pump/ rotary pump |
|||||
● Remark: Technical specifications listed above are for reference only, which will be customized according to actual applications.
Why choose us?
●We are one of the leading manufacturers and suppliers of mixers, grinding equipment, filters and filling machines in Wuxi city, Jiangsu province, China.
●Our quality control is implementedall throughout the production process.
●We always keep customers informed of the updates on the preparation of the cargo at key points in time
●Comprehensive inspection prior to packing.
●We passed ISO 9001 and SGS certification.
●Our products passed CE certification.
FAQ
●Q: How about the finish of the surface of your machines?
A: Carbon steel parts of our machines are primed and coated with heavy anti-corrosion paint, the surface of stainless steel parts is polished, and electric cabinets, as well as control panels, are coated with powder coatings. The color or the paint can be customized.
●Q: What equipment do you have for NDT inspection?
A: Ultrasonic flaw detector, a miniature magnetic yoke detector, a magnetic detector and a penetration detector.
●Q: What is the transportation means applicable for our order?
A: All transportation means by sea, by train, by air and by express are available as an option. We will choose the most suitable transportation method on the basis of cost, timeliness and the customer's preferences.
