Basket Grinding Mill
Product Details
Introduction:

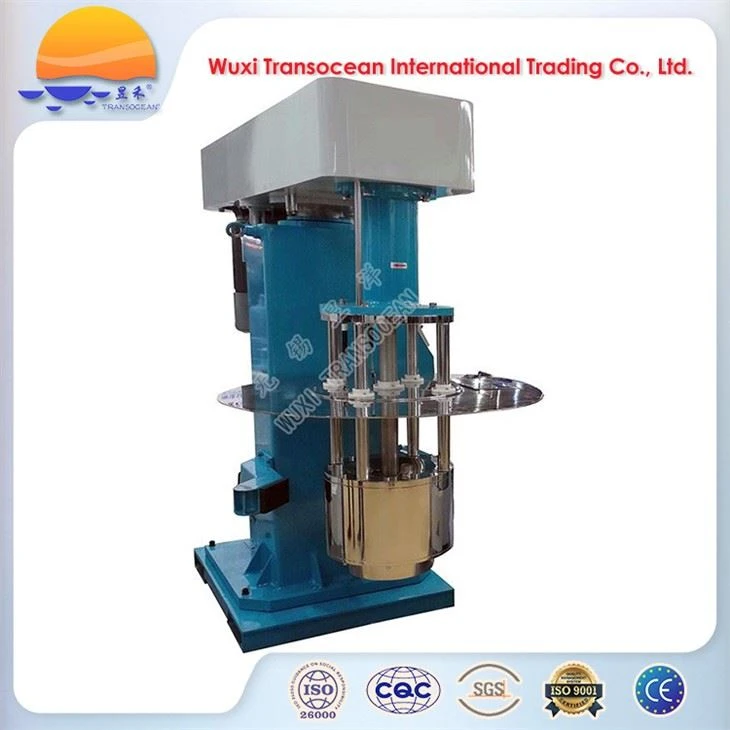

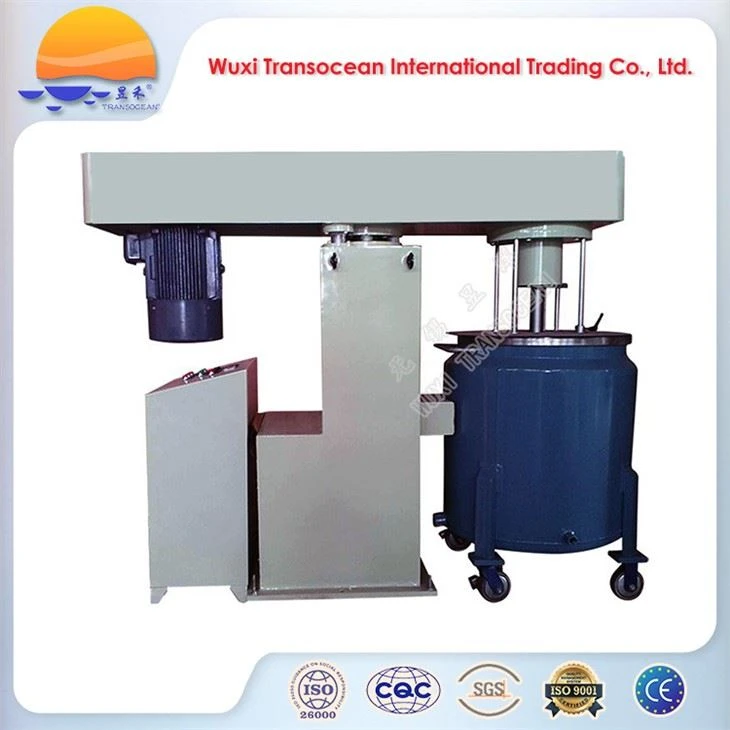

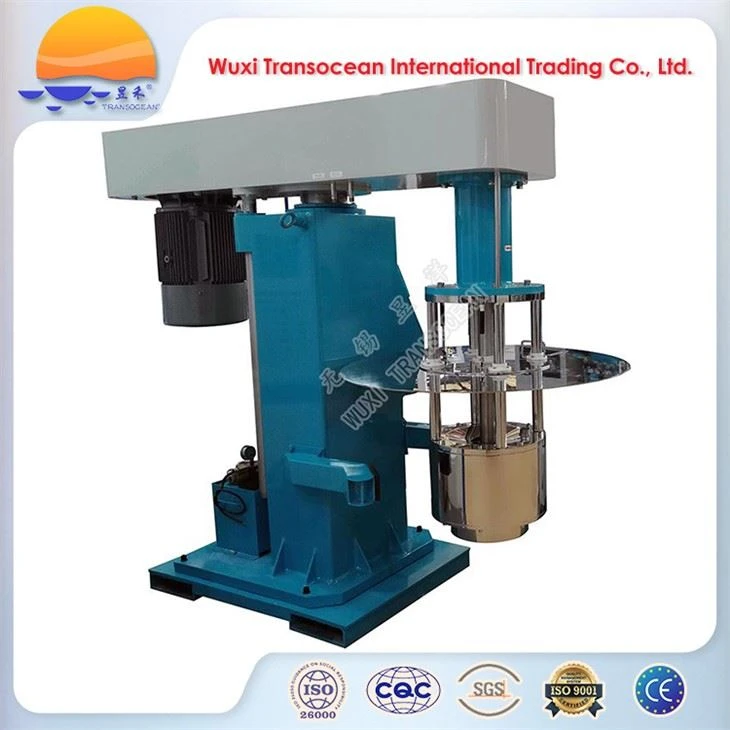

TRANSOCEAN® series basket grinding mills are suitable for supper fine processing of solids in liquids. The basket bead mills are applicable for grinding of the particle size range from 200 microns down to microns with grinding beads from 1.8 mm to 2.2 mm in diameter. The material tank can be loaded beneath the grinding basket for grinding when the milling head is lifted to the highest point. Materials to process are forced to move horizontally from the central axis to all around, and cycle vertically around the main shaft of the mill. Uniform processing of the products can be achieved under the comprehensive function of wetting, mixing, dispersing and grinding of grinding pegs and impeller. After products have been processed the material tank can be removed after the milling head is lifted.
Applications:
● TRANSOCEAN® LS series basket mills are suitable for small batch wet grinding in the industries such as paint, ink, color paste, adhesive and alike.
Features:
● The impeller forces the products to cycle in mobile tank, while grinding pegs drive ZrO2 beads to impact and grind the products.
● Less dead area in material tank
● Grinding basket is made of carbonitrided S.S.304 to significantly improve the corrosion resistance and wear resistance properties.
● Cooling jacket is provided on the movable tank for cooling of the products
● Cooling jacket outside grinding basket is available as an option
● Convenient to clean and change products
● Comply with the European Machinery Directive of CE
Technical specifications:
Model | LS-3 | LS-10 | LS-20 | LS-40 |
Basket volume(L) | 3 | 10 | 20 | 40 |
Tank volume(L) | 100 | 230 | 450 | 500-1000 |
Main motor power(KW) | 7.5 | 11 | 22 | 37 |
Rack lifting mode | by hydraulic cylinder | |||
Hydraulic motor power(KW) | 0.55 | 0.75 | 1.1 | 2.2 |
Main shaft speed(r.p.m) | 0-1450 | 0-800 | 0-600 | 0-500 |
Grinding media | Φ1.8-2.2mm zirconia beads | |||
Our services
●Free pre-sale consulting service
●Free tailored solutions according tousers' specific requirements
●Free adviceon layout of our equipment in users' workshop
●Free picking-up& drop-off service for the customers at Wuxi airport/ railway station
●Leading customers around our factory and demonstrating our products for free
FAQ
1.Q: How about the finish of the surface of your machines?
A: Carbon steel parts of our machines are primed and coated with heavy anti-corrosion paint, surface of stainless steel parts are polished, and electric cabinets as well as control panels are coated with powder coatings. Color or the paints can be customized.
2.Q:How you arrange shipment?
A: By sea/ by train/ by Air or by Express, all are available for customers option.
3.Q:Is your price competitive?
A: We have been devoting in supplying highly cost-effective products and services for more and more customers. We always seek win-win and development together with our customers. We would not take part in any price war at the cost of the quality of our products or services. Wise customers will not neglect product quality and service when think ofthe price. If the products and services you buy can't meet your expectations, what is the point of the low price?We wouldn't like brag that we could provide the best products and services at the lowest prices.
