Vertical Ball Mill
Product Details
Introduction:

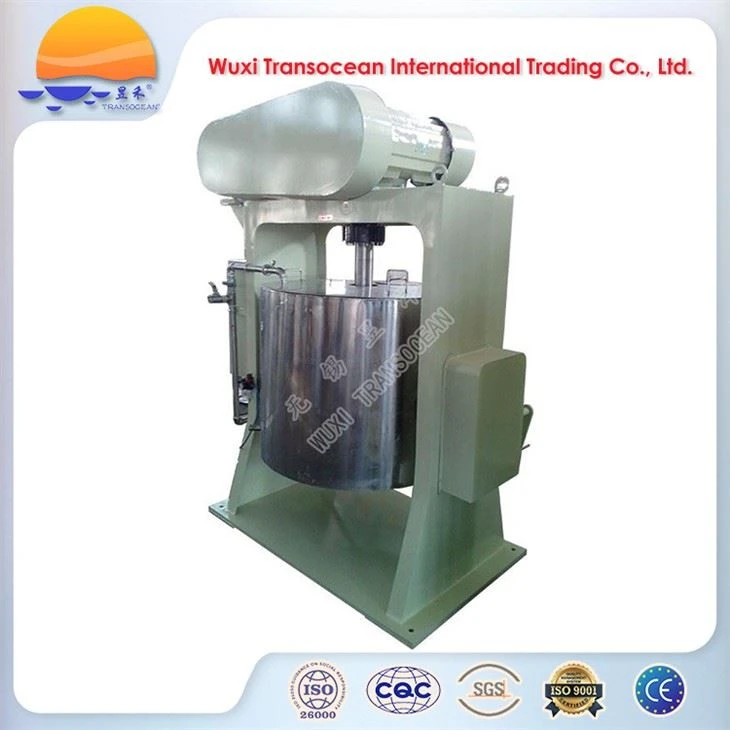

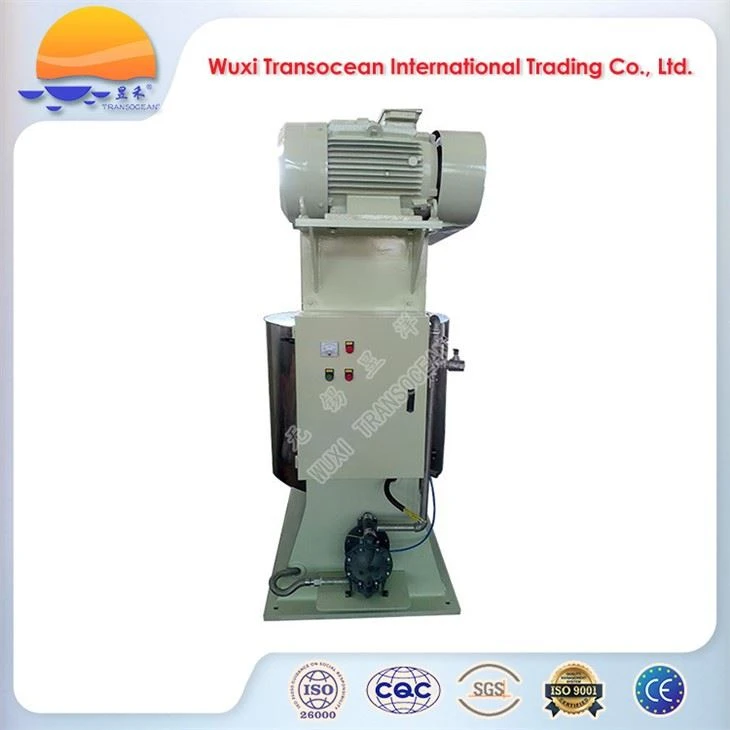

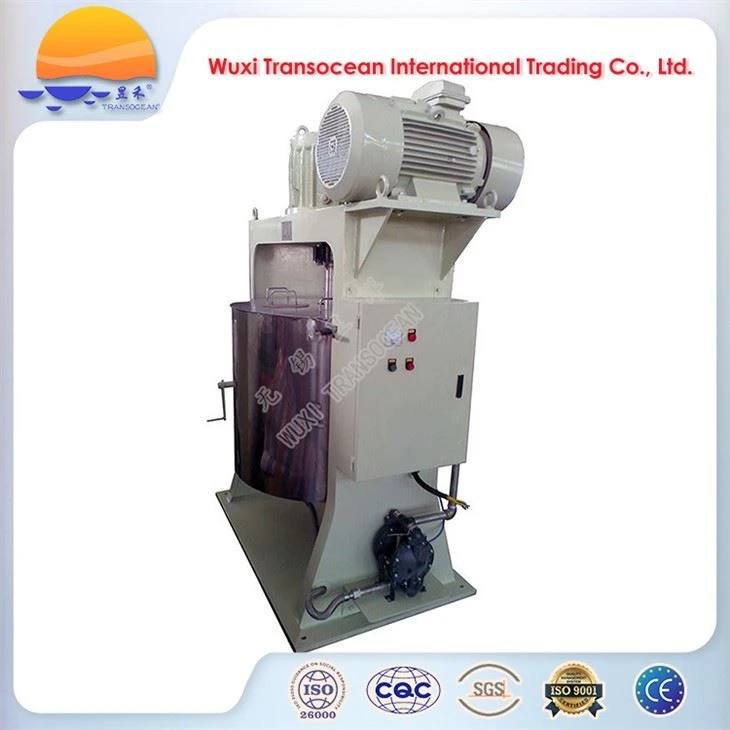

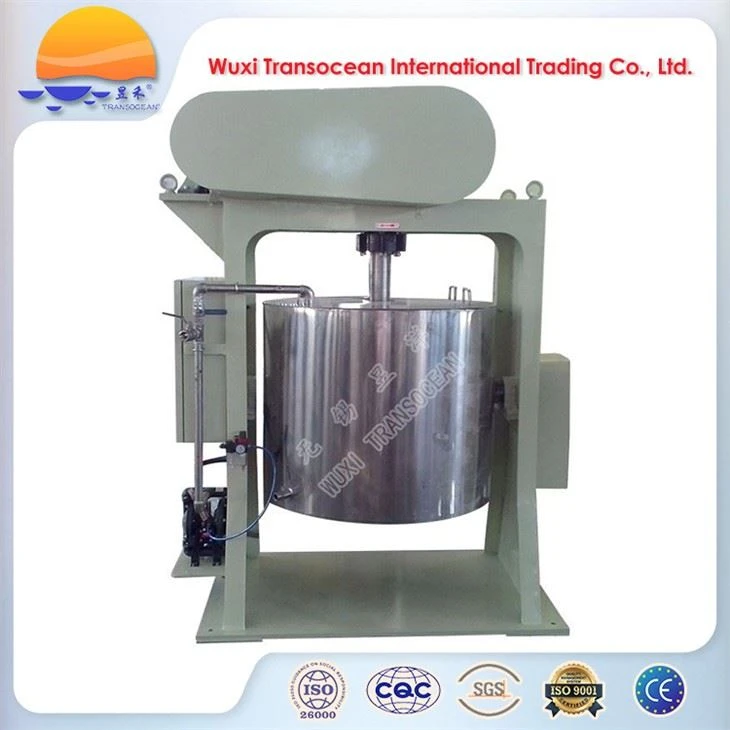

TRANSOCEAN® LQM series vertical ball mills are widely used in processing of solids in liquids. The mills are applicable for grinding of various particles from 500 microns down to microns with a wide range of grinding media from ϕ5 mm to ϕ12 m. Raw materials can be loaded from the loading port on the top of grinding chamber by hand or with a feeding pump. Products are subject to strong click and shear from moving grinding balls stirred by grinding pegs in the tank. After the materials are processed the grinding chamber can be tilted to place the discharge port on the bottom of grinding tank at the lowest point to facilitate discharge of finished products with the gear and worm dumping mechanism. Open the discharge valve beneath the off-centered discharge port on the bottom of grinding tank to let products exit from the discharge port while the grinding balls are retained in the tank by the separating screen.
Applications:
● TRANSOCEAN® LQM series vertical ball mills are applicable for wet grinding of highly viscous thixotropic materials such as oil ink, color paste, dye, etc.
Features:
● Grinding pegs stir grinding balls to impact and grind products.
● High grinding efficiency for large wearable particles and high viscous materials
● Material of grinding bar: S.S.304/S.S.420/S.S.430
● Cooling jacket outside grinding tank is provided for cooling of materials to process
● Inverter is optional to adjust the stirring speed
● Circulation system is available as an option to force products to cycle from the bottom to the top of the tank for uniform processing.
● Easy to clean and change products
Technical specifications:
Model | LQM-200 | LQM-300 | LQM-500 | LQM-1000 |
Motor power(KW) | 7.5 | 11 | 22 | 55 |
Main shaft speed(r.p.m) | 130 | 112 | 88 | 72 |
Chamber volume(L) | 200 | 300 | 500 | 1000 |
Grinding ball dia.(mm) | Φ5-12mm zirconia balls/ ceramic balls/ alloy balls | |||
Why choose us ?
●We are one of the leading manufacturers and suppliers of mixers, grinding equipment, filters and filling machines in Wuxi city, Jiangsu province, China.
●Our quality control is implementedall through the production process.
●We always keep customers informed of the update of preparation of the cargo at key points in time
●Comprehensive inspectionprior to packing.
FAQ
●Q:What is your minimum order quantity, can you send me samples?
A:Our Min. OQ is 1 set.As our productsare machines, it’s hard to provide samples.Instead,we would provideour catalog and you are also to visit our factories.
●Q:What is the payment term acceptable to your company?
A: TT in advance, LC or Western Union.
●Q:What about the availability of the after-service?
A: Considerable after-services are available on line or via email all through the service life of our machines. Your request will be replied to within 24h after we receive it.
Hot Tags: vertical ball mill, China vertical ball mill manufacturers, suppliers, factory, Ball Mill
