Vacuum High Speed Disperser
Product Details
Introduction

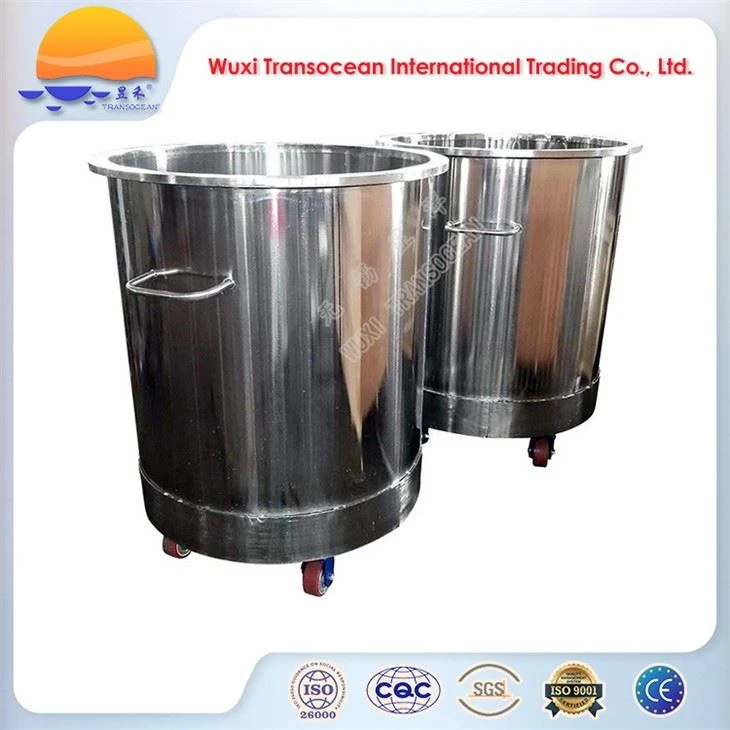

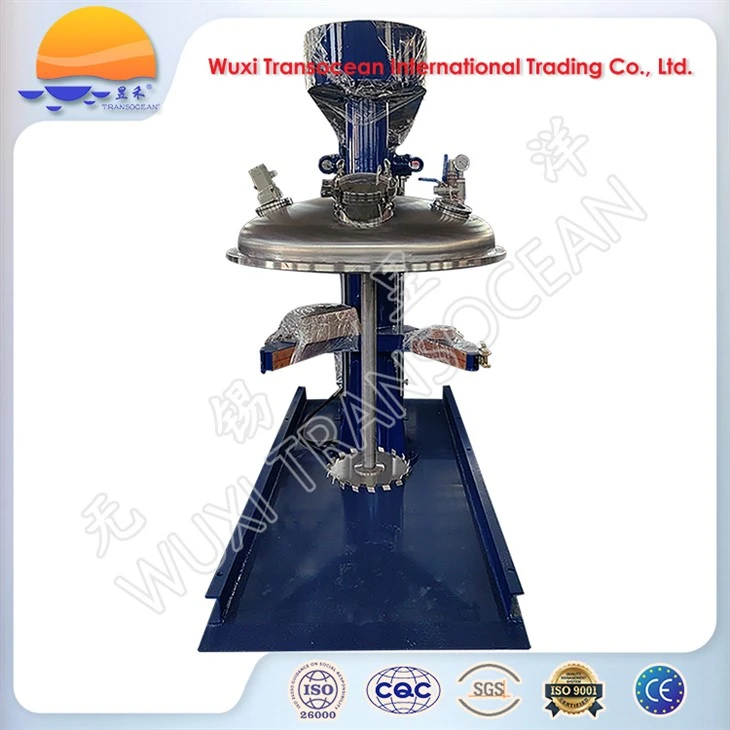

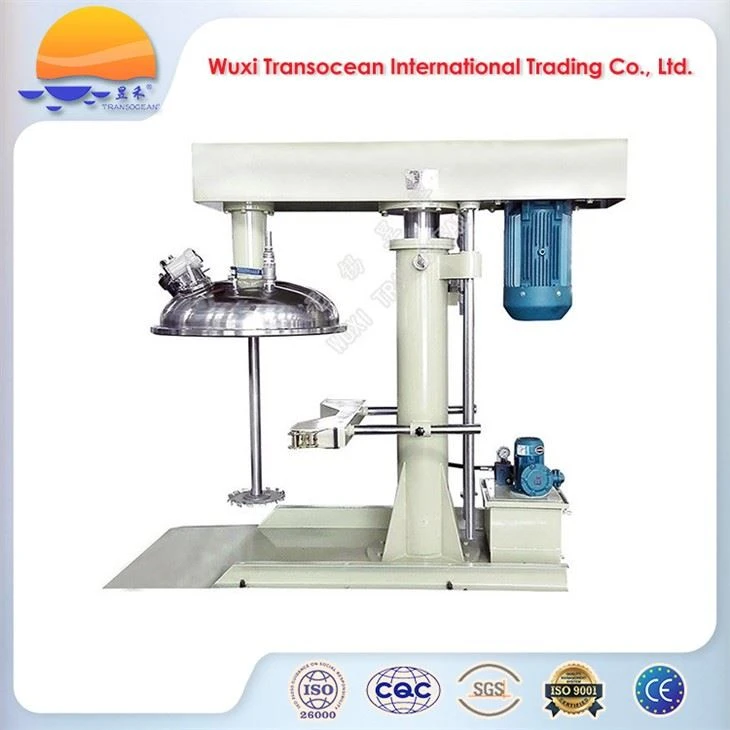

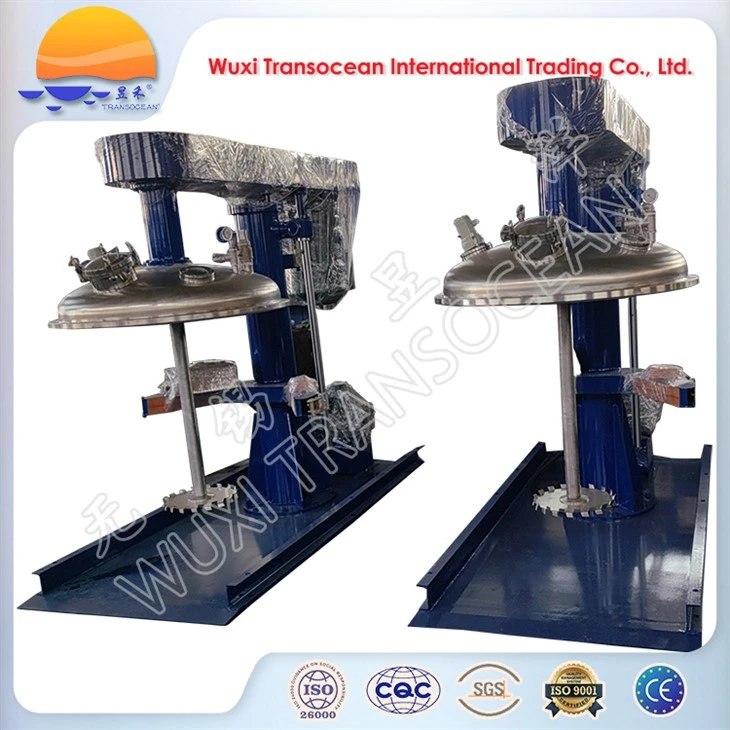

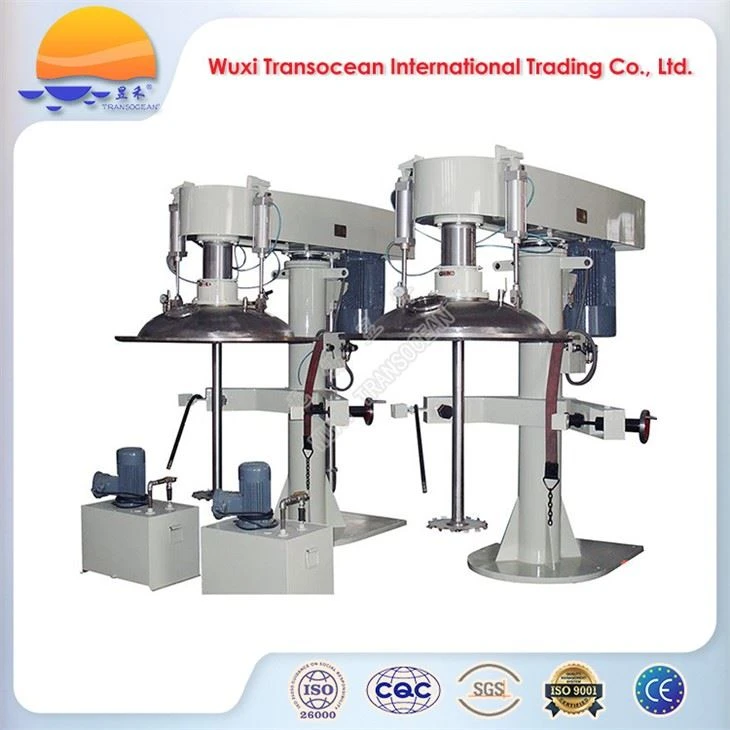

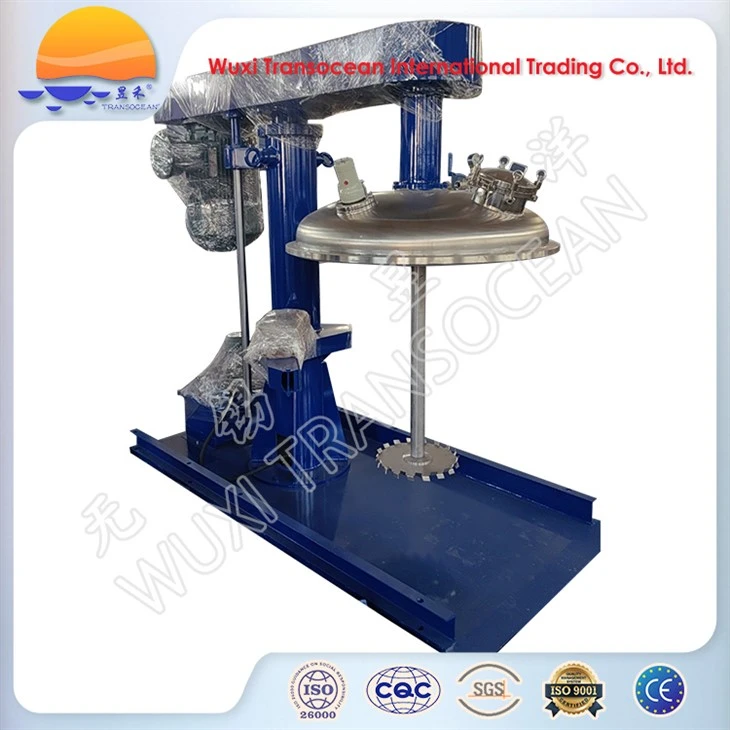

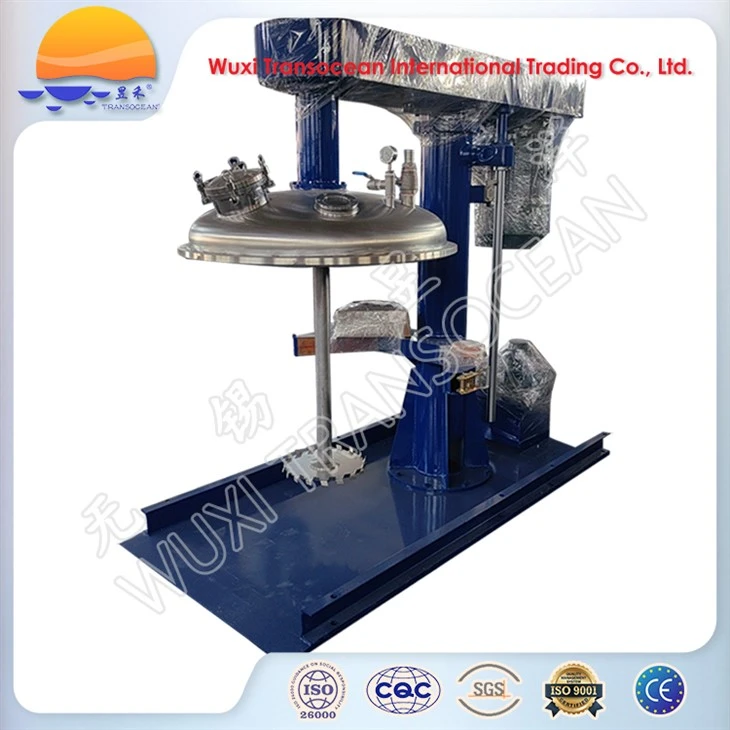

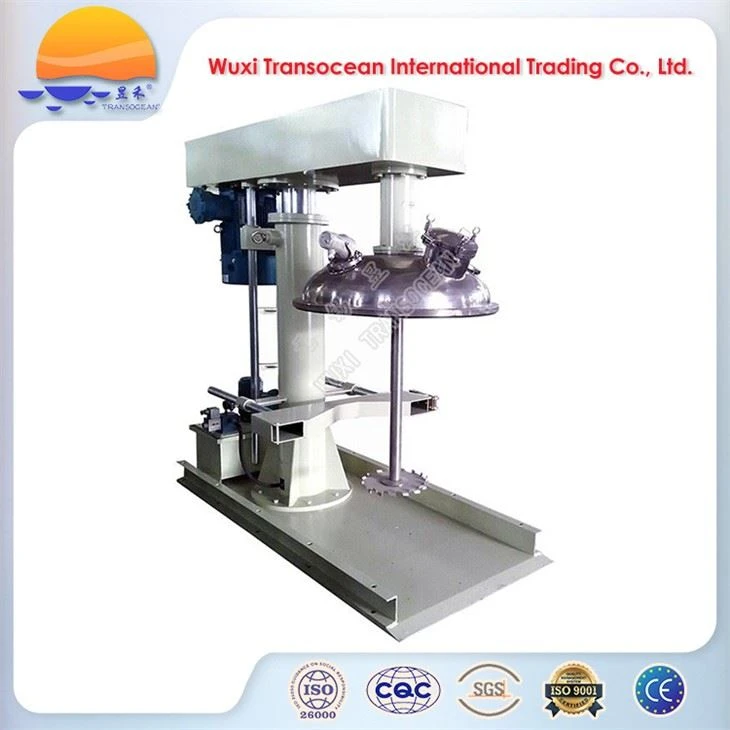

TRANSOCEAN® vacuum deaeration high speed dispersion mixer is applicable for vacuum mixing and dispersion of solids into fluids in production of resins or alike. The vacuum equipment can simultaneously remove air bubbles at the same time of mixing to prevent the materials from being oxidized and ensure the quality of the products. The tank cover can be raised/ lowered separately by twin cylinders or moved together with the mixer head. A saw-tooth type dispersing disc is provided on the main shaft. Twin shaft dispersers are available as an option.
Features
● Saw-tooth shape dispersing discs are supplies.
● Mechanical seal to ensure vacuum in dispersing tank
● Dispersing head can be lifetable by hydraulic cylinder.
Advantages
● Vacuum equipment to eliminate air bubble simultaneously during mixing
● Close dispersing tank to reduce volatilization of dispersing media
Applications
● TRANSOCEAN® vacuum deaeration high speed dispersion mixer is used in the industries such as paint, dye, printing ink, papermaking, adhesive and alike.
Technical specifications
|
Model |
FLZ-200 |
FLZ-400 |
FLZ-600 |
FLZ-1000 |
|
Main motor power(KW) |
7.5 |
15 |
22 |
30 |
|
Main shaft speed(r.p.m.) |
100-1400 |
100-1400 |
100-1400 |
100-1400 |
|
Speed control mode |
By inverter |
|||
|
Dispersing disc dia.(mm) |
200 |
300 |
350 |
400 |
|
Tank volume(L) |
200 |
400 |
600 |
1000 |
|
Lifting stroke(mm) |
900 |
900 |
1200 |
1200 |
|
Vacuum(MPa) |
Max. -0.08 |
|||
Remarks
● Technical data of each model can be customized.
● Large models not listed hereby can be customized.
Why choose us ?
●We are one of the leading manufacturers and suppliers of mixers, grinding equipment, filters and filling machines in Wuxi city, Jiangsu province, China.
●Our quality control is implementedall through the production process.
●We always keep customers informed of the update of preparation of the cargo at key points in time
●Comprehensive inspectionprior to packing.
●We passed ISO 9001 and SGS certification.
FAQ
Q:Are you a manufacturer, trading company or a third party?
A:We are a manufacturer.Our factories wereset up in 2005.
Q:How can I get to your factories?
A:Our factoriesare near Wuxiairport/ train station.We can pick you up at Wuxi airport/ train station.
Q:What is your minimum order quantity, can you send me samples?
A:Our Min. OQ is 1 set.As our productsare machines, it's hard to provide samples.Instead,we would provideour catalog and you are also to visit our factories.
