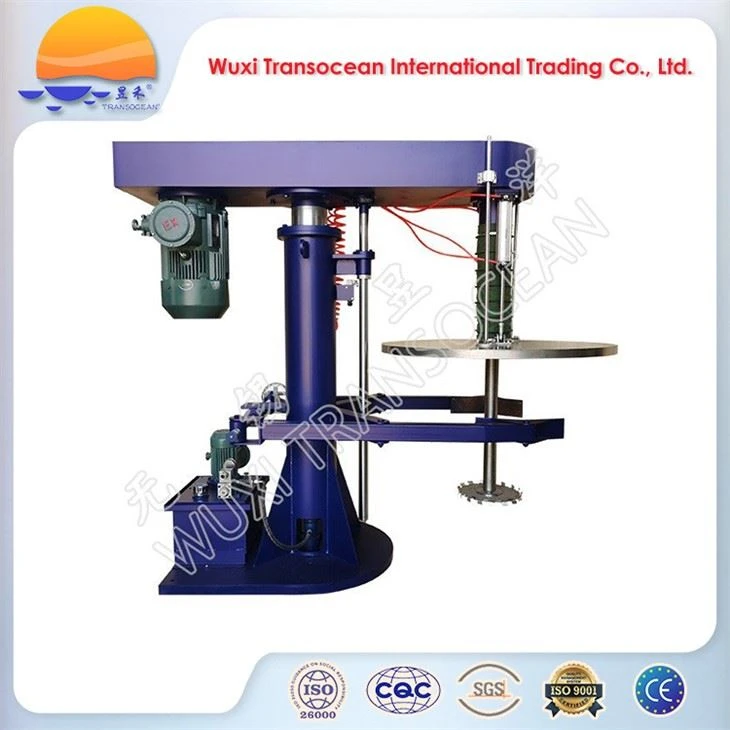

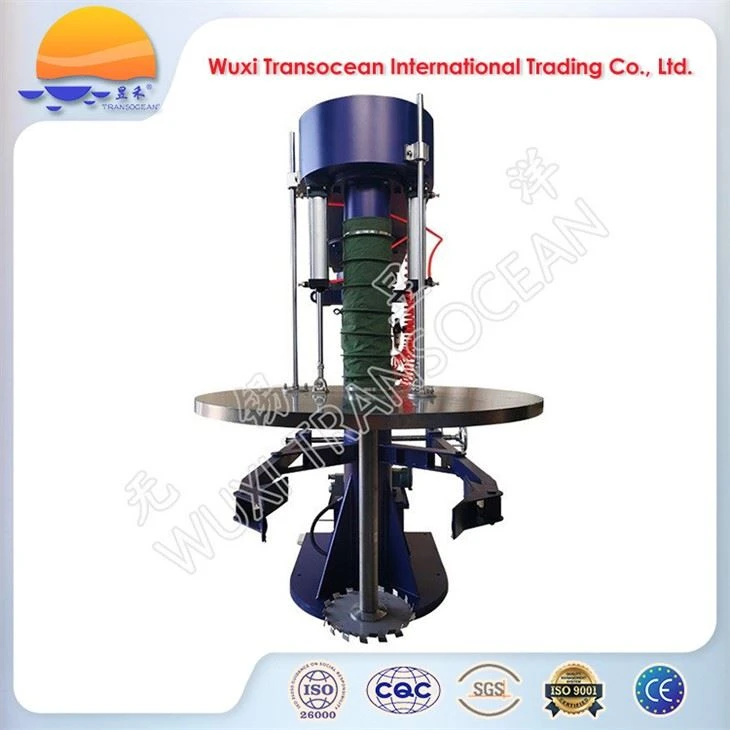

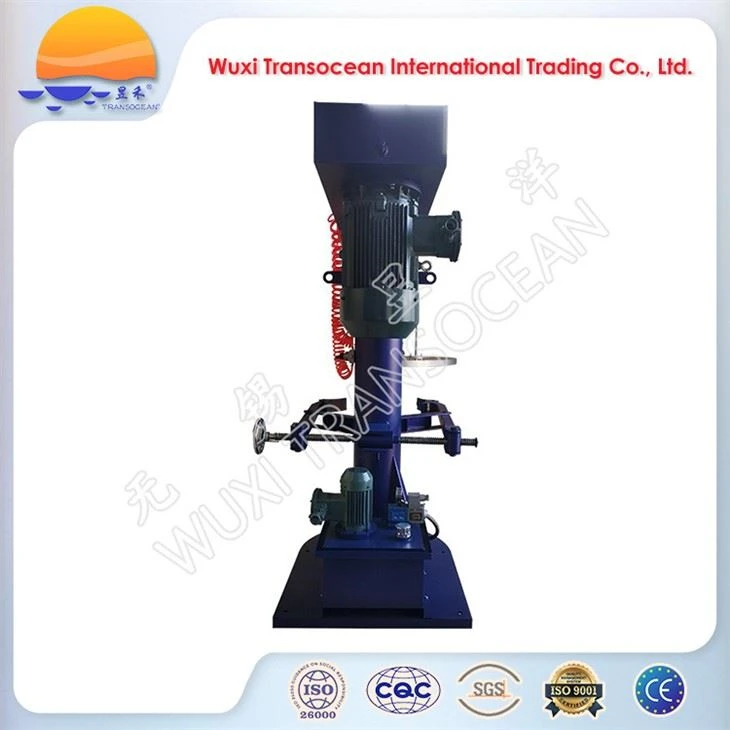

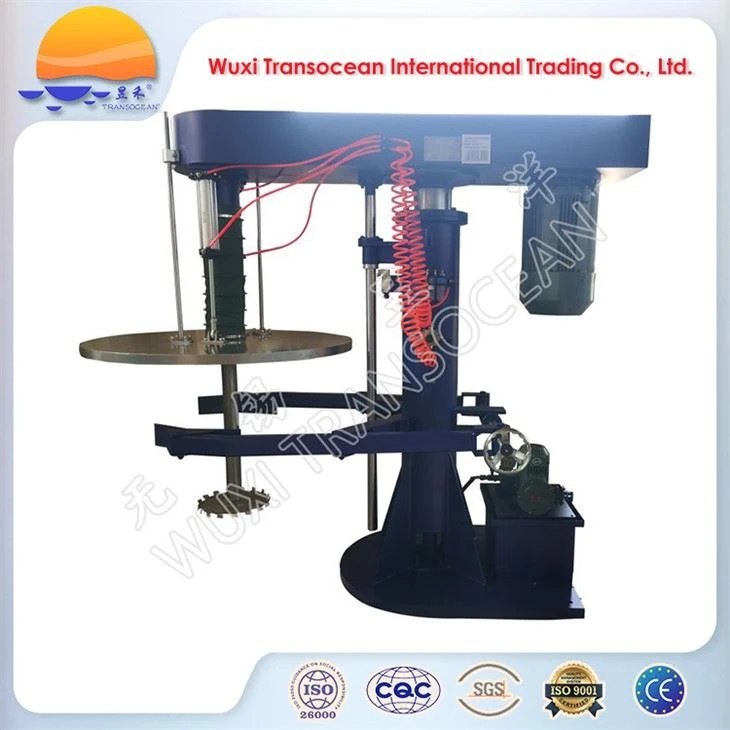

Corrosion Resistant High Speed Mixer

Introduction

Wuxi Transocean International Trade Co., Ltd. is one of the leading manufacturers and suppliers of Corrosion resistant high speed mixer based in Wuxi city, Jiangsu, China. TRANSOCEAN^® corrosion resistant high speed mixers are widely used in the production of pesticides, agrochemicals, disinfectants, detergents and other strong acid or strong alkaline products. The high speed rotating saw-tooth dispersing disc can quickly and uniformly disperse and dissolve powder components into liquid components, or disperse one or more liquid components into another liquid component to form a stable dispersion system. The mixer head and the dispersing assembly are driven up and down by the engineering hydraulic cylinder, which is convenient for loading and unloading of the mixing tank. The tank lid is connected to the mixer head via two pneumatic cylinders. The cylinders are operated by a 3-position switch, which can rise, fall or hover independently. The mixing speed is regulated by the frequency converter. Press the “Accelerate” button on the control panel to gradually accelerate from 0 to the maximum speed; press the “Decelerate” button to gradually decelerate from the current speed to 0.

Features

1. All parts contacting materials are made of SS316L.

2. Other parts made of carbon steel are coated with heavy-duty anti-corrosion paint.

3. The tank lid can be lifted, lowered or hovered independently.

4. The mechanical tank clamp is adopted to fix the material tank.

5. The explosion-proof control panel is adopted for operation.

Advantages

1. TRANSOCEAN^® corrosion resistant high speed mixer can withstand the corrosion of ordinary acids, alkalis and organic solvents.

2. It is convenient to add materials during the mixing process.

3. The mechanical tank clamp is easy to operate and can firmly fix the material tank to prevent it from moving with the products during the mixing process.

4. Suitable for operation in hazardous areas.

Main technical parameters

1. Motor power: 22kw-4P

2. Rotation speed of stirring shaft: 0-1450rpm

3. Lifting stroke of dispersion plate: 1200mm

4. Applicable material tank volume: 1000-1300L

Remarks: The parameters can be customized according to customer requirements.

Our services

●Free pre-sale consulting service

●Free tailored solutions according tousers’ specific requirements

●Free adviceon layout of our equipment in users’ workshop

●Free picking-up& drop-off service for the customers at Wuxi airport/ railway station

●Leading customers around our factory and demonstrating our products for free

FAQ

Q:What certificates are available for your products?

A: CE and SGS certificates.

Q:What is the payment term acceptable to your company?

A: TT in advance, LC or Western Union

Q: If we need your help on the installation and commissioning of the machines ordered from you how can your offer the assistance?

A:All our machines have been tested and have passed the quality inspection before delivery. Most of our products are delivered in modules or as an entirety. It is easy to reassemble the machines according to our instruction and fix them with expansion bolts onto the foundation in the user’s workshop. In some case, if the user needs our supervision on site we will dispatch our technicians to help our customer at the customer’s expense.
