Low Shear Industrial Mixer
Product Details
Introduction
Wuxi Transocean International Trade Co., Ltd. is one of the leading manufacturers and suppliers of industrial mixing equipment in Wuxi city, Jiangsu, China. TRANSOCEAN® low-shear industrial mixers don't shear or degrade the materials during the mixing process, and therefore don't change the properties of the materials. It is very suitable for the processing of materials that are fragile or sensitive to shear (such as polymers, adhesives and structured foods). It is widely used in the mixing of fluids or solid-liquid suspensions with a wide variety of viscosity (5,000-50,000cps) in the processing of paints, color paste, adhesives, abrasives, algae, chemicals, flavoring agents, wastewater treatment and industries alike.

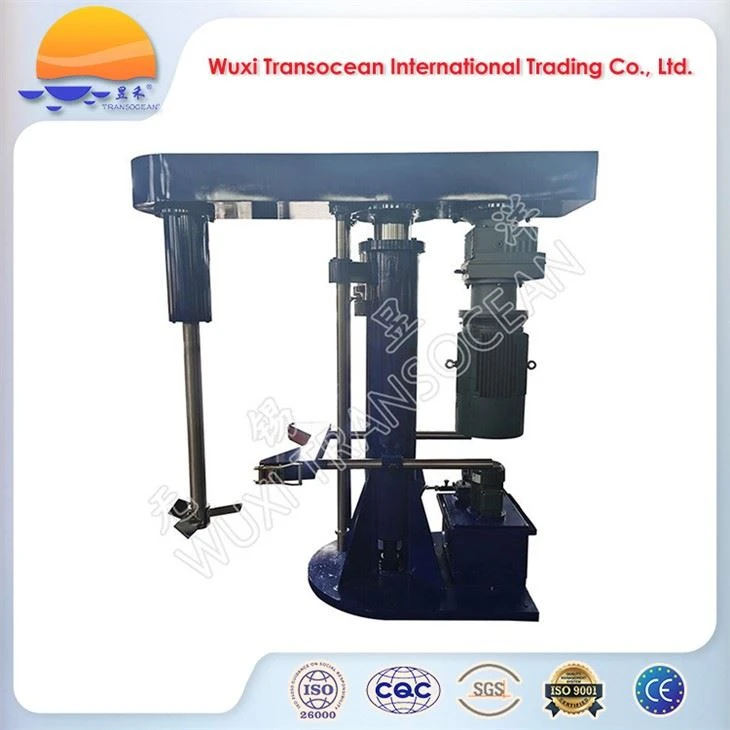

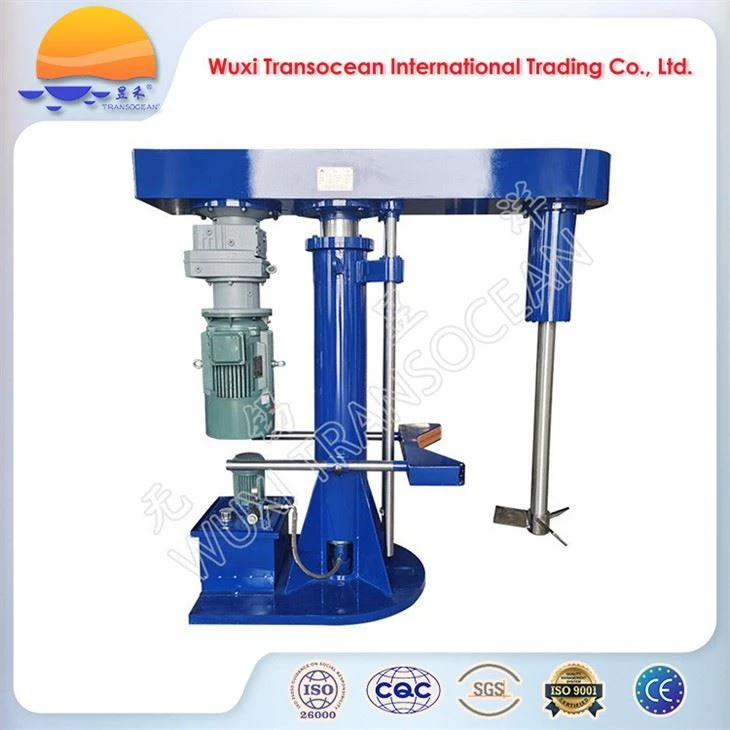

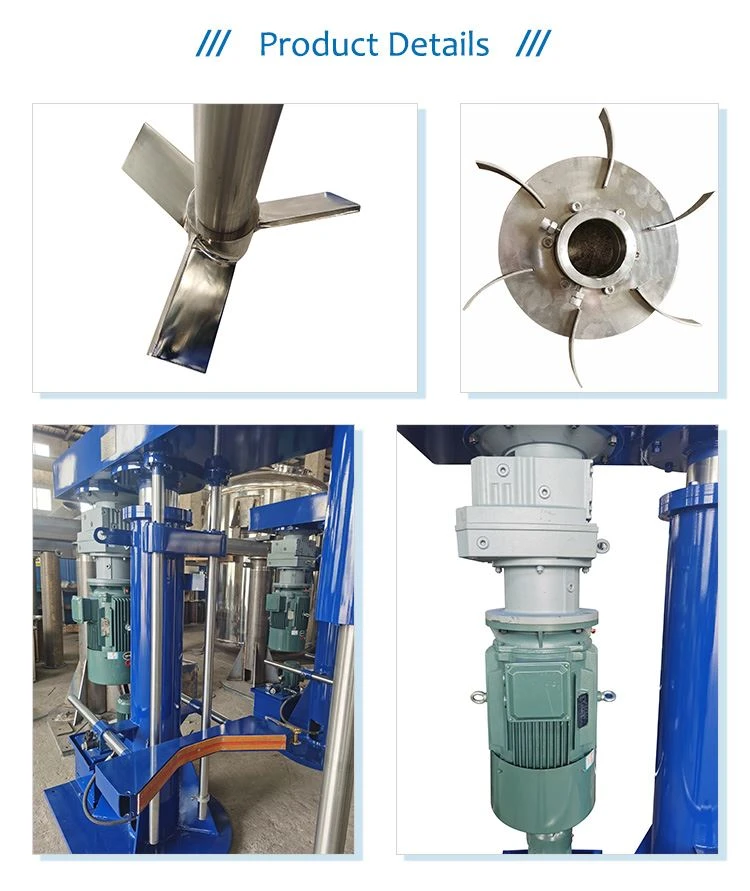

The pitched turbine type agitator is one kind of popular low shear industrial mixer, which can make the material in the mixing tank conduct volume circulation mainly, and toss up and down. The material contact part is made of high-quality stainless steel, which has strong corrosion resistance abilities. The mixing speed is adjusted by the inverter, which can be adjusted according to the requirement of production process. The mixer head and the mixing device can be lifted or lowered by the engineering hydraulic cylinder. The explosion-proof type is available as an option for operation in the hazardous area.
Advantages
●It doesn't change the properties of the materials.
●It is convenient to load/unload the mixing vessel.
●It is easy to clean the agitator and shift to processing of different materials.
Technical specifications
|
Model |
DJ-2.2 |
DJ-5.5 |
DJ-11 |
DJ-22 |
|
Mixing motor power(KW) |
2.2 |
5.5 |
11 |
22 |
|
Mixing speed(r.p.m.) |
0-280 |
0-230 |
0-208 |
0-180 |
|
Speed regulation mode |
by inverter |
|||
|
Impeller dia.(mm) |
200 |
300 |
350 |
600 |
|
Tank volume(L) |
100 |
200 |
500 |
1000 |
|
Lifting/lowering stroke(mm) |
600 |
800 |
900 |
1200 |
●Remarks: Technical specifications can be customized.
Testing standards
●Concentricity of the main shafts complies with the design requirements.
●No abnormal vibration or abnormal noise from the machine
●The surface temperature of the bearing housing does not exceed 50 degrees Celsius after running for 2 hours.
●For vacuum mixers, the actual vacuum in the mixing vessel is not less than -0.8bar after standing for 2 hours while the vacuum equipment is stopped.
FAQ
●Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer. Our factories wereset up in 2005.
●Q: What certificates are available for your products?
A: CE and SGS certificates.
●Q: What is the delivery time of your machine?
A: Mostly, our machines can be delivered within 30 days after receipt of the down payment for the order conditioned that all the technical specifications and requirements have been confirmed by the customers on time. Delivery time of some customized machine may be extended according to our negotiation with the customer.
