Concentric Double Shaft Agitator
Product Details
Introduction

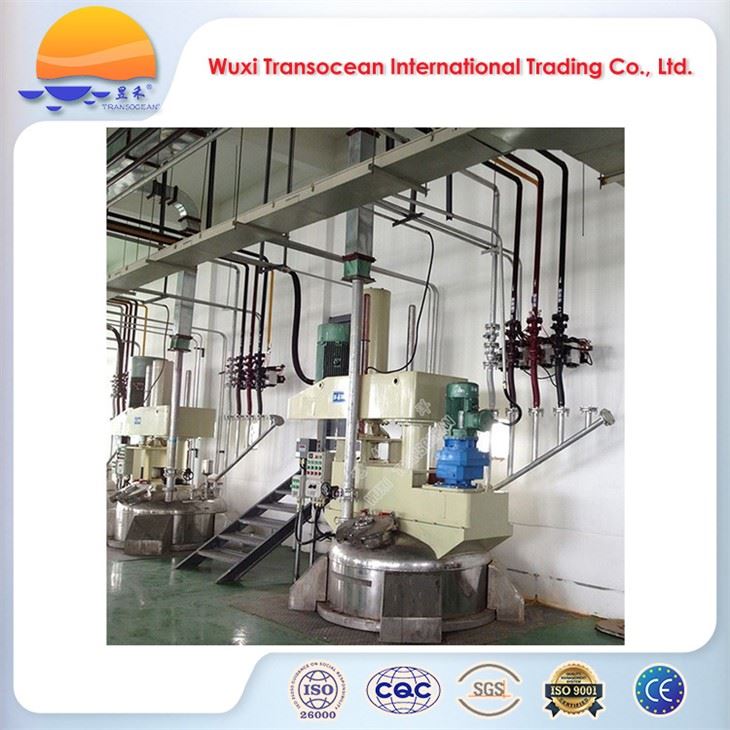

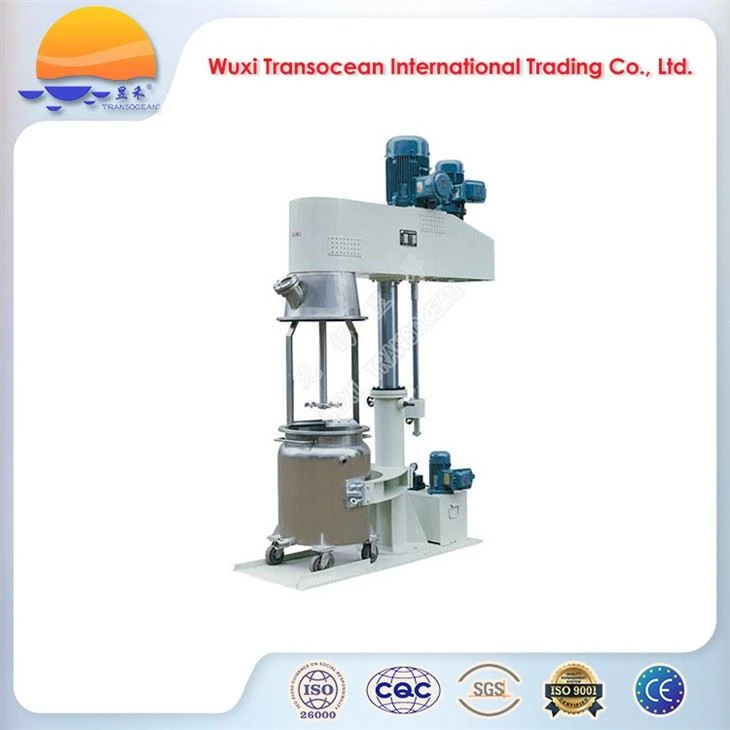

TRANSOCEAN® concentric double shaft agitator is composed of a high speed disperser and a scraper mixer or a frame mixer which are mounted coaxially. Each mixer is driven by a motor separately and the speed is adjustable by an inverter. It is suitable for mixing and dispersion of various materials such as PVC pastes, emulsion paints, etc. The disperser generates axial flows and disperses powders into fluids while the mixer with scrapers stirs the materials radially and scrapes off the materials from the wall of the mixing tank. Vacuum equipment for simultaneous vacuum processing and a hydraulic discharge press for discharge or finished products are supplied as an option. The dosing system for solid materials and liquid materials and the filling machine for packing of final products are available as an option.
Features

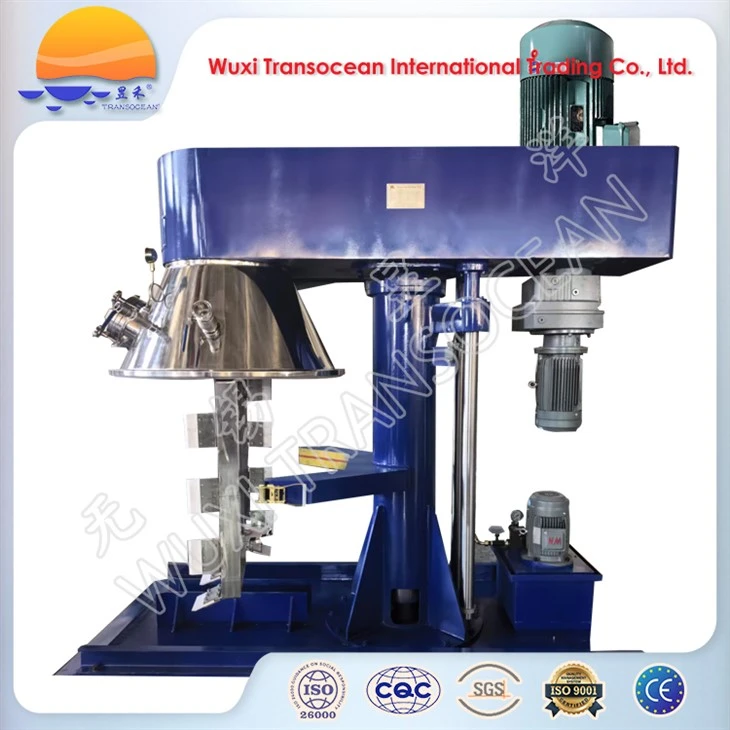

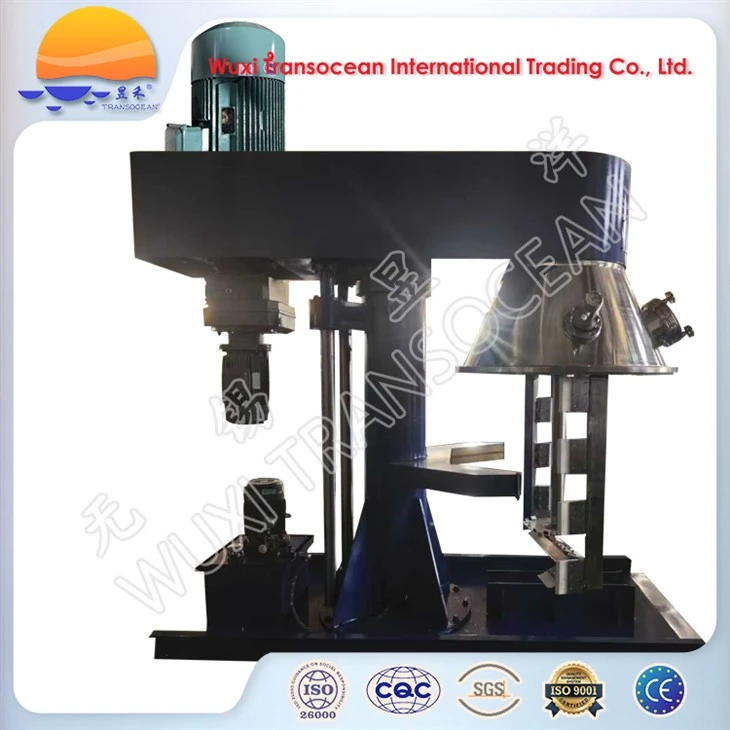

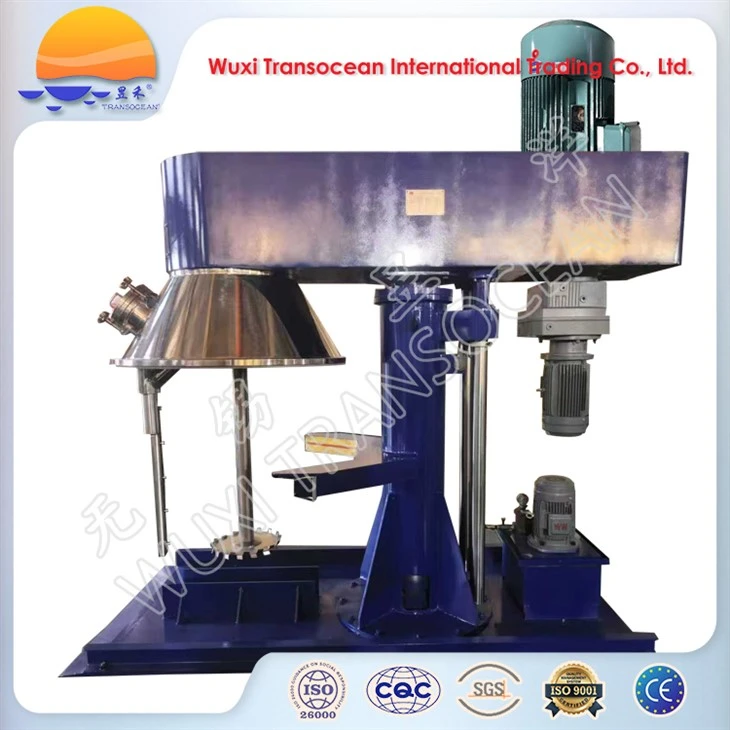

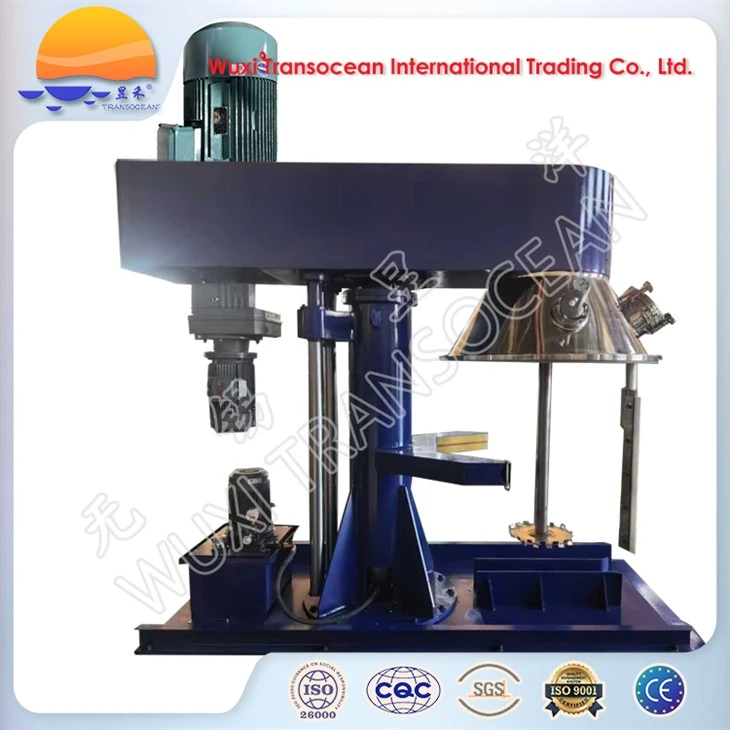

● Integration of saw-tooth shaped dispersing disc and frame mixer with scraper
● Frame mixer with scraper can sweep the materials from interior of mixing tank
● High efficiency of dispersion and dissolution of liquid-solid materials
● Material of wetted parts: S.S.304/S.S.420/Chrome plated #45 steel

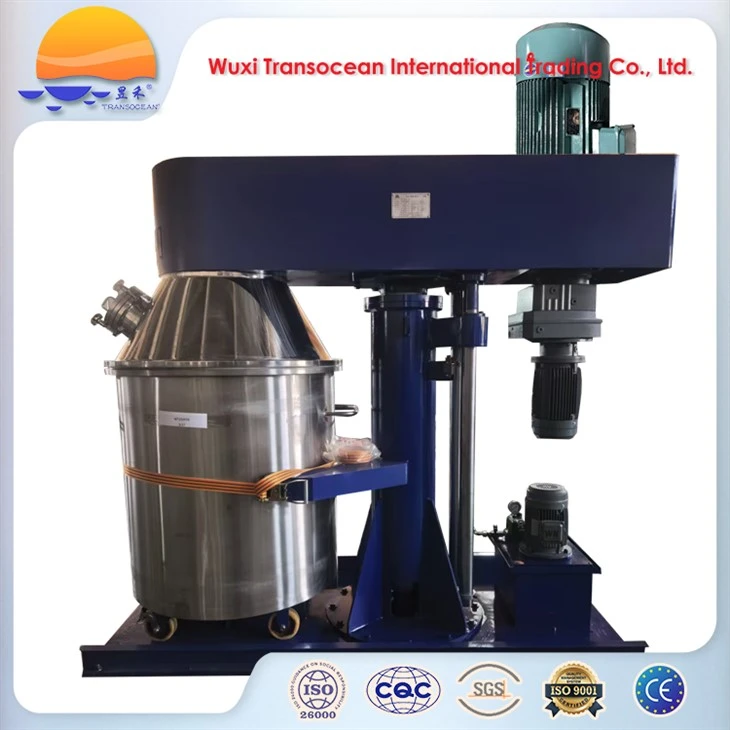

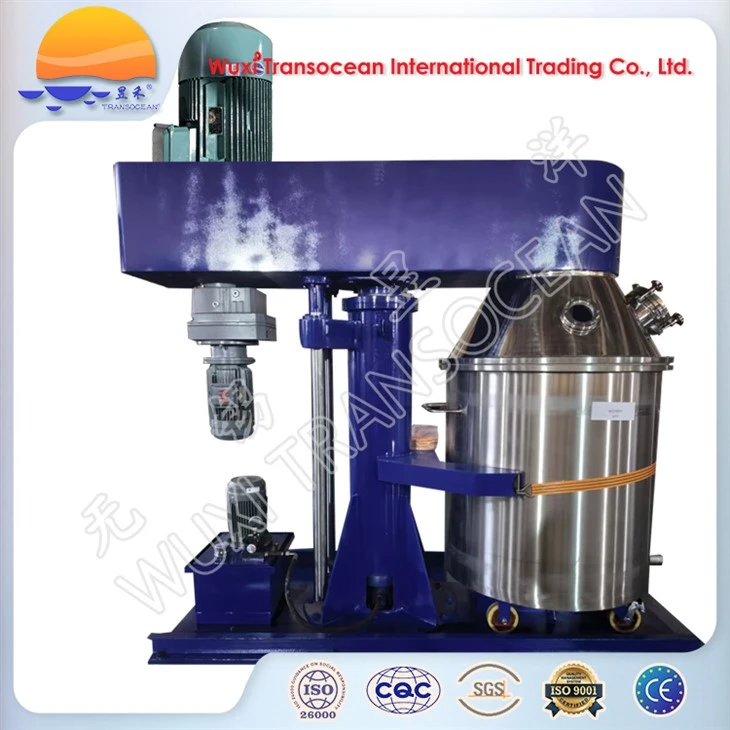

● Mixing head is lifetable by hydraulic cylinder.
Advantages
● The mixer can carry out dispersion and mixing at the same time
● Less residual of products in the mixing tank
● Environmentally friendly
Applications
l TRANSOCEAN® Concentric double shaft agitator is widely used as an adhesive mixing machine, paint mixing machine, ink mixing machine, slurry mixing machine, etc. in the processing of emulsion paint, printing ink, color paste, artificial leather, plastic flooring and alike.
Technical specifications (for reference only)
|
Model |
TSJ-200 |
TSJ-400 |
TSJ-600 |
TSJ-1000 |
TSJ-3000 |
TSJ-5000 |
TSJ-10000 |
|
Agitating motor power(KW) |
4 |
5.5 |
7.5 |
11 |
22 |
30 |
45 |
|
Agitating shaft speed(r.p.m.) |
0-50 |
0-40 |
0-30 |
0-30 |
0-30 |
0-20 |
0-20 |
|
Dispersing motor power(KW) |
11 |
15 |
22 |
37 |
90 |
132 |
315 |
|
Dispersing shaft speed(r.p.m.) |
0-1450 |
0-1450 |
0-1450 |
0-1450 |
0-1200 |
0-900 |
0-900 |
|
Speed control mode |
By inverter |
||||||
|
Tank volume(L) |
200 |
400 |
600 |
1000 |
3000 |
5000 |
10000 |
|
Vacuum (optional) |
Max. -0.08MP |
||||||
Why choose us ?
1.We are one of the leading manufacturers and suppliers of mixers, grinding equipment, filters and filling machines in Wuxi city, Jiangsu province, China.
2.We would like to provide personalized design for each specific request for our customers.
3.Flexibleminimum order quantity is acceptable.
4.We would provide door-to-door or door-to-port service upon customers' request.
5.Contact us on WhatsApp or WeChat right away for perfectly cost-effective solutions.
FAQ
1.Q:What certificates are available for your products?
A: CE and SGS certificates.
2.Q: If we need your help on the installation and commissioning of the machines ordered from you how can your offer the assistance?
A:All our machines have been tested and have passed the quality inspection before delivery. Most of our products are delivered in modules or as an entirety. It is easy to reassemble the machines according to our instruction and fix them with expansion bolts onto the foundation in the user's workshop. In some case, if the user needs our supervision on site we will dispatch our technicians to help our customer at the customer's expense.
3.Q:How can I trust your company?
A: We have been engaged in this business line for about 20 years. Our products have been well received by a lot of clients distributed in many countries. We wouldn't like to play with our established business standing for a certain order. If we are not able to supply the satisfactory products for some customers we would rather decline the order. We are an AUDITED SUPPLIER audited by SGS-CSTC. All our machines have pass CE certification.
