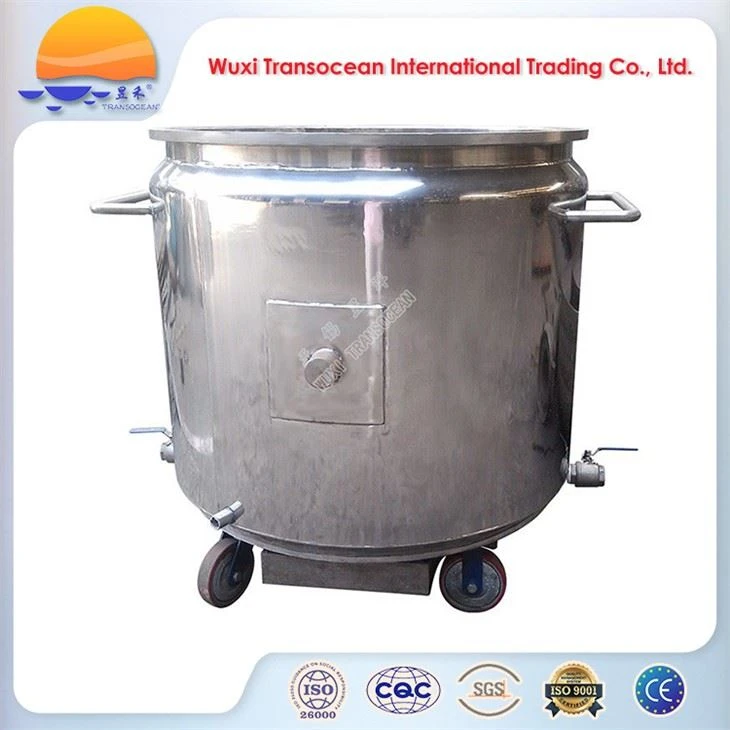

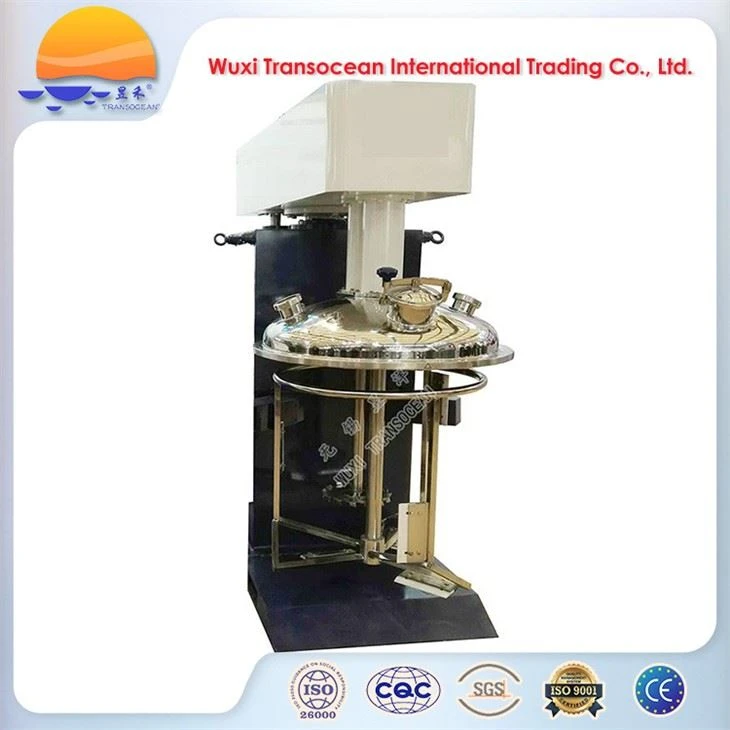

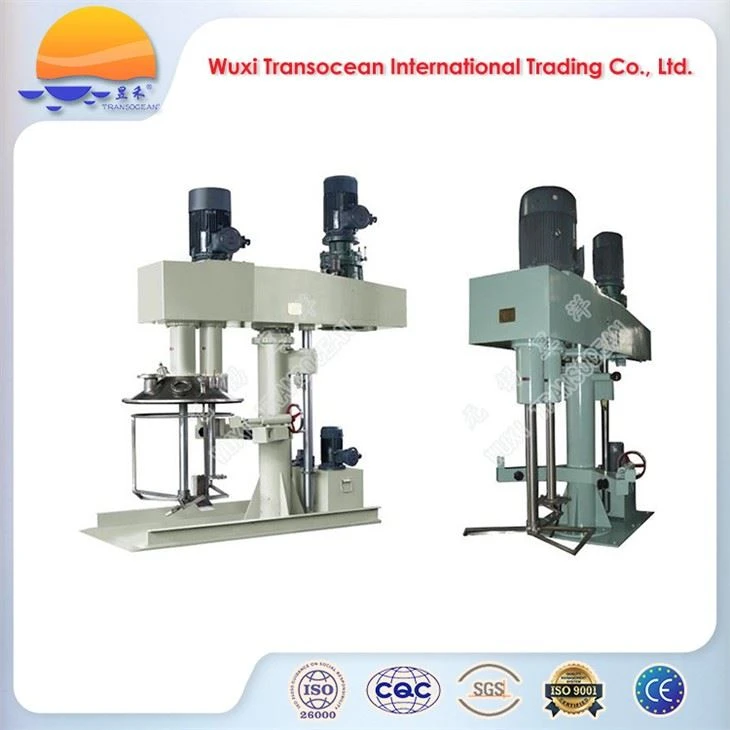

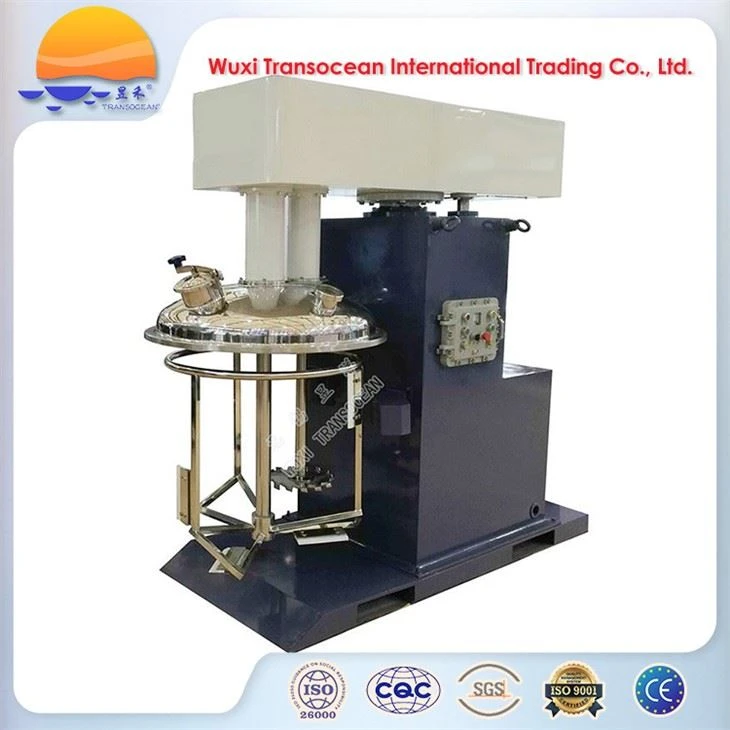

Butterfly Dual Shaft Agitator
Product Details
Introduction
TRANSOCEAN® butterfly dual shaft agitator consists of a saw-tooth disperser and a butterfly stirrer with scrapers. Each shaft is driven by a motor separately, and the speed is adjustable by an inverter. It is applicable for the processing of viscous materials such as putties, glues, etc. The disperser is used in the dissolution of powders, while the stirrer with scrapers can agitate the materials radially and axially and sweep the materials adhering to the wall and bottom of the vessel. The unique design ensures that materials at different heights in the mixing cylinder can be thoroughly mixed without dead areas, and that an extremely high heat transfer coefficient of the material surface can be achieved so as to avoid partial overheating. Vacuum equipment for simultaneous vacuum operation and a cooling jacket for material cooling are available as options.
Applications
● TRANSOCEAN®butterfly dual shaft agitators are applicable for wet dispersing and mixing of highly viscous materials in industries such as textile coatings, adhesives, putty, atomic ash, printing ink and alike.
Features
● Integration of saw-tooth shape high speed dispersing disc, butterfly agitator and frame mixer with scraper
● Scrapers sweep the products from the interior of the mobile tank
● The mixing process is carried out in a closed vessel
● Material of wetted parts: S.S.304/S.S.420/Chrome plated #45 steel
Advantages
● The mixer can create both axial flow and radial flow in the mixing vessel at the same time.
● Environmentally friendly
● Easy to clean and change products
Technical specifications (for reference only)
|
Model |
SJ-150 |
SJ-600 |
SJ-1000 |
|
Agitating motor power(KW) |
11 |
22 |
30 |
|
Dispersing motor power(KW) |
11 |
22 |
30 |
|
Agitating shaft speed(r.p.m.) |
0-120 |
0-60 |
0-50 |
|
Dispersing shaft speed(r.p.m.) |
0-1450 |
||
|
Speed adjustment |
By inverter |
||
|
Lifting stroke(mm) |
700 |
950 |
1100 |
|
Tank volume(L) |
170 |
600 |
1000 |
|
Vacuum (optional) |
Max. -0.08MPa |
||
Quality control
-
Design drawings strictly in accordance with the order confirmed by the customer.
-
Select quality raw materials and accessories from reputed suppliers for production.
-
Process all parts in strict accordance with the design confirmed by the customer.
-
Double-check all the parts before assembly.
-
Skilled workers assemble the machines according to the drawings.
-
Conduct a comprehensive inspection on the finished products to ensure all are qualified before delivery from our factory.
-
Pack the products with appropriate packing materials for shipment.
-
Establish a permanent quality traceability file for each product.
FAQ
1. Q: What is the delivery time of your machine?
A: Mostly, our machines can be delivered within 30 days after receipt of the down payment for the order, conditioned that all the technical specifications and requirements have been confirmed by the customers on time. The delivery time of some customized machines may be extended according to our negotiation with the customer.
2. Q: What is the payment term acceptable to your company?
A: TT in advance, LC or Western Union.
3. Q: What about the availability of the after-service?
A: Considerable after-sales services are available online or via email all through the service life of our machines. Your request will be replied to within 24 hours after we receive it.
