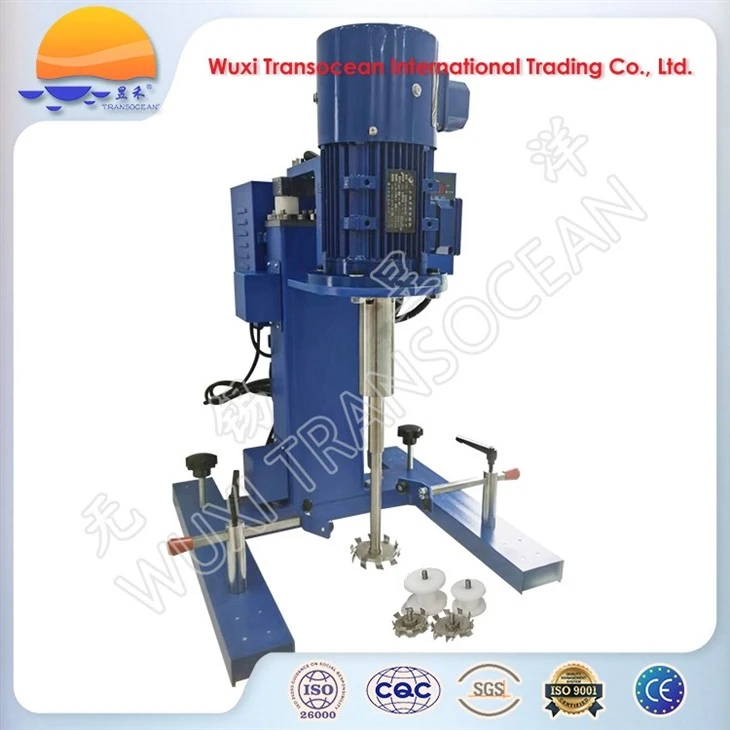

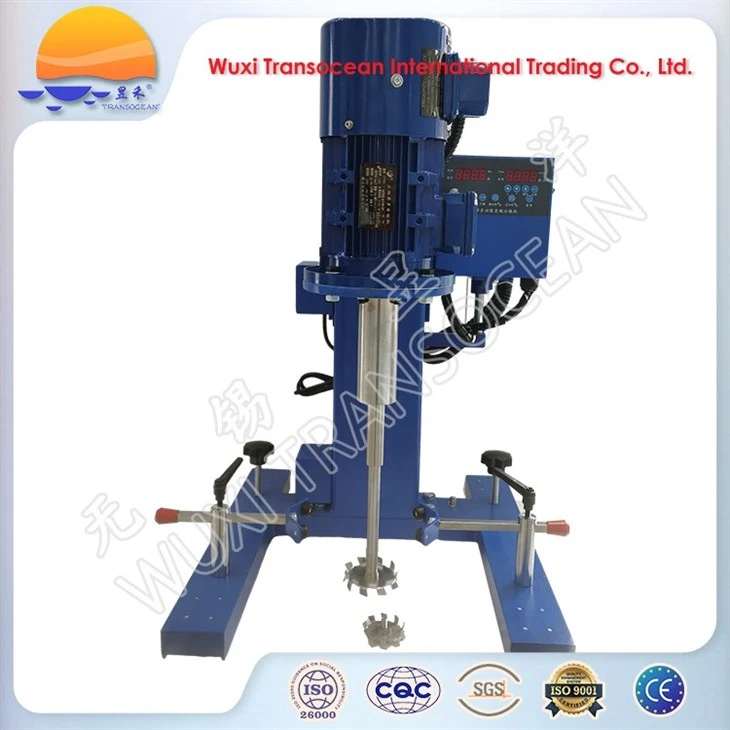

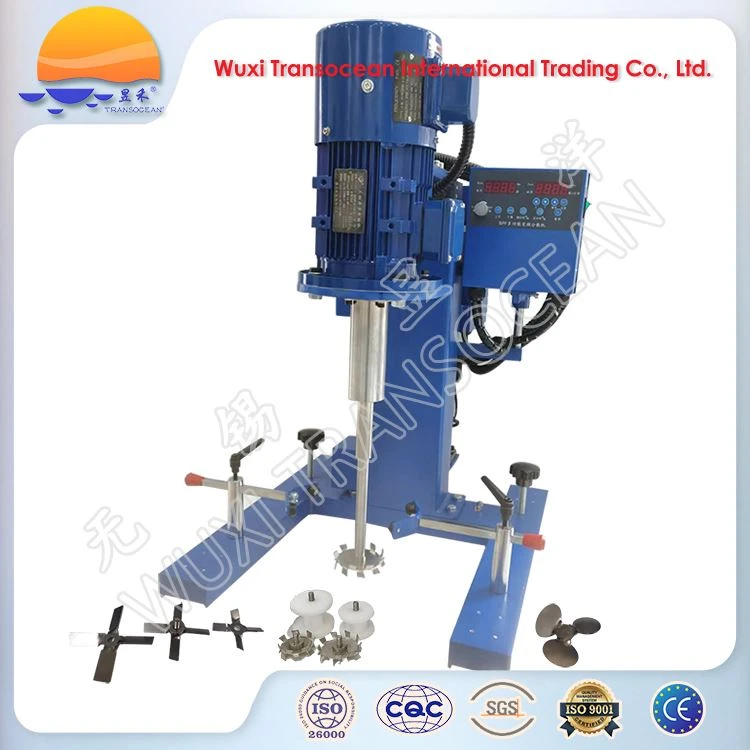

Multifunctional Lab Agitator Mill
Product Details
Description
TRANSOCEAN® multifunctional lab agitator mill is a dual-purpose laboratory equipment designed for pilot mixing or grinding. The dedicated variable-frequency motor is adopted to drive the agitating head to stir the materials and/or grinding beads to achieve mixing and/or grinding of the materials. With the strong flexible power provided by the variable frequency speed motor, this mixing and grinding machine can be suitable for handling materials with a wide viscosity range. The lifting of the mixing head frame is carried out by an electric cylinder, greatly reducing the labor intensity of operators. The countdown device used in this machine can set the working time within the range of 0-99 hours, greatly reducing the workload of operators.
Technical specifications
● Model: MA-1.5
● Motor: 1.5kW 1P/220V/50Hz variable-frequency motor (customizable)
● Mixing speed: 0~5,000rpm regulated by inverter
● Timer: 0~99h
● Dispersing disc: Ф80mm, Ф100mm saw-tooth shaped
● Lifting/Lowering: 500mm, electrically
● Mixing tank: Max. Ф400mm*450mm (H)
● N.W.: 80KGS
