Lab Mixer Agitator
Product Details
Introduction

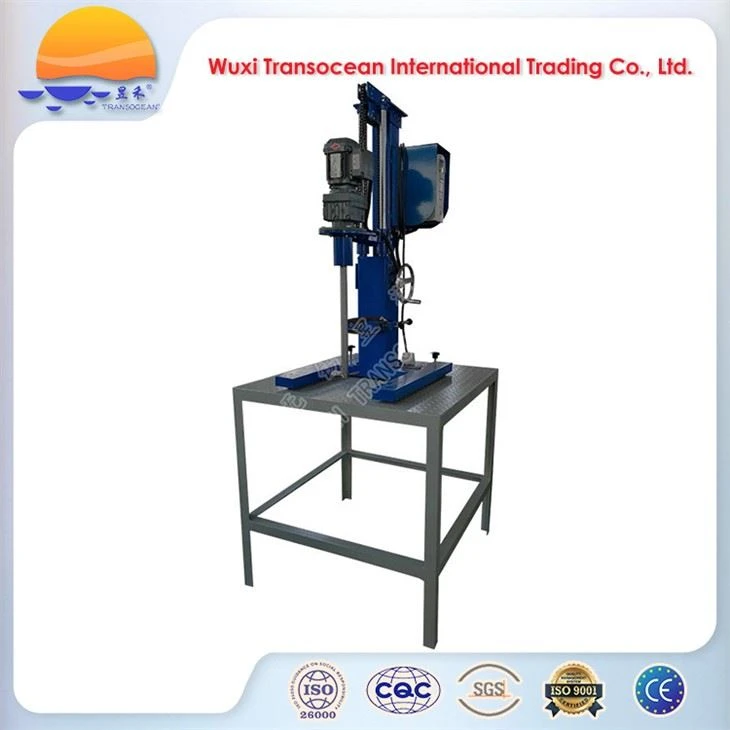

A lab mixer agitator is used in pilot mixing of solids and liquids. It characterizes a three blade impeller which generates both axial flow and radial flow, and therefore ensures comprehensive mixing functions. The agitator can be lifted mechanically for loading/unloading of a mixing vessel.
Features
● Main shaft speed is governed by a microcomputer.
● A cooling jacket outside the mixing tank is provided for cooling of the materials.
Advantages
● It is easy to clean and maintain.
● Tremendously reduce the cost of pilot production
Applications
● The lab mixer agitator is applicable for pilot production of chemical, ink, paint, sealant, etc.
Technical specifications
|
S/N |
Item |
Specification |
|
1 |
Model |
SH-30 |
|
2 |
Basic structure |
This mixer is installed on the elevating bracket. |
|
3 |
Mixing speed |
50～2000rpm , adjustable by microcomputer |
|
4 |
Timer |
1~99 mins(Tolearance≤2 seconds) |
|
5 |
Max. torque |
100Ncm |
|
6 |
Power |
160W |
|
7 |
Voltage |
Single phase/220V/ 50Hz (can be customised) |
|
8 |
Working Temperature |
5～40℃ |
|
9 |
Applicable for processing of materials with the viscosity |
0~10000mpas |
|
10 |
Net weight |
9 kg |
|
11 |
Batch capacity |
50ml～20000ml |
|
12 |
Stirring head |
S.S.304 impeller |
