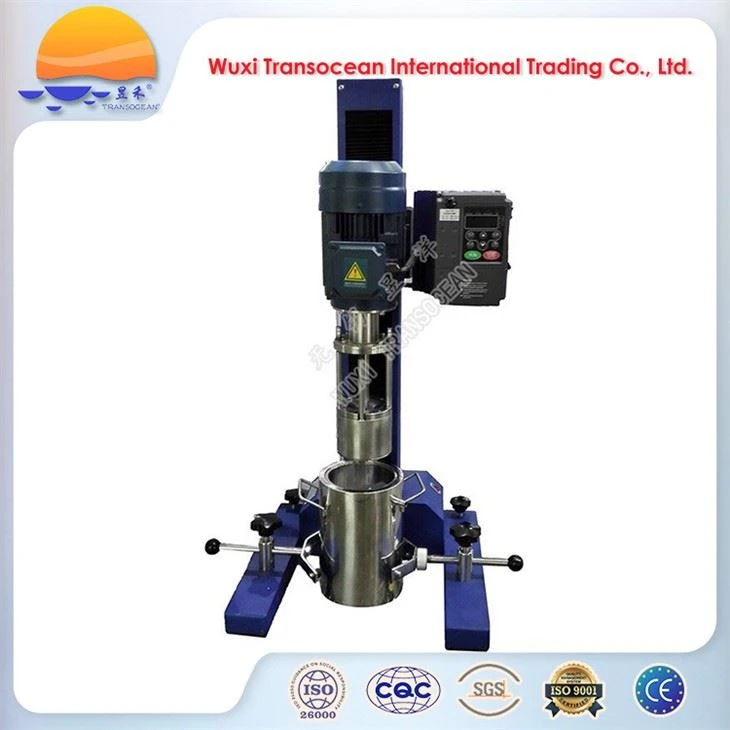

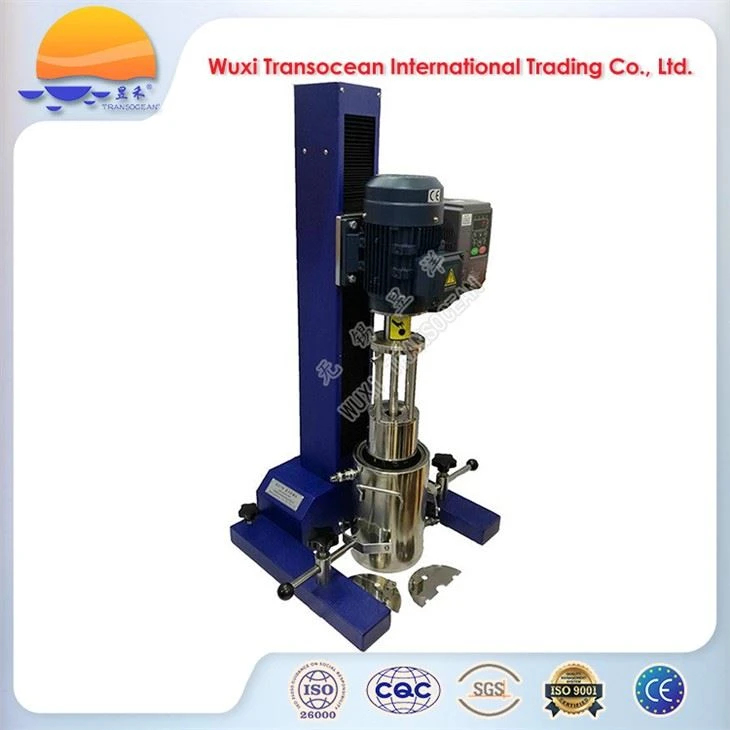

Lab Basket Mill
Product Details
Introduction:

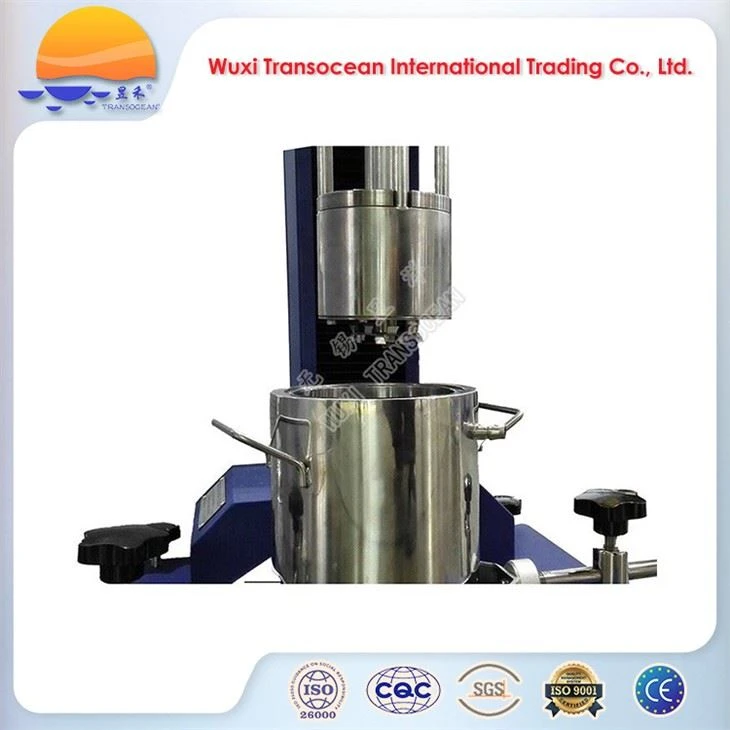

Lab basket mills are suitable for supper fine grinding of solids in liquids. The mills are used in processing of the particle size range from 200 microns down to microns. The milling head can be lifted to load or take out the material tank. Materials to grind are forced to move radially from the main shaft to all around, and to cycle vertically around the central axis. Uniform products can be achieved under the comprehensive function of wetting, mixing, dispersing and grinding of grinding pegs and stirrer. Finished products are poured out from the grinding chamber while grinding media are retained in it.
Applications:
● The mills are suitable for pilot production of paint, ink, color paste, adhesive, etc.
Features:
● The impeller forces the products to cycle in the grinding chamber, while grinding pegs drive the grinding beads to impact and grind the products.
● Less dead area in material tank
● Digital display of speed, current and voltage
● A cooling jacket is supplied outside the material tank for cooling of the products
● Easy to clean and change products
Advantages:
● It is easy to clean the mill and change products.
● Significantly cut down the cost of trial production
Technical specifications:
Model | LS-1 | LS-2 |
Tank volume(L) | 0.5-1.0 | 1.5-2.5 |
Main motor power(KW) | 0.75 | 1.1 |
Rack lifting mode | By hand | |
Main shaft speed(r.p.m) | 0-2880 | 0-2880 |
Speed control mode | By inverter | |
Grinding media | Φ1.6-2.0mm 94.50%+ ZrO2 bead | |
