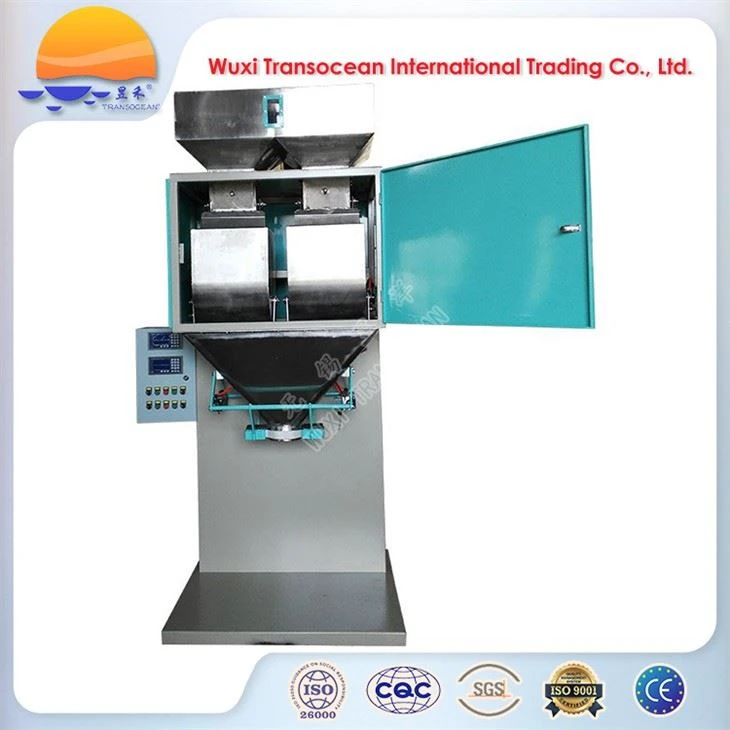

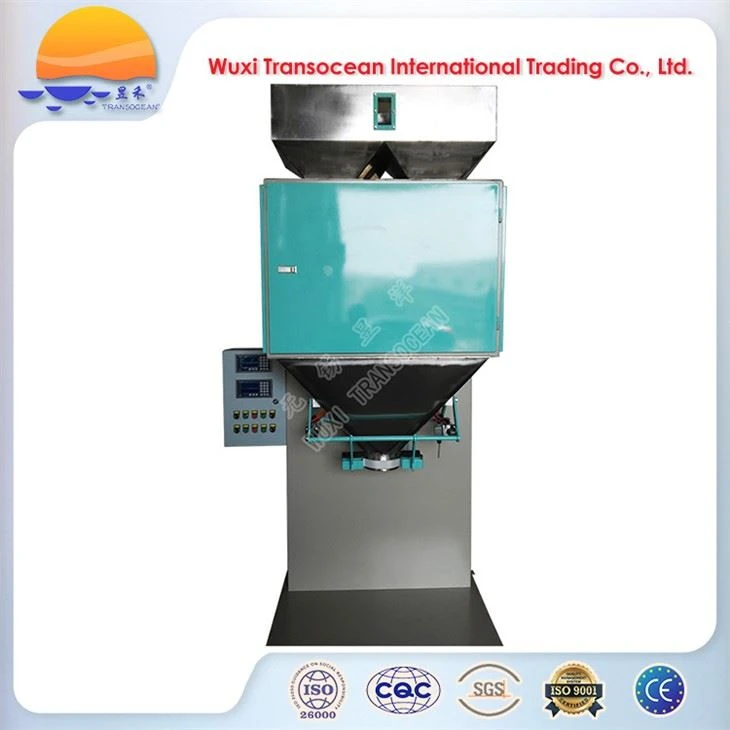

Granule Filling Packing Machine
Product Details
Introduction:
● The granule filling packing machine is suitable for quantitative packing of granules such as compound fertilizer, aquatic feed, puffed feed, pet feed. It consists of a material silo, a screw loader, a gravimetric dosing device and a control panel. A bucket elevator, a bag sealing machine, a bag conveyor and a screw conveyor system are available for option.
Features:
● Gravimetric single-arc door double-speed feeding,
● Feeding speed is mechanically adjustable
● Scale bucket design can be adjusted up and down, which is helpful to reduce the air drop, and to improve the accuracy.
● The 45 °measuring bucket ensures fast loading
● No residue on door panel
● Floor-to-ceiling design
● Less space occupation
● Save the cost of steel platform.
● Toledo make load cell and weighing controller
● The weight conversion rate is high up to 450 times/s
● Super TraxDSP? Anti-vibration technology.
● Operation with a touch screen
● Display of each working status, multi-quantitative data, including statistics of fast and slow feeding time
● Automatic calibration
● Computer data communication interface (RS-485 or Siemens DP standard interface)
Technical specifications:
● Weighing range: 25~50kg
● Packing speed: 720~800bags / h
● Weighing accuracy: ±0.2% F.S; ±0.1% F.S（Electromagnetic vibration feeding, 220V AC stabilized power supply）, actual error on site≤20~30g
