Thinner Filling Machine
Product Details
Introduction

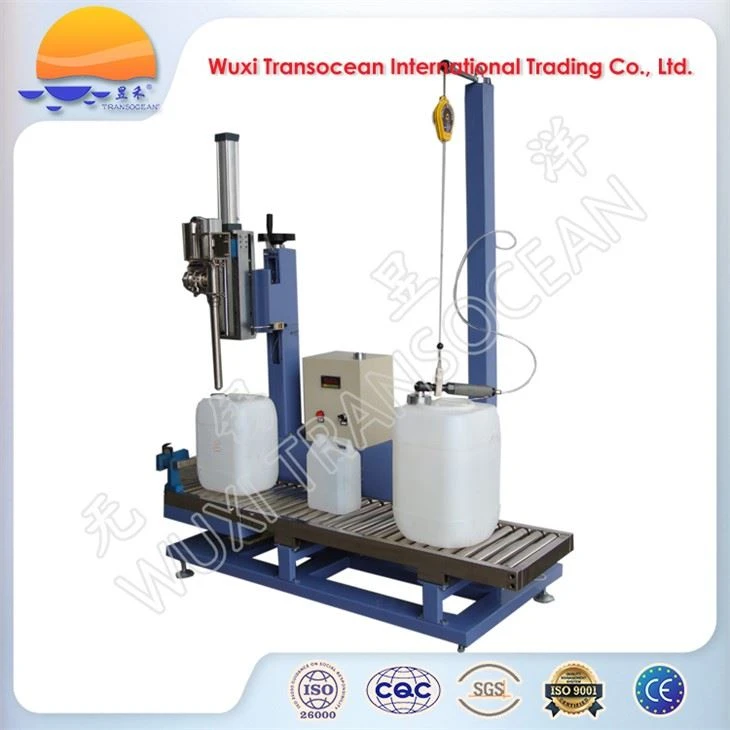

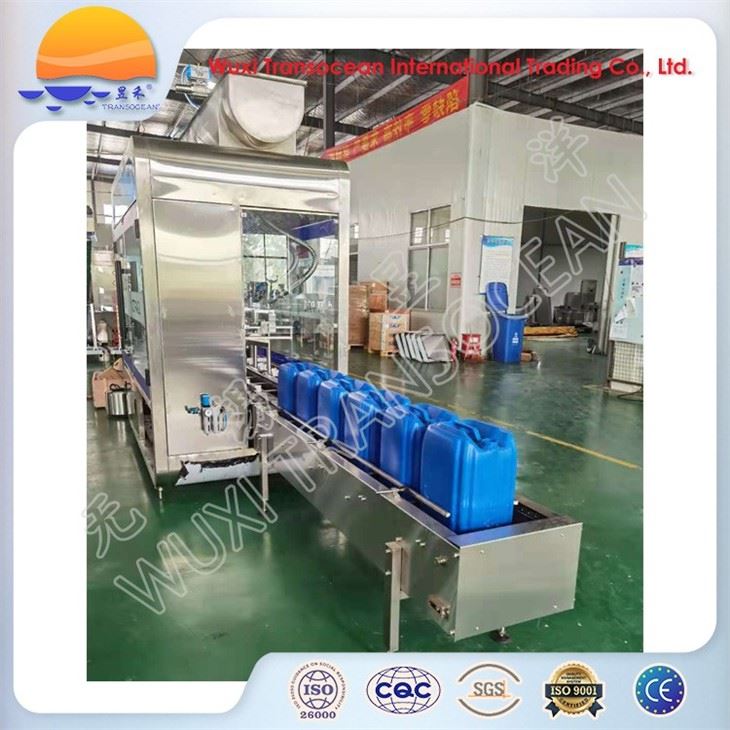

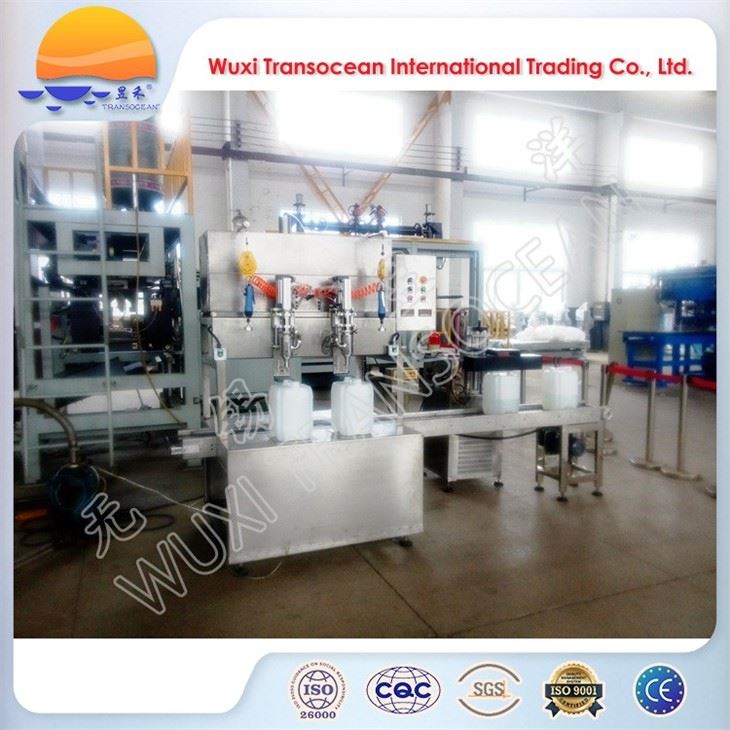

TRANSOCEAN® thinner filling machine is composed of a filling unit and a capping unit, which is suitable for quantitative packaging of liquid materials such as thinners, thickeners, solvents, emulsions, and varnishes. Empty containers are manually placed in the filling station, and the filling unit automatically conducts quantitative filling. Then the filled barrels are sent to the capping station manually or automatically by the powered conveyor, and capped by the pneumatic capping device. Finally, the finished products are output by the conveyor.
Features of the TRANSOCEAN® thinner filling machine
●Finished product measurement: Weighing
●Control method: METTLER TOLEDO load cell + GM load display

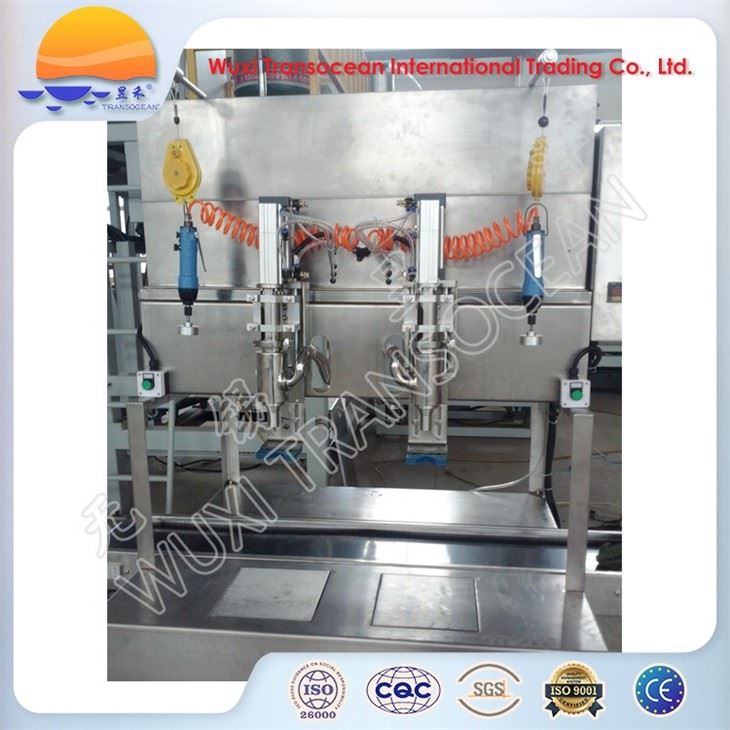

●The submersible filling nozzle is adopted. The filling nozzle dives into the filling container to prevent the material from splashing during the filling process. After the filling is completed, the filling nozzle is automatically raised above the barrel to remove the barrel.
●The material of the filling nozzle can be SS304, SS316, or Teflon according to the material characteristics.
●The height of the filling nozzle can be adjusted according to the size of the packing container to adapt to containers of various shapes and specifications.
●Capping is done by the operator with the pneumatic capping tool.
●The capping mold can be customized according to the cylinder cap.
Advantages
●Strong versatility, suitable for packaging various chemical liquids in containers of various specifications and shapes.
●Environmentally friendly.
●Greatly reduce labor intensity.
●The capping mold can be replaced as a whole to change the container type, which is fast and convenient.
Technical specifications of the TRANSOCEAN® thinner filling machine
●Power supply: 3P/380V/50Hz, 1P/220V/50Hz
●Applicable packaging container: 0.5L~5/ 10L~30L/ 50L~200L/ 200L~1500L small mouth plastic bucket or iron drum
●Quantity of filling nozzle: 1, 2, 3, 4, 5, 6, 7, 8 (can be customized)
●Filling range: 0.5KG~5KGS/ 10KGS~30KGS/ 50KGS~200KGS/ 200KGS~1500KGS
●Filling accuracy: ±2‰
●Filling speed: It depends on the fluidity of the material, the quantity of filling nozzles, and the specifications of the packaging container.
