Asphalt Filling Machine
Product Details
Introduction:

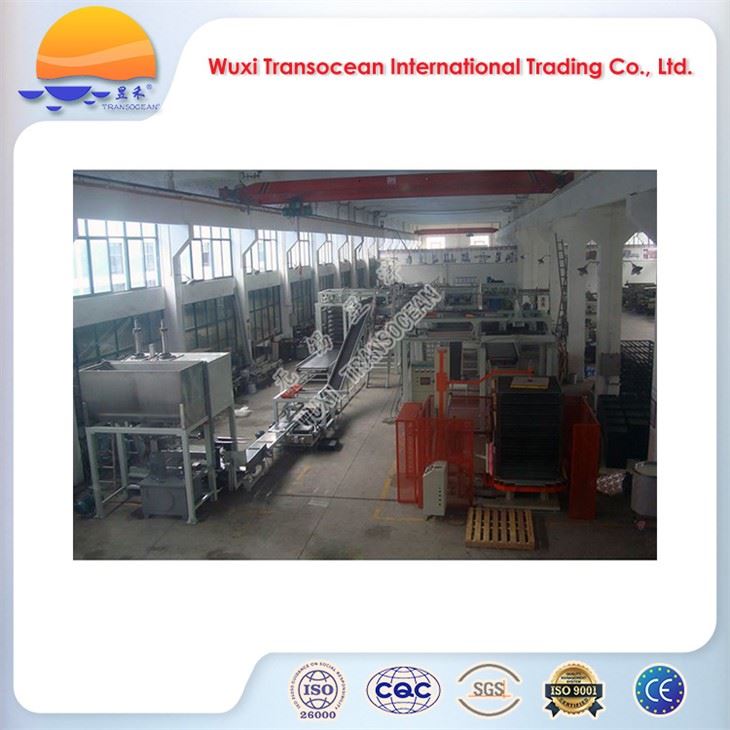

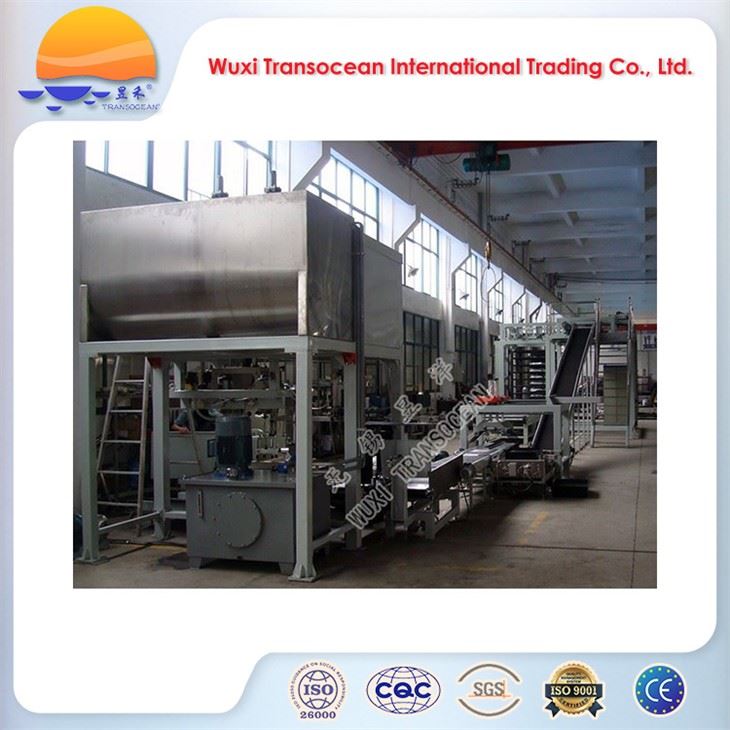

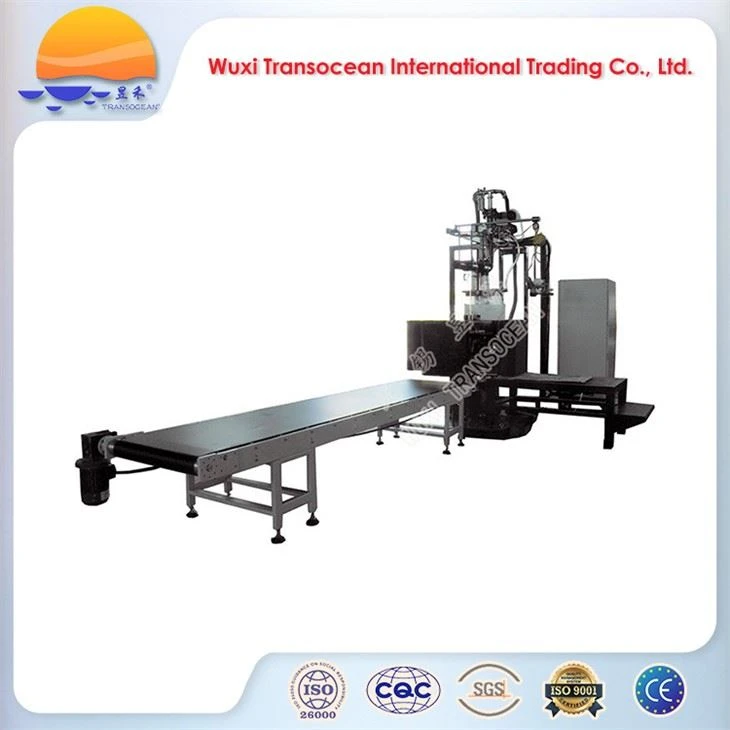

Wuxi Transocean International Trade Co., Ltd. is one of the leading manufacturers and suppliers of industrial mixers and filling machines. Our asphalt filling machines have been exported to Kazakhstan, Saudi Arabia, UAE, Indonesia, Canada and other countries, and have been well received by customers. TRANSOCEAN® automatic asphalt filling machine is applicable for quantitative packing of high temperature asphalt. It is composed of a buffer silo, an asphalt feeding system, a bag supply device, a vacuum sucker for bag, a bag unfolding & holding device, a heat insulating gravimetric filling system, a bag clamping and moving system, a ultrasonic bag sealing device, a bag receiving & transferring trolley, a pallet supply system, one set of conveyor, a pallet stacker, frameworks and a control system.
Applications:
TRANSOCEAN® automatic asphalt filling machine is used in gravimetric filling of asphalt (bitument), industrial wax, paraffin or alike with 25kg/40kg/50kg bags.
Features:
● Insulation jackets are supplied for filling nozzles and material feeding pipes.

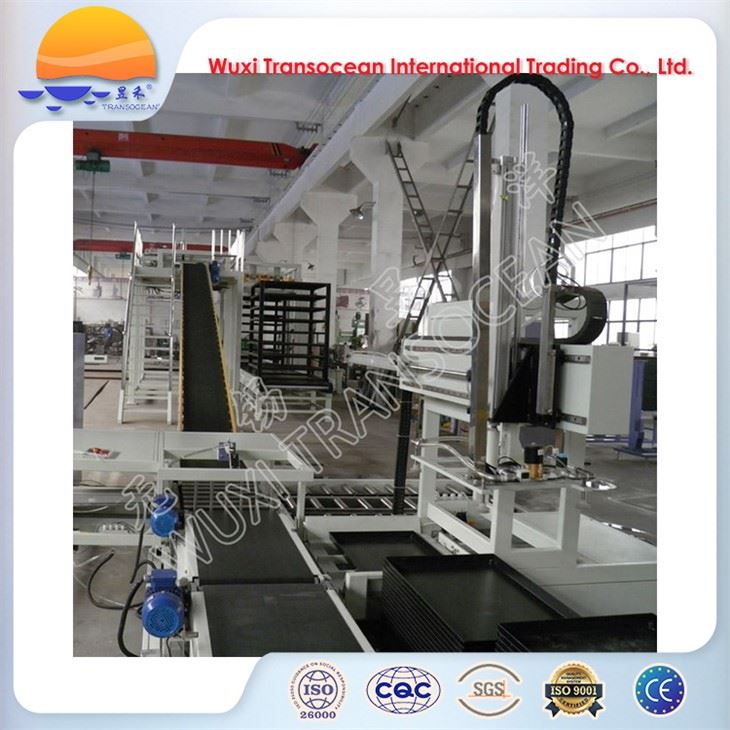

● The vacuum sucker picks a bag from the bag store and sends it to the designated filling position.
● The bag unfolding & holding device unfold the bag and hold it for filling
● The gravimetric filling system fills the bag with a certain quantity of asphalt in two steps i.e. fast filling and slow filling.
● The bag clamping and moving system hold the filled bag and move it to the ultrasonic bag sealing device for sealing, and transfer it to the bag receiving & transferring trolley.
● The pallet supply system transfers a pallet to the position to receive the bags.
● When the quantity of bags on the trolley arrives at the set value the trolley transfers the bags to the pallet on the conveyor.
● The conveyer transfers the pallet carrying the certain number of bags to the position of pallet stacking.
● The pallet stacker stacks pallets to a set number of layers.
● Finished pallets are transferred to the store by a forklift.
Advantages:
● All processes are carried out automatically, with high filling accuracy and fast speed.
● Suitable for packing of high temperature products
● High packing capacity
● Greatly reduce labor intensity and save labor cost.
● Protects operators from high temperature burns
Technical specifications:
Item | Specification |
Model | AH-01-50 |
Packing specification | Fusible bags (25/40/50kg/ bag) |
Packing capacity | 160bags/h |
Tolerance | ±0.2% |
Power supply | AC 3PH/380V/50Hz (can be customized) |
Compressor air supply | 4-6bar, 0.5m3/min |
Ambient temperature | 0～40℃ |
Design temperature (℃) | ≤150℃ |
Bitumen temperature (℃) | 100-120 |
Heating mode | by Heat transfer oil or by Steam |
Outline dimension (L×W×H, mm) | 30,000×6,000×4,500 |
N.W. (KG) | 8500 |
