Putty Filling Machine
Product Details
Introduction

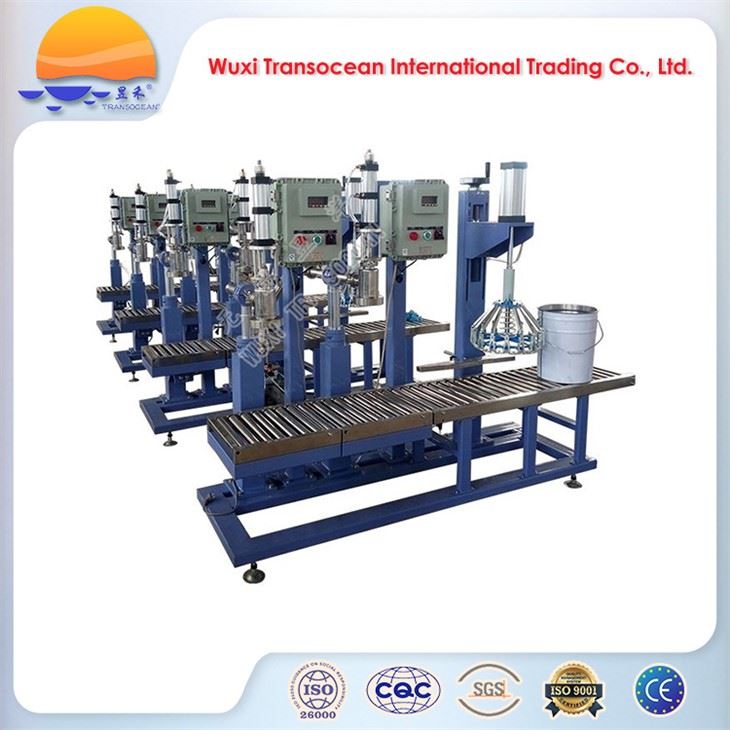

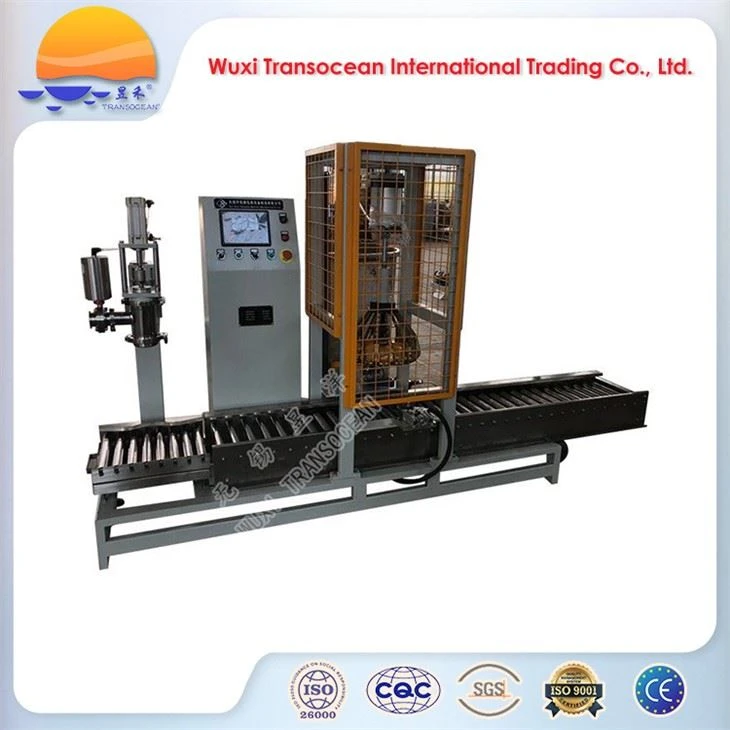

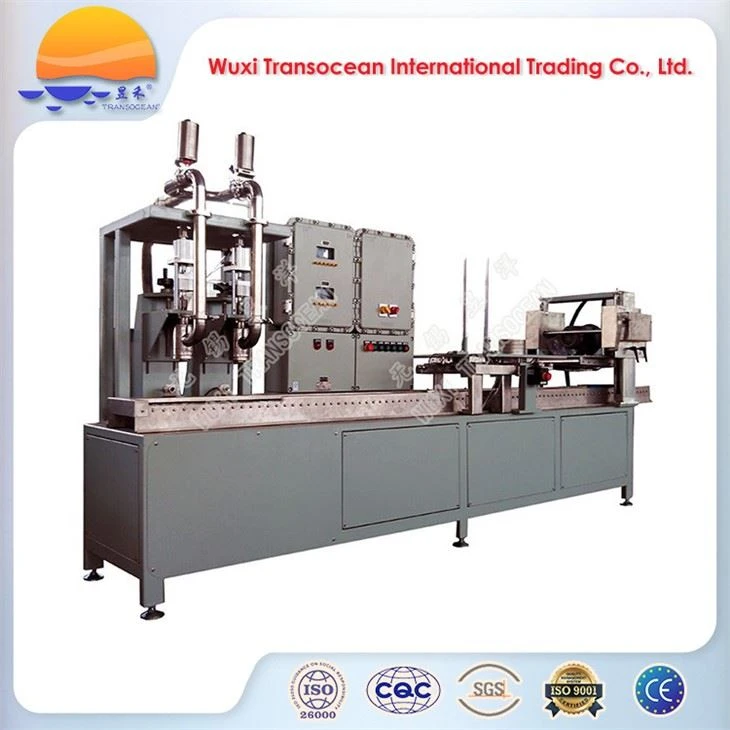

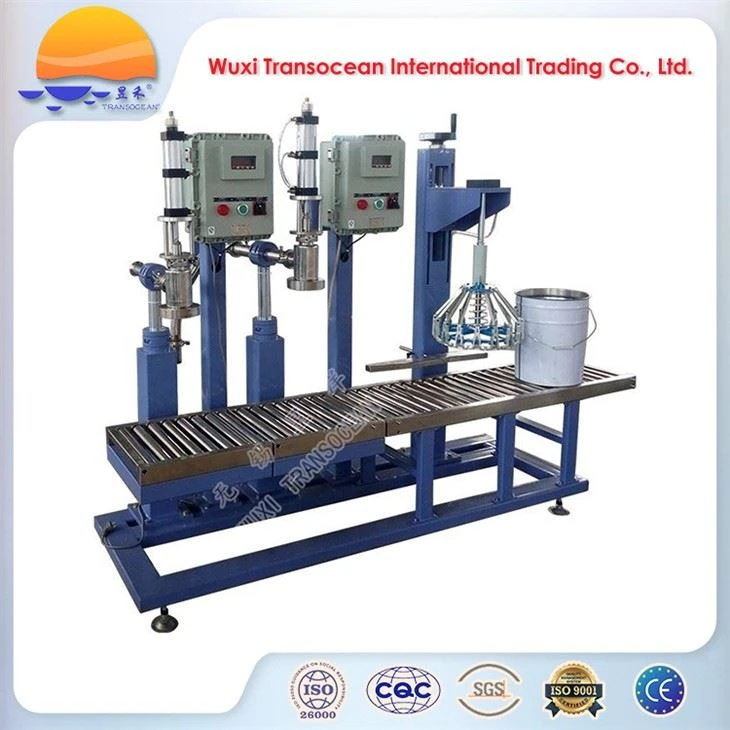

TRANSOCEAN® semi-automatic gravimetric putty filling machine is specially designed for quantitative filling of putty. The mixed putty is transferred to the material inlet of the putty filling machine via a screw pump or a hydraulic discharge press. The start/stop of the filling nozzle is jointly controlled by a photoelectric sensor, a METTLER TOLEDO load cell, and a weighing controller. The flow rate of the putty feed pump can be regulated by an inverter or controlled by adjusting the hydraulic pressure of the hydraulic discharge press to adjust the speed of the putty filling. The Transocean® putty filling machine is equipped with a filling nozzle specially designed for the filling of putty. On the one hand, it ensures that the putty can flow out smoothly, and on the other hand, it prevents the filling nozzle from dripping after a filling round. It can not only ensure the filling accuracy but also ensure the cleanliness of the filling station. The nozzle adopts a modular design, which is convenient for disassembly and cleaning before shutdown and reassembly. According to the requirements of the use environment, the putty filling machine is divided into ordinary type (N) and explosion-proof type (E). According to the requirements of the production process, a nitrogen-filling device is available as an option to prevent the putty from being oxidized. According to user requirements, it can be equipped with an automatic bucket dividing machine, an automatic capping and sealing machine, an automatic stacking system, etc., to realize automatic operation.
Applications
●The putty filling machines are suitable for quantitative filling of construction putty, automobile putty, adhesive, curing agents, and the like.

Features
● Toledo load cells are adopted to weigh the materials and display the weight in real-time.
● 20 sets of recipes can be set and stored.
● Auto / manual operation mode can be switched freely.
● The filling process is divided into two steps i.e. fast adding and slow adding, which ensures the filling speed and filling accuracy.
● Filling ON/OFF is controlled by the photoelectric switch.
● The alarm will be activated when the tolerance of weight exceeds the set limit.
● The filling nozzle is easy to disassemble for cleaning and replacing.
● Insulation/heat tracing device is optional

Advantages
● Filling accuracy: ± 0.2%
● A unique anti-drip device is adopted to prevent the dripping of residual materials in the nozzle.
● Submerged nozzles are provided as an option, which can be inserted into the pail during filling to avoid material splashing.
● An automatic protection function to prevent the nozzle from hitting the pail is available.
● Automatic detection of the barrel is provided to prevent filling when the pail is not in place
● The filling nozzle is free of drips after a filling round.
Technical specifications
|
Model Parameter |
AG-02-10 |
AG-01-30 |
|
Container volume (L) |
1-5 |
10-25 |
|
Dosing range (KGS) |
1-10 |
10-30 |
|
Quantity of filling nozzles |
2 |
1 |
|
Processing capacity (PCS/h) |
300-400 |
150-200 |
|
Measuring tolerance |
±0.2% |
|
|
Air source |
4 bar~6 bar, 0.1m3/min |
|
Our services
●Free pre-sale consulting service
●Free tailored solutions according to users' specific requirements
●Free advice on the layout of our equipment in the users' workshop
●Free pick-up & drop-off service for customers at Wuxi Airport/ railway station
●Leading customers around our factory and demonstrating our products for free
●Sharing production progress at the start of production, commissioning of machines, packaging, and delivery for free
●Free photos and commissioning video of the equipment before packing

FAQ
●Q: Are you a manufacturer, trading company, or a third party?
A: We are a manufacturer. Our factories were set up in 2005.
●Q: Given that it takes a long time to transport the goods by sea, how can to prevent all the goods from damage during transportation?
A: Our machines are wrapped with flexible film and packed with seaworthy wooden cases treated and marked in compliance with ISPM15, and shipped in containers.
●Q: What equipment do you have for NDT inspection?
A: Ultrasonic flaw detector, AV miniature magnetic yoke detector, magnetic detector, and penetration detector.
