Paint Filling Machine
Product Details
Introduction

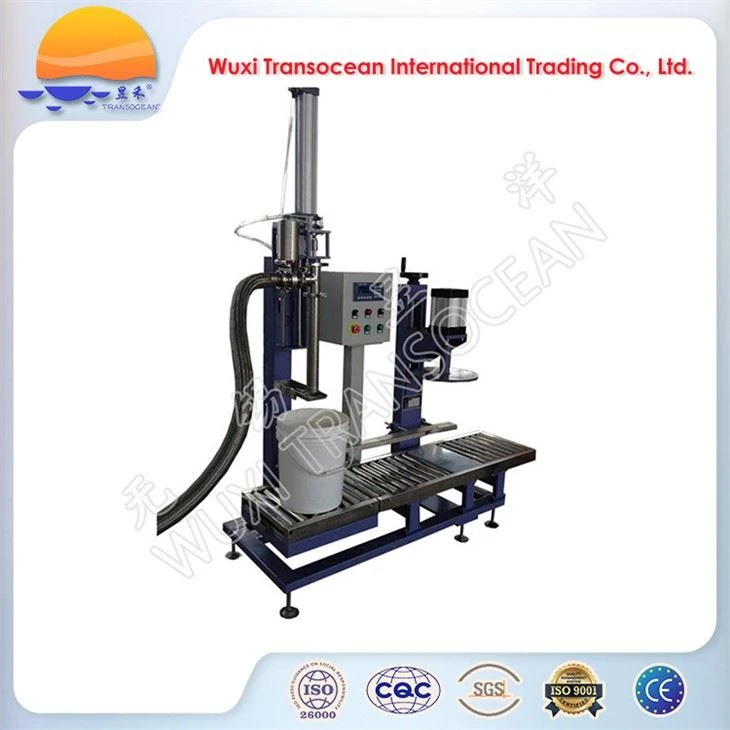

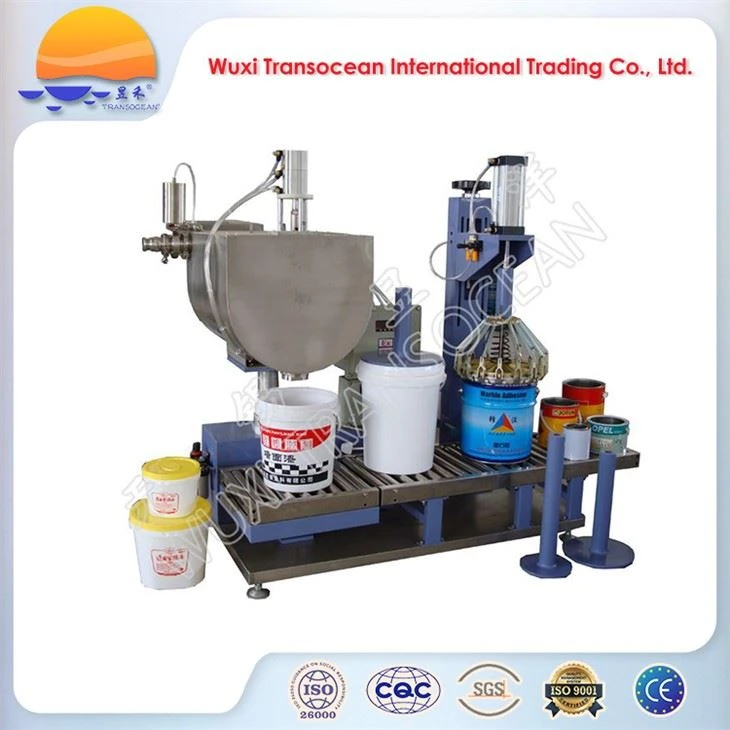

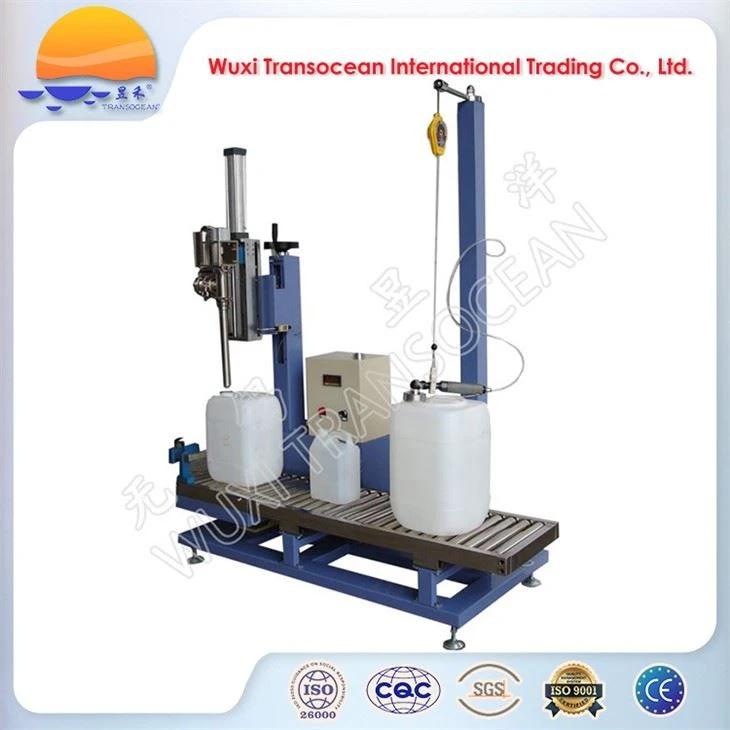

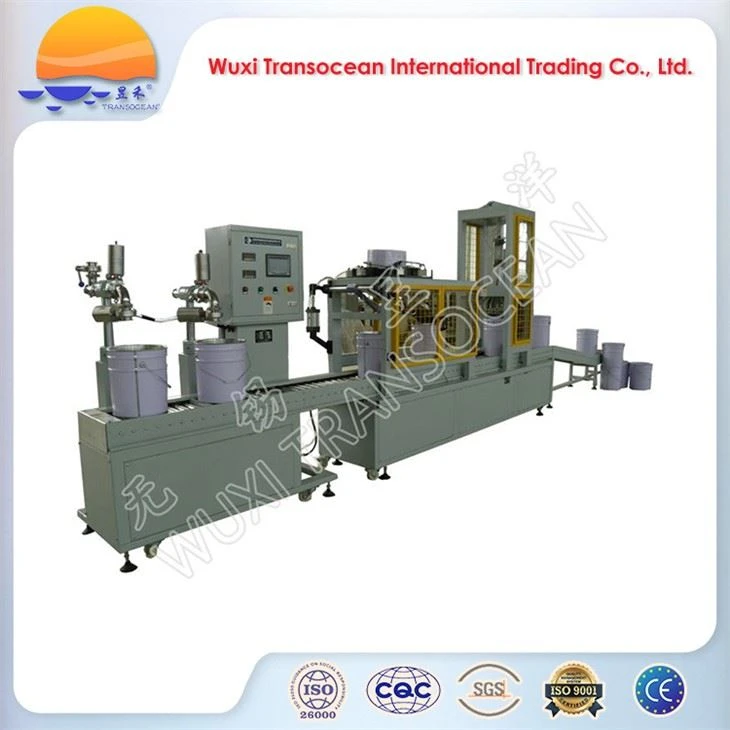

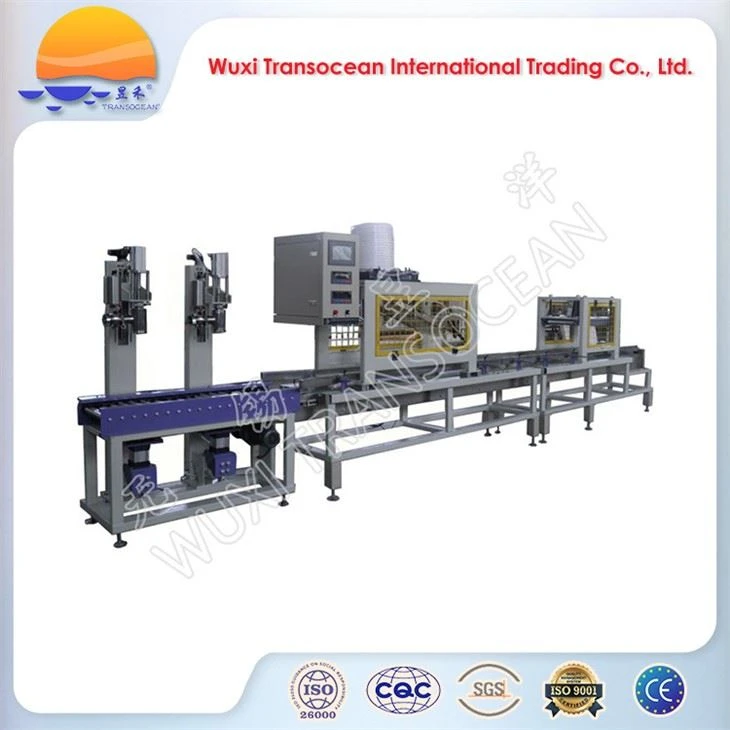

TRANSOCEAN® paint filling machine is used in quantitative filling of various paints and fluids alike. The filling machine consists of one set of an automatic gravimetric filling machine, powered conveying rollers and a capping device. Ordinary type (N) filling machine and explosion-proof type (E) filling machine are available as an option. Automatic pail separating device, automatic lid capping device, automatic stacking system, etc., are available as an option for automatic operation.
Applications
TRANSOCEAN® filling machines are applicable for quantitative packing of paints, inks, adhesives, curing agents, organic solvents, detergents, lubricants, edible oils and other materials with metal or plastic containers.
Features
● Mettler Toledo load cells are used to weigh the materials and display the weight in real time.
● 20 sets of recipes can be set and stored.
● Auto / manual operation mode can be switched freely.
● The filling process is divided into two steps, i.e., fast adding and slow adding, which ensures the filling speed and filling accuracy.
● Filling ON/OFF is controlled by the photoelectric switch.
● Alarm will be activated when the tolerance of weight exceeds the set limit.
● The filling nozzle is easy to disassemble for cleaning and replacing.
● Insulation/heat tracing device is optional
Advantages
● Filling accuracy: ± 0.2%
● A unique anti-drip device is adopted to prevent the dripping of residual materials in the nozzle.
● Submerged nozzles are provided as an option, which can be inserted into the pail during filling to avoid material splashing.
● Automatic protection function to prevent the nozzle from hitting the pail is available.
● Automatic detection of the barrel is provided to prevent filling when the pail is not in place.
Technical specifications
|
Model Parameter |
SG-01-10 |
SG-02-30 |
|
Container volume(L) |
1-5 |
10-25 |
|
Weighing range(KG) |
1-10 |
10-30 |
|
Quantity of filling head |
1 |
1 |
|
Filling speed (PC/H) |
150-200 |
300-400 |
|
Filling accuracy |
±0.2% |
|
|
Compressed air |
0.4～0.6MPa,0.1m3/min |
|
Our Advantages
●Extensive production experience:
Wuxi Transocean International Trading Co., Ltd. has specialized in the manufacture and supply of dosing systems, industrial mixing equipment, grinding equipment, filtration equipment and packaging equipment for more than ten years.
●Packaging suitable for export transportation:
Appropriate anti-rust and anti-collision measures are taken before packing to prevent the cargoes from corrosion caused by the salt fog in the sea air and damage resulting from collision during transportation.
● Timely delivery:
Usually, our products are delivered within 30 days after receipt of the down payment, subject to the technical requirements being confirmed by the buyer on time. The delivery time of some customized machines should be negotiated.
FAQ
●Q: What is the delivery time of your machine?
A: Mostly, our machines can be delivered within 30 days after receipt of the down payment for the order, conditioned that all the technical specifications and requirements have been confirmed by the customers on time. Delivery time of some customized machines may be extended according to our negotiation with the customer.
●Q: What about the availability of the after-service?
A: Considerable after-sales services are available online or via email all through the service life of our machines. Your request will be replied to within 24 hours after we receive it.
●Q: What equipment do you have for NDT inspection?
A: Ultrasonic flaw detector, a miniature magnetic yoke detector, a magnetic detector and a penetration detector.
