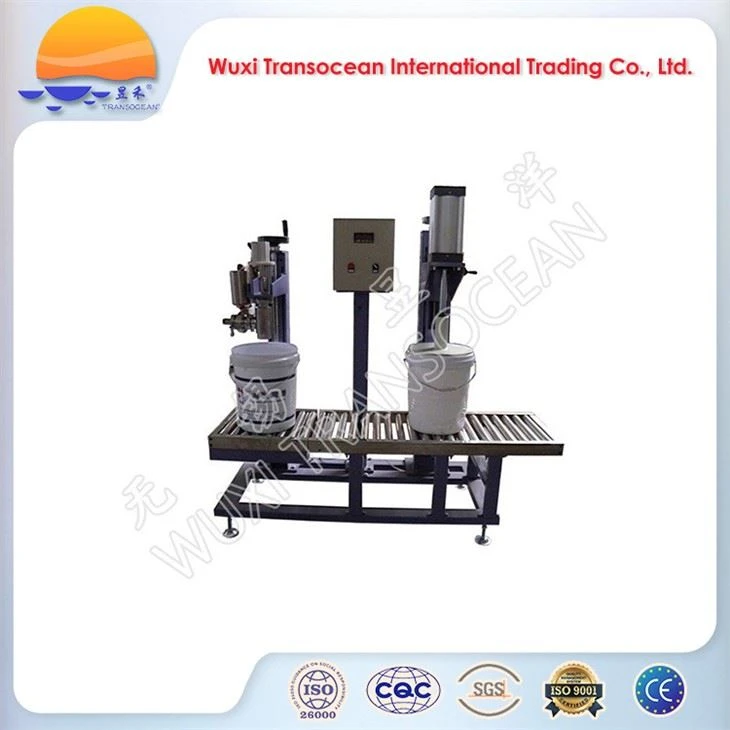

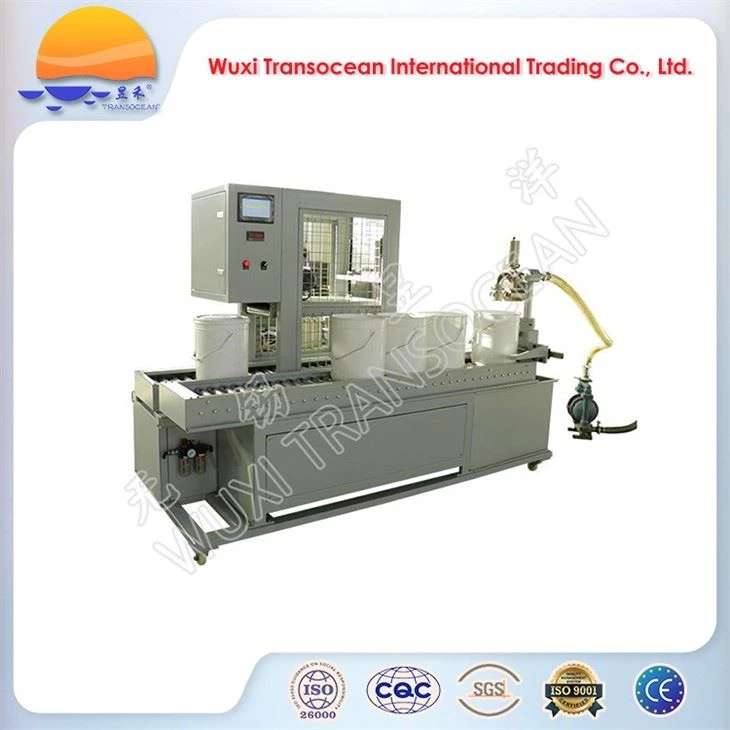

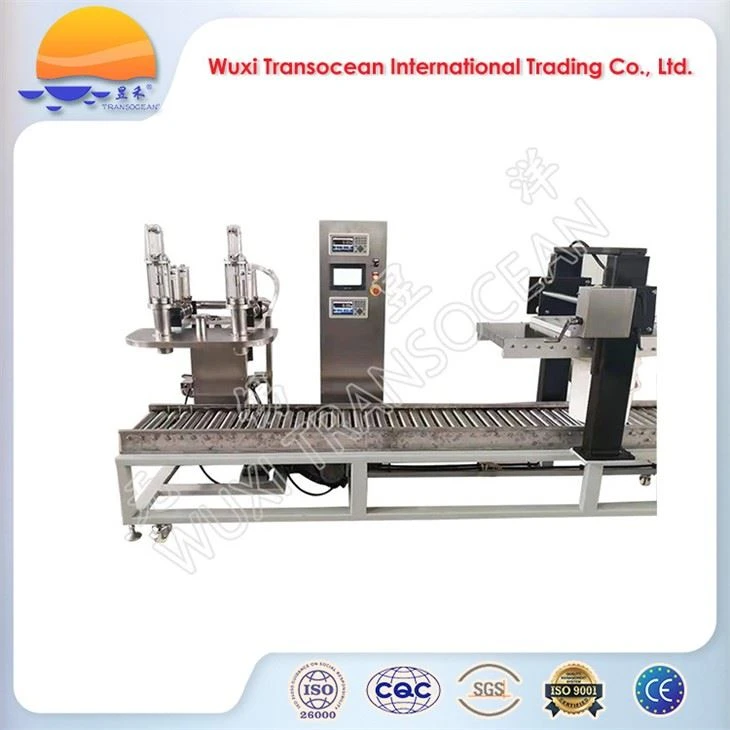

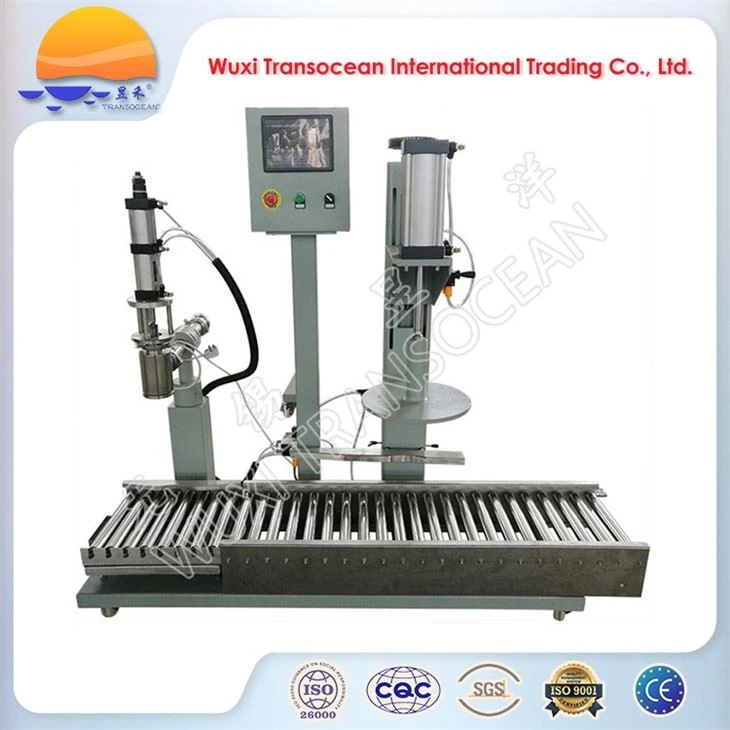

Latex Paint Filling Machine

Introduction:

TRANSOCEAN^® latex paint filling machines are applicable for quantitative filling of latex paint, PU coatings, wood paint, marine paint, glue, lubricating oil, etc.. It consists of 2 filling nozzles, a powered roller conveyor and a capping unit. Empty buckets are put on the weighing platform on the filling unit. The submerged filling nozzles will be driven by pneumatic cylinders to dive into the bucket for filling. The filling process is controlled by the photoelectric sensors, load cells and weighing controller. When the filling quantity arrives at the set value the nozzle will automatically lift over the bucket top. Bucket lids are put onto top of full buckets by hand and the buckets will be passed on to the capping station via the roller conveyor by hand. The lid will be sealed tightly by the roller capping device. At last the products will be discharged by the powered conveyor and unloaded by hand. Automatic lid separating & placing device is available as an option. It is easy to operate and clean the filling machine.

Features:

●Submerged filling nozzles are adopted.

●A stainless steel cover is provided above the filling nozzles.

●20 recipes can be stored in the weighing controller.

●The nozzles don’t work until the expected containers are loaded onto the weighing platform.

Advantages:

●No material splashes during the filling process

●Less air pollution resulting from the volatile in the products

Technical specifications:

●Packing container: 18-25L plastic bucket

●Weighing range: 10-50kg

●Weighing accuracy:±2‰

●Quantity of filling nozzles: 2PCS

Why choose us ?

●We are one of the leading manufacturers and suppliers of mixers, grinding equipment, filters and filling machines in Wuxi city, Jiangsu province, China.

●We would like to provide personalized design for each specific request for our customers.

●Flexibleminimum order quantity is acceptable.

●We would provide door-to-door or door-to-port service upon customers’ request.
●Contact us on WhatsApp or WeChat right away for perfectly cost-effective solutions.

FAQ

●Q:Are you a manufacturer, trading company or a third party?

A:We are a manufacturer.Our factories wereset up in 2005.

●Q:Can the machine be customized as our need, such as put on our logo?

A: Yes. Customized products and services, as well as OEM are available.

●Q: If we need your help on the installation and commissioning of the machines ordered from you how can your offer the assistance?

A:All our machines have been tested and have passed the quality inspection before delivery. Most of our products are delivered in modules or as an entirety. It is easy to reassemble the machines according to our instruction and fix them with expansion bolts onto the foundation in the user’s workshop. In some case, if the user needs our supervision on site we will dispatch our technicians to help our customer at the customer’s expense.
