Edible Oil Filling Machine

Introduction

TRANSOCEAN® edible oil filling machine is ideal quantitative packing equipment for various fluids in the production of edible oils, flavors, lubricating oils, motor oils, thinners, paints, coatings, etc.

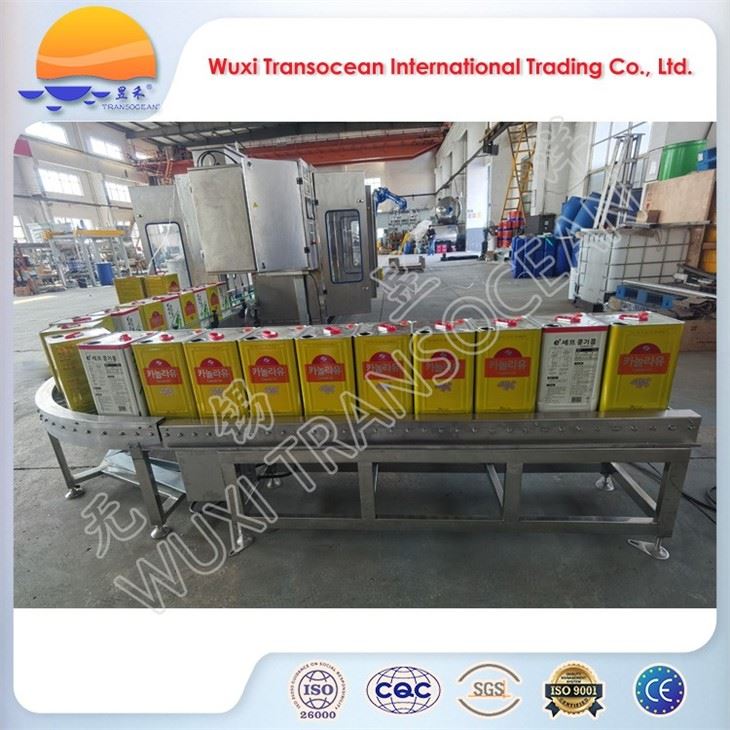

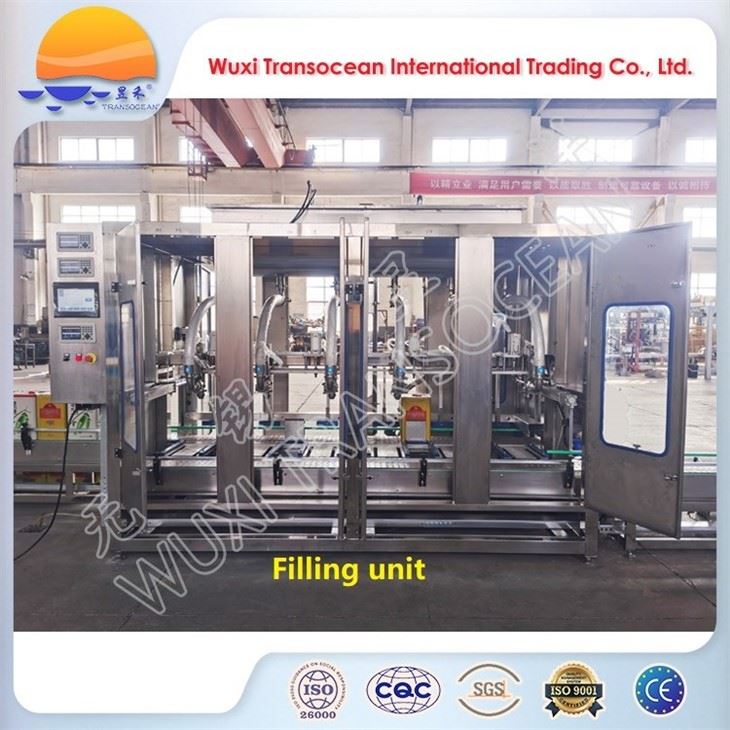

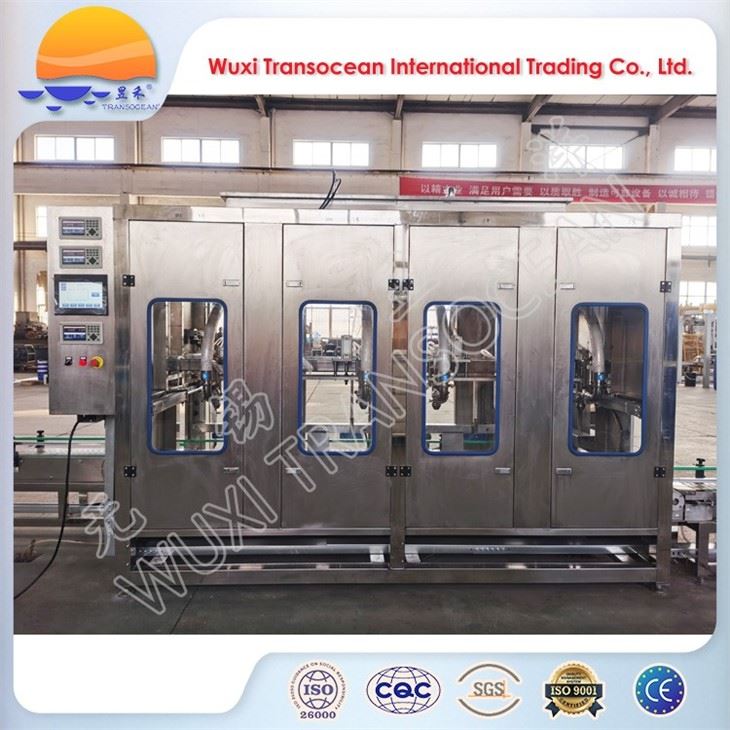

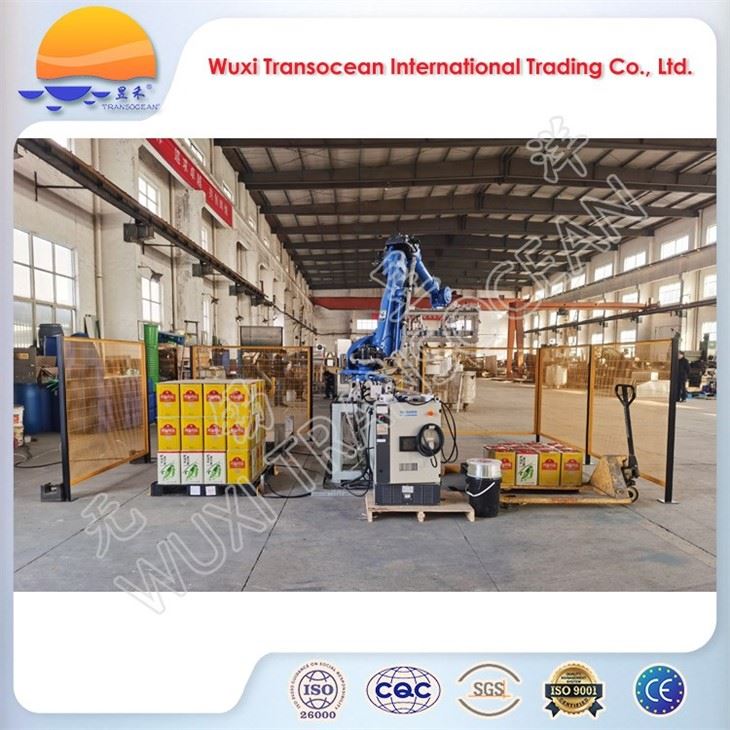

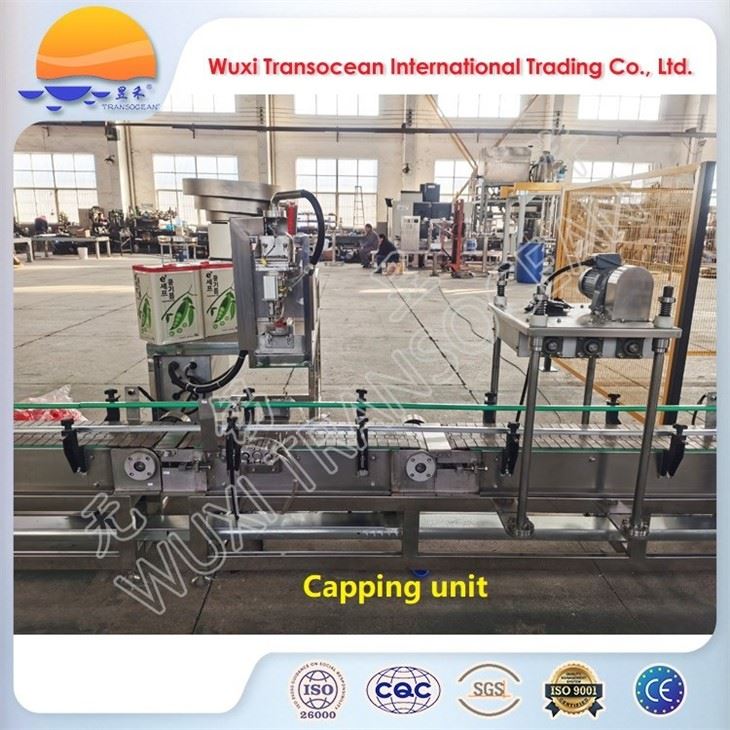

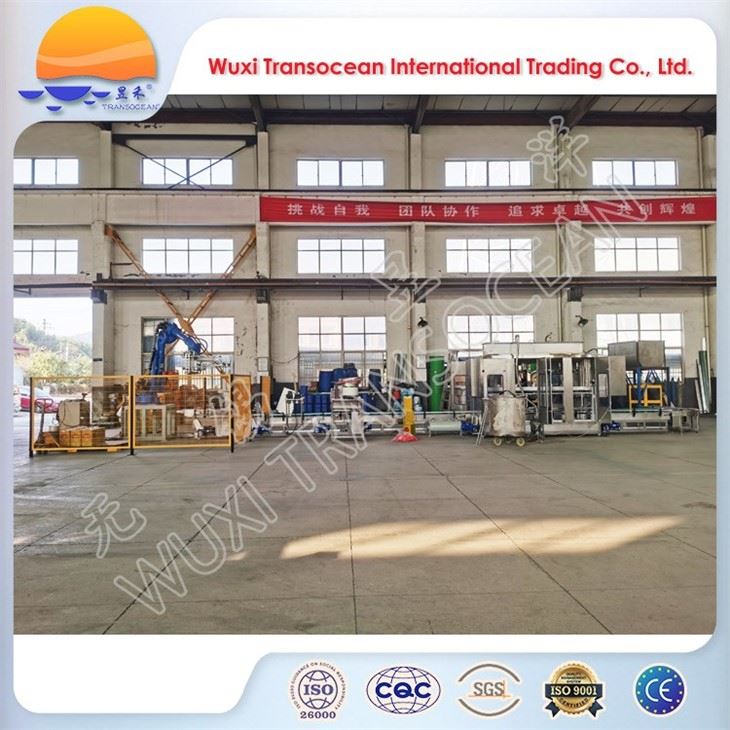

It is composed of a bucket loading station, conveyor, gravimetric filling unit, capping unit, palletizing station. Film wrapping unit is available as an option for the finish of final products. All technological processes can be displayed and controlled on the touch screen HMI panel, completed with a PLC. Packing media metering is done automatically by load cells and weighing indicators.

All material contact parts are made of SS304, SS316L, or PTFE. The filling machine is designed and produced according to GMP rules.

Workflow: manual buckets loading→ automatic filling → automatic capping→ automatic palletizing → product collection with forklift

Main technical specifications

●Applicable container: plastic/ steel buckets

●Filling range: 0.5~10kg or 10~30kg

●Measuring tolerance: ±0.2%

●Quantity of filling nozzle: 6PCS

●Filling capacity: 500~700 buckets/h

Advantages

●Free of pollution to the products

●Environmentally friendly
