Bitumen Filling Machine
Product Details
Introduction:
Wuxi Transocean International Trading Co., Ltd. is one of the leading manufacturers and suppliers of filling packing machines in China. TRANSOCEAN® bitumen filling machines have been exported to Kazakhstan, Saudi Arabia, UAE, Indonesia, Canada, Pakistan, etc. and have been well received by our customers.

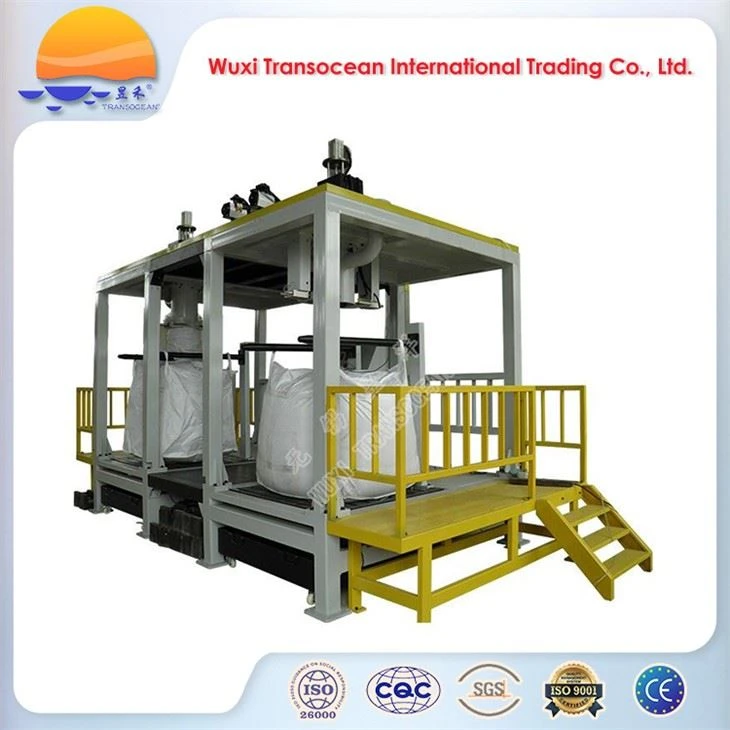

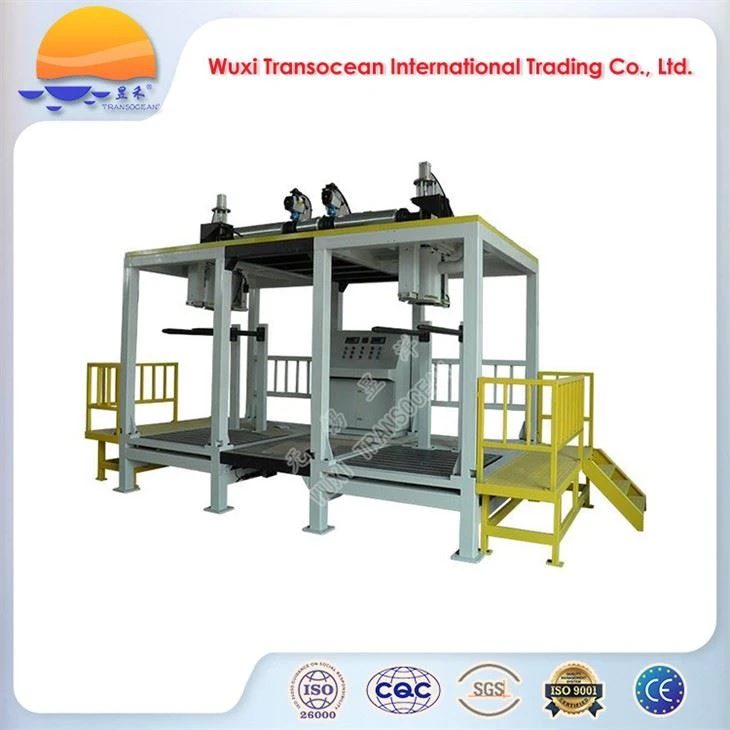

TRANSOCEAN® bitumen filling machine is widely used in packing of bitumen (asphalt) with 200kg/300kg/500kg/1000kg bags. It is composed of 2 buffer silos, 2 bitumen filling systems, a work platform and a control system.
Applications:
TRANSOCEAN® bitumen filling machine is applicable for quantitative filling of high temperature bitumen (asphalt) or alike with 200KG/300KG/500KG/1000KG bags.
Features:
● Two separate double-channel filling nozzles with electric heater, insulation jacket and temperature sensor are adopted to prevent drop or wire drawing from the nozzles.
● The filling process is divided into two steps i.e. fast adding and slows adding.

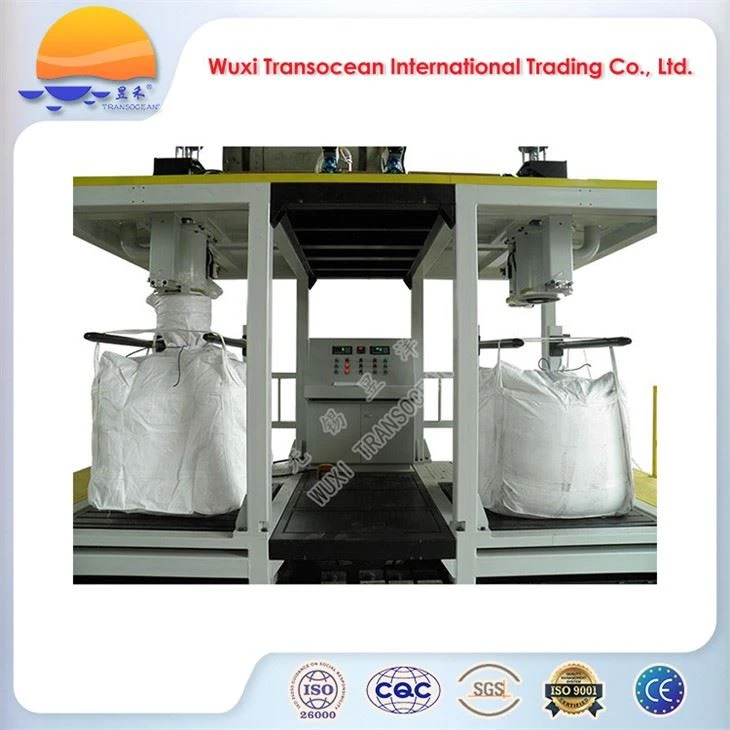

● The multi-functional bag hanging and sealing system ensures firm sealing without leakage.
● All seal rings are made of PTFE.
● Automatic gravimetric filling with load cells
● Real-time display of net weight of bitumen packed
● Filling nozzles won’t work if the packing bag is not in place.
Advantages:
● Suitable for packing of high temperature products
● Protects operators from high temperature burns
● Perfect filling accuracy
● High packing capacity
Technical specifications:
Item | Specification |
Model | SH-02-1000 |
Quantity of filling nozzle | 2 |
Packing bag size (KGS) | 200/300/500/1000 |
Packing speed | 15-20 bags/h |
Tolerance | ±0.2% |
Power supply | AC 3PH/380V/50Hz (can be customized) |
Compressor air supply | 4-8bar, 0.1m3/min |
Flow rate of bitumen (m3/h) | 25～35 |
Bitumen temperature (℃) | ≤130 |
Heating mode | by Heat transfer oil or by Steam |
Outline dimension (L×W×H, mm) | 10m×3m×4m(L×W×H) |
N.W. (KG) | 2500 |
