Automatic Waterproof Paint Filling Machine

Name: China Automatic Waterproof Paint Filling Machine Manufacturers, Suppliers and Factory - Transocean
Brand: Transocean
SKU: 128925256

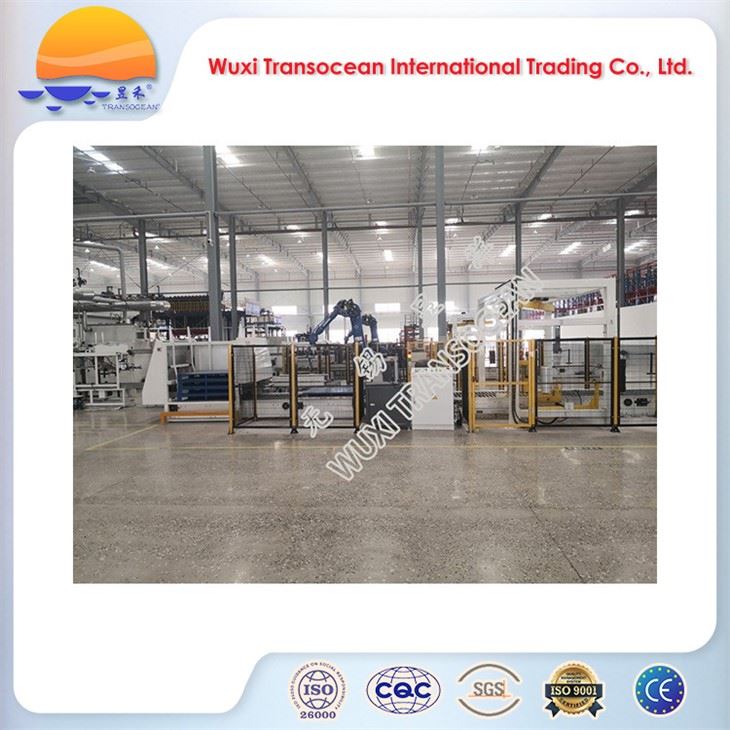

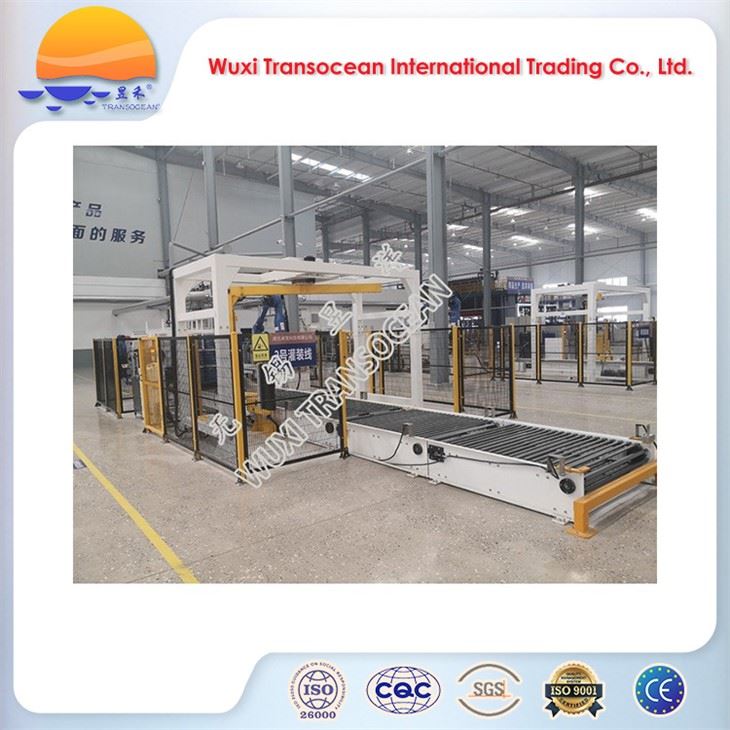

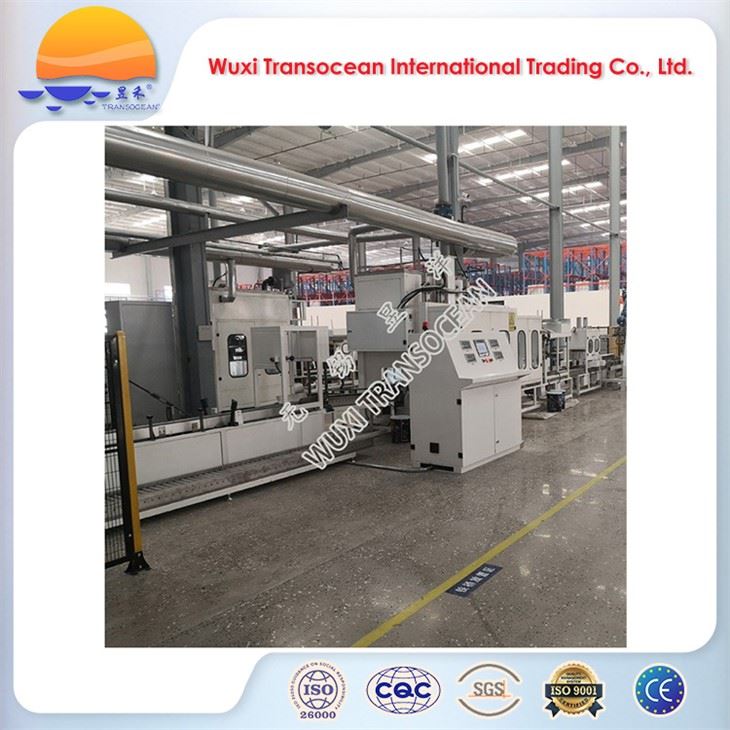

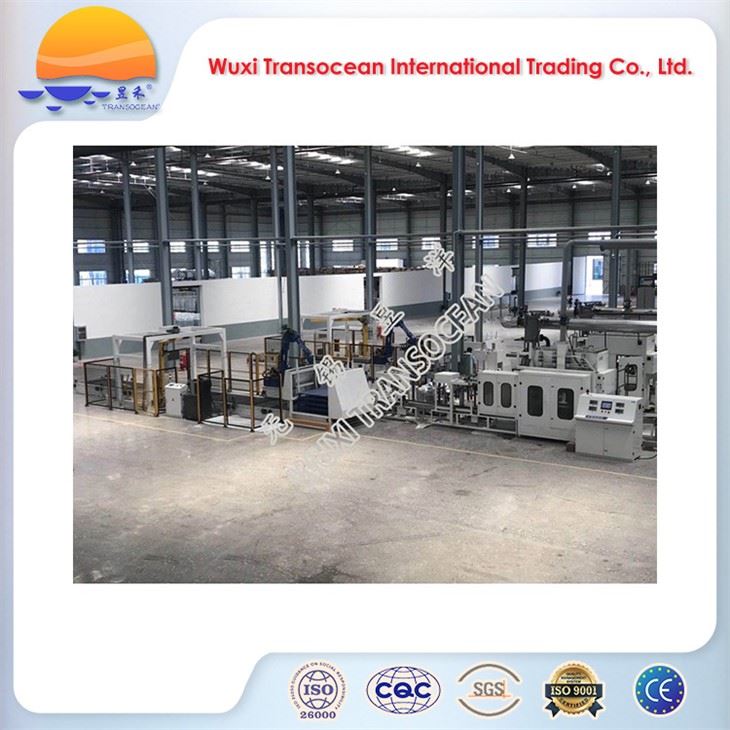

TRANSOCEAN® automatic waterproof paint filling machine is specially designed for the packing system for hot fluids and semi-fluids. It is composed of bucket separating unit, filling unit, capping unit, text & pattern printer and stacking system. The film wrapping unit is available as an option. All these processing processes are conducted automatically to greatly improve production efficiency, upgrade the quality of products and relieve labor intensity. This filling machine has been widely adopted by domestic and foreign customers, and has been well received.

Chat Now

Product Details

Introduction

TRANSOCEAN^®automatic waterproof paint filling machine is specially designed for the packing system for hot fluids and semi-fluids. It is composed of bucket separating unit, filling unit, capping unit, text & pattern printer and stacking system. The film wrapping unit is available as an option. All these processing processes are conducted automatically to greatly improve production efficiency, upgrade the quality of products and relieve labor intensity. This filling machine has been widely adopted by domestic and foreign customers, and has been well received.

Applications

●TRANSOCEAN^® automatic waterproof paint filling machines are widely used in the quantitative packing of various hot liquids such as waterproof paints, wax, bitument, etc..

-1(1)

Features

●Insulation jackets are supplied outside all filling nozzles, valves and material feed pipes.

●Mettler Toledo load cells and weighing controllers are used for dosing.

●Touch screens are adopted for the operation of the whole system.

●ABB Robots are supplied for the palletizing of the finished products.

-1 (9)

Advantages

●Specialized applicable for packing of hot liquids

●Promote the production capacity tremendously

●Cut down labor intensity obviously

●Greatly improve product quality

Technical specifications

Item	Specification
Model	AH-04-50
Packing container	10-25L tinplate pail
Measurement mode	gravimetric
Quantity of filling nozzle	4PCS
Packing speed	700-1000 PCS/h
Tolerance	±0.2%
Media to pack	high temperature fluids
Packing temperature (℃)	120-160
Ambient temperature (℃)	0～40
Heating mode	by Heat transfer oil
Outline dimension (L×W×H, m)	18×11×5

Why choose us ?

●We are one of the leading manufacturers and suppliers of mixers, grinding equipment, filters and filling machines in Wuxi city, Jiangsu province, China.

●Our quality control is implementedall through the production process.

●We always keep customers informed of the update of preparation of the cargo at key points in time

●Comprehensive inspectionprior to packing.

●We passed ISO 9001 and SGS certification.
