Automatic Filling Machine for Waterproof Coatings
Product Details
Introduction

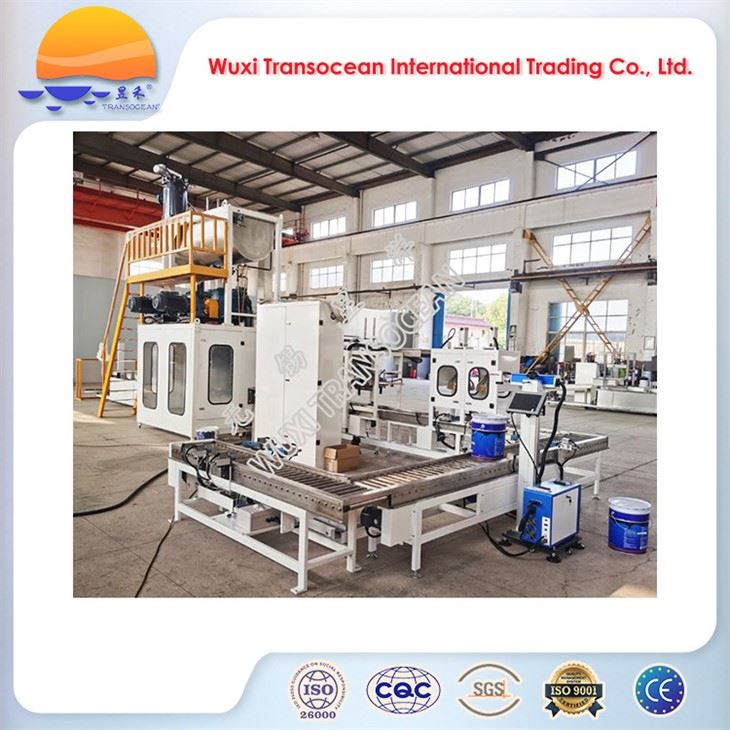

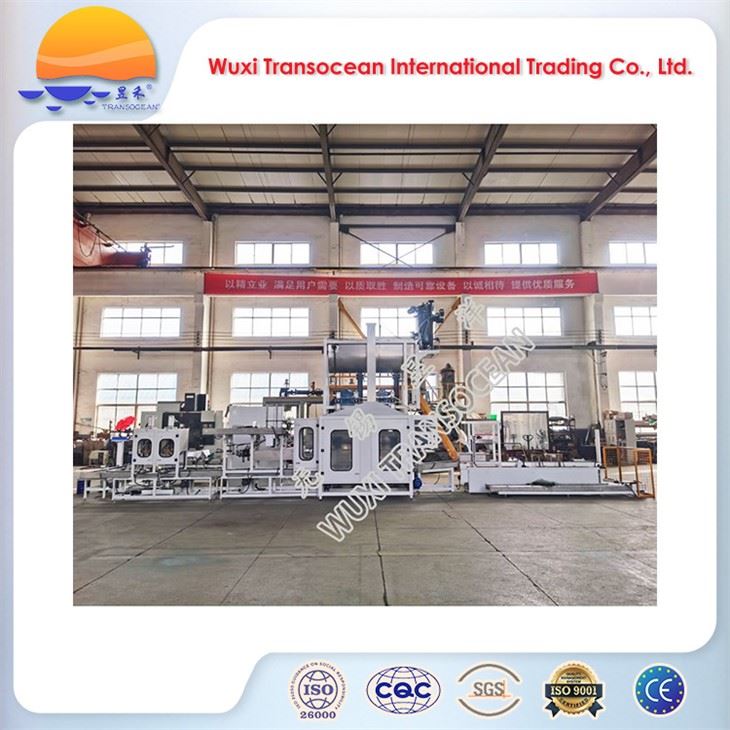

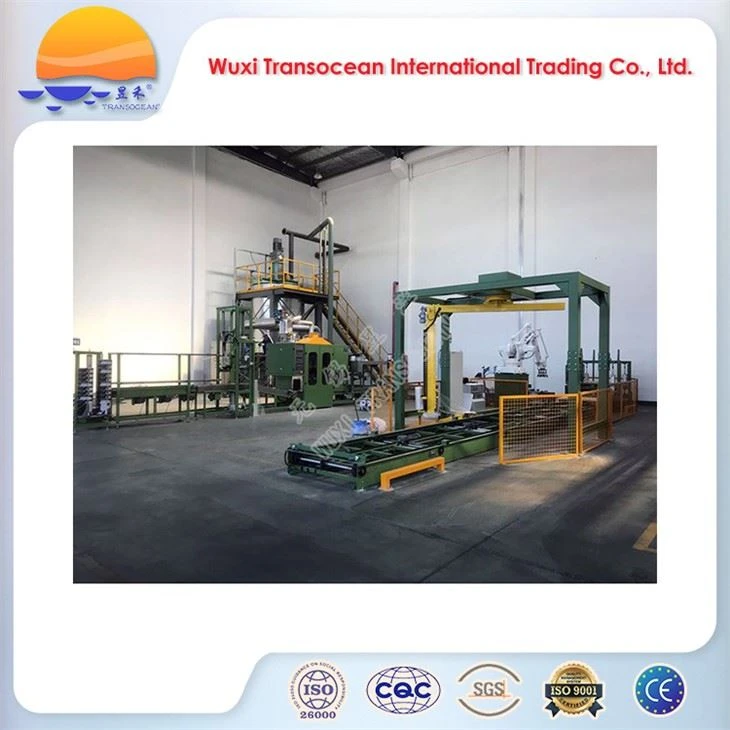

The automatic filling machine for waterproof coatings is a novel packing system for high temperature fluids and semi-fluids. It consists of pail separating system, gravimetric filling system, capping system, pallet feeder, stacking system and film wrapping device. All processes are carried out automatically to greatly improve packaging efficiency and reduce labor intensity. A recheck device, a coding system, a labeling system and an explosion-proof control system are available as an option.
Applications
TRANSOCEAN® waterproof coatings filling machines are applicable for quantitative packing of high temperature fluids such as non-curing rubber-asphalt waterproof coatings, paraffin wax, bitumen (asphalt) and alike.
Features
● Filling nozzles and material transfer pipes are equipped with insulation jackets
● Automatic gravimetric filling, real-time display of the packing weight
● The filling process is divided into two steps, i.e., fast adding and slow adding.

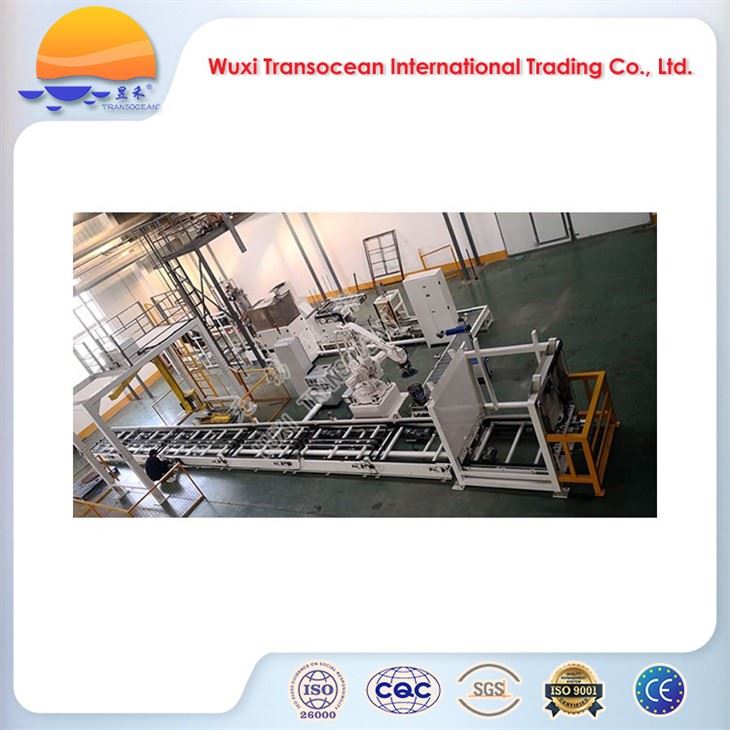

● Stacking of finished pails is carried out by a robot.
Advantages
● Suitable for the packing of high temperature materials
● Greatly reduce labor intensity and save labor costs.
● Neat, uniform, and quality products are obtainable.
Technical specifications
|
Item |
Specification |
|
Model |
AH-02-30 |
|
Packing specification |
10-25L tinplate pail |
|
Measurement mode |
gravimetric |
|
Quantity of filling nozzle |
2PCS |
|
Packing speed |
350-450 PCS/h |
|
Tolerance |
±0.2% |
|
Materials to pack |
high temperature media |
|
Packing temperature (℃) |
120-160 |
|
Ambient temperature (℃) |
0～40 |
|
Heating mode |
by Heat transfer oil |
|
Outline dimension (L×W×H, m) |
15×10×4 |
Quality control
●Design drawings strictly in accordance with the order confirmed by the customer.
●Select quality raw materials and accessories from reputed suppliers for production.
●Process all parts in strict accordance with the design confirmed by the customer.
●Double-check all the parts before assembly.
●Skilled workers assemble the machines according to the drawings.
FAQ
●Q: What is your minimum order quantity? Can you send me samples?
A: Our Min. OQ is 1 set. As our products are machines, it's hard to provide samples. Instead, we would provide our catalog and you are also to visit our factories.
●Q: What equipment do you have for NDT inspection?
A: Ultrasonic flaw detector, a miniature magnetic yoke detector, a magnetic detector and a penetration detector.
●Q: Are there any wearing parts for the machine we ordered?
A: We will share the list of wearing parts of the machine you order for your option.
