Agrochemical Filling Machine
Product Details
Introduction

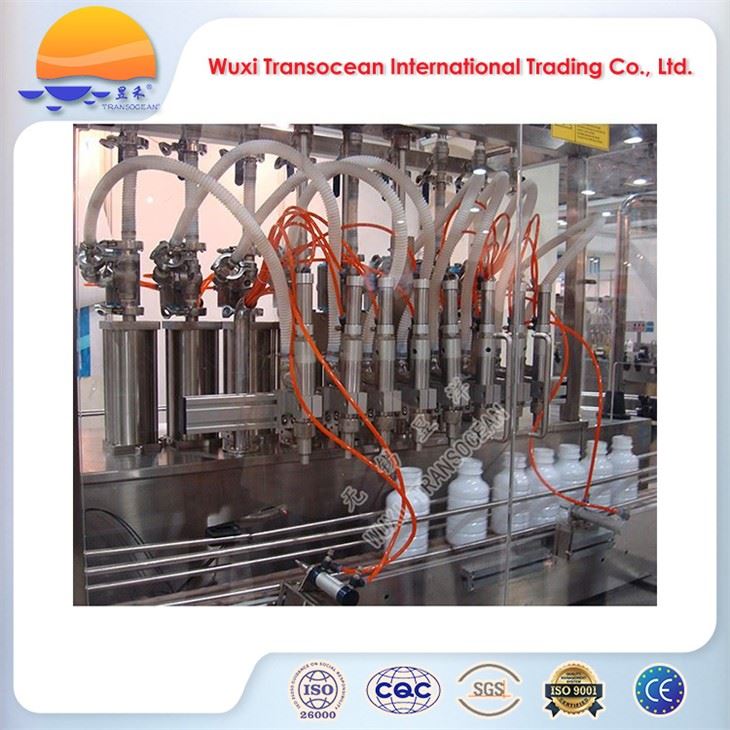

TRANSOCEAN® agrochemical filling machine is a volumetric filling system which adopts advanced automatic control technology and characterizes reliable performance and easy operation. The filling machine mainly consists of a bottle sorting device, a volumetric filling system, a cap sorting device, a capping device, a labeling device, an electrical control section, a filling platform and a conveying system. Unique submerged filling nozzles are supplied, which can effectively prevent splashing during filling and dripping of residual liquid after filling.
Applications
TRANSOCEAN® agrochemical filling machine is applicable for packing of corrosive materials such as pesticides, insecticides,bactericides, herbicides, foliar fertilizers, flush fertilizers, water-soluble fertilizers, disinfectants, oral liquids, feed additives, white wine, mineral water, beverages, etc.
Features
● The main body of the filling machine is made of stainless steel, which can stand with corrosion and wear.
● The filling process is controlled by PLC.
● The filling range can be arbitrarily adjusted within the range of 50-500ml or 1000-5000ml.
● The submersible filling nozzles can be adjusted up and down, which can effectively prevent material splashing during the filling process.
● GMP compliance
Advantages
● Convenient to operate
● High filling accuracy
● High filling speed
Technical specifications
| Model Parameter | AV-12-1000 |
| Container volume(ml) | 50-1000 |
| Quantity of filling head | 12 |
| Filling speed (PC/H) | 3000-4500 |
| Filling accuracy | ±0.5% |
| Power supply | 3PH/380V/50Hz (can be customized) |
| Power consumption (KW) | ≤6 |
| Air supply (MPa) | 0.5～0.8 |
| Air consumption (m3/min) | 0.5 |
