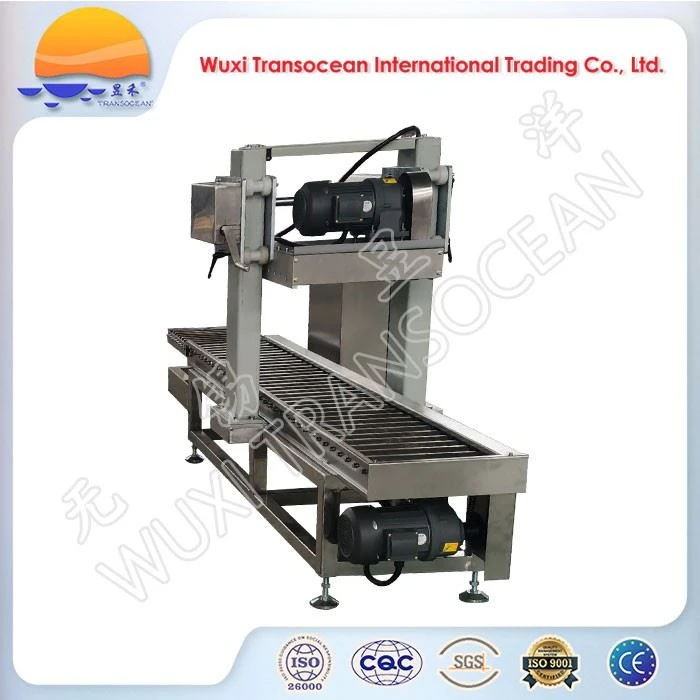

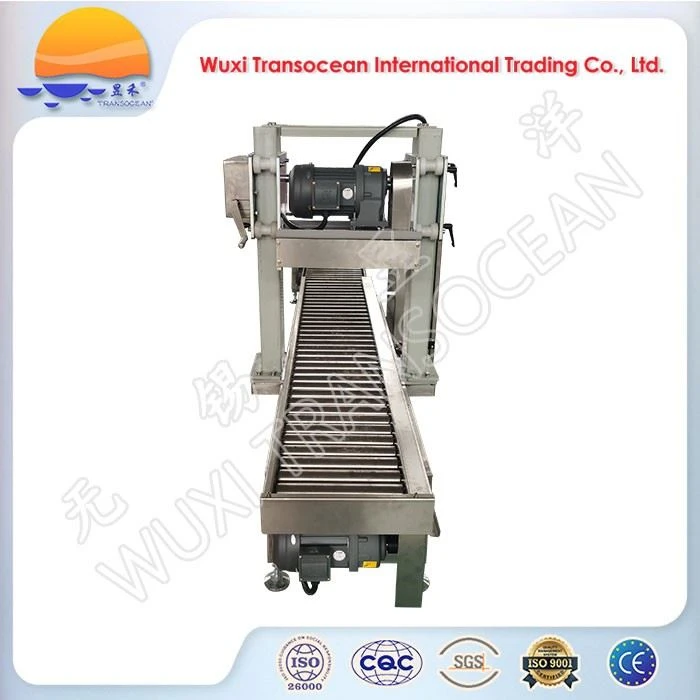

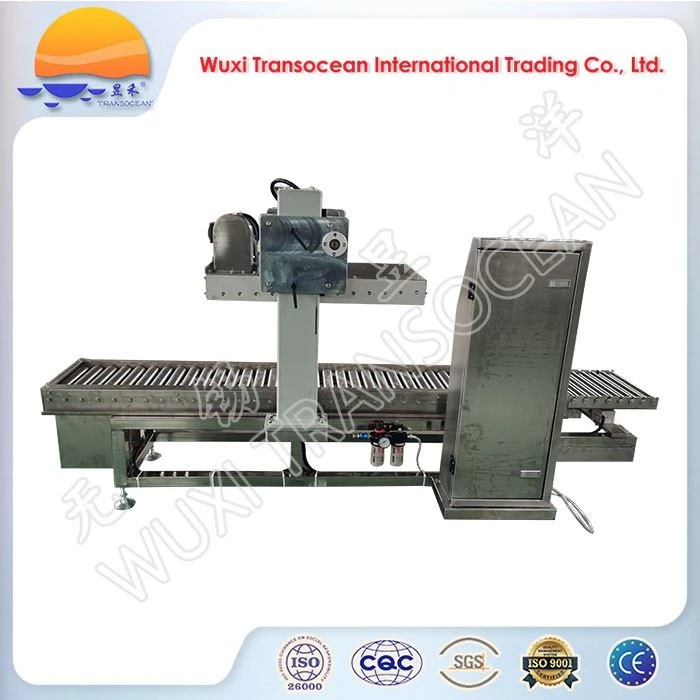

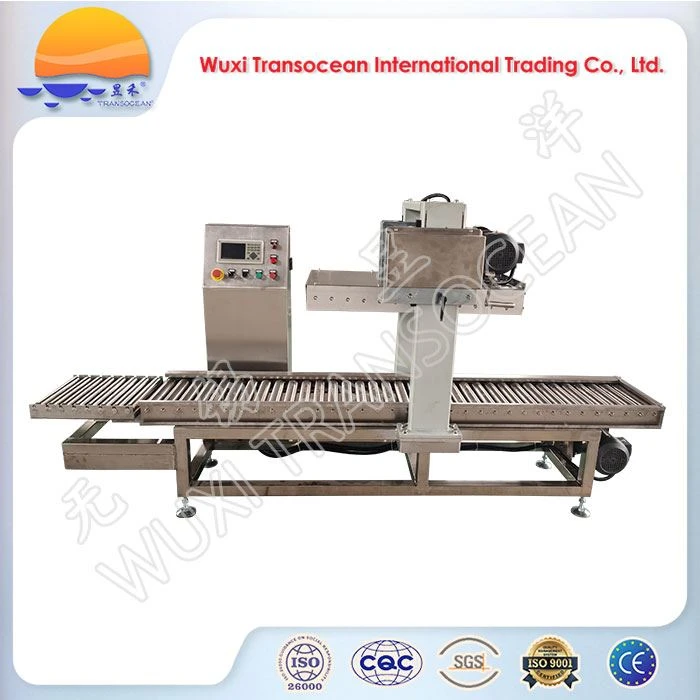

Roller Type Capping Machine
Product Details
Description:
TRANSOCEAN® roller type capping machine is applicable for lid sealing of plastic buckets after filling process. Plastic bucket lid is gradually and evenly pressed and sealed when passes through the overhead rotating rollers arranged in a stepwise manner.
Features:
●Lids can be sealed evenly and tightly with the roller type capping machine.
●Working height of the overhead rollers can be adjusted within a certain range, which can be customized.

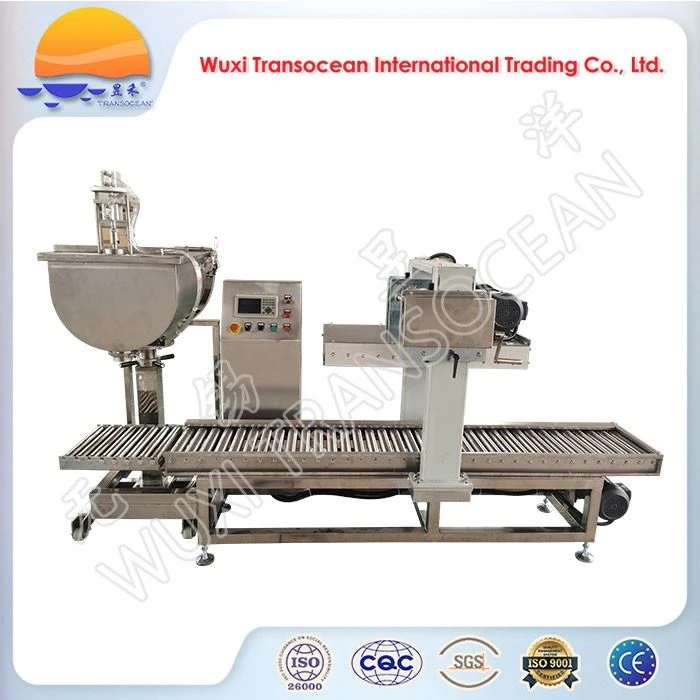

●Roller type capping machine can work separately or together with various filling machines.
Technical specifications:
|
Applicable for |
Flat lid of bucket |
|
Processing capacity |
600~700 PCS/h |
|
Power supply |
3P/380V/50Hz(or customized) |
|
Installed power |
0.4kW*2 |
|
Compressed air |
0.1m3/min @ 4 bar～6 bar |
Main structure:
1: Rack
2: Drive motor for roller conveyor
3: Rollers
4: Drive motor for sealing rollers
5: Sealing rollers
6: Handle for up/ down of capping device
7, 18: Locking handle
8: Control panel
9: Weighing indicator (option for filling)
10: Key area
11: Emergency
12: Filling switch (option for filling)
13: Complement: (option for manual filling)
14: Capping start
15: Capping stop
16: Capping indicator
17: Alarm: (option for filling, fault alarm for filling value)
19: Oil-water separator for air source
