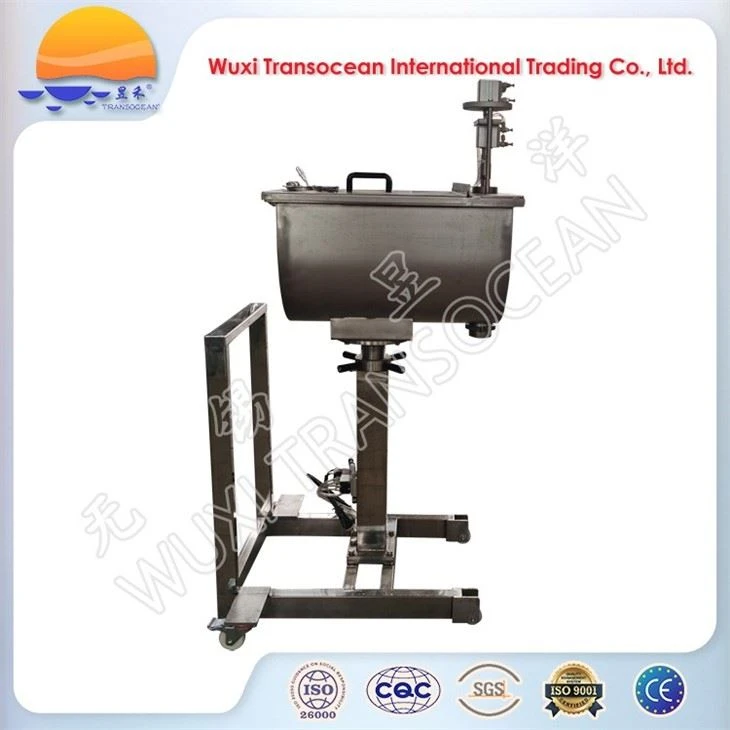

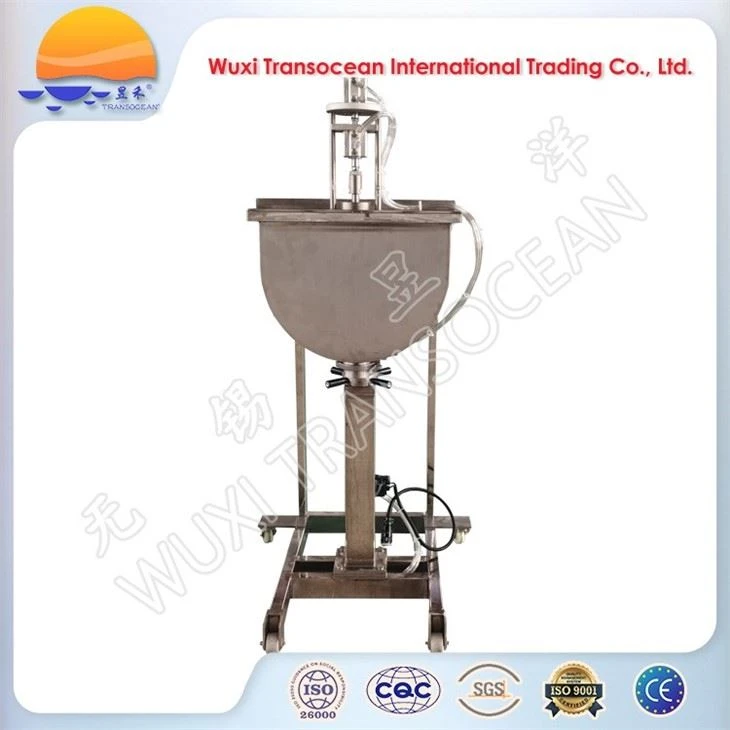

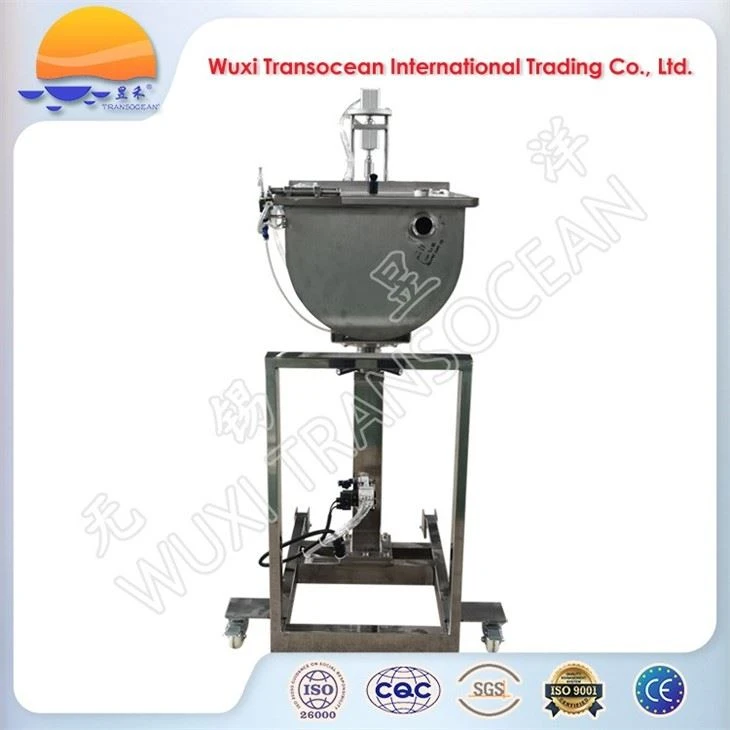

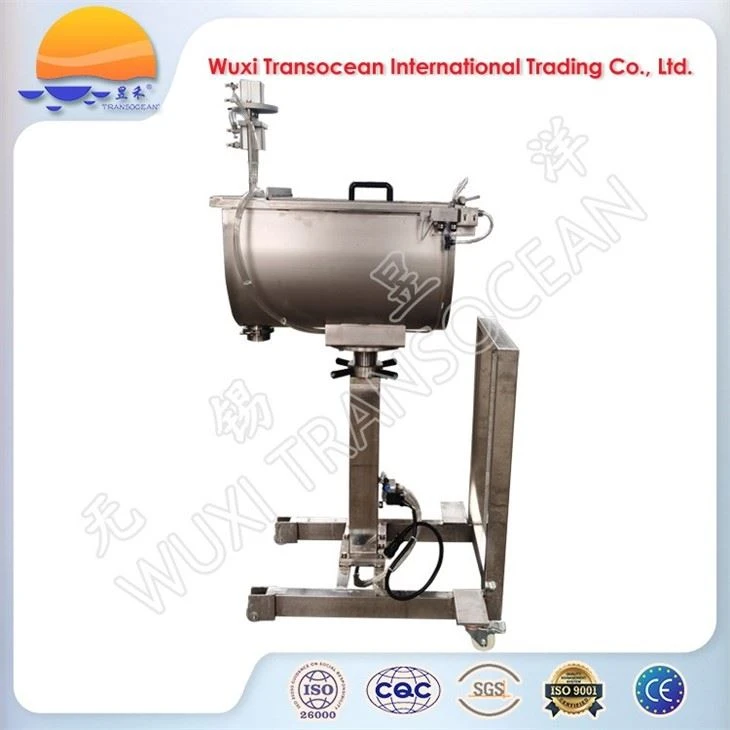

Filling Trolley With Buffer Silo
Product Details
Introduction:
●TRANSOCEAN® filling trolley with buffer silo is a movable weighing filling module with a buffer silo. The filling trolley with buffer silo can be quickly connected to the filling control box through the aviation plug, and work with the gravimetric filling platform. It can quantitatively pack paint, ink, oil, etc. in plastic buckets or metal buckets.
Features:
●Modular design, plug and play.
●The buffer silo can eliminate the influence of the flow rate fluctuation of the filling medium on the measurement accuracy.
Advantages:
●High measurement accuracy
●Filling trolley with buffer silo can work with different types of capping devices.
Technical specifications:
| Model Item |
SG-01-10 | SG-01-30 |
| Material feeding mode | By material pump | |
| Weighing range(kg) | 1-10 | 10-30 |
| Quantity of filling nozzle | 1 | 1 |
| Filling capacity(PCS/H) | 250-350 | 200-300 |
| Tolerance | ±0.2% | |
| Power | AC110V～230V 50Hz | |
| Compressed air | 0.1m3/min @ 0.4～0.6MPa | |
| Material inlet | 2" quick joint | |
| Pressure at material inlet | ≤2bar | |
Structures:
1: Aviation plug
2: Air inlet
3: Air tube for material feed pump/valve
4: Air cylinder
5: Filling nozzle
6: Material inlet
7: Buffer silo
8: Trolley
