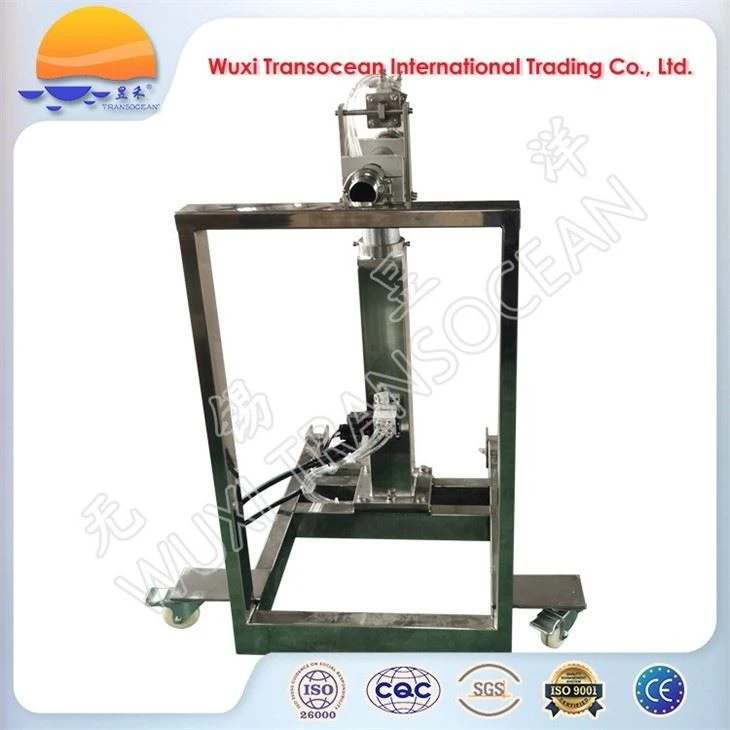

Putty Filling Trolley
Product Details
Introduction
TRANSOCEAN® putty filling trolley is a movable gravimetric putty filling module. The putty filling trolley can be quickly connected to the filling control cabinet via the aviation plug, and works with the weighing filling platform to quantitatively fill the plastic buckets or metal buckets with putty, adhesives, curing agents and other viscous fluids which do not contain hard particles.
Structural composition
1. Storage box: used to store putty or putty materials, usually with a large capacity to reduce the frequency of adding materials.
2. Conveying system: can convey the putty or putty in the storage box to the filling site.
3. Filling gun head: a key component for filling putty or putty into gaps or holes.
4. Frame and wheels: the frame is used to support and fix each component to form a whole.
5. Control system: used to control the operation and operation of the putty filling cart, such as starting and stopping the motor, adjusting the conveying speed, switching the filling gun head, etc.

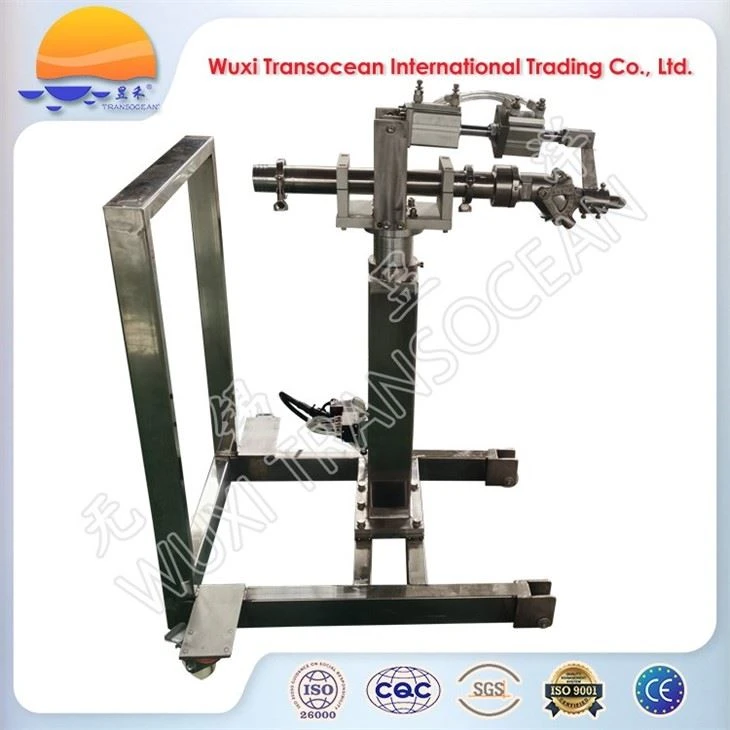

1: Trolley
2: Material inlet
3: Air cylinder
4: Filling nozzle
5: Aviation plug
6: Air inlet
Features
●Modular design can be deployed flexibly.
●TRANSOCEAN® putty filling trolley can be quickly connected to the filling control box via the aviation plug to work with various filling units.
●It can be applied to the filling of open plastic buckets and open metal buckets.
Advantages
●Modular design for easy disassembly, cleaning and product shift
●By switching the capping unit, it can work with various plastic caps and metal caps, reducing the investment in equipment and workshops.
Technical specifications
| Model Item |
SG-01-10 | SG-01-30 |
| Material feeding mode | By screw pump or hydraulic discharge press | |
| Weighing range(kg) | 1-10 | 10-30 |
| Quantity of filling nozzle | 1 | 1 |
| Filling capacity(PCS/H) | 80-200 | 60-150 |
| Tolerance | ±0.2% | |
| Power | AC110V~230V 50Hz | |
| Compressed air | 0.1m3/min @ 0.4~0.6MPa | |
| Material inlet | 2" quick joint | |
| Pressure at material inlet | ≤2bar | |
Application scenarios
1. Furniture manufacturing: used to fill holes and cracks on the surface of furniture.
2. Wood processing: used to fill uneven areas on the surface of wood.
3. Car repair: used for putty filling in car body repair.
4. Building decoration: used for putty filling on walls, ceilings and other surfaces.
