Texture Paint Filling Machine
Product Details
Introduction

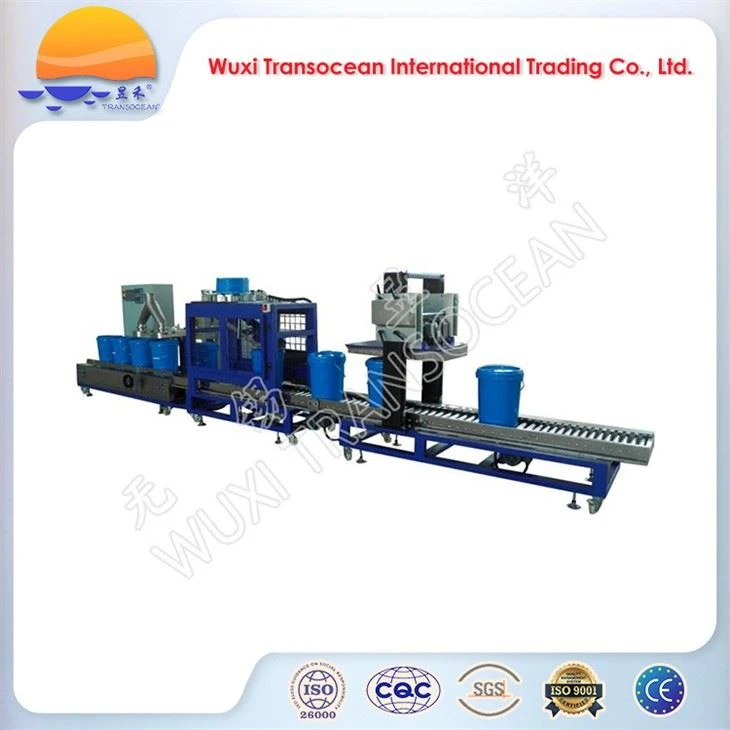

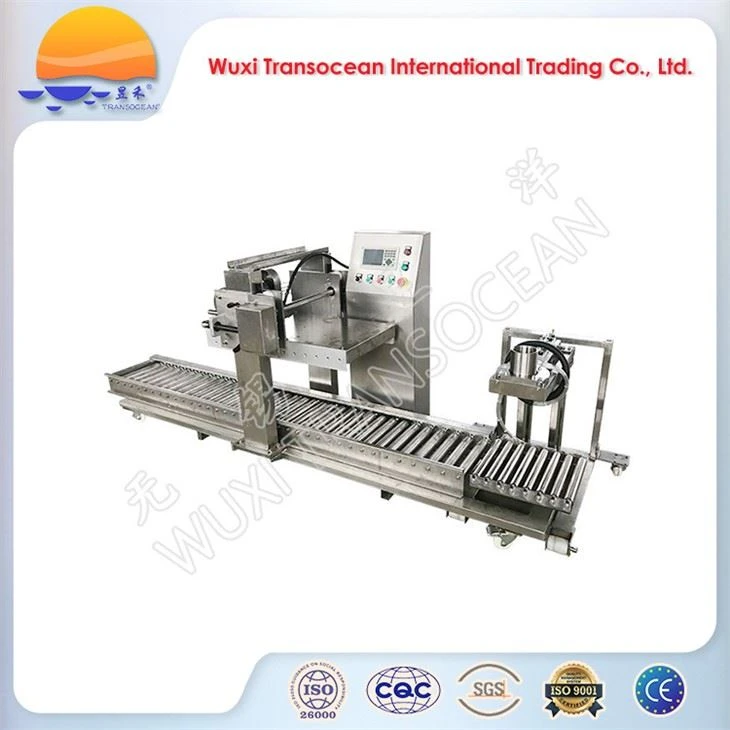

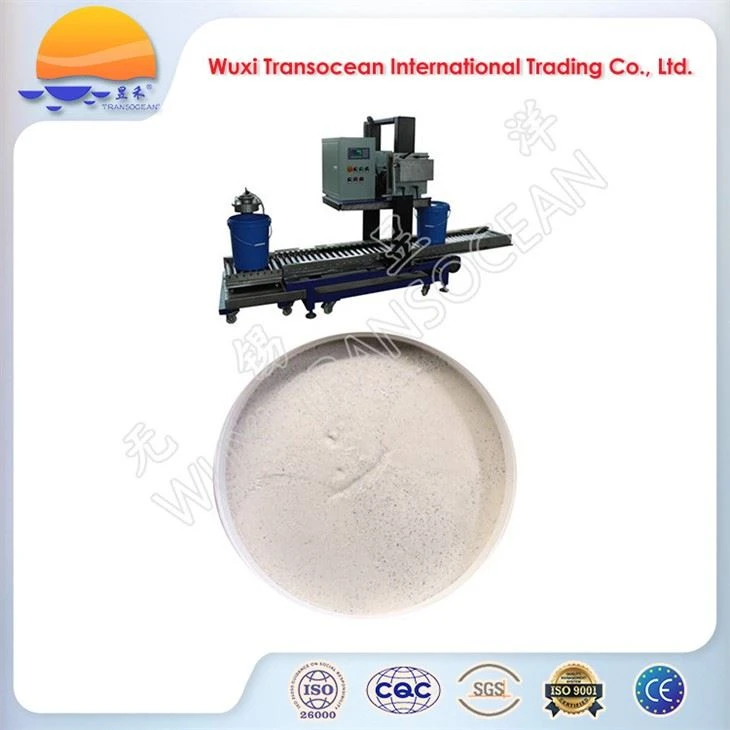

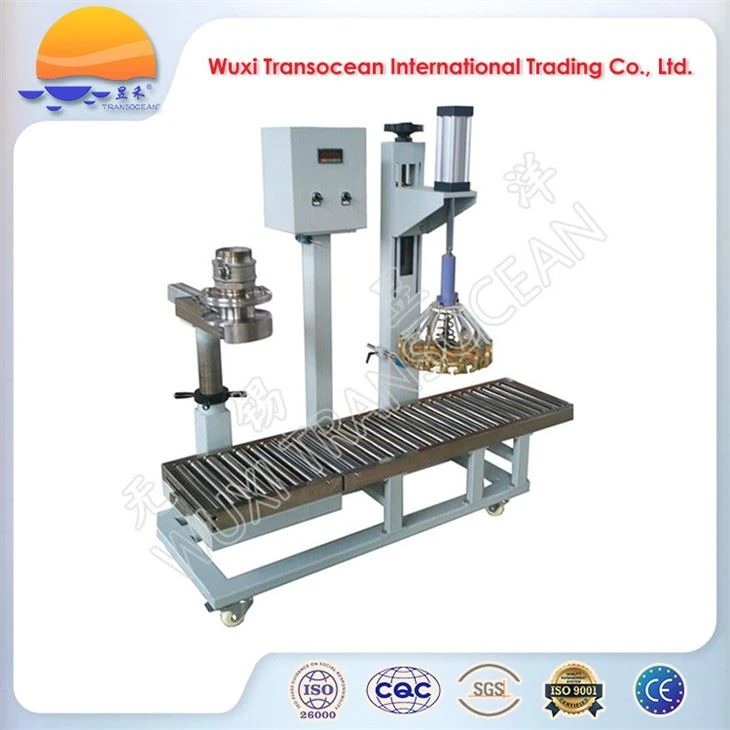

Transocean® Texture Paint Filling Machine is designed for quantitative filling of texture paint, natural-stone coating and similar high-abrasion coating materials. The system consists of a filling unit and a capping unit.
Filling operations are precisely controlled by Autonics photoelectric sensors, METTLER TOLEDO load cells and a GM weighing controller.
Upon completion of filling, bucket lids can be placed onto the bung opening either manually or automatically. Full buckets are then conveyed to the capping station for automatic capping via the automatic conveyor. Finished products are unloaded manually.
An automatic robotic stacker is available as an optional accessory.
Key Advantages
• Specially-designed filling nozzle for texture paint, resistant to abrasion caused by the quartz sand contained in texture paint.
• Mobile filling trolley connected to the weighing controller via a circular aviation connector, enabling quick commissioning and convenient post-use cleaning.
• Modular design for all product-contact components, supporting rapid disassembly and assembly for maintenance and cleaning.

Technical specifications
|
Model |
SG-01-30 |
SG-02-30 |
AG-01-30 |
AG-02-30 |
|
No. of filling nozzles |
1 pc |
2 pcs |
1 pc |
2 pcs |
|
Material inlet |
Ø100 |
|||
|
Container type |
Conical plastic bucket with flat lid |
|||
|
Filling range |
5 kg ~ 50 kg |
|||
|
Filling accuracy |
±0.2 % |
|||
|
Filling capacity |
200-400 pcs/h |
400-700 pcs/h |
200-400 pcs/h |
400-700 pcs/h |
|
Lid‑placing mode |
Manual |
Automatic |
||
|
Power supply |
AC Single-phase/ 220 V/ 50 Hz (customizable) |
AC 3-phase/ 380 V/ 50 Hz (customizable) |
||
|
Air source |
4-6 bar |
|||
Remarks
• Feeding mode: Texture paint flows by gravity from the mixing tank positioned above the filling trolley.
• Mixing-tank outlet height: Min. 1500 mm from the ground level to the lowest point of the outlet.
Operational precautions
• Cleaning: Flush the system with solvent or water (depending on the paint type) regularly to prevent accumulation of dried paint.
• Pump selection: Select the appropriate pump type based on the particle size and viscosity of the paint (e.g., avoid using gear pumps for paints with large, sharp particles, as these particles may wear the gears).
• Safety: Operators should wear protective gear (gloves, goggles) to avoid contact with chemicals; ensure good ventilation for solvent-based paints.
Our services
Free pre-sale consulting service
Free tailored solutions according tousers' specific requirements
Free adviceon layout of our equipment in users' workshop
Free picking-up& drop-off service for the customers at Wuxi airport/ railway station
Leading customers around our factory and demonstrating our products for free
Sharing production progress at start of production, commissioningof machines, packaging and delivery for free
