Vacuum Mixer
Product Details
Introduction

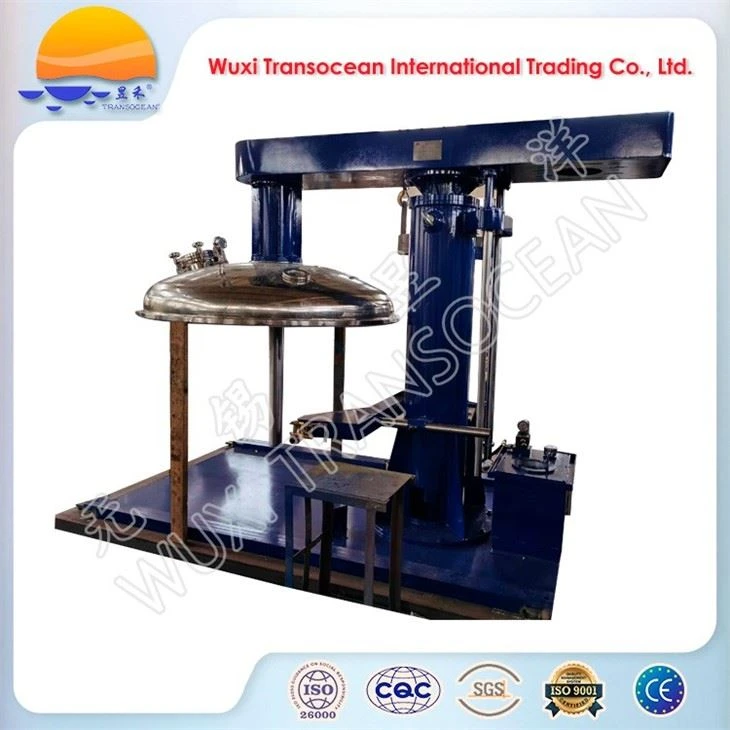

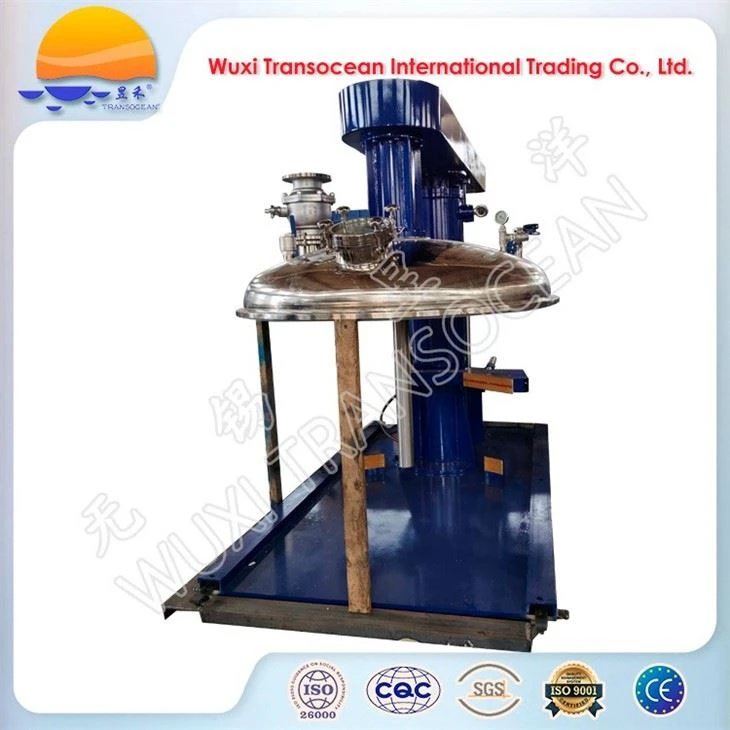

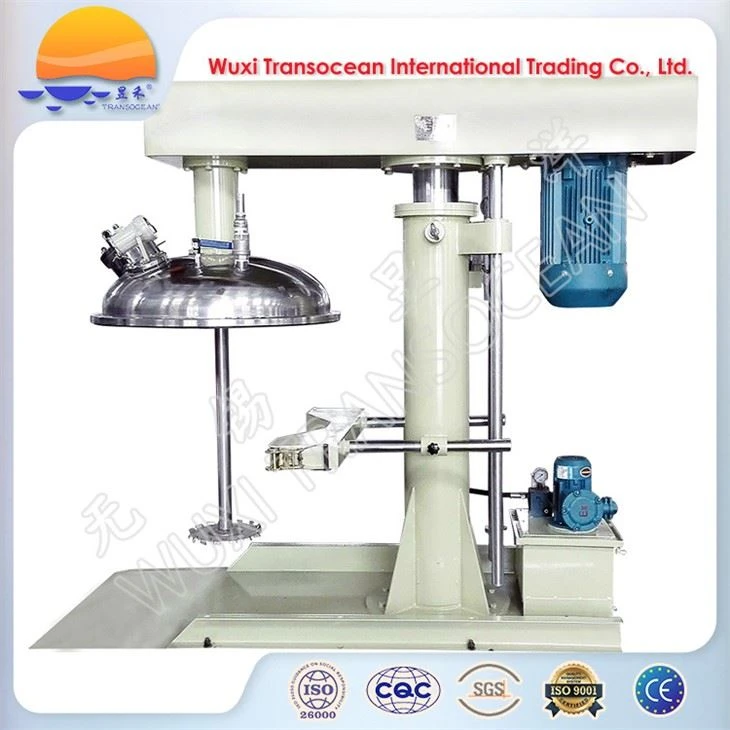

TRANSOCEAN® vacuum mixers are applicable for the agitation, dissolution and dispersion of liquids and liquid-solid materials. The vacuum mixers consist of main body, hydraulic lifting sector, hydraulic station and control cabinet.
Technical specifications
● Mixing sector
Mixing power: 22KW-4P
Main shaft speed: 0-1450rpm

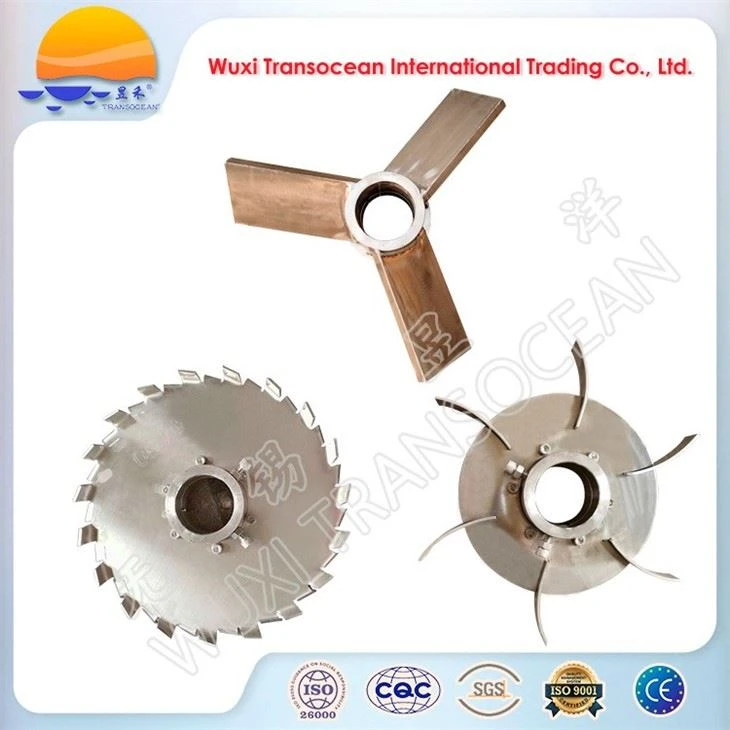

Mixing blade: Φ350mm~Φ450mm
Lifting/ lowering stroke: 1200mm

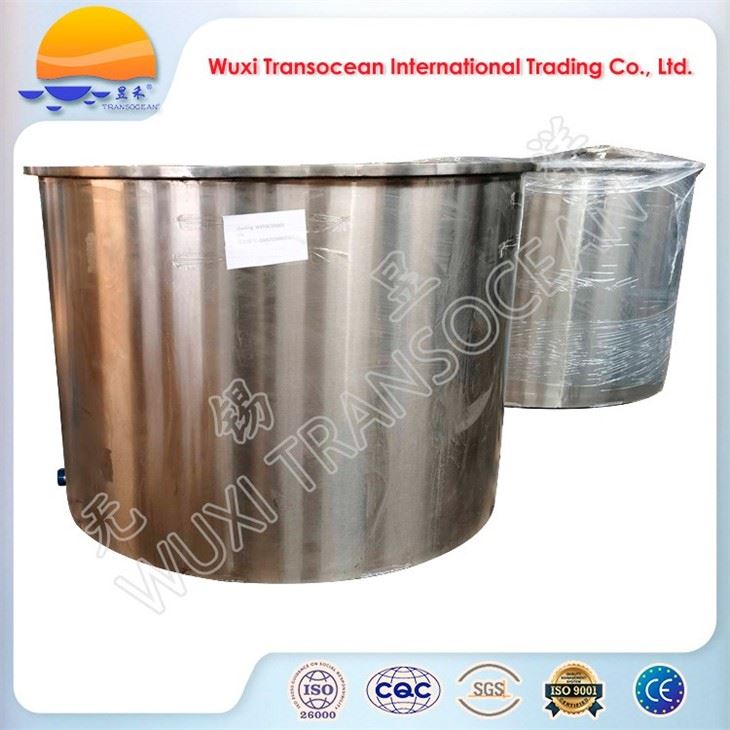

Movable tank: S.S.304, Φ900*1000*δ5
● Vacuum sector

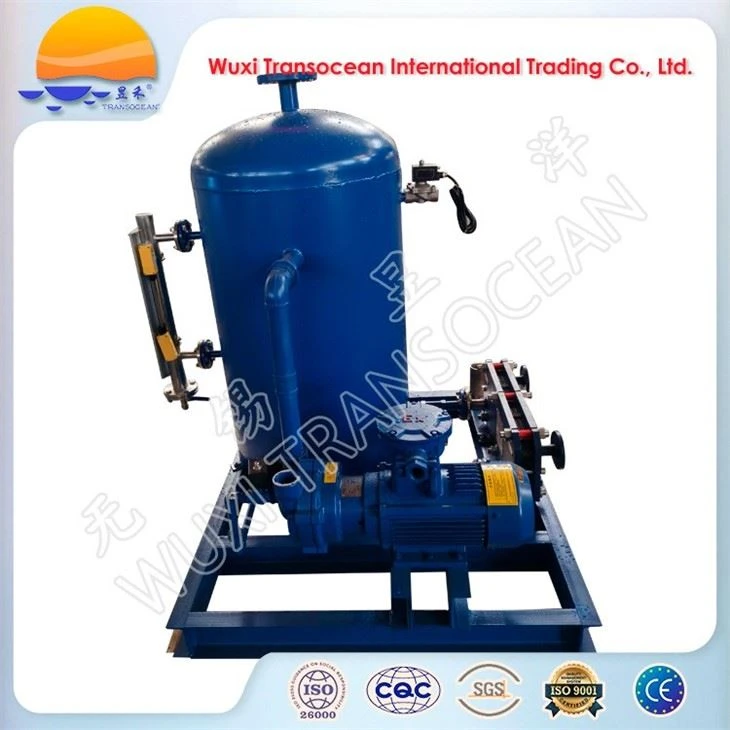

Vacuum pump: water ring type vacuum pump
Ultimate vacuum: 0.097 MPa
Working media flow: 2.5 lpm

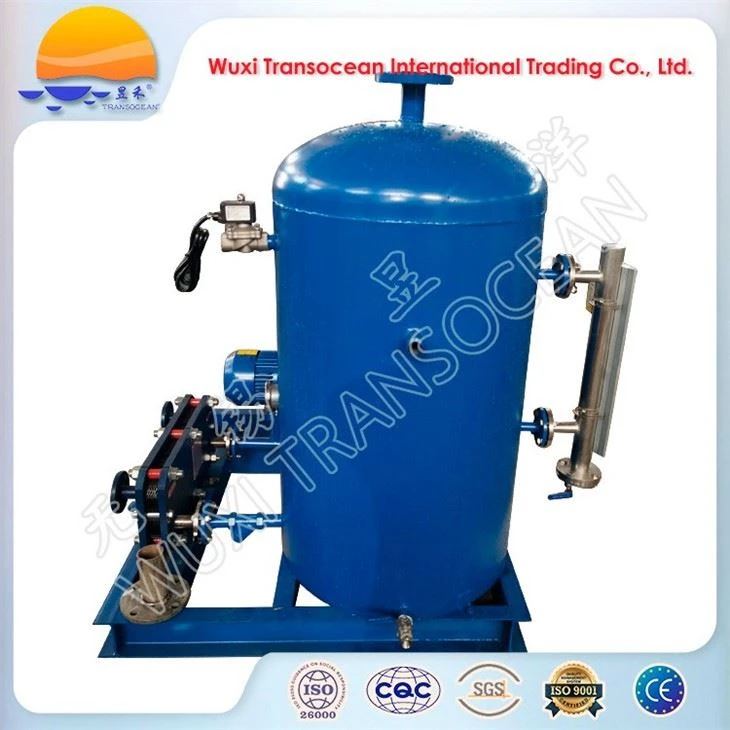

Material of air-water separator tank: SS304
Volume of air-water separator tank: 400L
Material of plate heat exchanger: SS304

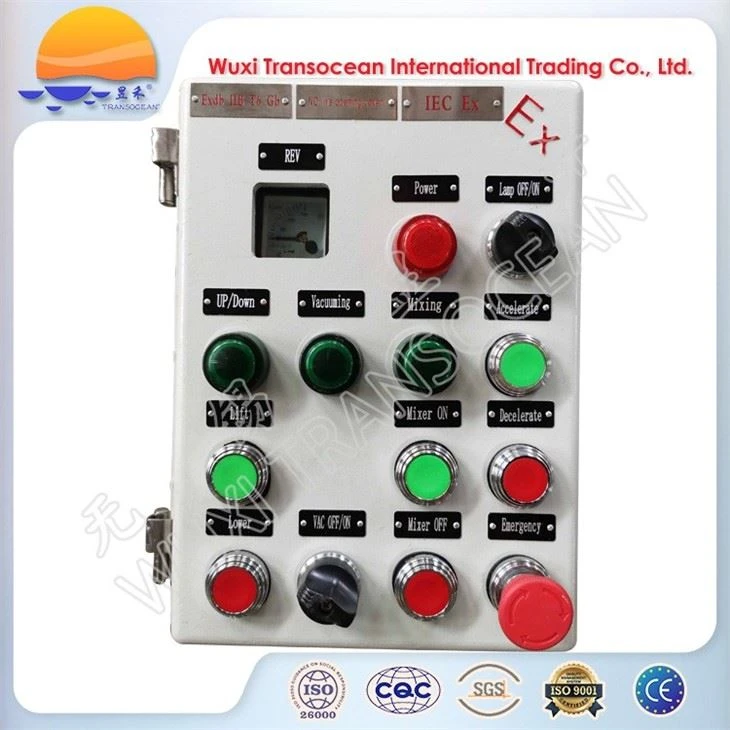

● Control cabinet
Lamp OFF/ON: Lamp on sight glass of material tank lid
Emergency: Emergency stop
Up/Down: Lifting or lowering
Vacuuming: vacuum unit is working
Mixing: mixer is working
Power: Power is ON
Lift: to lift the mixer head
Lower: to lower the mixer head
VAC ON: turn on vacuum pump
VAC OFF: turn off vacuum pump
Mixer ON: turn on vacuum mixer
Mixer OFF: turn off vacuum mixer
Accelerate: speed up
Decelerate: speed down
● Hydraulic station
The Hydraulic station consists of a oil tank, check valve, solenoid valve, gear pump, etc.. It is used to lift/lower the dispersing head. Before operation please clean the oil tank, check valve, solenoid and oil filter. Fill the oil tank with about 60L universal hydraulic oil 10#-20#.
Advantages
● The required vacuum can be formed in a very short time.
● The vacuum buffer tank can filter the powder impurities in the gas, and at the same time prevent the working fluid of the vacuum pump from flowing into the mixing drum to contaminate the product.
