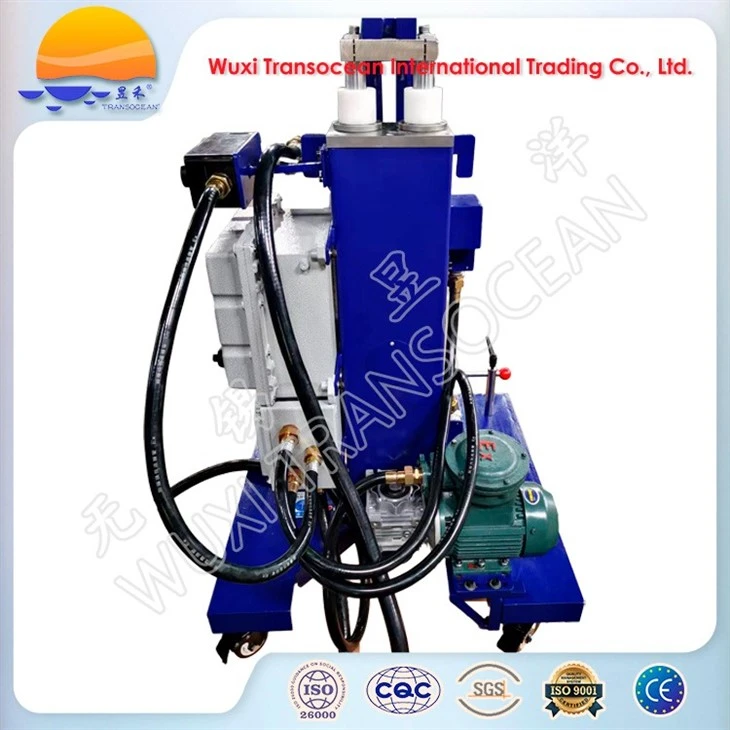

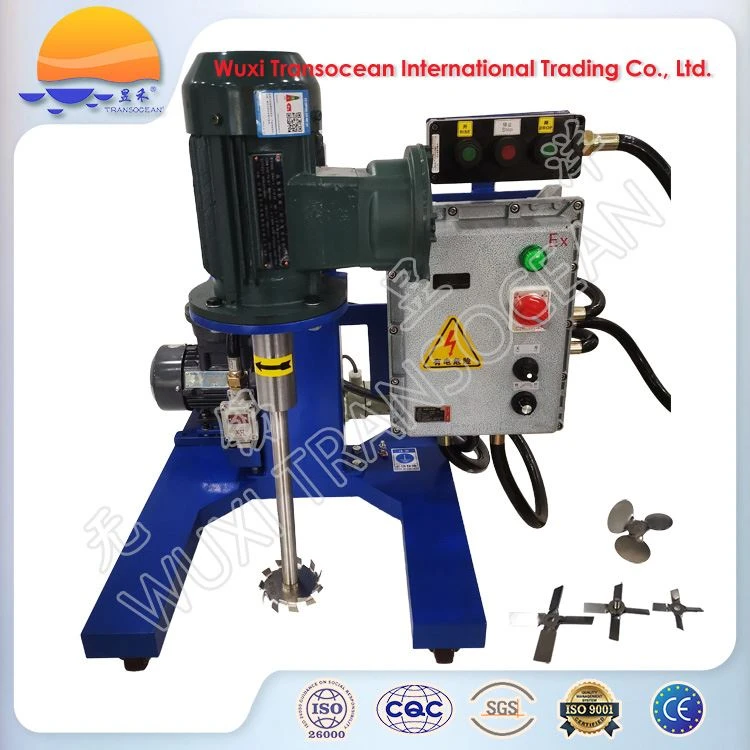

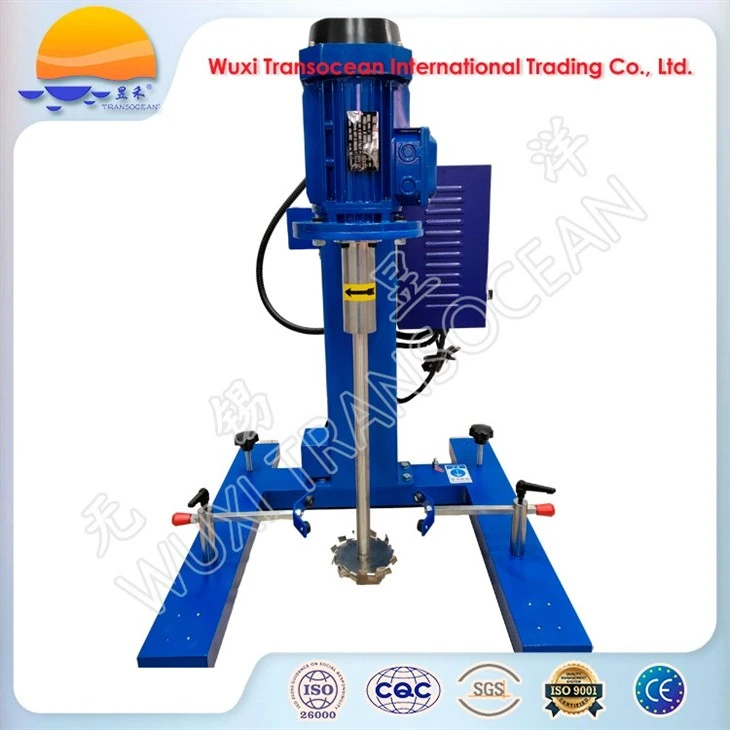

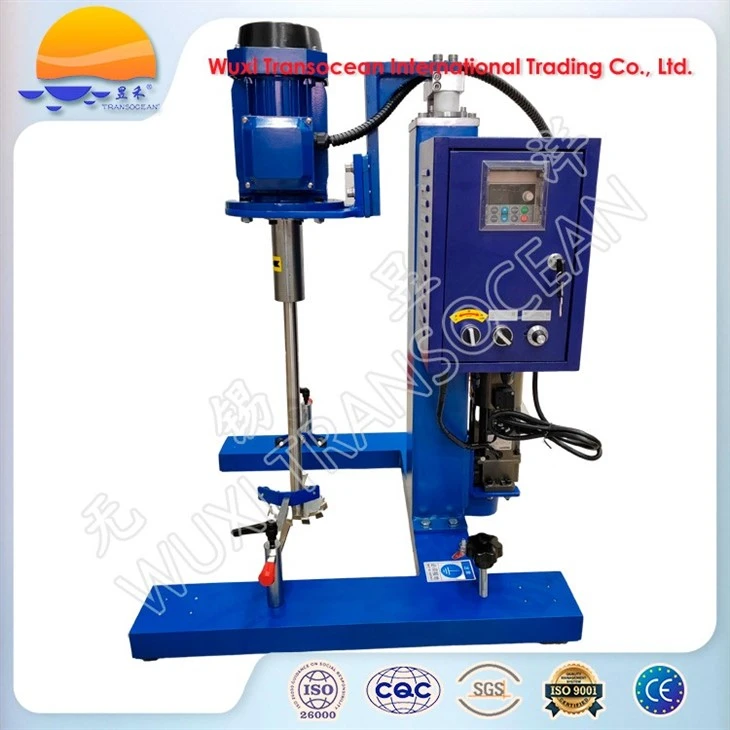

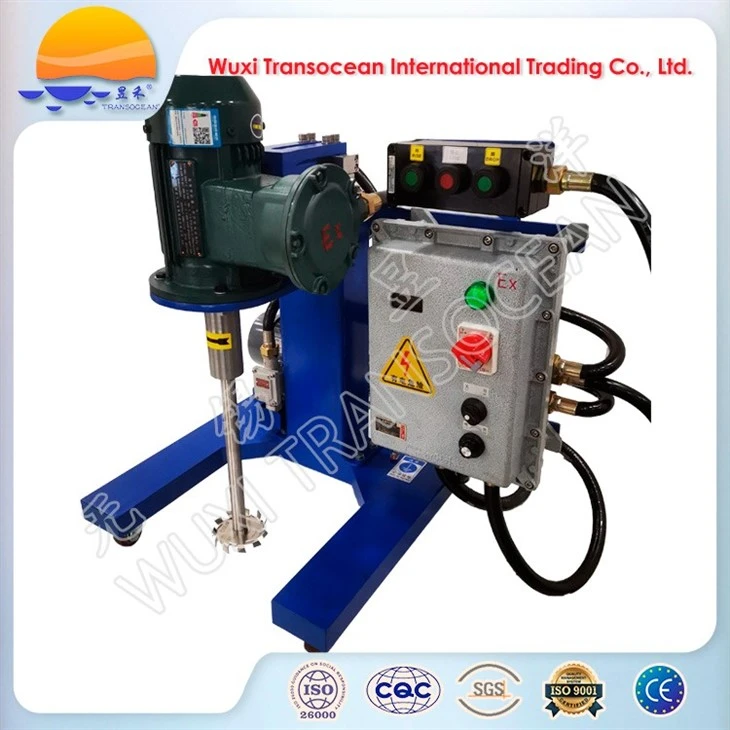

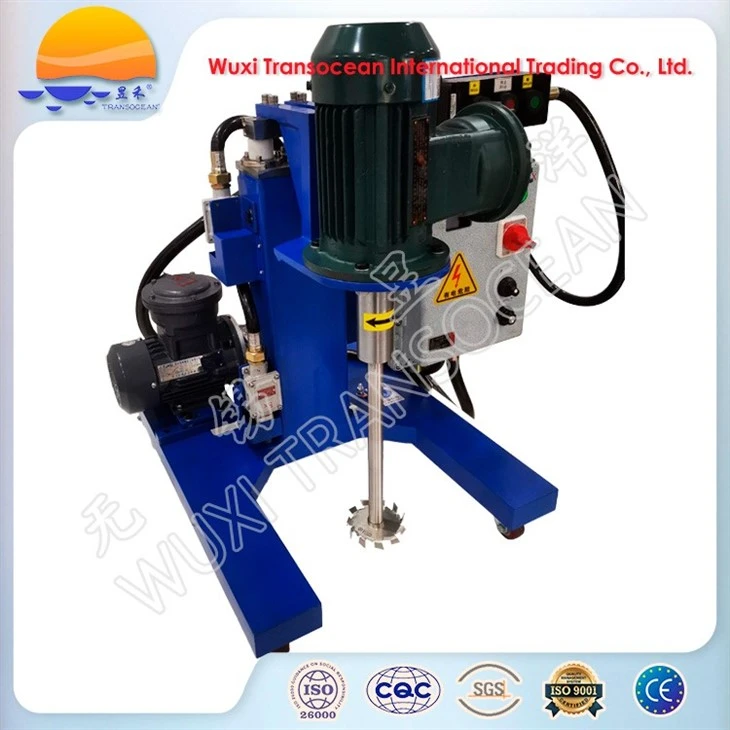

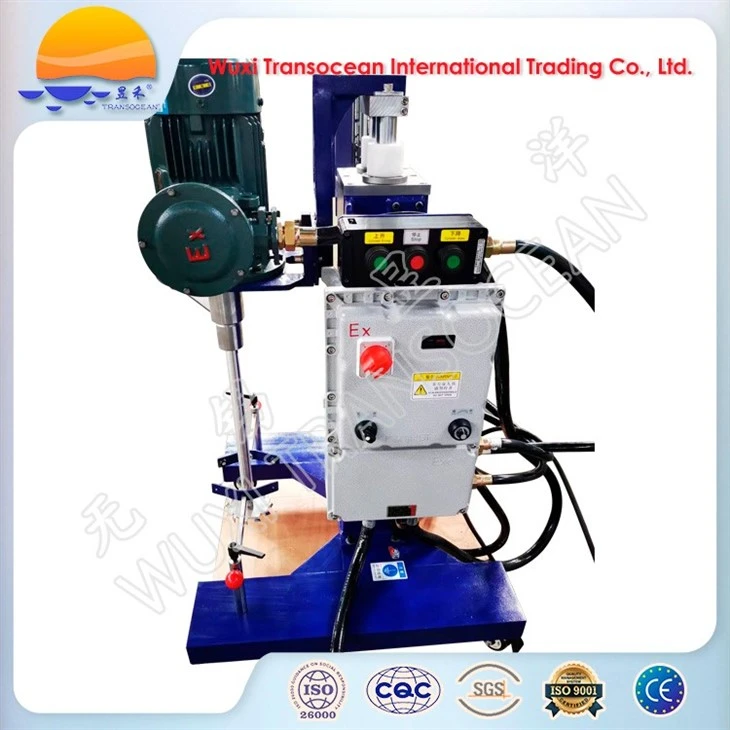

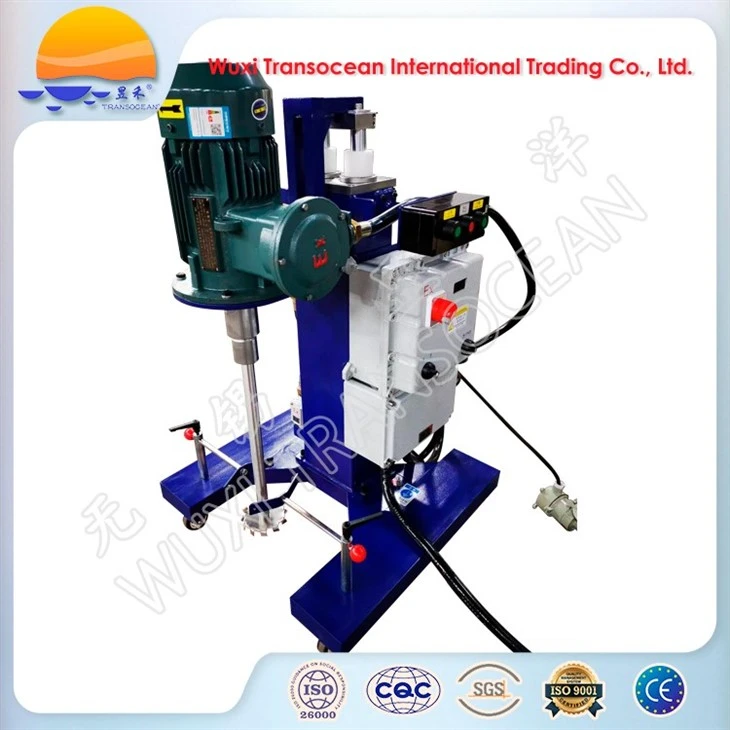

Electric Lift Mixer

TRANSOCEAN^® Electric lift mixers are applicable for pilot mixing in labs or small batch mixing in production. The mixing blade is driven by an electric motor which is regulated by an inverter. Various designs of mixing blades are available as options. The mixing head is lifted/ lowered by an electric putter. Ex editions are available as an option.

● Motor power: 3P/380V/50Hz 0.75KW~5.5KW (customizable)

● Mixing speed: 0~1,500rpm / 0~3,000rpm

● Speed regulation: by inverter

● Diameter of mixing blade: Ф150mm/ Ф180mm/ Ф200mm/ Ф230mm/ Ф250mm

● Lifting stroke: 400mm~1,000mm

● Mixing vessel capacity: 5L~50L/ 50L~100L/ 100L~150L/ 200L~300L

1. Easy to lift: The electric lifting system can easily adjust the height of the agitator to achieve precise positioning and meet the needs of different mixing containers.
2. Easy to operate: Equipped with an electric lifting button, the operator only needs to press the button to complete the lifting and lowering operation of the agitator.
3. High efficiency and energy saving: The high efficiency and energy saving stirring blade design can reduce energy consumption while improving stirring efficiency.
4. Stable structure: The "four-column + three-layer" three-dimensional structural frame is adopted to ensure the stability and firmness of the equipment during operation.
5. Speed ​​regulation function: The speed regulator can be configured to select the operating speed according to the mixing process to achieve the ideal mixing effect.

1. Chemical industry: mixing coatings, inks, resins, adhesives, etc. to achieve uniform dispersion or reaction of materials.
2. Pharmaceutical and food industries: stirring liquid medicines, pastes, sauces, beverages, etc. (the parts in contact with materials are mostly made of stainless steel, which meets hygiene standards).
3. Building materials industry: stirring coatings, putties, mortars and other building materials.
4. Laboratory field: small Electric Lift Mixer can be used for small batch material mixing and formula development in scientific research experiments.

1. Material properties: Select the type of impeller (e.g. anchor impeller for high viscosity materials, turbine or dispersion disc for high dispersion requirements) and contact material (e.g. stainless steel, plastic lining, etc.) according to material viscosity, solid content, corrosiveness, etc.
2. Container specifications: Determine the lifting stroke and stirring shaft length according to the container diameter and height.
3. Stirring requirements: Determine whether mixing, dispersion or reaction is required, and select the appropriate speed range and power.
4. Safety and sanitation: The food and pharmaceutical industries must ensure that the equipment meets GMP standards, and the part in contact with the material is easy to clean and has no dead corners.
