Volumetric Filling Capping Machine
Product Details
Introduction

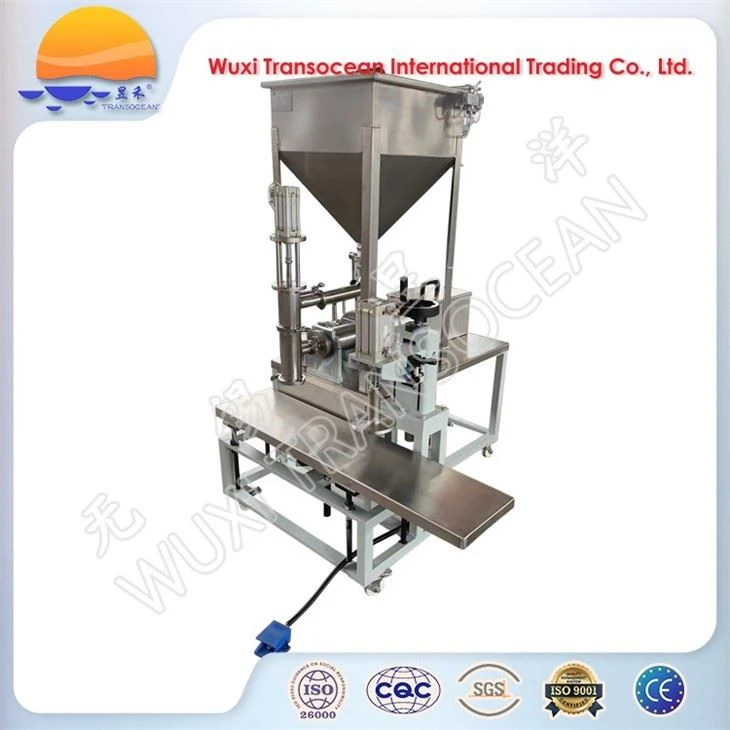

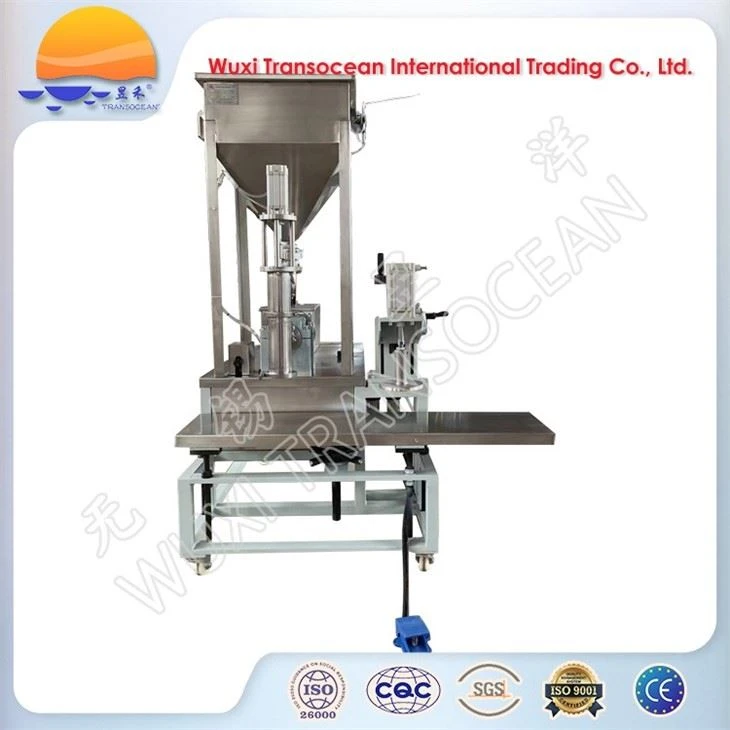

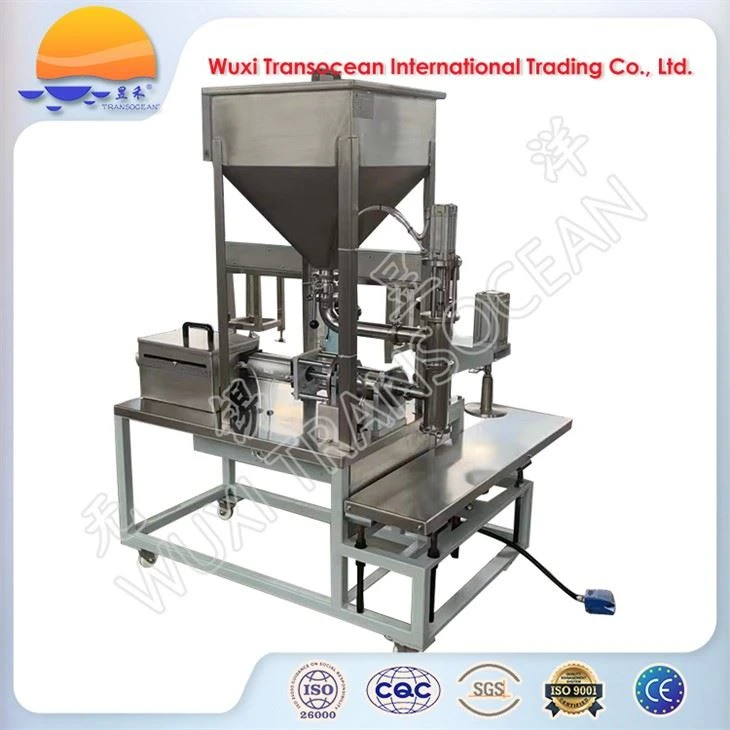

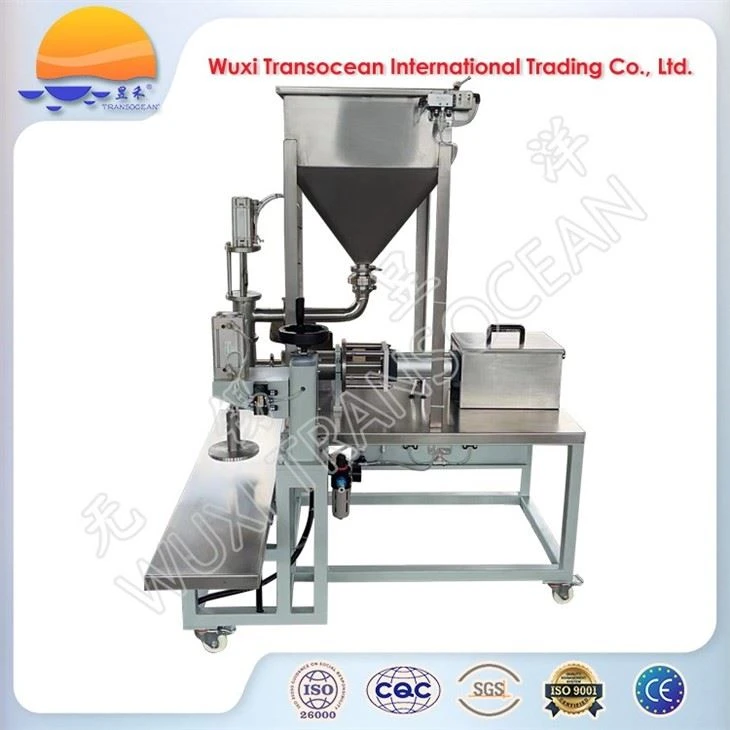

TRANSOCEAN® volumetric filling and capping machine is composed of volumetric filling unit, capping unit and control cabinet, which is suitable for volumetric filling of various liquid materials. The plunger of the volumetric filling unit is driven by a cylinder to perform linear reciprocating motion. In each filling cycle, when the plunger moves backward, the cylinder draws the set volume of liquid material from the feed side; when the piston moves forward, the valve at the discharge end opens to discharge the material to complete a filling process. The full bucket is maunually moved to the capping station. Turn the capping handle to perform capping and then turn it in reverse to raise the capping plate and release the full bucket for output.
Technical parameters
●Quantity of filling nozzles: 1PC / 2PCS
●Applicable packaging containers: 25ml~500ml/ 1L~5L
●Filling speed: 400~600PCS/h (single nozzle)/ 800~1000 PCS/h (double nozzles)
●Filling accuracy: ±1%
Features
●The filling target value can be set and adjusted by adjusting the throughput of the cylinder (1).
●The filling speed can be regulated by adjusting the air flow rate of the cylinder (2, 3).
●A disc type capping device or a pneumatic capping device is optional to seal the container.
●Automatic conveying devices, labeling devices, coding devices, etc. is optional to meet individual needs.
Advantage
1. High-precision filling: Ensure consistent filling volume for each container through volume control.
2. Wide range of applications: Can handle low-viscosity liquids (such as water, oil) to high-viscosity liquids (such as honey, jam).
3. High degree of automation: Reduce manual intervention and improve production efficiency.
4. Hygienic design: Reduce product contact and reduce the risk of contamination.
5. Versatility: Can complete filling and capping operations at the same time to improve production efficiency.
