Sausage Sealant Filling Machine
Product Details
Introduction

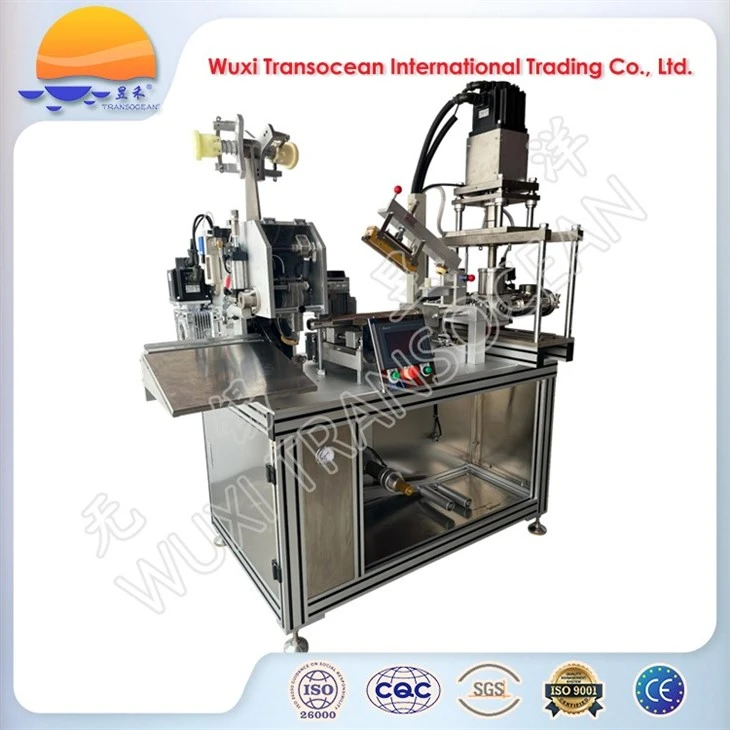

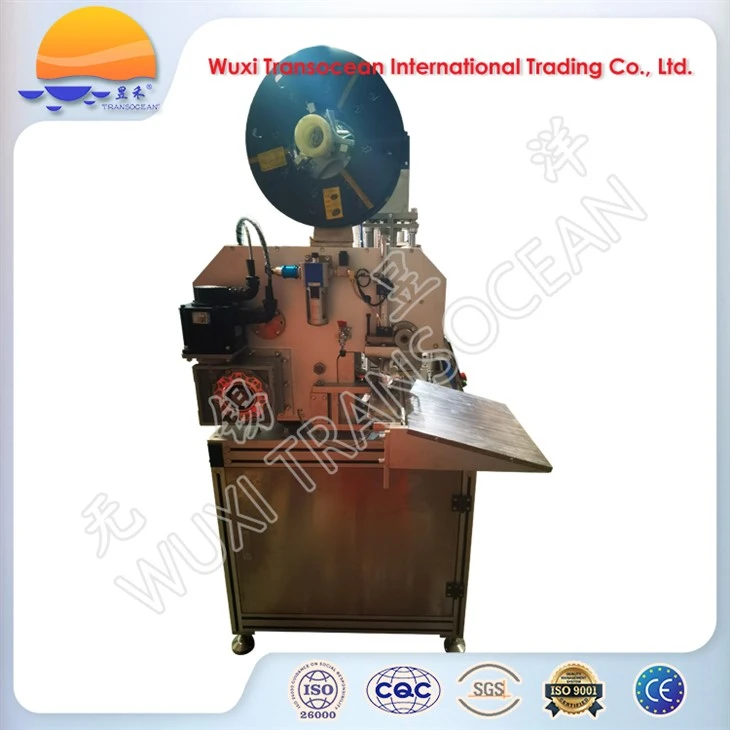

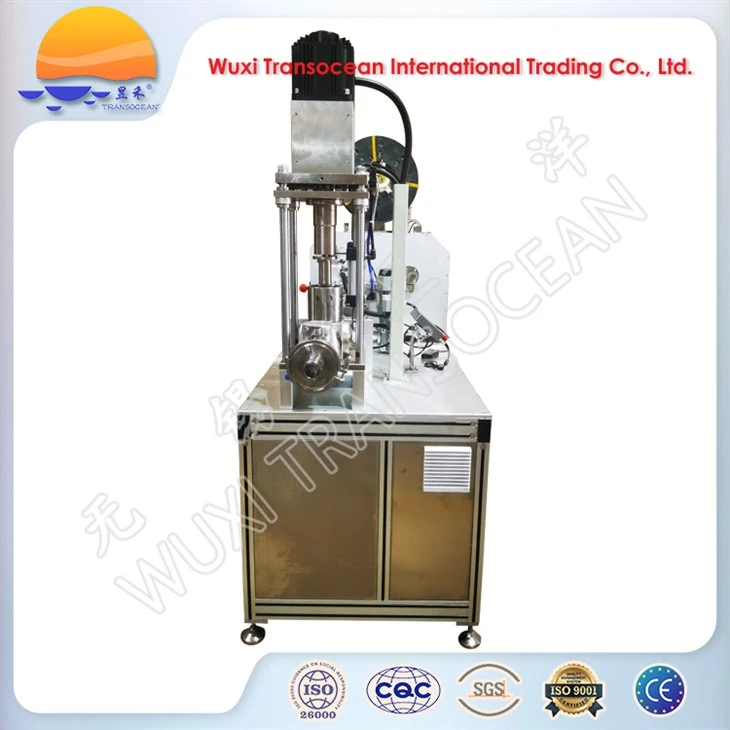

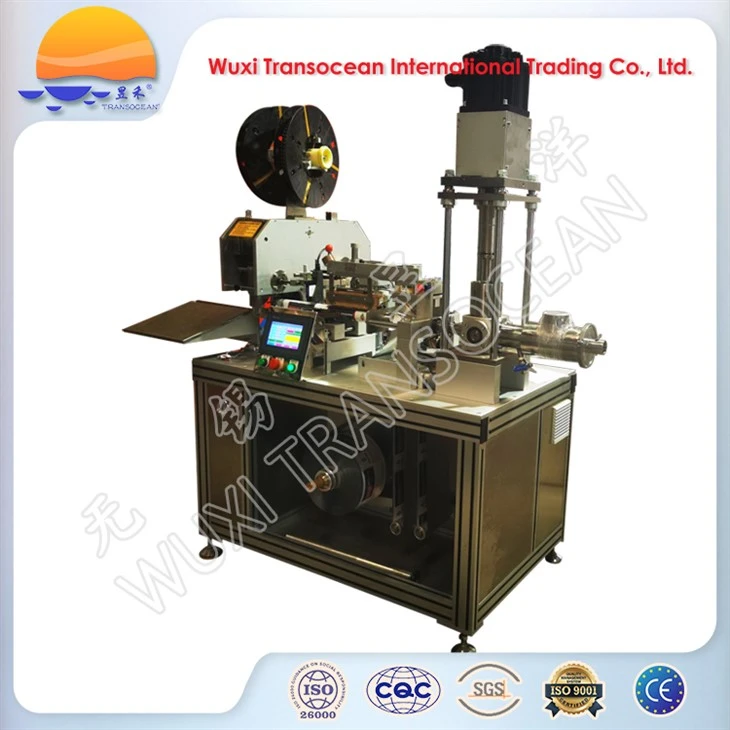

TRANSOCEAN® sausage sealant filling machine is professional packaging equipment for packing silicone sealant, PU sealant, MS sealant and other high viscosity glue materials with aluminum plastic composite films. This equipment is composed of rack, film feeding unit, sausage hose forming unit, hose heat sealing unit, quantitative feeding mechanism, buckle supply device, hose forming device, coder, HMI and electric control cabinet. TRANSOCEAN® sausage sealant filling machine can automatically complete processes such as hose forming, hose heat sealing, material quantitative filling, hose forming, batch No. & production date printing and output of sausage shaped sealant products. TRANSOCEAN® sausage sealant filling machine adopts HMI control, which is easy and convenient to operate. Users only need to input the filling target value as needed to start production. According to user request, an extruder for material feeding and more customized design are available as options.
Technical specifications
- Power supply: 3P/380V/50Hz (can be customized)
- Power (kW): 6
- Air source pressure (bar): 5-6
- Compressed air consumption: 0.2m³/ min.
- Filling target value (ml): Max. 600 (adjustable)
- Filling accuracy: ± 0.5%
- Processing capacity: 15-25pcs/min
- Hose diameter (mm): Ø48/ Ø 51
- Equipment dimensions (L * W * H, mm): 1250 * 950 * 1800
- Weight (KGS): 580
Advantages
1. Efficiency: Automated filling and sealing processes, reducing labor costs.
2. Consistency: Ensure uniform dosage of sealant used for each sausage, improving product quality.
3. Hygiene: Made of materials that are easy to clean and meet food safety standards.
4. High-speed operation: Suitable for large-scale production lines with high output.
Applications
1. Sausage production: Fill sausages with sealants (e.g. preservatives, spices or sauces).
2. Meat processing: Suitable for all kinds of processed meats that require uniform filling and sealing.
3. Industrial food production: Suitable for mass production of sausages or similar products.
