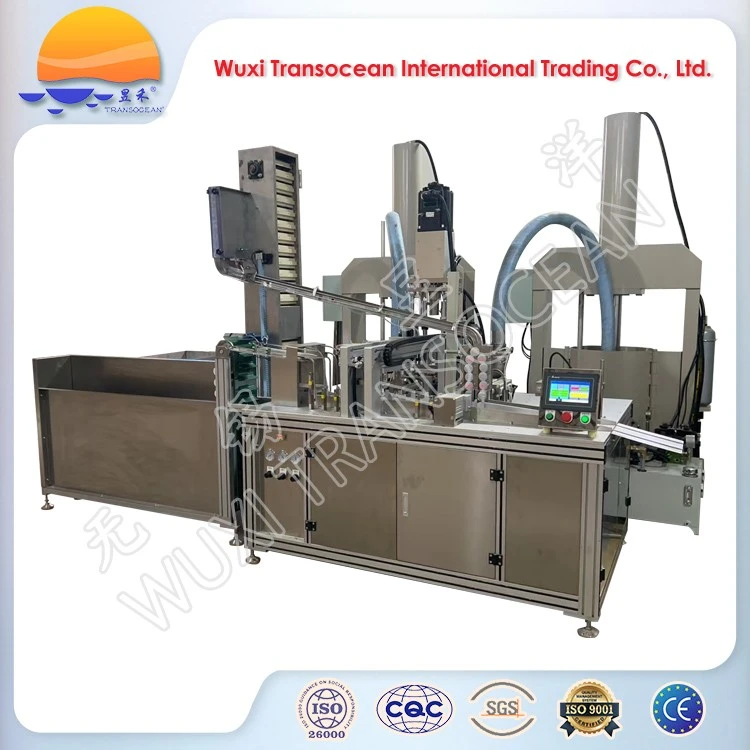

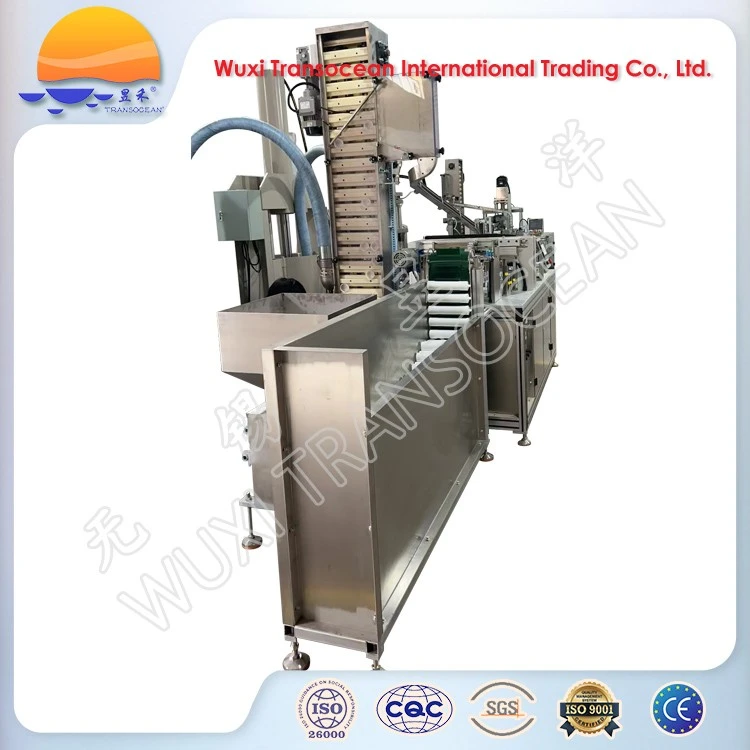

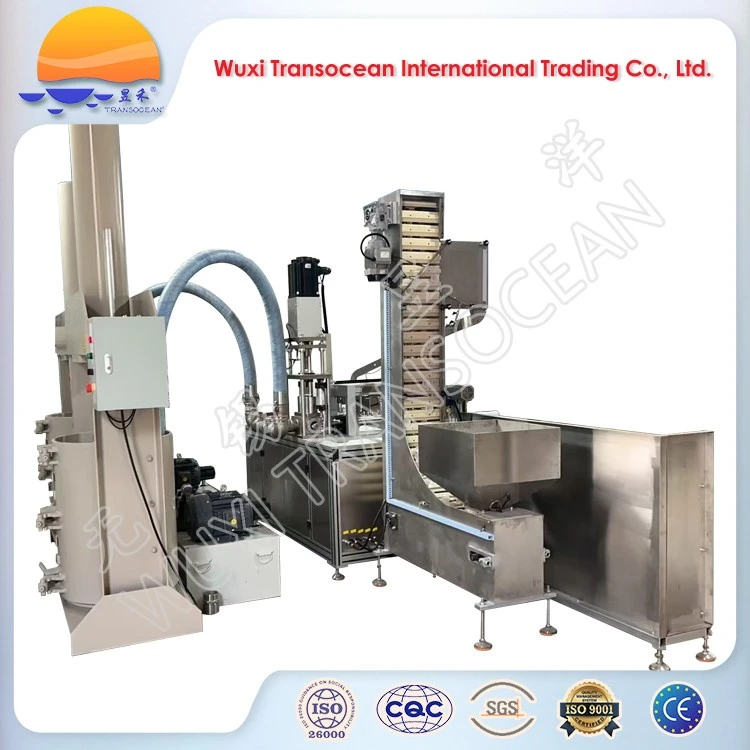

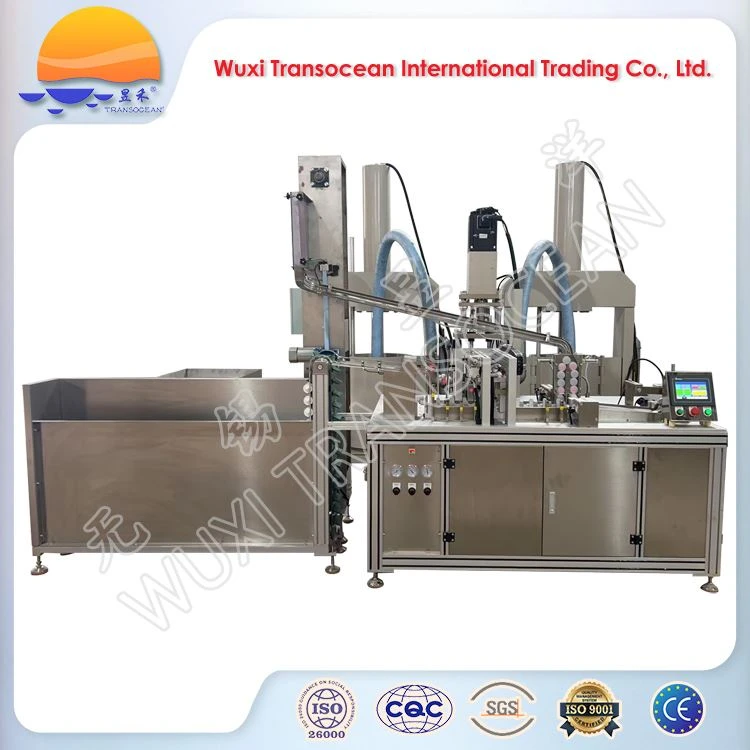

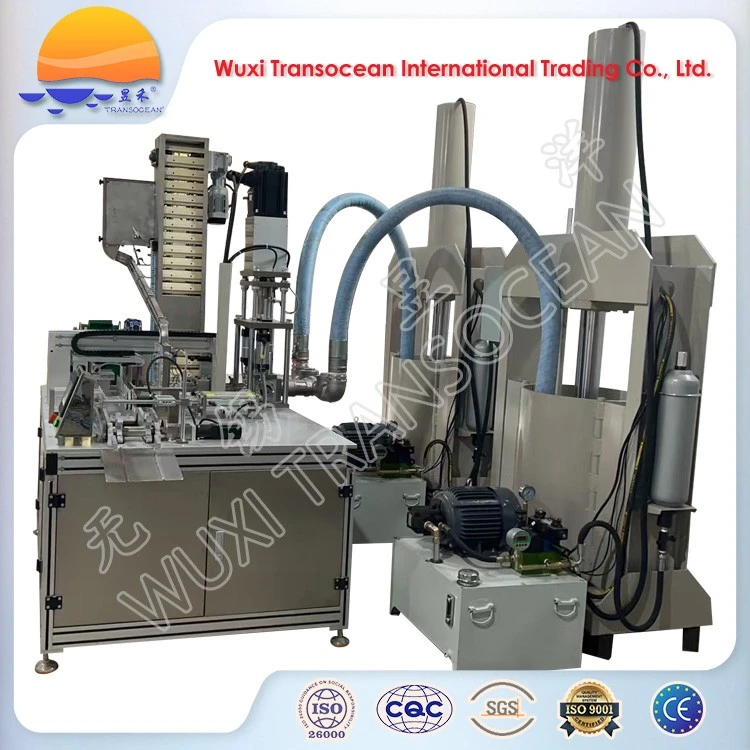

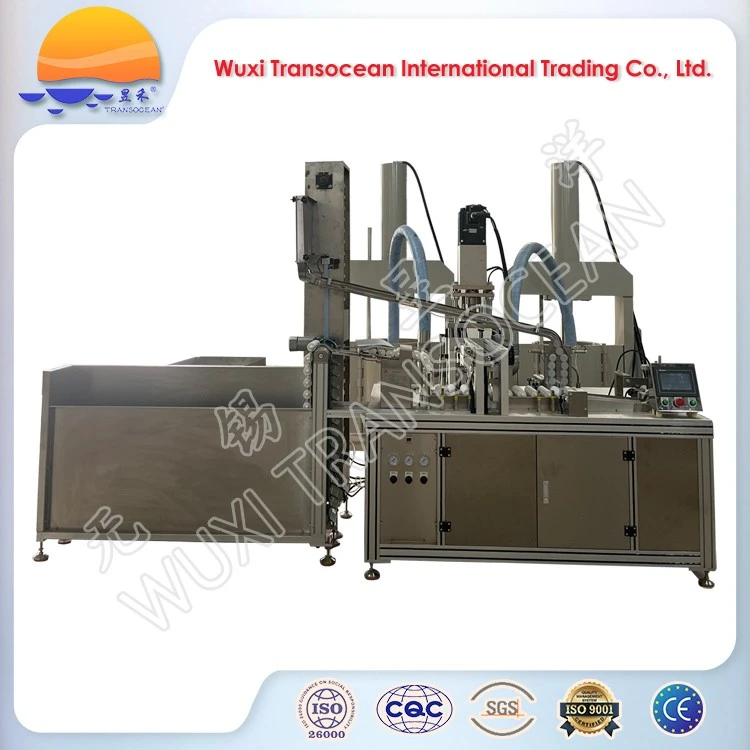

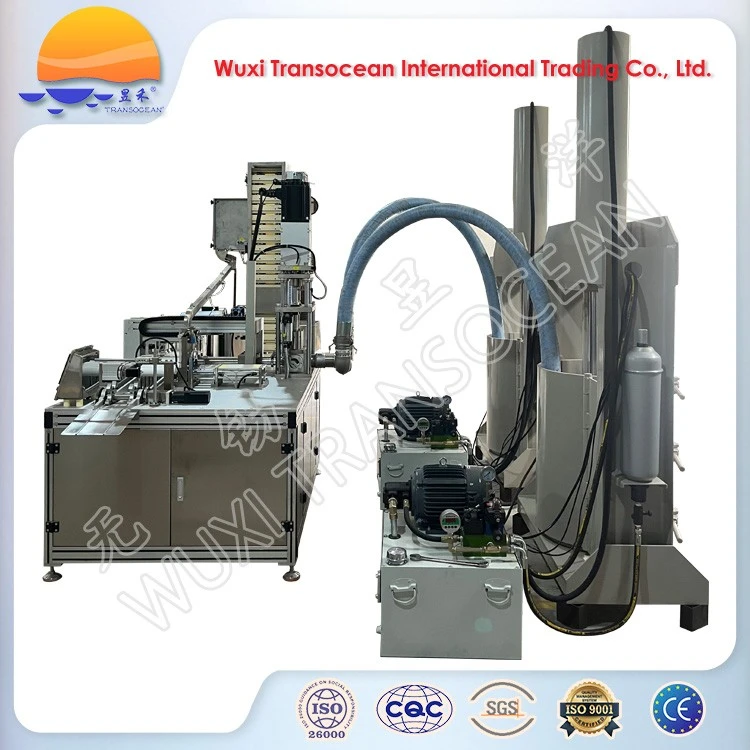

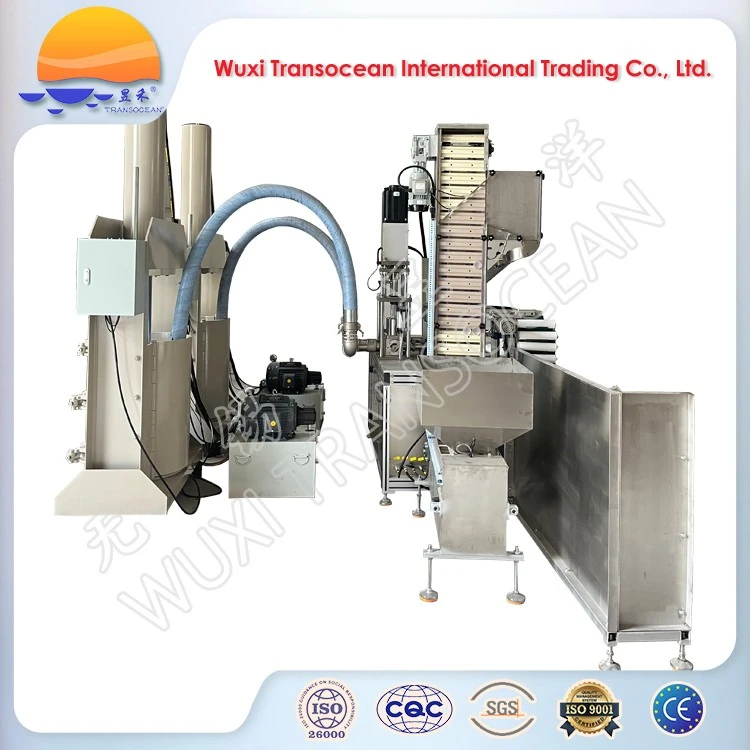

Cartridge Filling Machine
Product Details
Description
TRANSOCEAN® Cartridge filling machines are tailed for quantitative packing of highly viscous pastes such as silicon sealants, PU adhesives, acrylic sealants, greases. Thanks to the servo and HMI, the filling process and plugging process can be carried out smoothly and accurately. Upon the users' request, the hydraulic extruders can be provided to transfer the materials to pack from the material drum to the filling unit, and a printer can be supplied for printing the batch No., production date and expiration date on the filled cartridges. It is a perfect solution for automatic quantitative packing of a variety of viscous pastes.
Structure diagram of TRANSOCEAN® Cartridge filling machine
1, 2: Hydraulic extruders (optional)
3, 4: Feed pipes
5: Dosing Servo
6: Cartridge sorting unit
6-1: Cartridge silo
7: Tail plug sorting unit
7-1: Tail plug silo
8: Filling unit
9: Plugging unit
10: Printer
11: HMI
12: Finished product outlet
13: Electric cabinet
14: Rack
Features
● TRANSOCEAN®Cartridge filling machines adopt a modular design, which can be put into use quickly by connecting the hydraulic extruders and the cartridge feeder & tail plug feeder to the filling unit.
● The rack is made of aluminum alloy and stainless steel, which characterizes a compact design, high-strength, and lightweight.
● The two sets of parallel presses can be quickly switched to achieve continuous operation of the paste packing machine.
Technical specifications
|
Model |
SV-01-300 |
SV-02-300 |
|
Power supply |
AC 3P/380V/50Hz (customizable) |
|
|
Air source (bar) |
5~7 |
|
|
Quantity of filling nozzle |
1 |
2 |
|
l Target filling value (ml) |
300/ 310/ 330/ 400 (customizable) |
|
|
Applicable cartridge material |
Plastic/ Paper + Aluminum/ Aluminum |
|
|
Applicable tail plug material |
Plastic/ Steel / Aluminum |
|
|
l Dosing accuracy |
±0.5% |
|
|
Processing capacity (PCS/min.) |
20~35 |
50~60 |
|
Outline dimension (L*W*H, mm) |
3500*1300*2250 |
4200*1300*2250 |
|
N.W. (KGS) |
680 |
905 |
Workflow of the TRANSOCEAN® Paste packing machine
● Preparation for operation:
1. Material drum loading into the hydraulic extruder
2. Cartridge loading into the cartridge silo
3. Tail plug loading into plug silo
● Press【Auto】on the HMI and turn on the hydraulic extruder to carry out automatic filling & plugging.
Applicable containers
Advantages
● Hydraulic extruders are applicable for the feeding of highly viscous materials.
● Cartridge sorting & loading and tail plug sorting & loading go on automatically.
● Servo and HMI are adopted to make sure the packing process goes on smoothly and ensure the dosing accuracy to get perfect products.
● The messy cutter integrated in the filling nozzle keeps the cartridge exterior free from product contamination.
● Signal I/O is available on the HMI to facilitate real-time monitoring of equipment dynamics.
● All filling and plugging operations are completed in a closed environment to avoid environmental contamination.
