Automatic Sealant Filling Machine
Product Details
Introduction

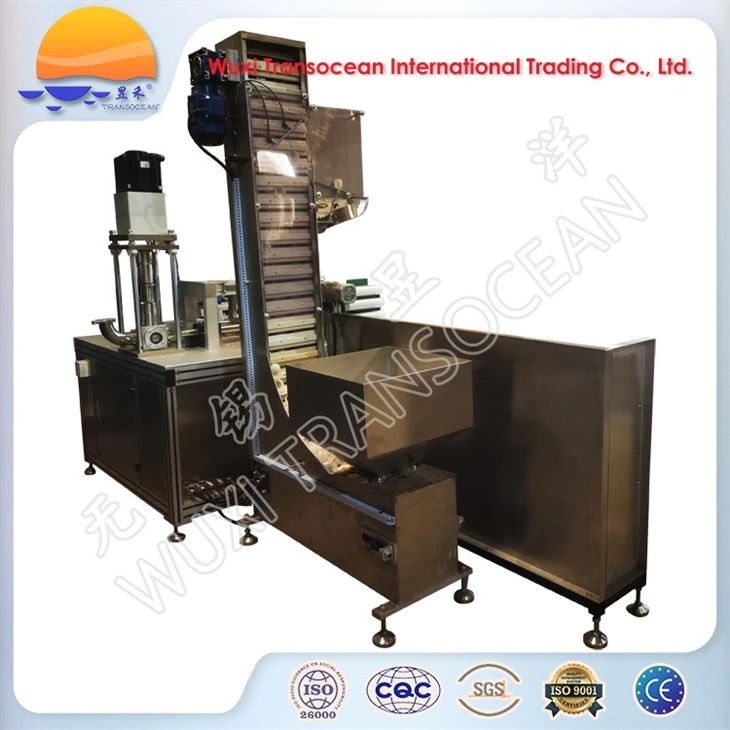

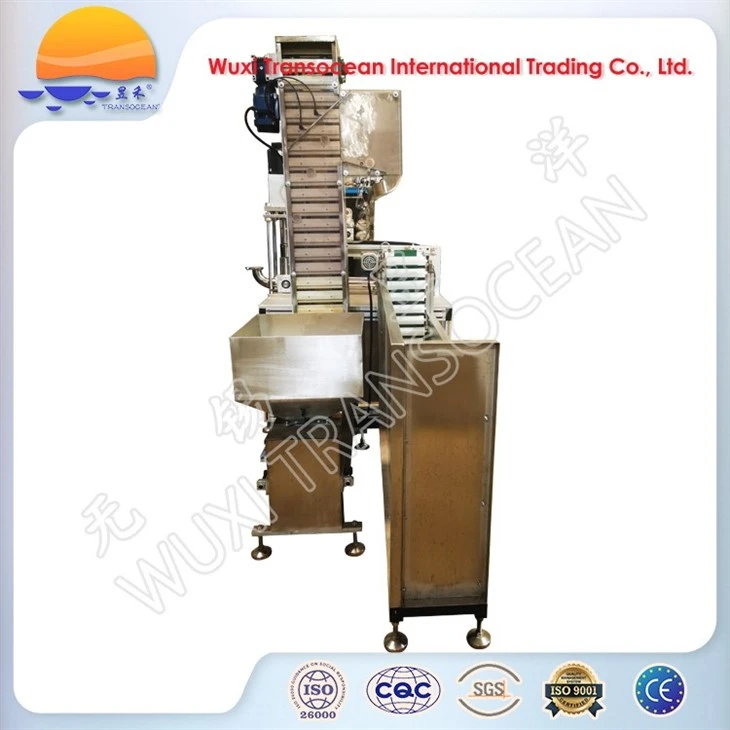

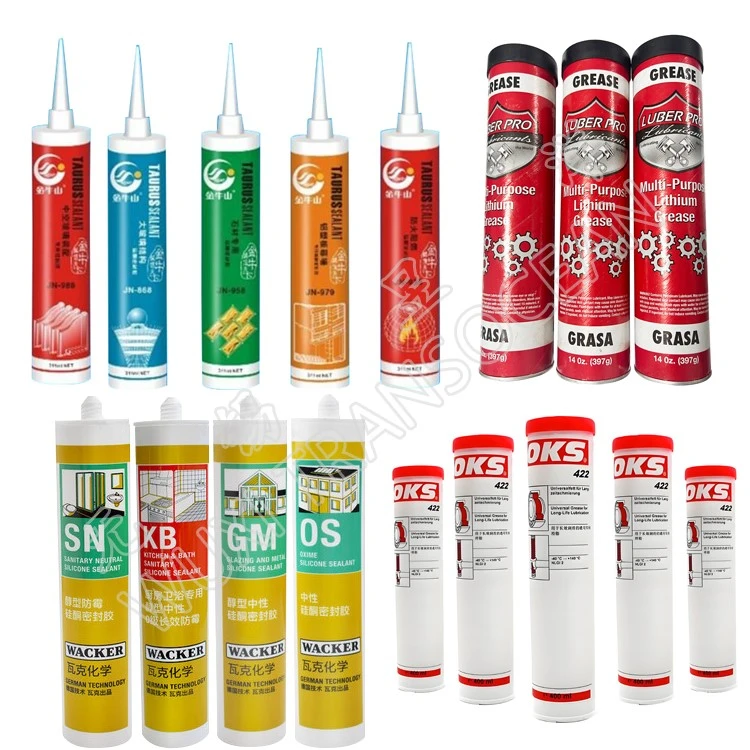

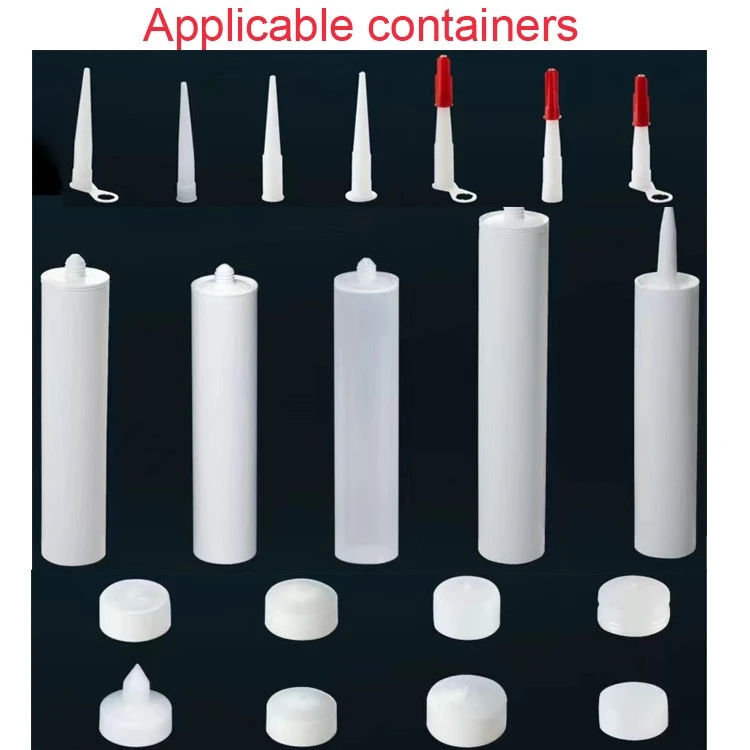

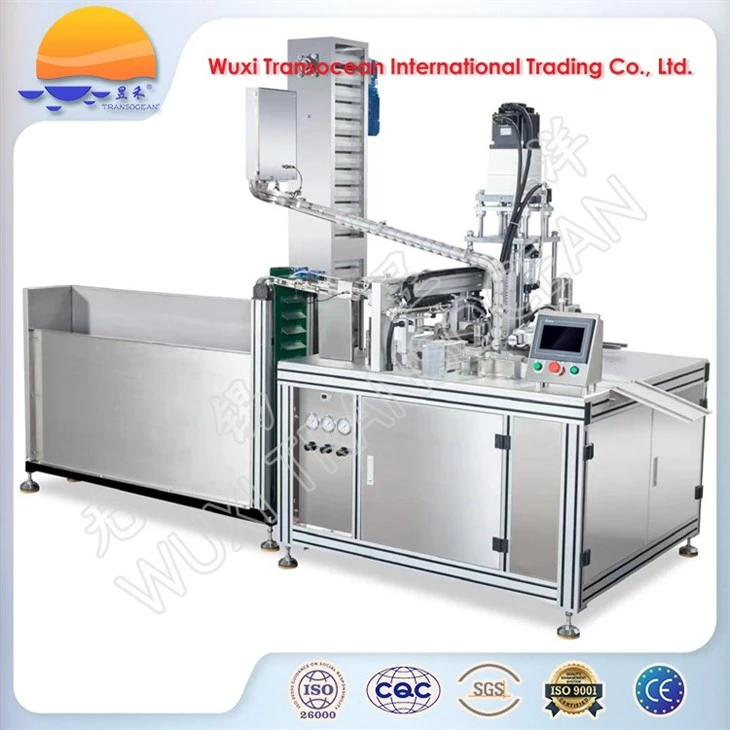

TRANSOCEAN ® automatic sealant filling machine are specialized quantitatively packing equipment for various pastes, greases, sealants and alike with plastic cartridges or aluminum cartridges. The automatic sealant filling machine consist of a rack, cartridge feeding mechanism, cap feeding mechanism, filling unit, messy cutting device, capping unit, HMI, and electric control cabinet. It can automatically complete processes such as quantitative filling and capping. With the HMI it is simple and convenient to operate. For materials with high viscosity and poor fluidity an extruder is available as an option to feed the sealant filling machine. The coder for printing of batch No. and production date is available as option.
Technical specifications
|
SV-01-300 |
SV-02-300 |
|
|
Power supply |
AC 3P/380V/50Hz (customizable) |
|
|
Air source pressure (bar) |
5~7 |
|
|
Compressed air consumption (m³/min.) |
<0.3 |
<0.5 |
|
Target filling value (ml) |
Max. 310 (adjustable) |
|
|
Measurement tolerance |
±0.5% |
|
|
Production capacity (PCS/min.) |
20~35 |
40~60 |
|
Piston diameter (mm) |
Ø49±0.5 (customizable) |
|

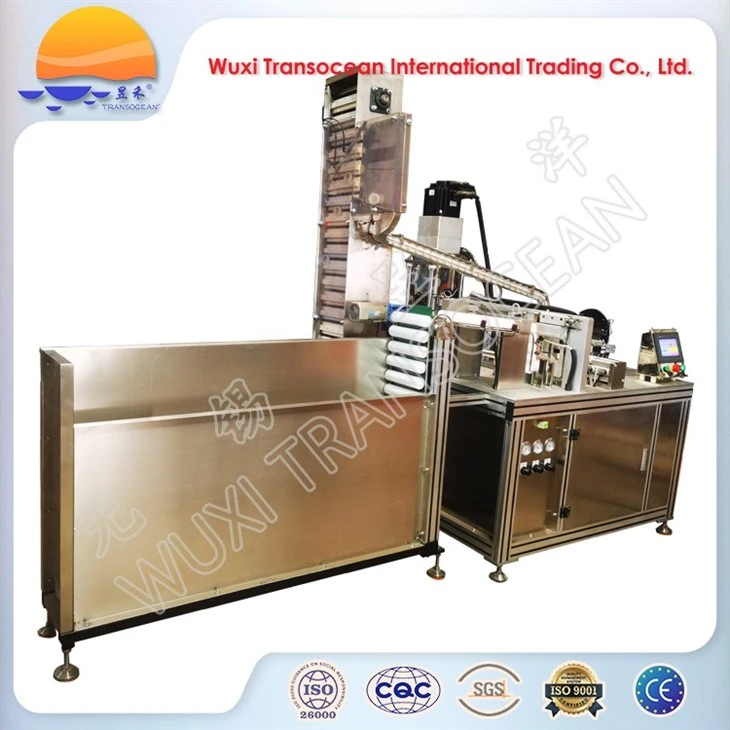

Single cartridge filling machine

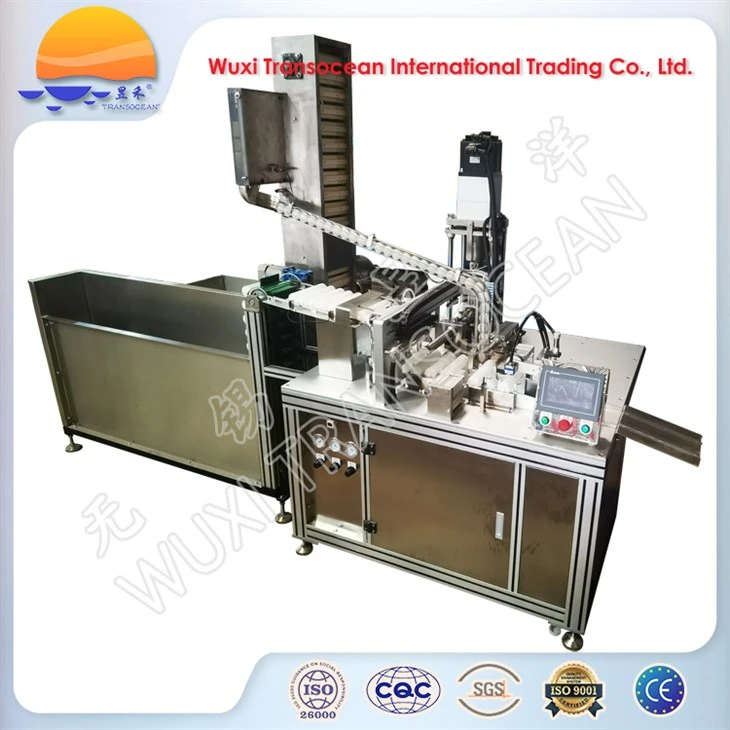

Twin cartridge filling machine
Features
●Automatic cartridge supply, cap arranging, quantitative filling, capping, and coding;
●The HMI characterizes real-time display of process parameters, perfect stability, and easy operation;
●Volumetric measurement and servo motor control, high measurement accuracy. Especially suitable for quantitative packaging of high viscosity and high solid content materials such as putties and sealants;
●Material filtration device is available;
●2 quantitative cylinders can be arranged in a straight line with a guide rail translation mechanism for quick material shift.
Application fields
1. Construction industry: used for potting of silicone sealants, polyurethane sealants, etc. in doors, windows, curtain walls, gaps, etc.
2. Electronics industry: used for potting of electronic components, circuit boards, etc., which plays a role in waterproofing, dustproofing and shockproofing.
3. Daily chemical industry: used for potting of cosmetics, detergents and other products, and also suitable for filling various packaging containers such as plastic tubes and bottles.

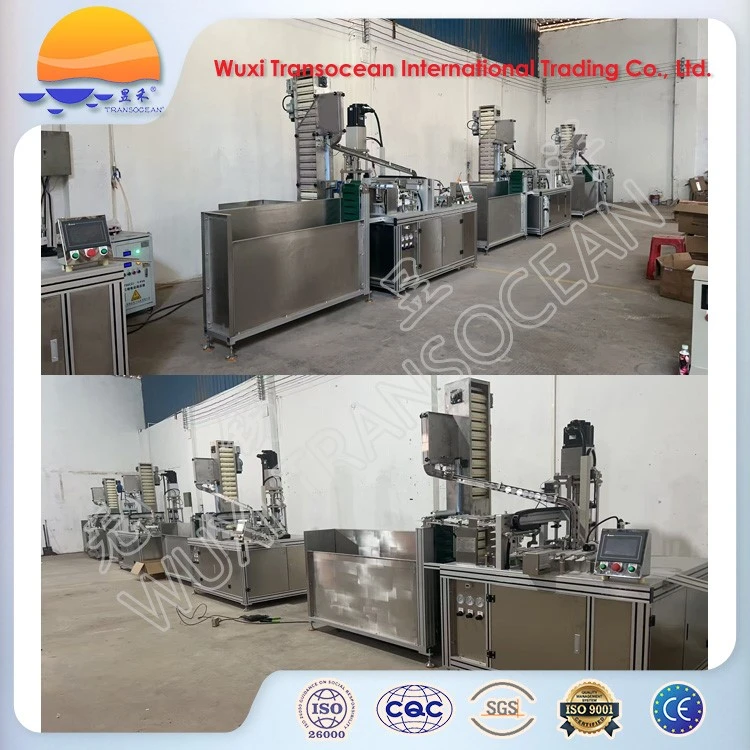

Our shipment
